factory supplier lcd monitor 7 inch open frame LED monitor lcd computer monitor
- Category: >>>
- Supplier: Shenzhen Kings Fun Electronic Co. Ltd.
Share on (60819903642):
Product Overview
Description
| Key Specifications | |||||
| System parameters | Panel Size | 7"LCD panel | |||
| LCD Panel | CHIMEI INNOLUX | ||||
| Panel Grade | A+ pefect panel | ||||
| Aspect Ratio | 16:9 7 inches (digital) | ||||
| Working Voltage | DC 12V AC100-240V | ||||
| Working Current | 600 mA(MAX: 1A) | ||||
| Power consumption | <10W Typ | ||||
| Resolutions | 800*480 | ||||
| Backlight | Led Backlight | ||||
| LCD Brightness | 300 cd/m2 | ||||
| Contrast Ratio | 700:1 | ||||
| Response time | 8ms | ||||

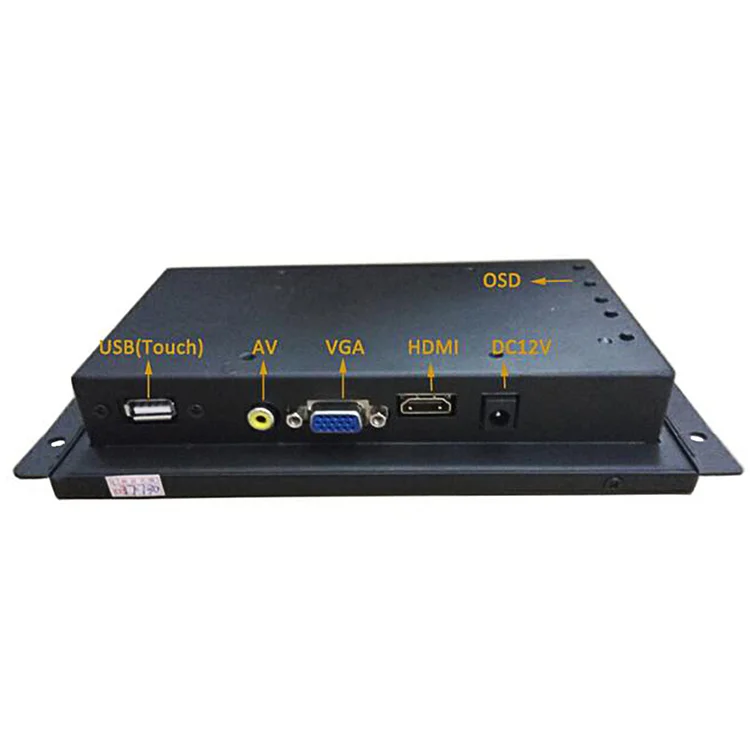

| Input configuraion | VGA +HD+AV, ( or HD only) | ||||
| View Angle | 85/85/85/85 | ||||
| Audio system | BG/DK/I,M/N,L | ||||
| Frequency | 30~80KHz/60~75Hz | ||||
| Operation Environment | Workable Temperature:-10 to 60°C | ||||
| Storage temperature:-20 to 70°C | |||||
| Operate relative humidity:20% to 80%; | |||||
| storage relative humidity:10% to 90% | |||||
| Chromatic System | PAL/NTSC Auto Switch | ||||
| Duration | 50000hours | ||||
| touch validity | >1,000,000 | ||||
| Operation system | DOS/Window 9X,ME,2K,XP,7 Vista, NT, CE,LINUX, | ||||
| Mac win7 win8 win10 | |||||
| Packing | |||||
| Measurment( W×L×H ) | N.W(kg) | G.W(kg) | Qty(pcs) | Container Load | |
| Unit | Size(mm) : 189.5*129.5*30 | 2kg | 20': about 4300pcs 40': about 9300pcs | ||
| Gift box | Size(mm) : 300*227*150 | 3.5kg | |||
| Carton | Size(mm): 465x315x220 | 10kg | 5 | ||
