Wireless network communication equipment zigbee gateway

Product Overview

Description

IoT Zigbee gateway device for smart city smart home









Function and features:

1) Stable full Netcom speed experience, fully compatible with telecommunications, mobile, China Unicom's 2G, 3G, 4G network

2) Cable network backup with each other to ensure the normal and stable data transmission

3) Support WIFI, 4G, Ethernet port access to the Internet, multi-network at the same time online.

4) Powerful WIFI function, support AP, STA, Repeater multiple modes,

5)Interface rich, to meet the different needs of customers and applications, 4-way WAN port, 232 serial port, 485 serial port, USB and 4 AD / IO interface.

6) A variety of wireless extensions, optional ZIGBEE, LORA, Bluetooth

7) Multi-network intelligent switching backup, data off network storage resume

8) Protocol rich, support for transparent transmission, MODBUS RTU switch TCP, MQTT.

9) Support for polling MODBUS devices proactively, helping customers save on cumbersome SCADA Modbus commands

10)Using industrial-grade high-speed 4G wireless communication module, configured 32-bit high-end processor, front-end acquisition of information transmission more real-time and higher speed.

11) Downstream reservation optional a variety of wireless communications, ZIGBEE, lora, Bluetooth, etc., more flexible use

12)Industrial Design, Metal Case, Stable 7X24 Hours Uninterrupted Work Under Various Industrial Environments & Strong Interference.







Specification name	Specification Description	Remarks
product name	1 Generation industrial gateway
Network standard	4G	Full Netcom connection
Device interface	Antenna interface	4G Antenna interface: SMA
		Wi-Fi Antenna interface: SMA
		Zigbee Antenna interface: SMA
	button	RESET button Set the button
	LAN interface	Support 4 * LAN port
	Serial port	1 Road 485/1 Road 232 interface
Data protocol	Penetrate/MODBUS RTU/MQTT
Power supply	Working Voltage	9-24v

1)Front panel interface introduction:

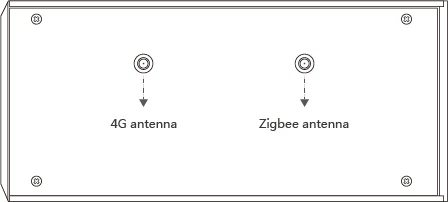

2)Top panel interface introduction











Q1. Is industrial gateway full netcom connection?

Yes, it has stable full netcom connection high speed experience, fully compatible with telecommunications, mobile, China Unicom's 2G, 3G, 4G network.



 Q2. Where is the industrial Gateway’ stable transmission reflected ?

Cable network backup with each other to ensure the normal and stable data transmission.



Q3. Can the industrial gateway support Multi-network at the same time?

Yes, Support WIFI, 4G, Ethernet port access to the Internet, multi-network at the same time online.



Q4. What modes does the industrial gateway Support?

Powerful WIFI function, support AP, STA, Repeater multiple modes.



Q5. What are the interfaces of this industrial gateway?

Interface rich, to meet the different needs of customers and applications, 4-way WAN port, 232 serial port, 485 serial port, USB and 4 AD / IO interface.



Q6. What wireless extensions does the industrial gateway has?

A variety of wireless extensions, optional zigbee, LoRa, Bluetooth.
