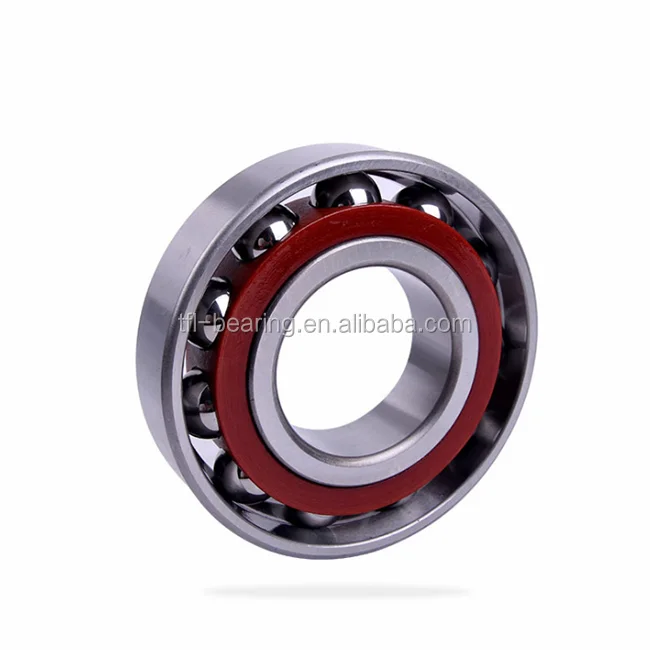

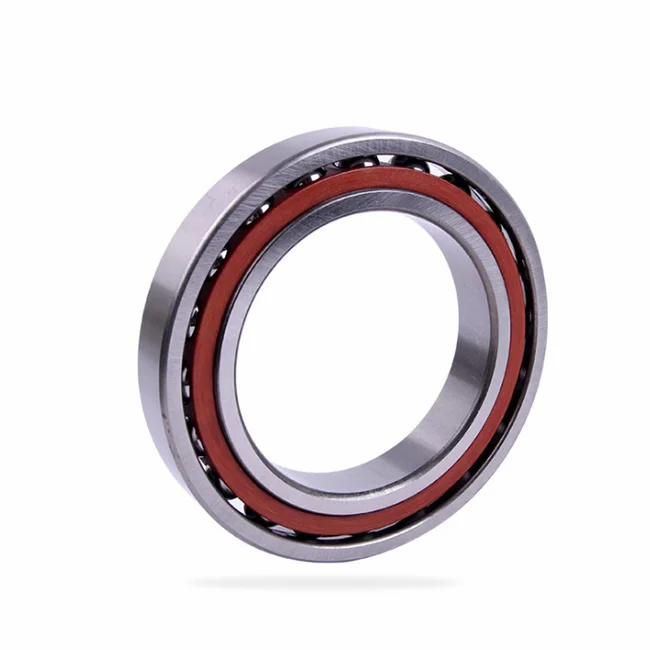

HIigh precision Original Japan 7200C Angular contact ball bearing

HIigh precision Original Japan 7200C Angular contact ball bearing

Category: Angular Contact Ball Bearings >>>
Supplier: Shandong,Tefule,Bearing,Co.,Ltd.

Price:

Price in USD:Details

Quantity:

Product Overview

Description

Product Description

What the specificaiton of HIigh precision Original Japan 7200C Angular contact ball bearing ?

Angular contact ball bearings are particularly suitable for carrying combined (axial and radial) loads. Sometimes, they also can carry pure axial load and operate in higher speed. Under radial load, axial component force will be produced which must be counteracted. So the bearings are normally adjust against a second bearing.
Single row angular contact ball bearings can carry axial load acting in one direction only. In many applications, angular contact ball bearings in pairs or muti-arrangement should be used. The axial load carrying capacity of angular contact ball bearings increases with the increase of contact angle.

Series Range

7000C(∝=15°)

7000AC(∝=25°)

7000B(∝=40°)

Back-to-back configuration, code-named DB (such as 70000 / DB)

Face to face configuration, code-named DF (such as 70000 / DF)

Tandem configuration, code-named DT (such as 70000 / DT)

Bearing No.	Boundary dimensions			Basic Load Ratings(kN)		Mass
	mm			Dynamic	Static	kg
	d	D	B	Cr	Cor
7200AC	10	30	9	5.5	2.8	0.032
7201AC	12	32	10	7.6	3.6	0.037
7202AC	15	35	11	8.9	4.8	0.045
7203AC	17	40	12	10.4	5.6	0.062
7204AC	20	47	14	14	7.8	0.1
7205AC	25	52	15	15.8	9.7	0.12
7206AC	30	62	16	22.1	13.5	0.19
7207AC	35	72	17	29.2	18	0.28
7208AC	40	80	18	36.8	25.4	0.37
7209AC	45	85	19	38.6	28.1	0.41
7210AC	50	90	20	40.8	30.1	0.46
7211AC	55	100	21	50.8	38.2	0.61
7212AC	60	110	22	58.1	46	0.8
7213AC	65	120	23	66.6	52.1	1
7214AC	70	125	24	69.4	57	1.1
7215AC	75	130	25	75.3	62.8	1.2
7216AC	80	140	26	91.3	65.1	1.45

Packaging & Shipping

Shipment:

1. By FedEx /DHL /UPS /TNT /EMS door to door services.

2. By Air or by Sea for batch goods; for FCL. You'll have to pick up the goods at the airport or port.

3. Customers specifying freight forwarders or negotiable shipping methods are available.

Payment:

A:100% L/C at sight

B:30% T/T in advance,70%T/T balance or 70% against copy of B/L

C:Western Union

D:Paypal and so on

Our Services

1) Full technical support from concept design to final product delivery
2) On-time delivery with no compromise on quality
3) High-quality product making with advanced equipment and techniques

4) Any questions to be sent will get response within 24 hours

Company Information

Shandong Tefule Bearing Co.,Ltd

is a professional bearing manufacturer and dealer in china.We have been engaged in bearing industry for 10 years and made international trade of bearing import and export for more than 8 years.We have our own brand "TFL" and applied ISO9001:2000 certificate for certification authority.We attend international bearing fairs, put in many B2B website and achieve many customers all over the world also bulid up good reputation from our customers.
Our company is specialized in ball bearing,roller bearing,housing units, wheel hub bearing,bearing parts and accessories, cross roller bearing.Also we can customize various large non-standard products such as the most competitive products according to customers' demands.
