Spice Small Sachets Automatic Pack Spices Chilli Sachet Cocoa Powder Packing Machine

Share on (60820024312):


Price:

Quantity:


Product Overview

Description



Product Description

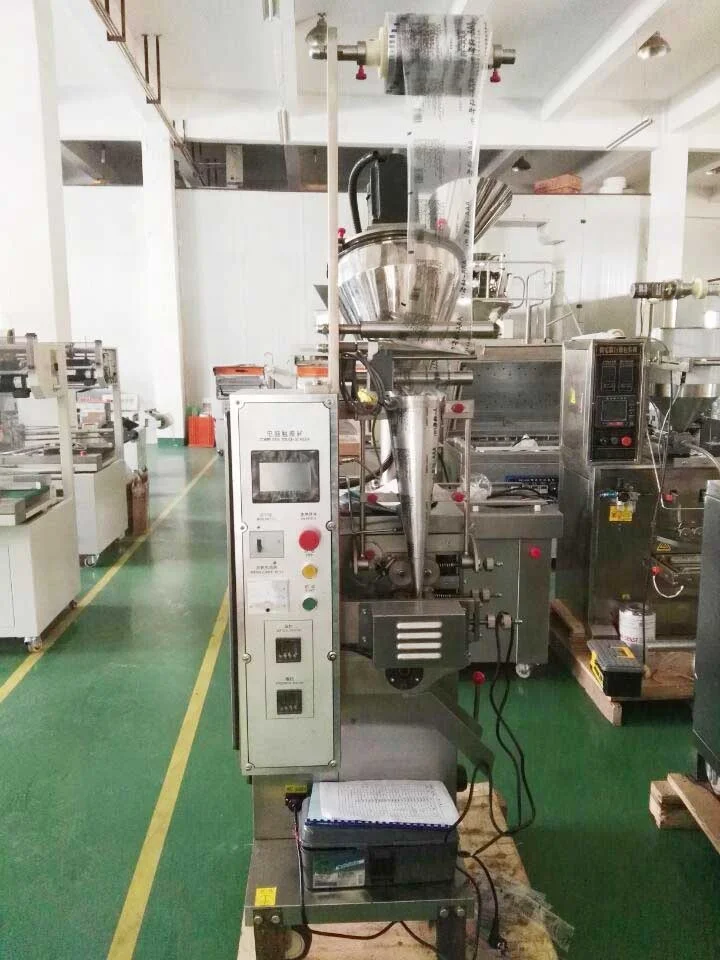

 DCF-40/150 powder automatic packaging machine


DCF-40 6.jpgDCF-40 2.jpgDCF-40 7.jpgDCF-40 9.jpg


Technical features:


· It can automatically complete the functions of bag making, metering, filling, sealing, slitting, counting, hot pressing batch number and so on.


· Advanced microcomputer controller that drives the stepper motor to control the length of the bag.


· The screw is unloaded, and the purpose of filling the material is achieved by the rotation of the screw.


· Cursor positioning, stable performance and easy adjustment.


· Use intelligent temperature controller, PID adjustment, small temperature error range.


· Stainless steel exterior, in line with GMP requirements.


Scope of application:


· Suitable for all kinds of powdery or granular materials, such as: milk powder, rice flour, chemical raw materials, camping food, etc.


Main parameters: machine data, parameters are for reference only, subject to the actual product.


















































Model



DCF-40



DCF-150



Bag size



Length: 40-110mm



Length: 70-160mm







Width: 30-80mm



Width: 70-105mm



Packing speed



40-100 bags / min



30-50 bags / min



Calculation range



3-40ml



30-150ml



Power supply



220v 50Hz 1.6kw



220v 50Hz 1.7kw



Machine weight



360kg



390kg



Dimensions



700*800*1900mm



700*800*1900mm



Remarks



Large bag packaging can be customized






Company Information


.jpg





1) Shanghai DiChuang Packaging Machinery Co., Ltd. is the backbone enterprise of the packaging industry in Shanghai. It specializes in the development, production and sales of packaging machinery. The company has strong technical force, stable product quality, and has a large number of professional technical personnel for packaging, which can be used to customize all kinds of non - standard packaging equipment.


2) The company's products are: full automatic, semi self packer, sealing machine, code printer, heat shrink packaging machine, continuous sealing machine, vacuum packaging machine, particle, powder, liquid, sauce packaging machine, pillow packing machine, filling and sealing machine and more than ten varieties.


3) Companies adhere to the "strategic thinking of everything for the purpose of" to the market, to become "the most outstanding Chinese professional packaging machinery manufacturers as the goal, is willing to improve its sales network and perfect customer service system, in the pursuit of win-win sincerity, with the same industry at home and abroad in close cooperation, sharing of resources, create brilliant!







Packaging & Shipping


.png


Machine packing inside is plastic films and outside is fumigation wooden case.Our wooden case is very strong,it can bear long time shipping on the sea.And machine with preservative film,it can stop the salt sea water enter into the machine and make the machine corrosion.


Packaging Details


1) The surface of the machine is stainless steel or paint protection.


2) sealed packaging will be wrapped in the machine.


3) Outer packaging is no fumigation wooden box


4) Port: Shanghai China


5) Lead Time : within 7-15 days




1) Upon receipt of payment , delivery date will be in 3-15days


2) By Air, by Sea or by Express (DHL etc)


3) Shipment cost will depend on the destination, shipment way,


 size and the weight of the goods.





Contact us


If you want to know more information about our products welcome to contact us in any time,  And Welcome our old and new customers to visit our factory and make the consultation. We will provide the best service and the most professional packaging solutions..jpg
