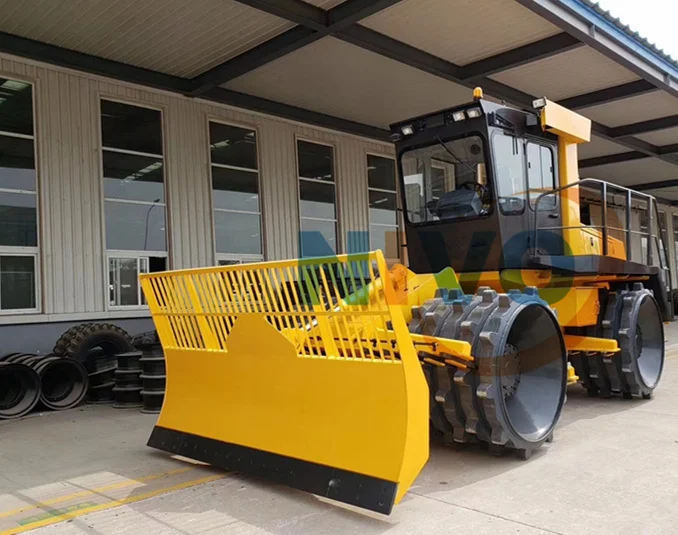

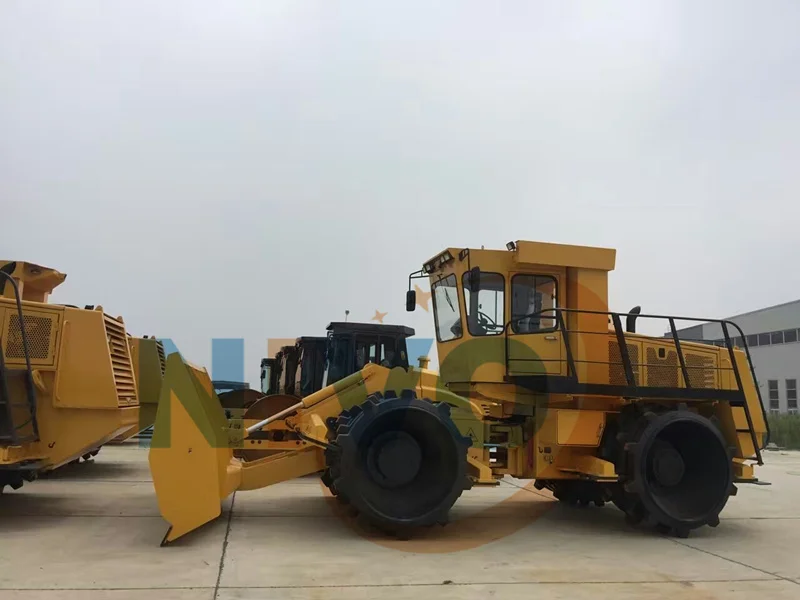

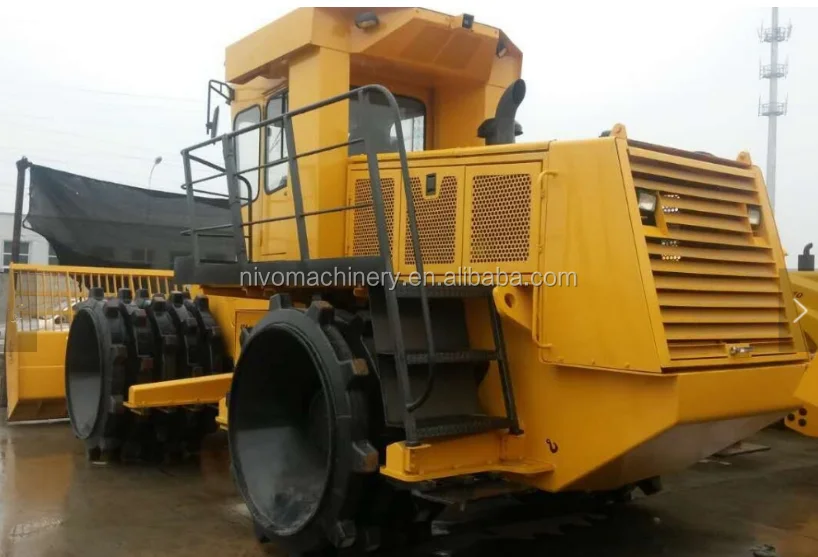

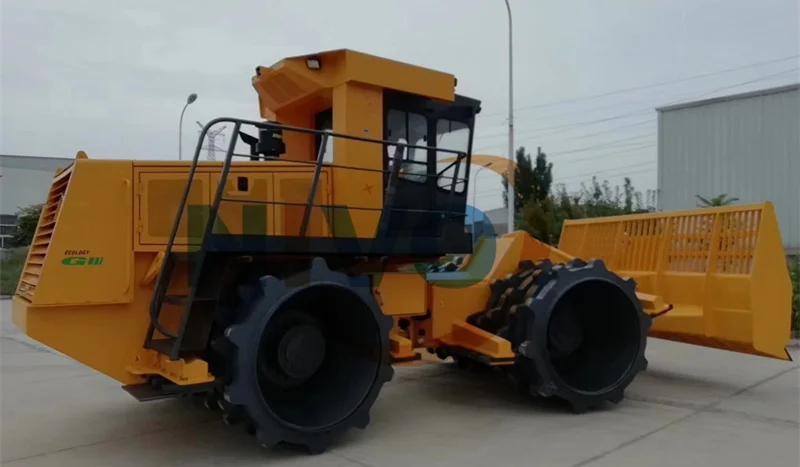

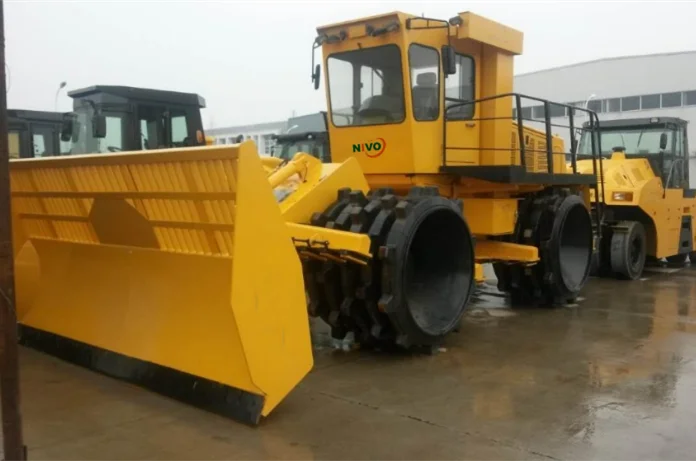

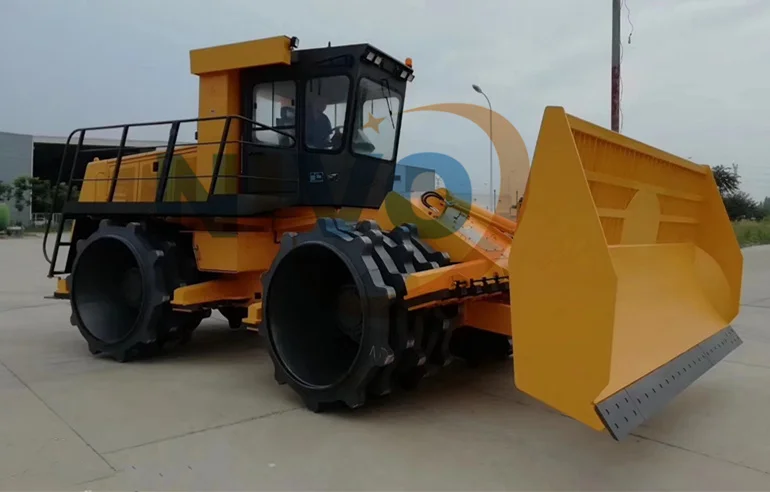

YL203 20ton nivo refuse compactor 4WD trash compacting machine 20 35ton remote control garbage landfill compactor or parts
- Category: >>>
- Supplier: Nivo Machinery (jingjiang) Co. Ltd.
Share on (60820064342):
Product Overview
Description
Product Description
Product Application
The landfill compactors are essential equipments for refuse landfill site. It has the functions of spreading, pulverizing demolishing and compacting the refuse. Using this refuse compactor will help to save the land, protect the environmental and extend the operating life of the refuse landfill site.
Specification | ||
Operating mass | kg | 20000 |
Load on front drum | kg | 9500 |
Load on rear drum | kg | 10500 |
Total length | mm | 7355 |
Total width | mm | 3000 |
Total height | mm | 3600 |
Wheelbase | mm | 3350 |
groundclearance | mm | 435 |
Width of rolling wheel | mm | 1040/835 |
Diameter of rolling wheel | mm | 1500/1500 |
Teeth No. per wheel (front / rear) | 50/40 | |
Engine brand | SHANGCHAI | |
Engine model | SC8DK200G3 | |
Engine power | kW | 147 |
Engine speed | r/min | 2200 |
Gear Ⅰ of forward speed | km/h | 0-4.2 |
Gear Ⅱ of forward speed | km/h | 0-10 |
Gear Ⅰ of backward speed | km/h | 0-5.8 |
Gradeability | % | 100 |
Height dozer blade | mm | 1650 |
Width of dozer blade | mm | 3000 |
Lift height of dozer blade | mm | 1000 |
Digging depth of dozer blade | mm | 150 |
Turning angle | ±° | 40 |
Swing angle | ±° | 15 |
Turning radius(outside of the front wheel) | mm | 6250 |
Fuel tank | L | 450 |
Hydraulic oil tank | L | 236 |
Main Features
◆SHANGCHAI water-cooled turbocharged diesel engine with the cold starting system.
◆Torque converter and power gearshift transmission are applied on four wheels.

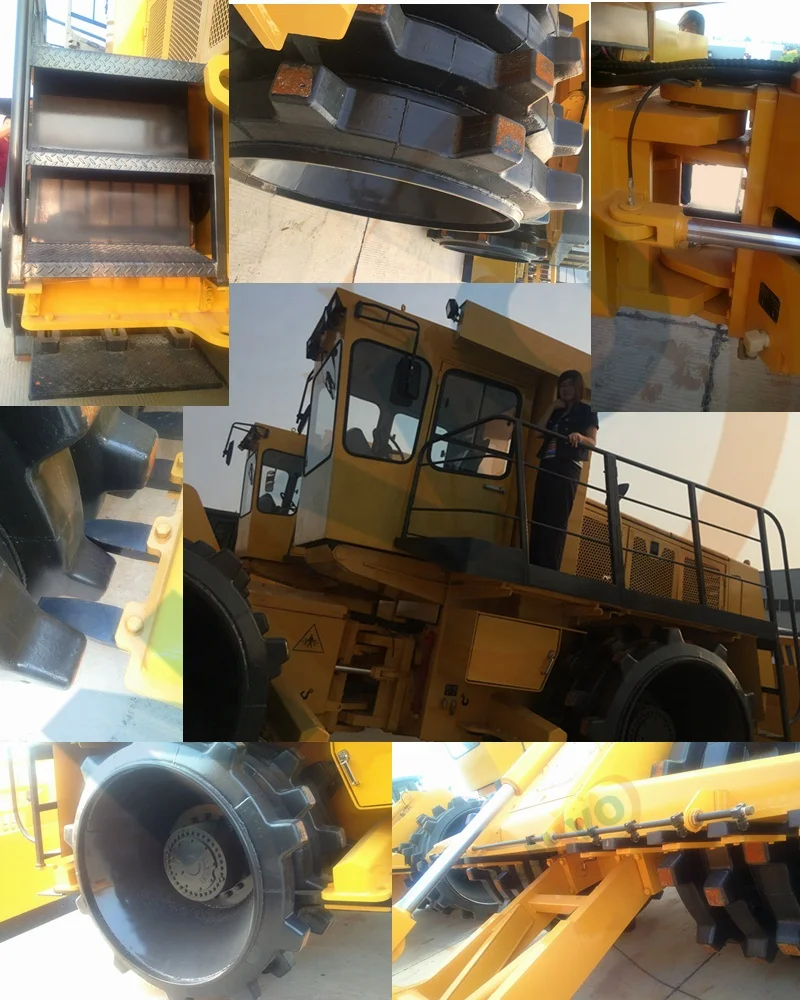

◆The high wear life teeth are arranged specially, two scraper bars and two wire cutters on four compaction wheels will avoid the wire wrap-around and keep the wheel clean.
◆Hydraulic system is driven by a piston pump with load sensing system, provides smooth and light control,high efficiency and energy economy.
The crucial spots are maintained regularly by the central lubrication system. The disinfector spray device is equipped to guard against mosquito.
◆The Roll-Over Protective Structure (ROPS) as an integral part of the frame, service brakes on the front and rear axles and central parking brake will guarantee most reliable safety.

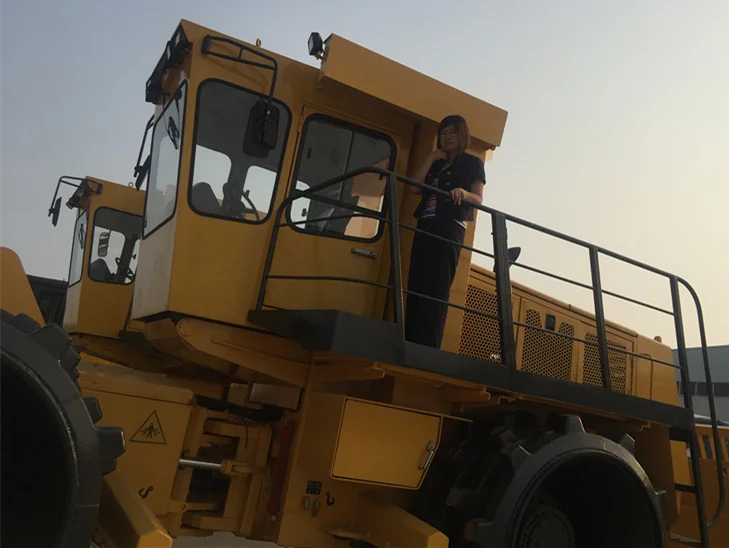

◆Turnover driver's cabin, engine hood with three windows at dual sides, access step and protective ladder in both sides make main components accessible.
◆Infrared vehicle video monitor system and backup buzzer are greatly convenient for driver's travel and working with more safe in increased rear view.
Related Products
YL283
YL263
YL233
YNT1016H
2LNV45E
YNS100
Bulk Export

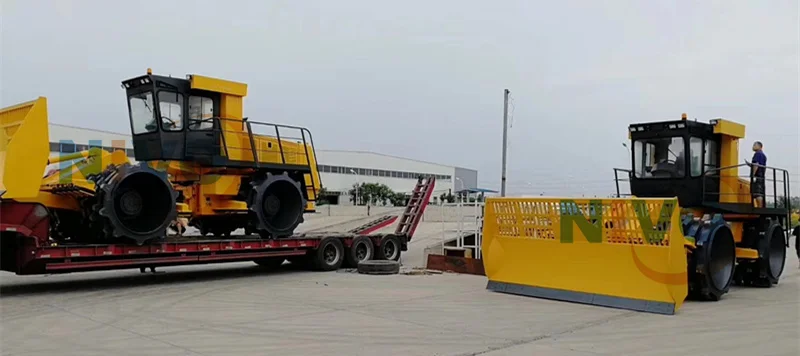

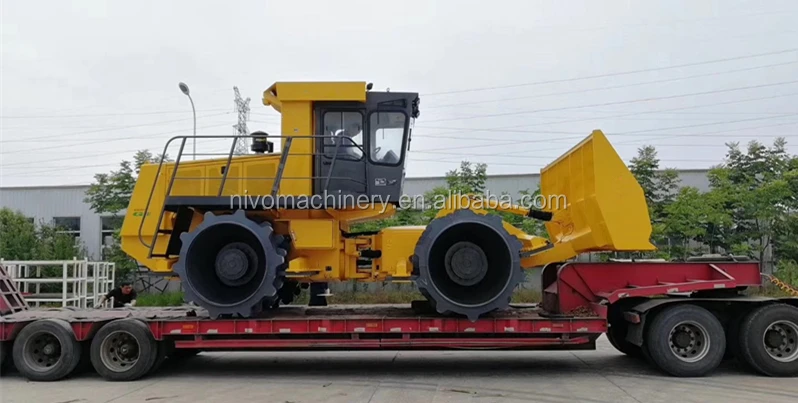

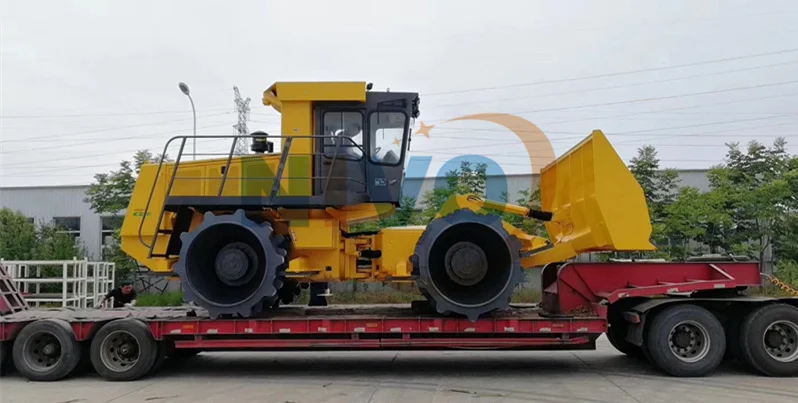

Delivery site
