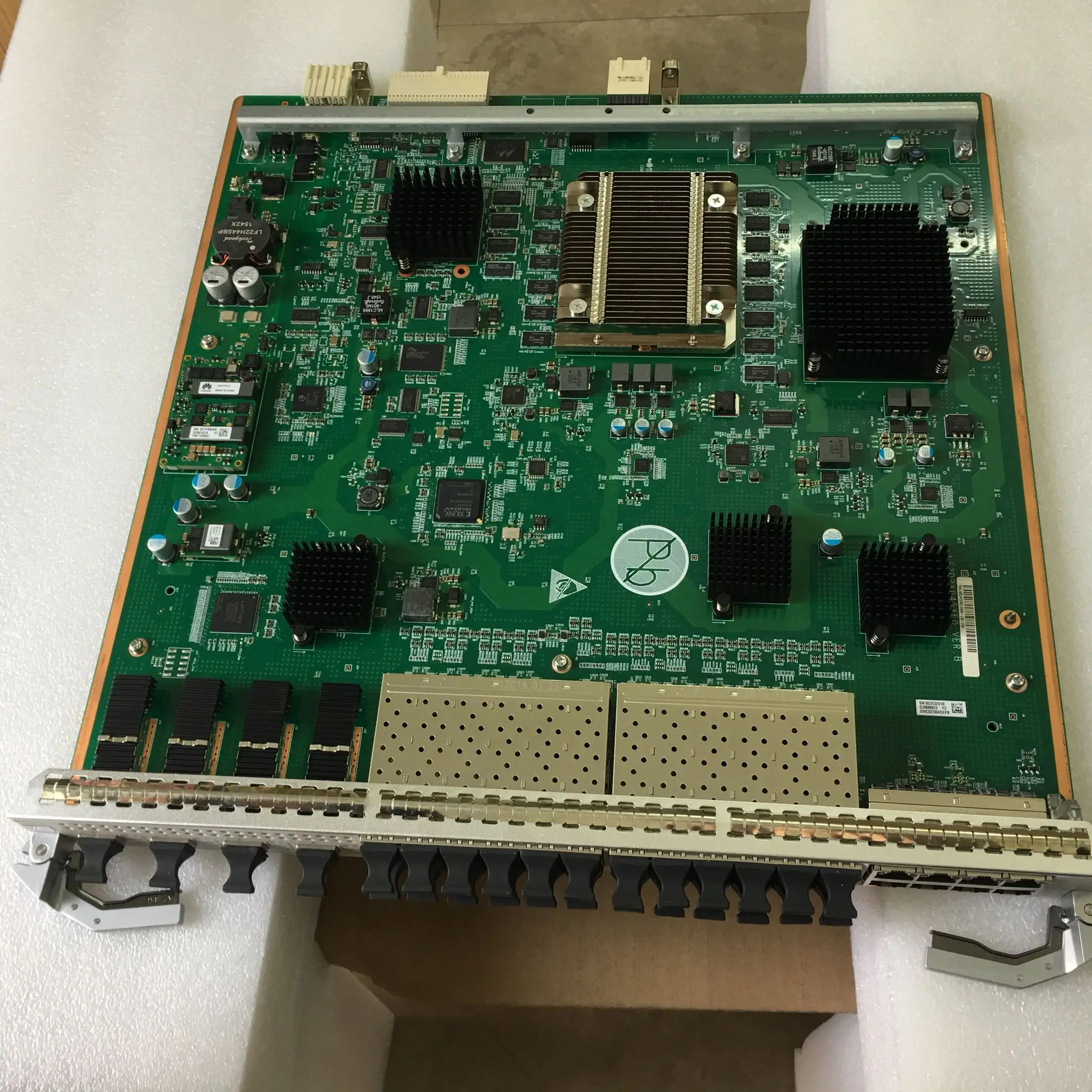

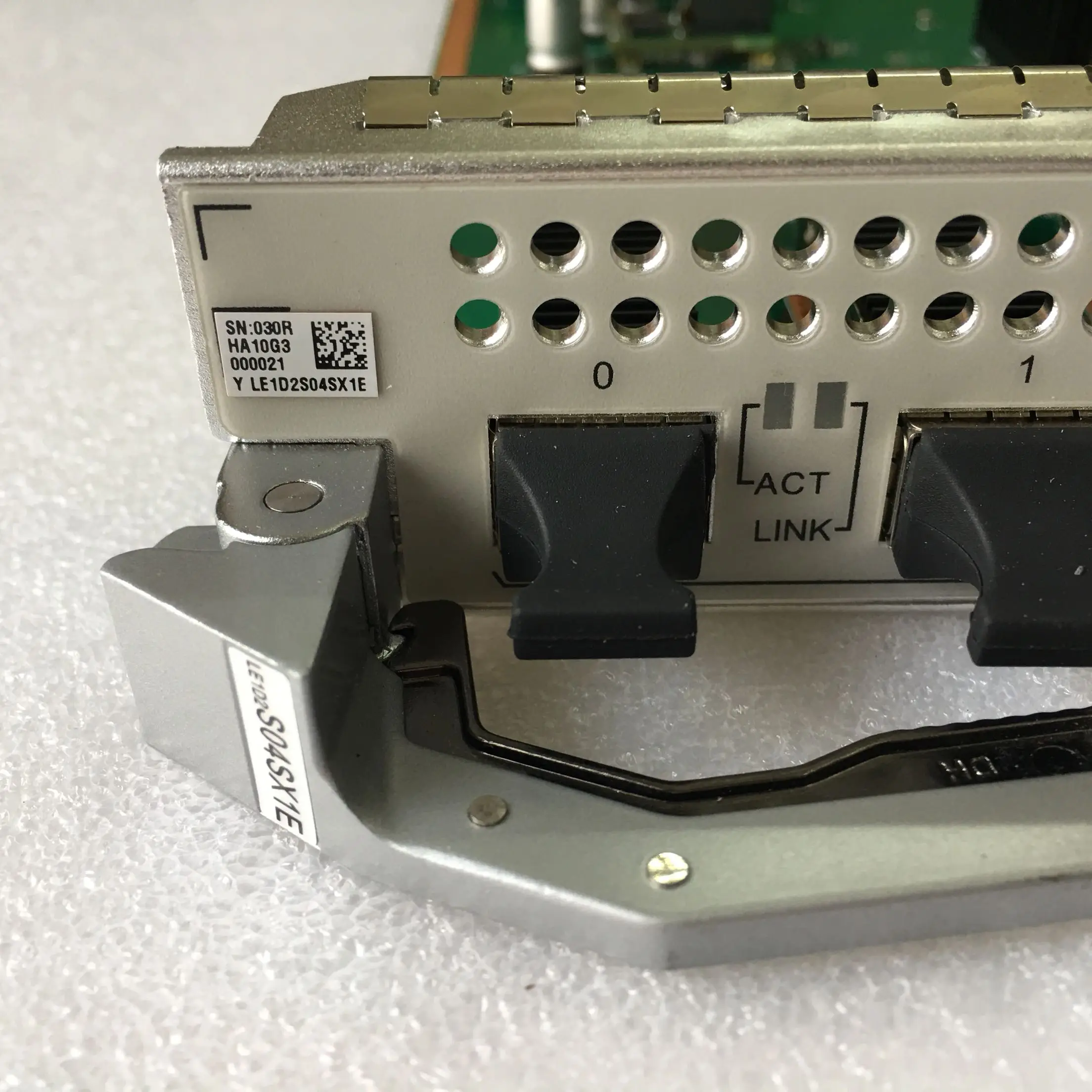

03030RHA S9300 Switch Board LE1D2S04SX1E For S9303/S9306/S9310/S9312/S9303E/S9306E/S9312E(X1E,RJ45/SFP/SFP )

Share on (60820101595):


Price:

Quantity:


Product Overview

Description



Product Description


 Quidway® S9300 switches (S9300 for short) are next-generation high-end terabit routing switches developed  designed for multiservice convergence. The S9300 is designed based on Huawei's intelligent multilayer switching technology to provide high-definition video services, large-capacity wireless networks, elastic cloud computing, IPv6-capable hardware, and integrated security in addition to stable, reliable, and secure high performance L2/L3 switching services. The S9300 is a highly extensible and reliable platform integrating switching and routing functions to facilitate end-to-end integrated networks, and is widely used in WANs, MANs, campus networks, and data centers to help enterprises build application-oriented networks.

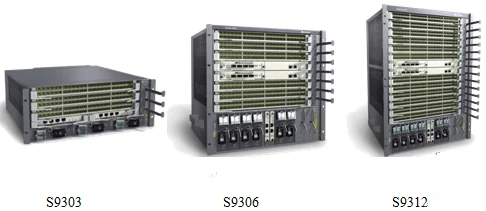

LE0SIPV69300-4


1. Agile Switch, Enabling Networks to Be More Agile for Services


2. Innovative CSS Technology


3. Carrier-Class Reliability


4. Powerful Service Processing Capabilities


5. Various Network Traffic Analysis Functions


6. Comprehensive Security Measures


7. Comprehensive IPv6 Solution


8. Innovative Energy Saving Design


Huawei S9300 Series Switches Specifications


















































































































Item








S9303


S9306


S9312


Chassis dimensions (width x depth x height) (mm)


442×476×175


442×476×442


442×476×664


Chassis weight (empty)


<15Kg


<30Kg


<45Kg


Working voltage


DC: –38.4V to –72V ,                      AC: 90V to 290V


Chassis power supply capability  (without POE power supply)


800W


1600W


1600W


Chassis POE power supply capability


2200W


8800W


8800W


Backplane capacity


3Tbps


6Tbps


12Tbps


Switching capacity


720G/1.92T


2T/5.12T


2T/5.12T


Throughput


540Mpps/1440Mpps


1152Mpps/2880Mpps


1344Mpps/3360Mpps


LPU slots


3


6


12









VLAN



Supports access, trunk, and hybrid VLAN.


Supports the default VLAN.


Supports VLAN switching.


Supports QinQ and selective QinQ.


Supports dynamic VLAN allocation based on MAC







MAC address



Supports dynamic learning and aging of MAC addresses.


Supports static, dynamic, and blackhole MAC address entries.


Filters packets based on source MAC addresses.


Restricts MAC address learning based on ports and VLANs.





STP



Supports STP, RSTP, and MSTP.


Supports BPDU protection, root protection, and loop protection.


Supports BPDU tunnels.


IP routing


Supports IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-IS.


Supports IPv6 routing protocols, such as, RIPng, OSPFv3, ISISv6, and BGPv4.








Applications

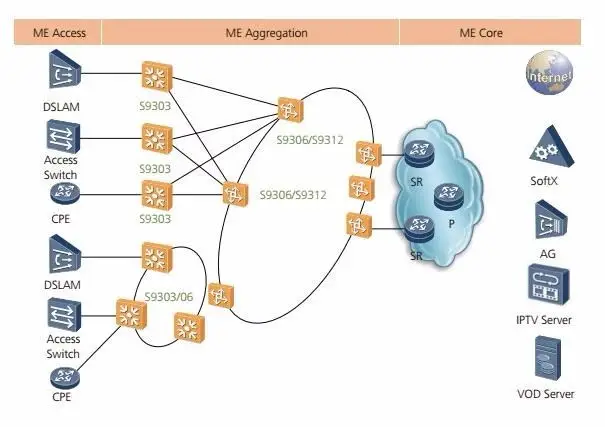

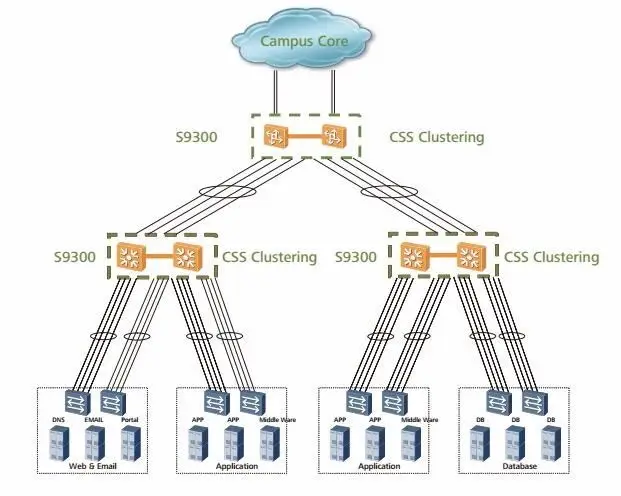

Huawei S9300 Series Switches Networking and Applications


901580





Company Information


ZISA Group success in past dozen of years can be directly linked to the fact that Company operates in a customer centric manner supplying innovative,cost-effective solutions of superior quality with 0 defects in the shortest possible time and professional service to global partners.
World-class,Software& hardware products and solutions for the ICT industry, founded in 2004 by a highly innovative team,ZISA Group designs,develops,tests and implements a diverse range of products, from concept to to deployment.With ove over 500 R&D man-years of experience,ZISA is uniquely positioned to offer an array of world-class products and solutions to meet all hardware requirements of telecom service providers and telecom users, Enterprise ICT users and SMB Networking integrators.
ZISA combines expertise with experience to deliver state-of-art products and solutions spanning the wide spectrum of Fiber Copper,wireless Telecommunications and SMB solutions. The diverse range of products manufactured by ZISA includes GPON,DSL,Enterprise Class Switch and WiFi,Cloud-Software,SMB,SOHO networking solution and also innovative solution such as Wind-Energy and Smart Devices.
The Company also enjoys the stature of cooperating with global loyal partners to build Telecommunications ICT brand in countries of world.
Good Communication never stop.
Anymore details please click ck www.zisacom.com







Our Partner







Certifications


certificate





Our Services


(1) We provide 1 month replacement and 12 months maintenance warranties.
Products can be replaced during the first month or maintained for the first year.
(2) This warranty covers defects in manufacturing that arise from the correct use of the device.
It is limited to defects in materials or workmanship and does not cover damage caused by abuse, misuse , unauthorized modification, lightning or power surge damage, extreme heat or cold and corrosive environments.


(3)The warranty also does not cover the normal wear and tear on covers, cases, housing, connectors and accessories. The warranty does not apply to any product with a missing, altered, or defaced serial number.
