Compost sieve machine/Organic and compound fertilizer drum screening machine for sale

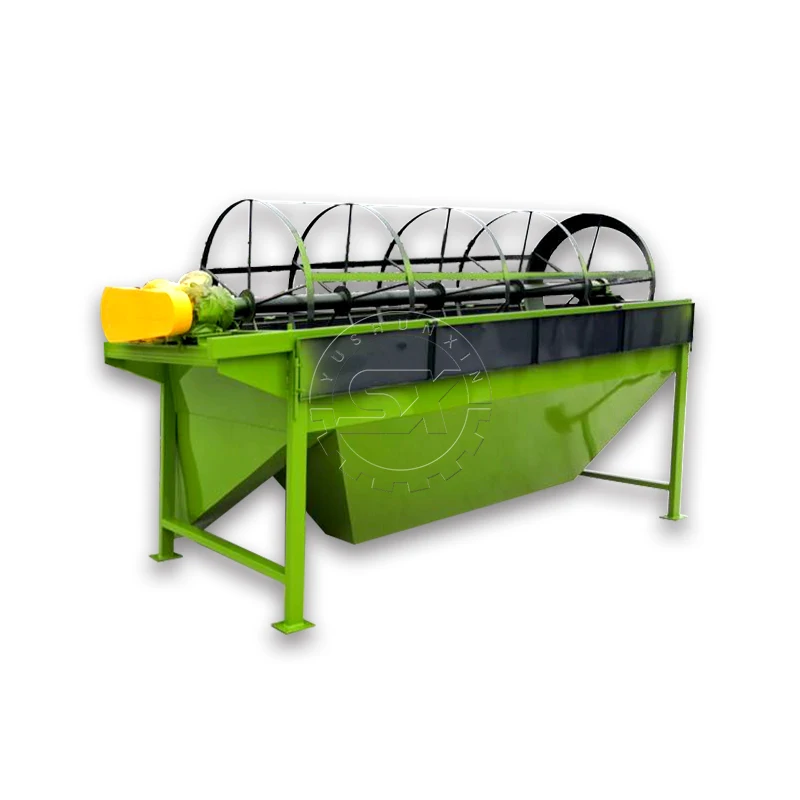

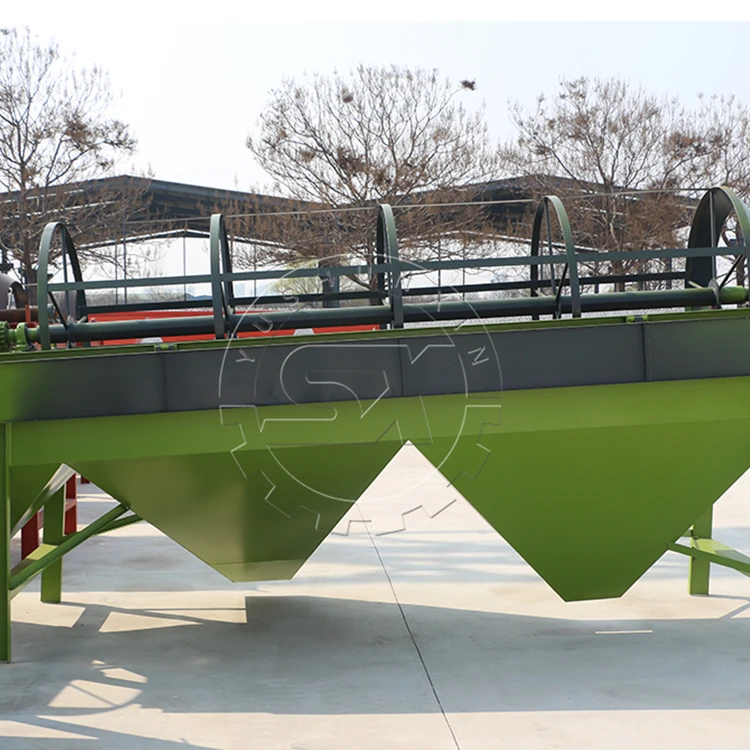

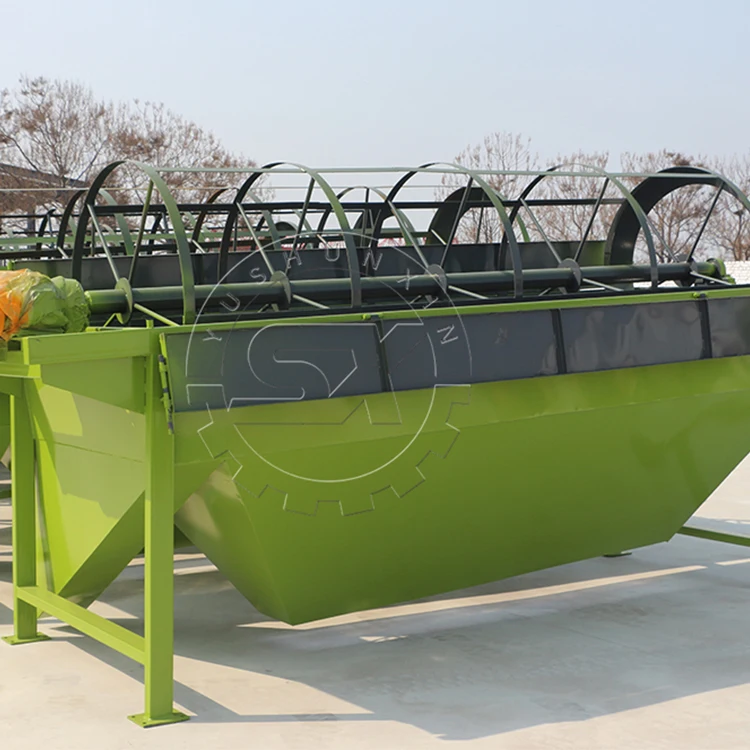

The rotary drum screen machine is a new type of self-cleaning material-screening special equipment. It is widely used in screening various solid materials that size less than 300mm. It has high efficiency, low noise, small amount of dust, long service life, less maintenance, easy maintenance and many other features. The screening capacity is 60 tons / hour ~1000 tons / hour.

Features:

High screening efficiency: because the equipment has a plate cleaning mechanism, so it can not block the screen, so as to improve the screening efficiency of the equipment.
Good working environment: the whole screening mechanism is designed in a sealed dust cover, which completely eliminates the dust flying phenomenon in the screening process, and improves the working environment.
Low equipment noise: during the operation process, the noise of material and rotating screen is completely sealed and isolated by dust cover, thereby reducing the equipment noise.
Long service life: the screen mesh is composed of a plurality of circular flat steel, a cross-sectional area is far larger than that of other screen separation equipment, so that increase the equipment service life.
Convenient maintenance: there are several observation windows on both sides of the equipment sealing dust cover, so that the work staff can observe the operation situation of the equipment at any time.
Working principles:

Through the reasonable rotation of the center separation cylinder of the equipment that achieved by the transmission deceleration system, the self cleaning rotary drum screen machine start to work. The center separation cylinder a sieve composed of a plurality of ring shaped flat steel rings, which is tilt installed above the ground plane. In the work, the material enters into the cylinder from its top, then the cylinder rotating to screening materials. In the separation process, the fine materials separated from top to bottom by mesh interval circular flat steel, and the coarse materials from the separating device is discharged into the crusher.

The machine can be divided into three parts:

Rack part: The whole frame of this machine are all welded by carbon steel plate and channel steel, and has passed the strict product qualification certification and specific process requirements, so it has achieved the using purpose of this machine.

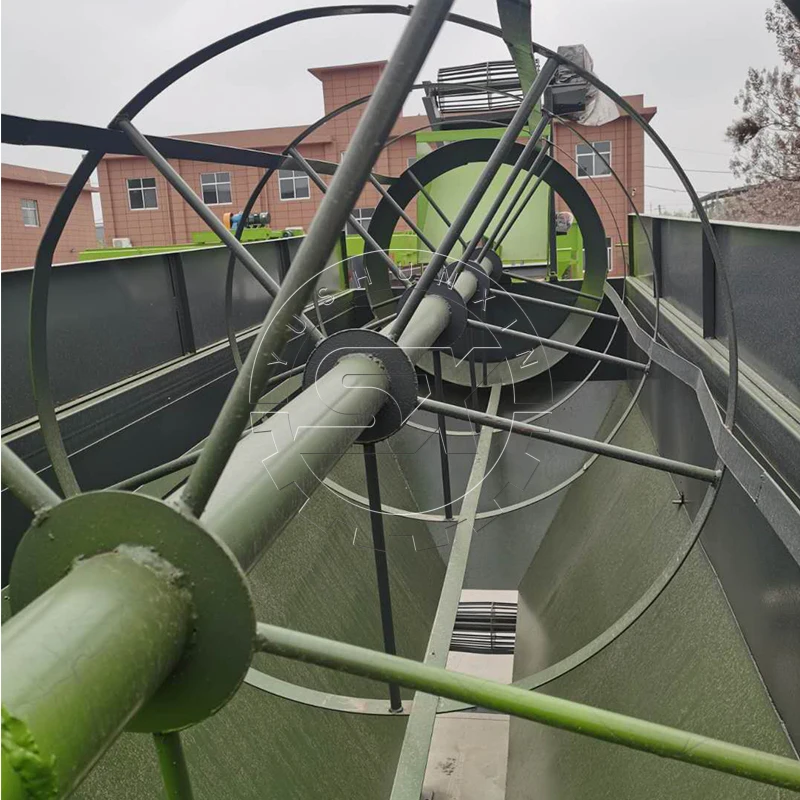

Screening part: This part adopts the combination type of screen mesh, which is installed and welded on the rolling cage of the main shaft. The power is transmitted to the main shaft by the transmission wheel through the coupling. The material enters through the feed end and is continuously turned and graded in the rolling cage. The material flows out from the discharge port at the lower part, effectively separating the finished product from the return material, thereby improving work efficiency;

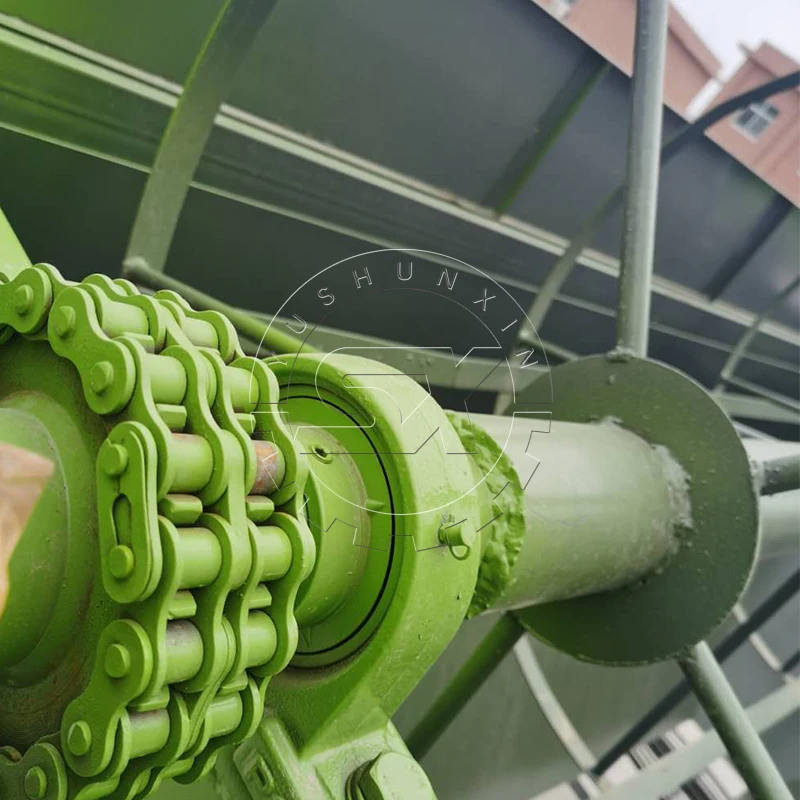

Transmission connecting part: The motor drives pulley, V-belt and reducer to transmit power and make the driving shaft start to work. The reducer and main engine are all drove and transferred motion by axle pin type coupling, which is convenient for assembly and maintenance.

 Vibrating screening machine

Vibrating screen machine is specially designed and developed for the screening compound fertilizer by our company, the screen body is divided into two types: single layer and double layers. The mesh is made of high quality manganese steel, so it’s simple structure and easy to operate. Mesh size can be selected according to your requirements.

The working principle of the vibrating screen machine:

Power from the motor through v-belt transmit to the vibrator driving shaft and gear vibrator (speed ratio is 1), to achieve three axis rotating with same speed and resulting in vibration force, vibration exciter connected with screen box by high strength bolt, resulting in elliptical motion. Materials on the sieve machine with high speed elliptical motion randomly, quickly stratified, through the screen, and move forward, and finally complete the classification of materials.

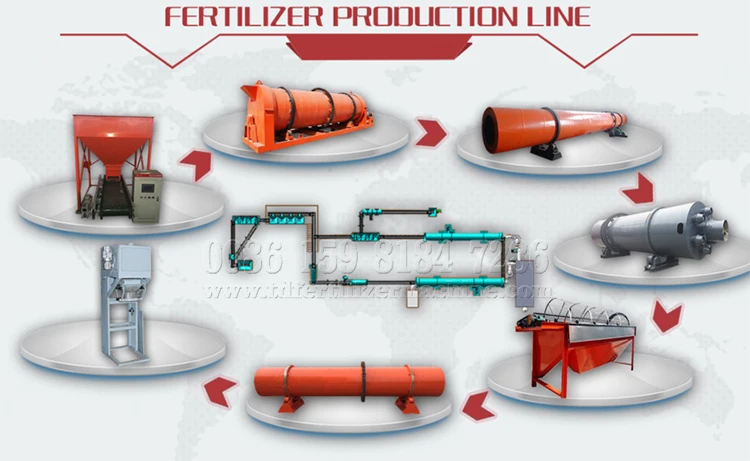

And we also have other fertilizer processing equipments,like compost turner,crushing equipments,mixing equipments,granulator,drying and cooling machines and auxiliary equipments.

 1.Small machine and spare parts packed in wooden box.
Also could packing according to customers' requests.

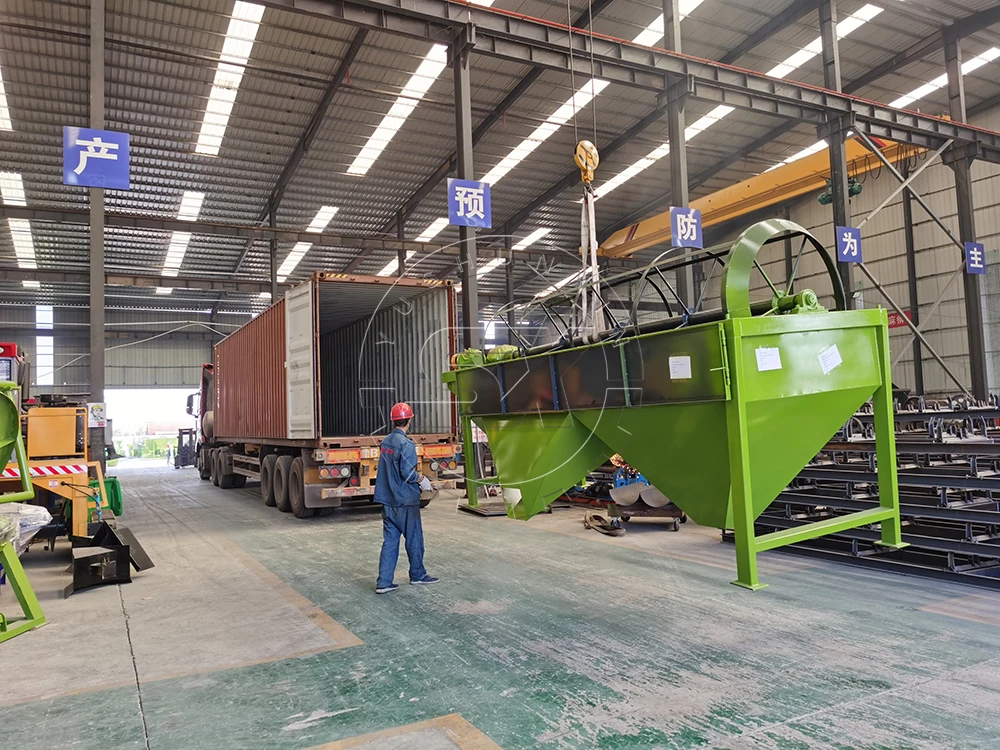

2. Production line or large quantity packed 20ft container/ 40ft container
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Pre-sale Service

1.Offering comprehensive technical and business consultation services;
2.Proposing the most suitable scheme and equipment for our clients;
3.Designing and fabricating targeted products according to the special requirements of clients;
4.Training periodically high qualified service technician.

5.Free CAD design: if you can provide the material, your aim capacity and your factory information, we can make a free CAD design for you.

After-sales Service
1.Highly inspecting equipments in every working procedure, quality comes first;
2.Fast & Safe Delivery;
3.Assisting our clients for foundation construction of equipments;
4.Dispatching engineers to install and debug equipments;
5.Training the first-line operators on site;
6. Regularly visit clients to solve production problems Providing life-long maintenance service
7.Providing technical exchanging.

1.Company Profile:

2.Product Range

The main products are: organic fertilizer machine, compound fertilizer machine, blending fertilizer machine, waste, sludge and other organic waste harmless treatment fertilizer equipment, organic fertilizer turning machine, organic fertilizer crusher, organic fertilizer sieving machine, mixing fertilizer batching machine,

organic fertilizer mixer, organic fertilizer granulator, organic fertilizer drying machine, organic fertilizer coating machine, granule/powder transfer packaging machine, various auxiliary machine and accessories.

3.Our customers:

4.Install

 1.Are you manufacturer or trade company?
A:We are a professional manufacturer for producing fertilizer processing equipments and related machine over 20years.(fermentation machines,granulator, crusher, mixer, packing, feeding machines and conveyor belt) etc.

 2.How should to do if  I meet some trouble while using?
A:The English manual book and video will be provide for showing how to resolve the problems, if necessary, we will dispatch our engineer to your factory.

3. Do you provide the installation service after ordering your machines?
A:As for the single machine, we provide the users instruction and operation video.
As for the production line,we provide the professional construction drawing,and arrange the engineer guide the user install the machines.Help the user train the skilled workers.

 4.Can we visit your factory to see some fertilizer plant with your machine?
A:We really give every customer a warm welcome to visit our factory,and we can take the customer to visit fertilizer plants with our equipment.
