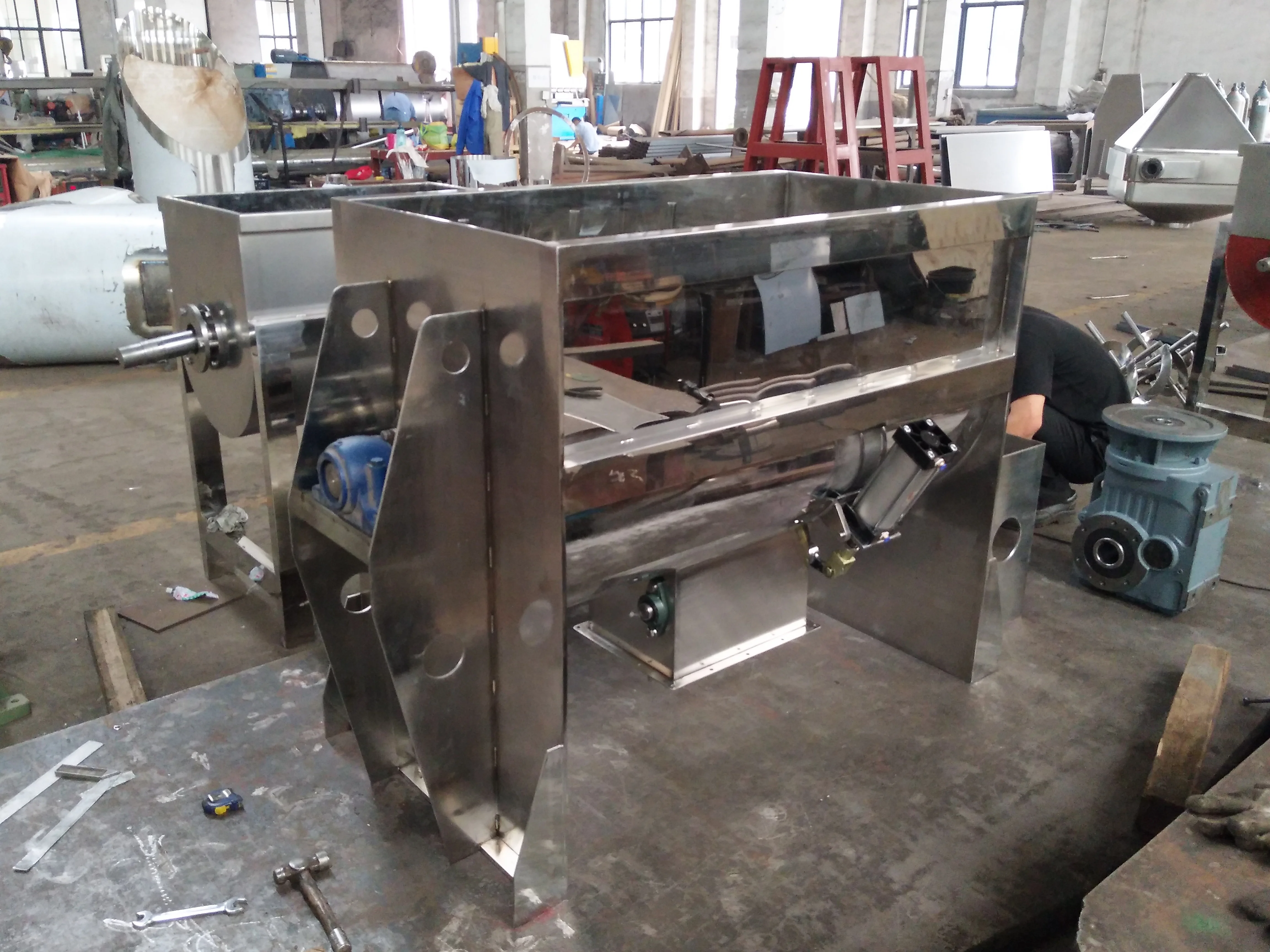

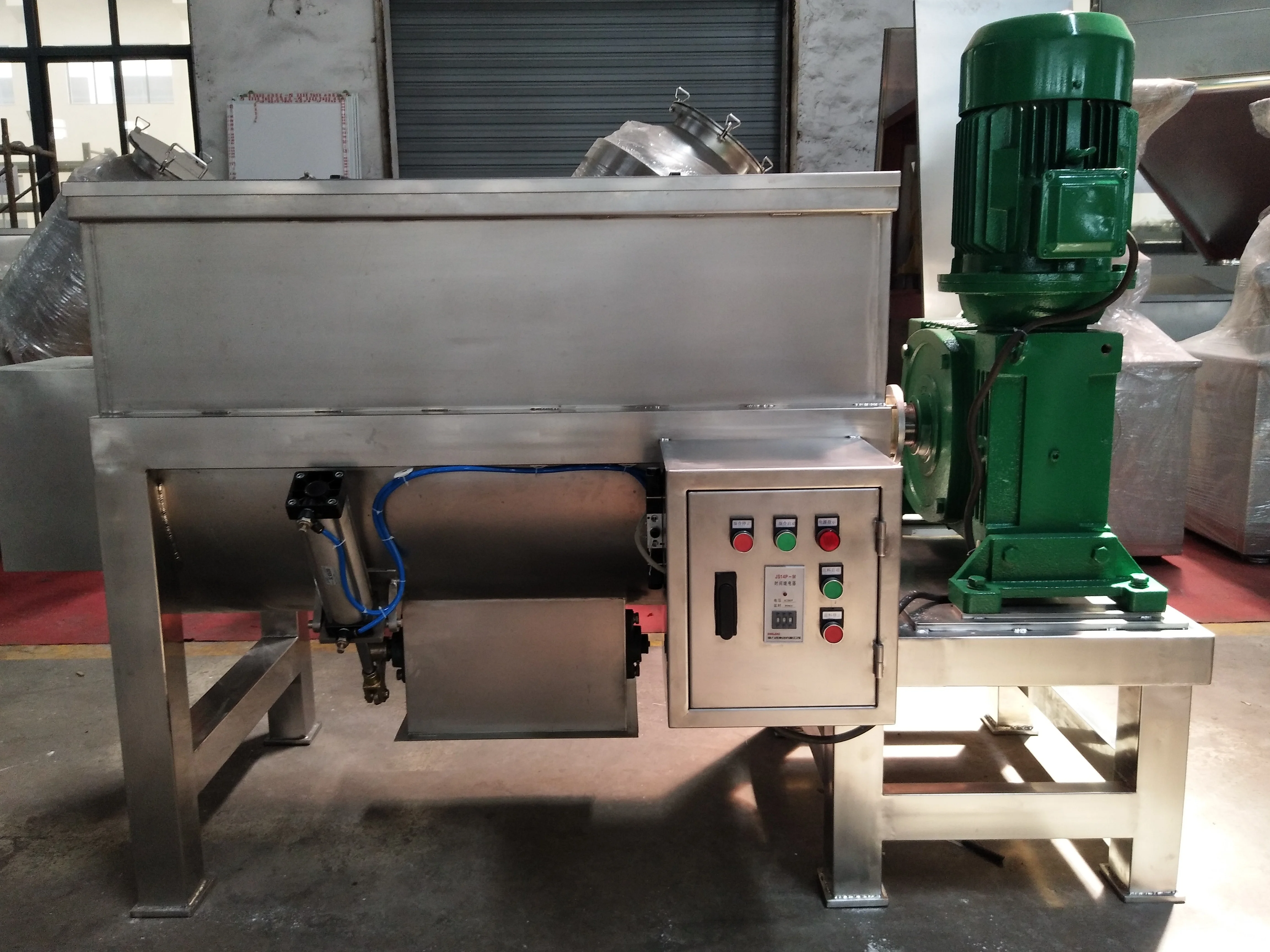

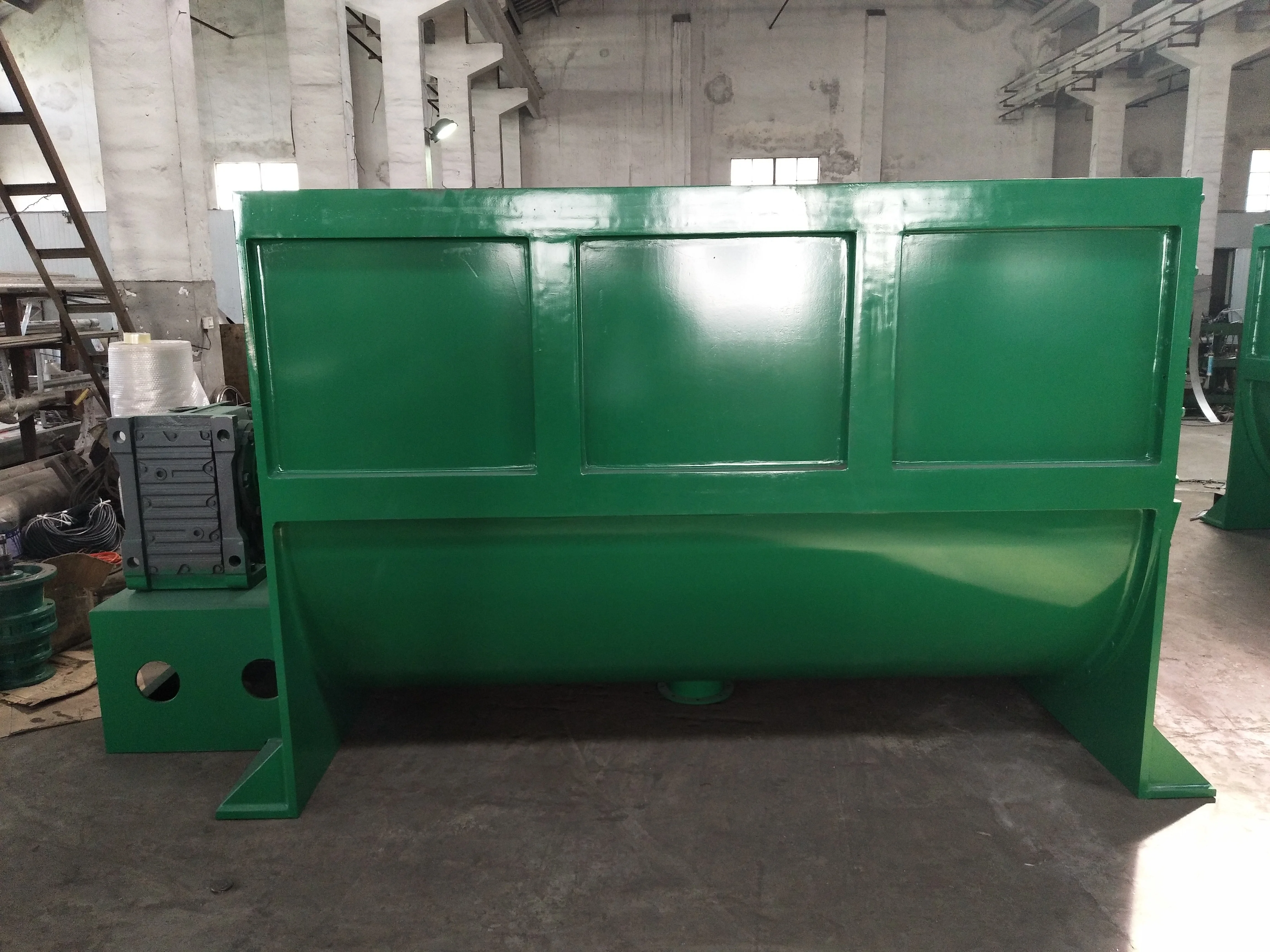

China Horizontal Double Ribbon Mixer For Dry Powder/Wood Plastic Mixing Machine/Horizontal High Speed Mixer For The Industry

Product Application

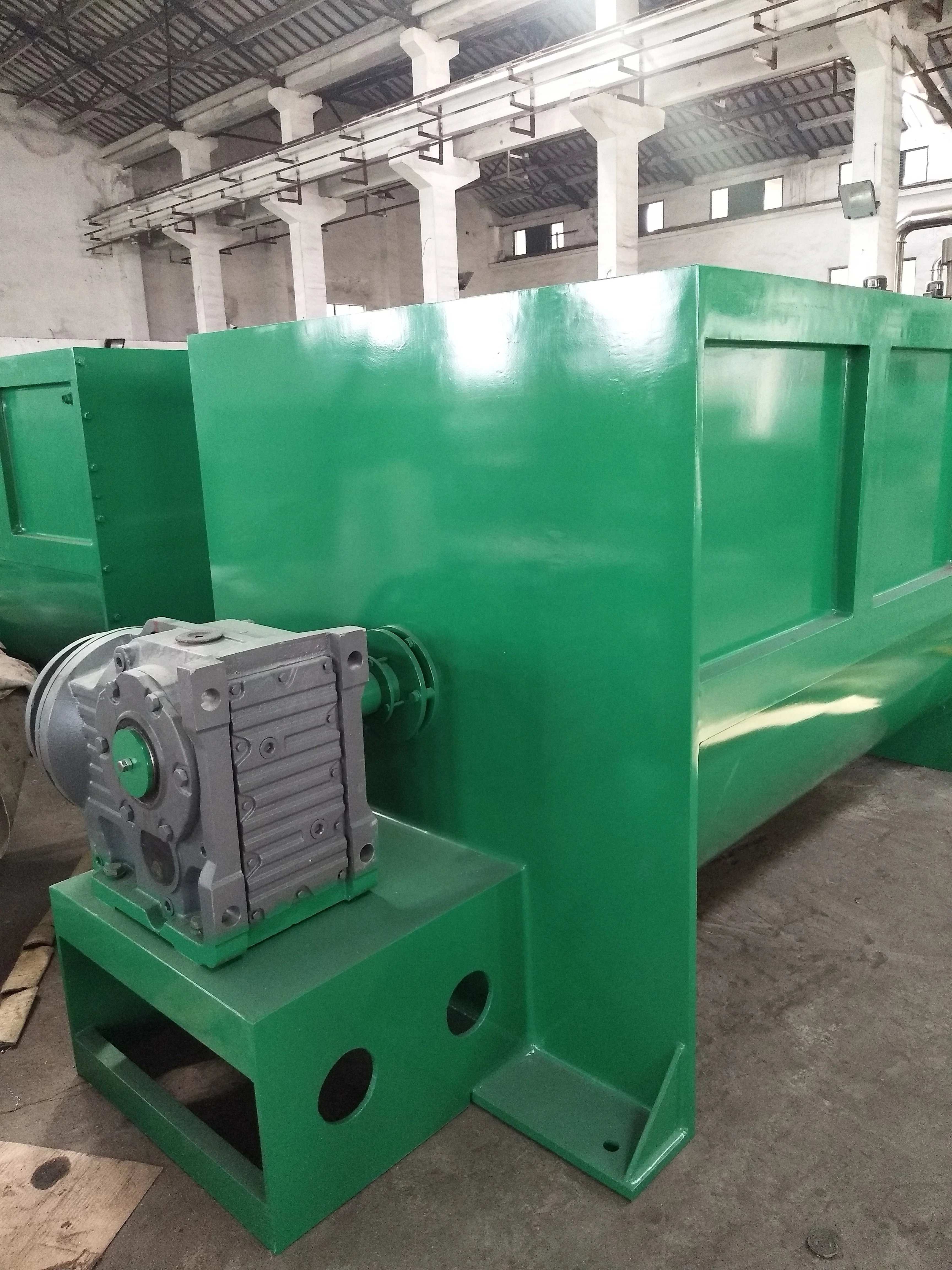

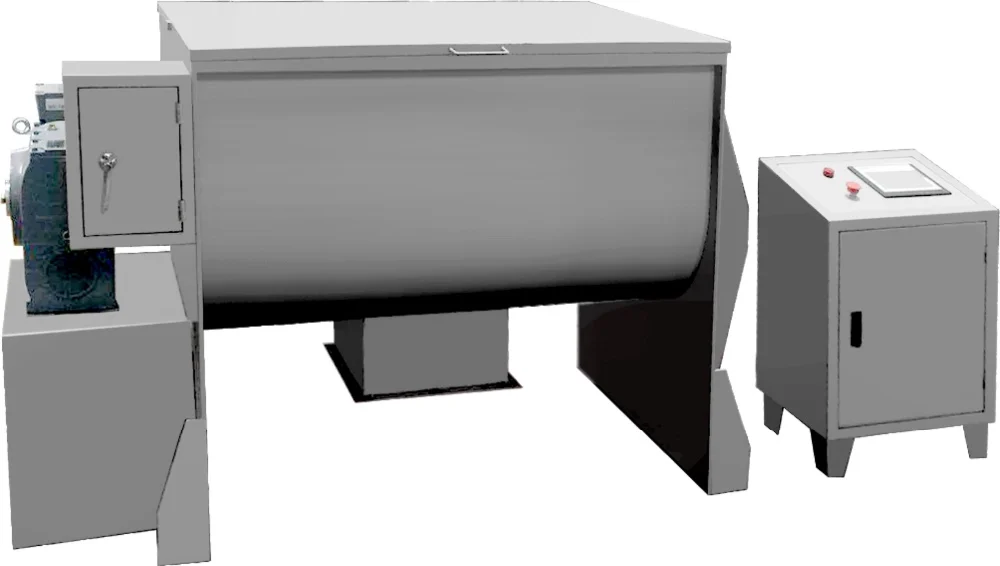

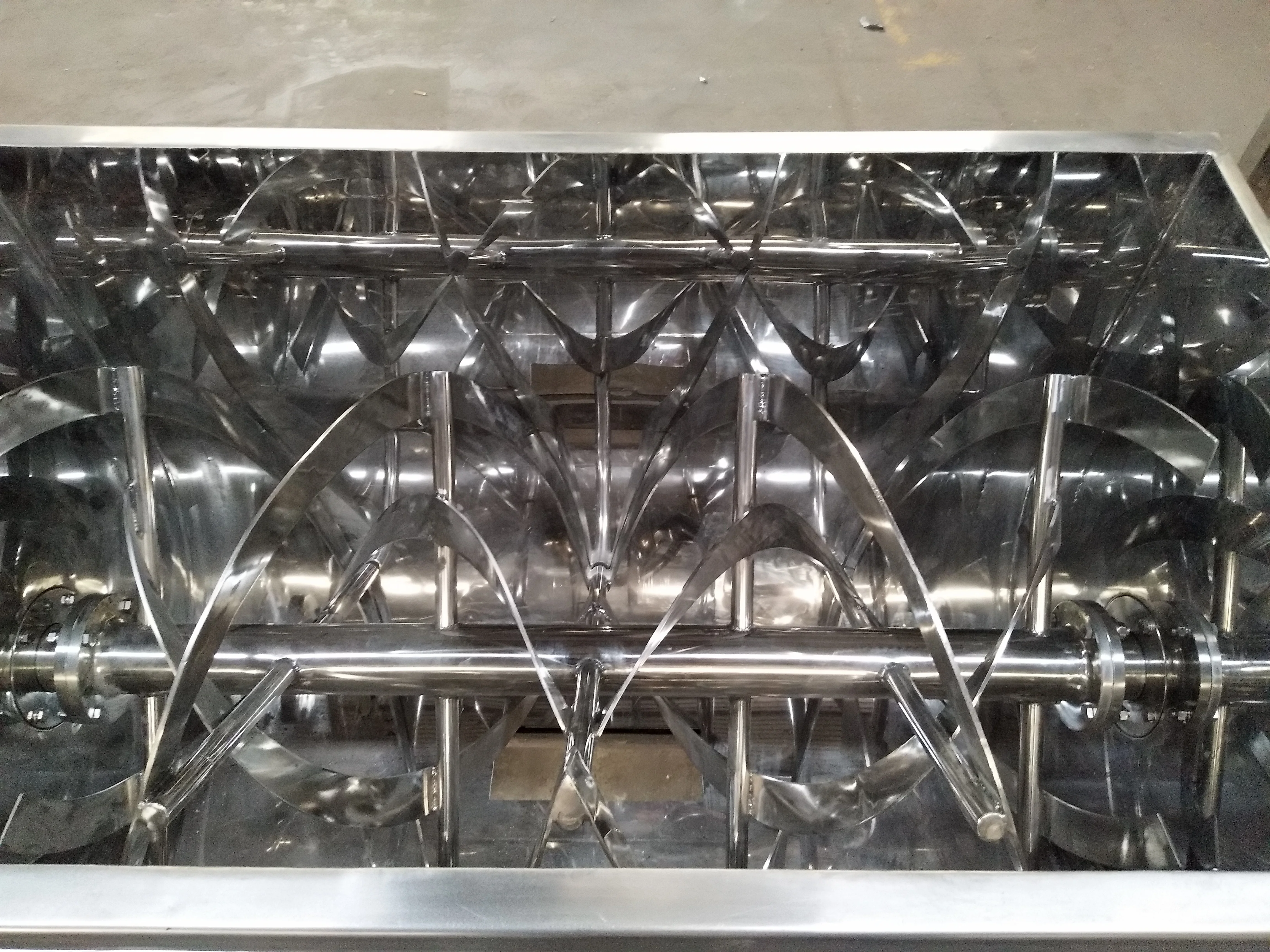

The horizontal ribbon mixer consists of a U-shaped container, a ribbon agitating blade and a transmission component; the ribbon-shaped blade is generally made into a double or triple layer, and the outer spiral gathers the material from both sides to the center, and the inner spiral is The material is transported from the center to the sides to form a convective mixing. The ribbon mixer has good effects on the mixing of viscous or cohesive powders and granules and the mixing of liquid and paste materials in the powder. The cylinder cover can be made into a fully open door to facilitate cleaning and replacement of the equipment. product.

Main Features

1. TRM series mixer with horizontal tank, single shaft with dual spiral symmetry circle structure.
2. The top cover of the U Shape tank has the entrance for material. It can be also designed with spray or add liquid device according the customer's needs. Inside the tank there equipped the axes rotor which consist of, cross support and spiral ribbon.
3. Under the bottom of the tank, there has a flap dome valve (pneumatic control or manual control) of the center. The valve is arc design that assure no material deposit and without no dead angle when mixing. Reliable regular seal prohibit the leakage between the frequent close and open.
4. This mixer also can be designed with the function to keep cold or heat. Add one layer outside the tank and put into medium into the interlayer to get the mixing material cold or heat. Usually use water for cool and hot steam or use electrical for heat.
5.\tWide range of use. This equipment is suitable for mixing dry or wet materials. It can be applied to high-density materials such as sticky, wet, easy caking, high water content and poor fluidity. It can also be used for mixing dry powder, tablet and granules.
