SYI Competitive Features PN10/16 PVC/PE/DI Pipe OD 50mm Ductile Iron Compact Quick Adaptors
- Category: >>>
- Supplier: Syi Industrial Co. Ltd.
Share on (60820151204):
Product Overview
Description

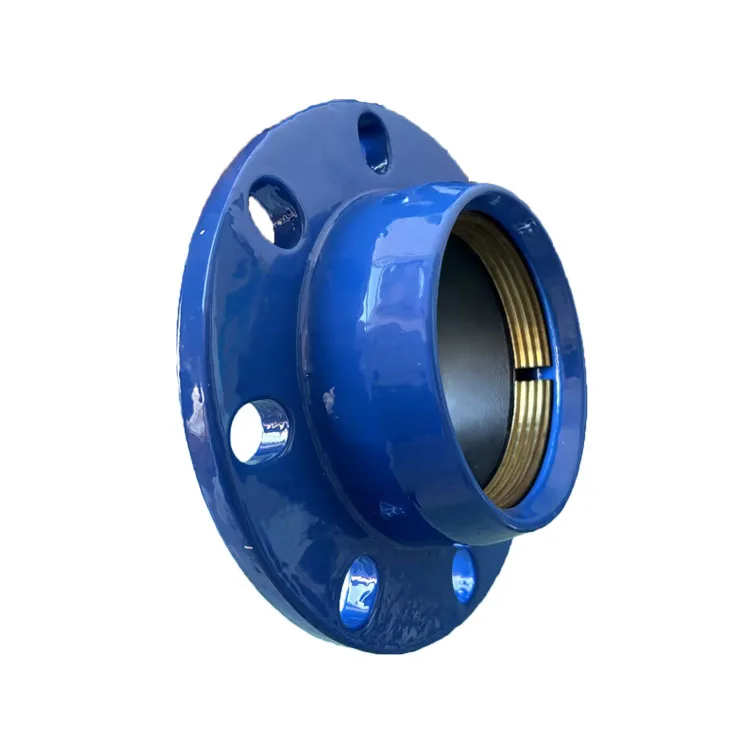

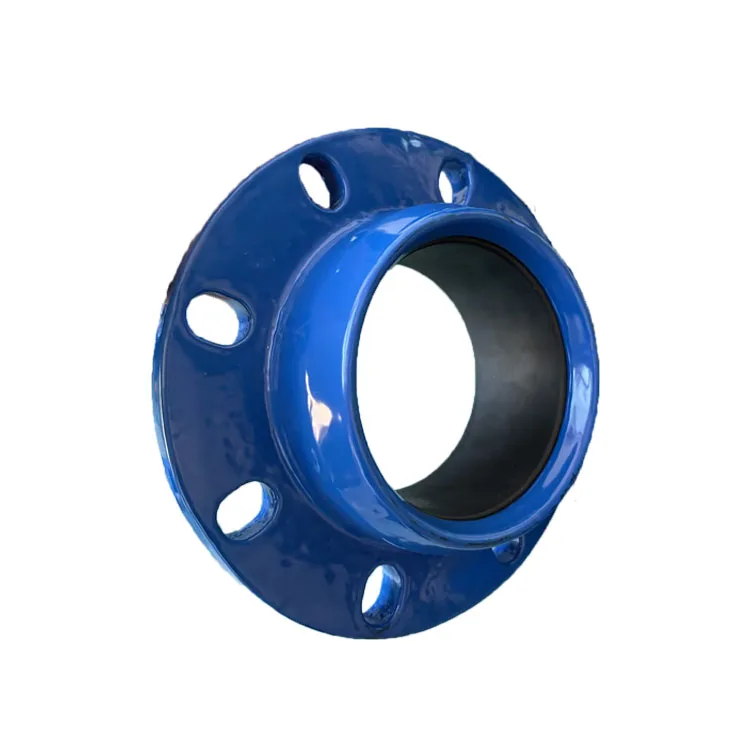

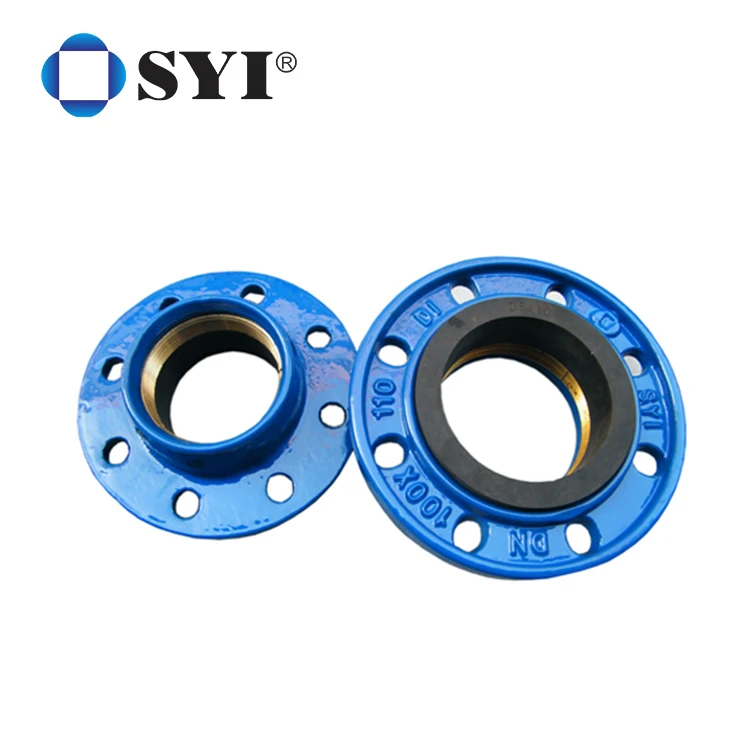

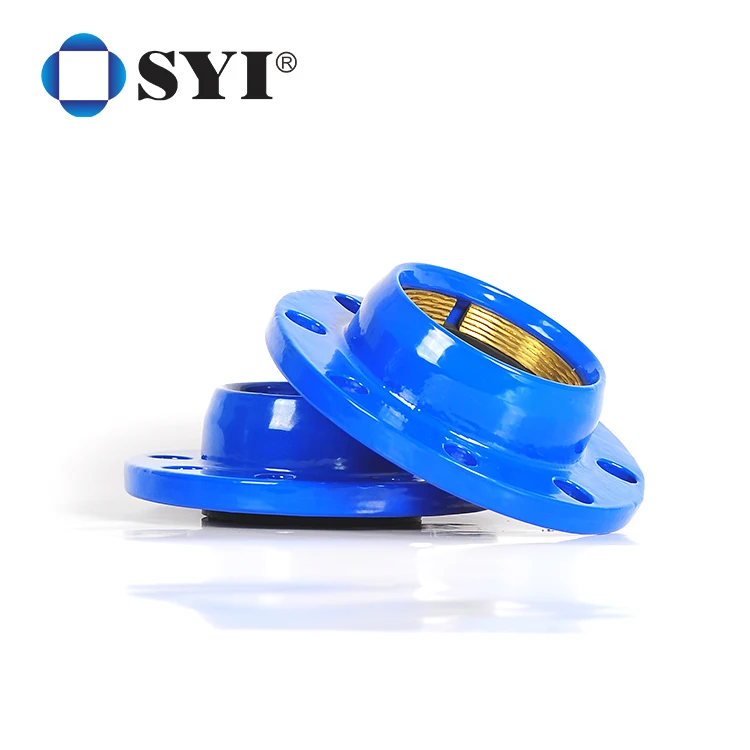

SYI Ductile Iron COMPACT Quick Adaptors for PE/PVC/DI pipes
Product Description
SYI Ductile Iron Compact Quick Adaptors for PE/PVC/DI pipes, developed by experienced engineers in SYI in 2010, dedicated used for connecting uPVC pipes with flanged products, and also for PE pipes with the gripping ring of same outside diameter, with most reasonable, light, and competitive features.
Material: Body:Ductile Iron grade 500-7/450-10 in accordance with ISO 1083 or 70-50-05/65-45-12 with ASTM A536 Gasket:Rubber E.P.D.M./NBR/SBR in accordance with EN 681.1 Opted Griping Ring:Brass | ||
Flange:PN10 and PN16 drilling in accordance with ISO 7005-2/EN 1092-2 | PN10 and PN16 drilling in accordance with ISO 7005-2/EN 1092-2 | |
Working Pressure: 16 Bar or 250 PSI | ||
Coating | ||
External coatings | Internal coatings | |
liquid epoxy resin painting epoxy applied by FBE according to customers' requirements | liquid epoxy resin painting epoxy applied by FBE according to customers' requirements | |
Reference Rules:Designed and tested in accordance with EN14525, ANSI/AWWA C219 and EN545 | ||
Accessories:gasket + copper ring. The bolts and nuts are supplied respectively with the Quick Adaptors usually. | ||
Features: 1.The quick adaptors only need the gasket or the gasket + copper ring, sliding into the end of the connecting pipe socket to realize quick installation and connection. 2.Under certain conditions, it can replace universal flanged adaptor or Straight flanged adaptors, and the cost are lower, but the detachable performance is slightly worse. | ||
When connecting the uPVC pipes, it can joint by push-in directly through the gasket.
When connecting the PE pipes, the gripping ring can simultaneously ensure pipe end retention and tightness, and restrict to pull out.
SYI-QA makes the connection between flange and uPVC/PE/DI pipes more quicker, easier, with lower cost instead of Flanged Socket or Flanged Adaptors.
In the use of better performance on the basis of both procurement and construction cost economy.
When connecting the PE pipes, the gripping ring can simultaneously ensure pipe end retention and tightness, and restrict to pull out.
SYI-QA makes the connection between flange and uPVC/PE/DI pipes more quicker, easier, with lower cost instead of Flanged Socket or Flanged Adaptors.
In the use of better performance on the basis of both procurement and construction cost economy.

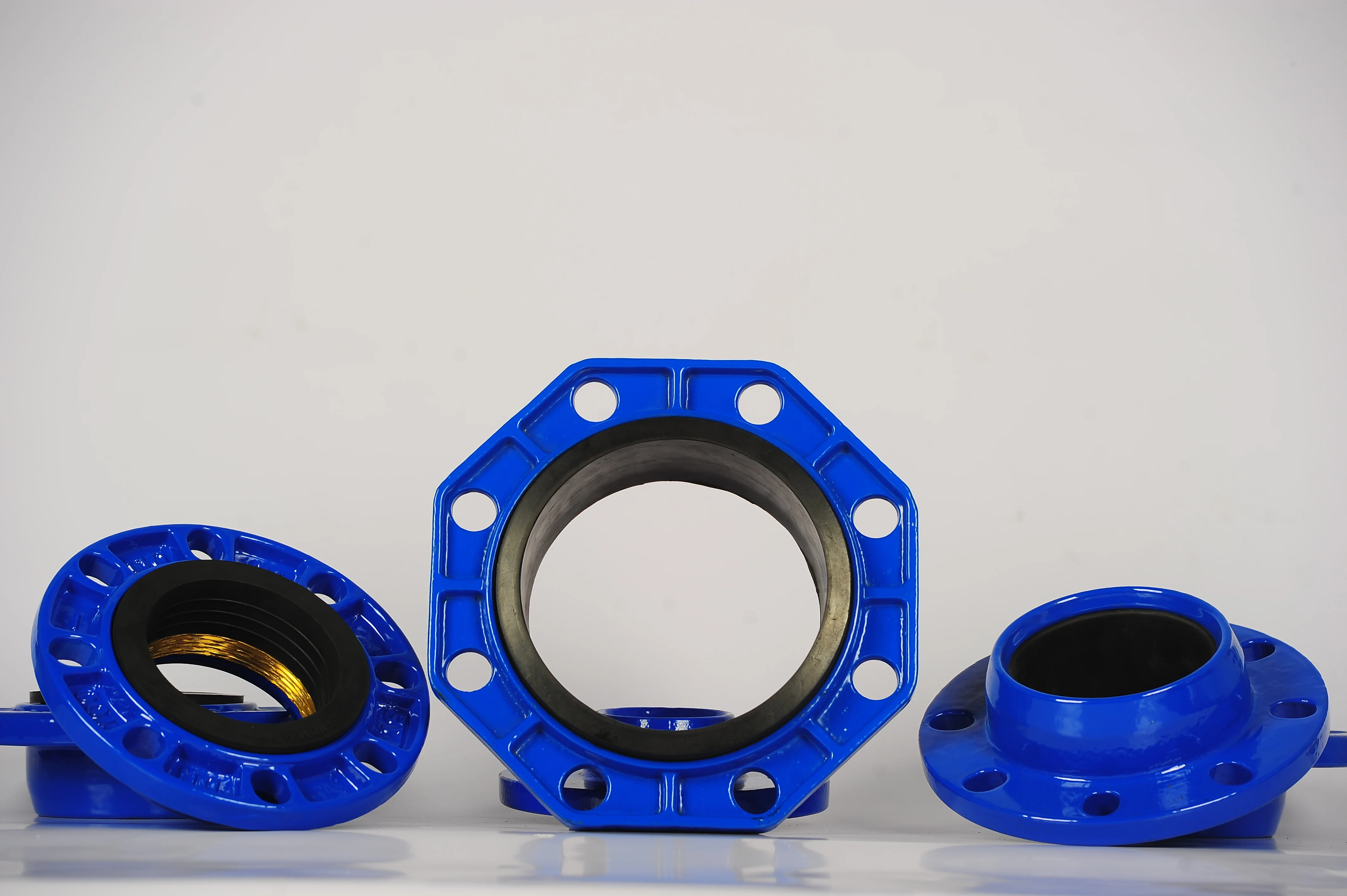

SYI COMPACT Quick Adaptors Features:

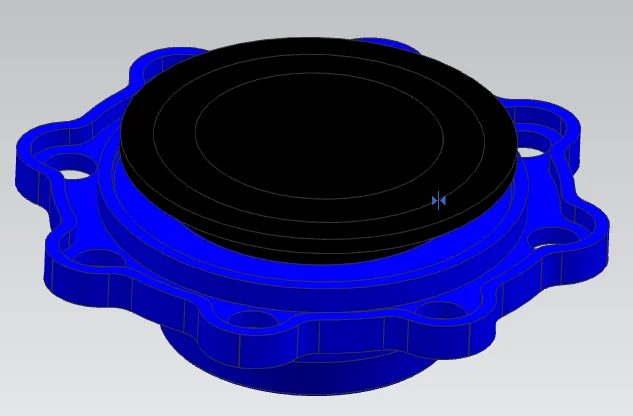

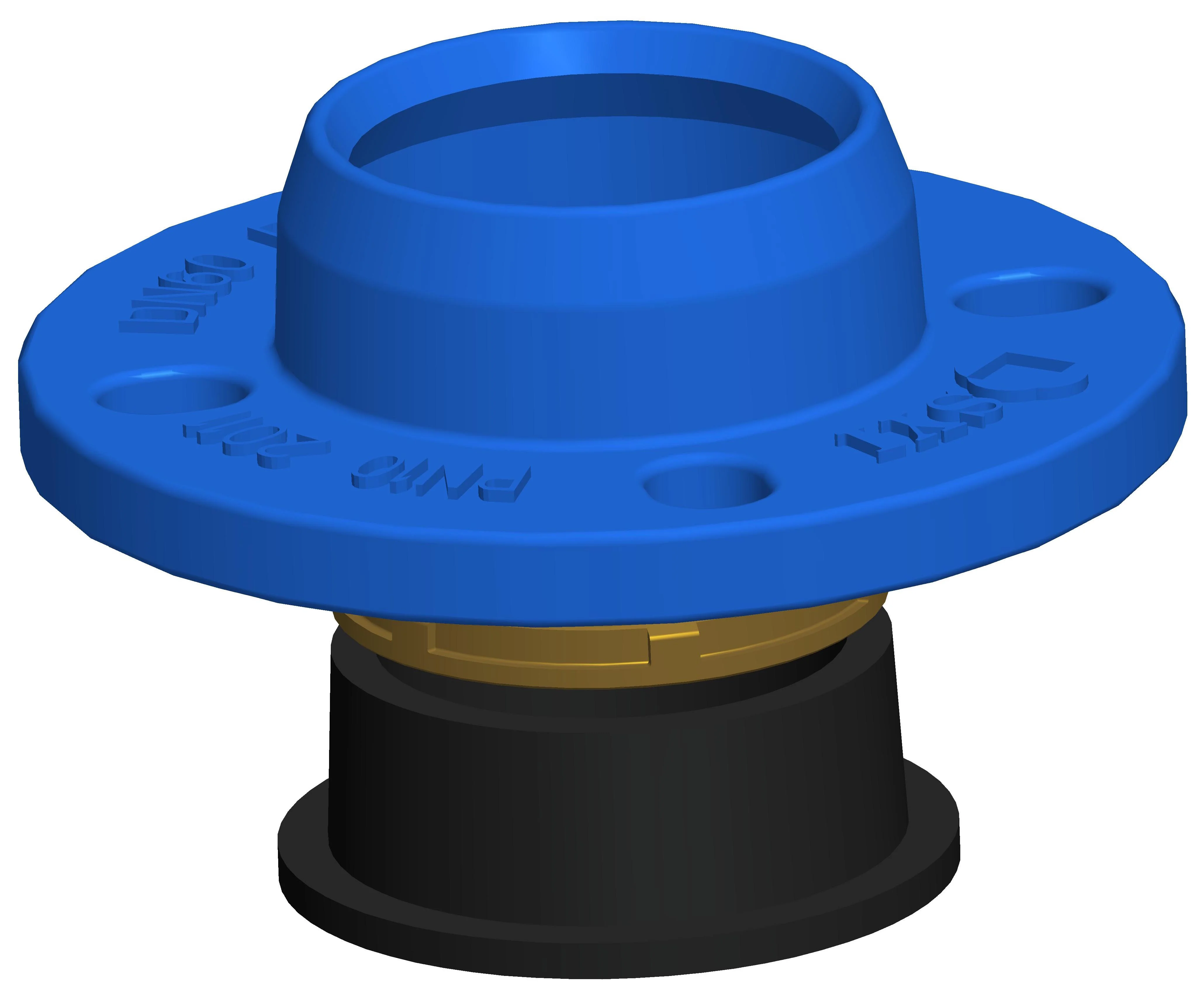

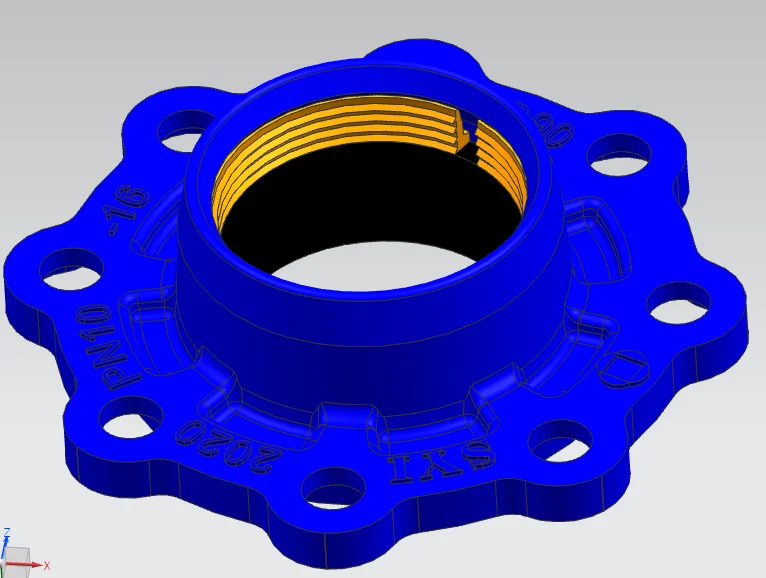

SYI-CQA and SYI-CQAPE is our new improved Quick Adaptor, which is characterized by rubber extrusion to achieve the sealing and stop function of uPVC/PE pipe.
In order to achieve this function it is necessary to improve the surface quality of the casting, through process improvement, producing by auto-machine moulding line, so it is not only improved the product quality but improved the production efficiency at the same time.
SYI-CQA and SYI-CQAPE with the high quality and best price, with greater market competitiveness.
SYI-CQA and SYI-CQAPE is our new improved Quick Adaptor, which is characterized by rubber extrusion to achieve the sealing and stop function of uPVC/PE pipe.
In order to achieve this function it is necessary to improve the surface quality of the casting, through process improvement, producing by auto-machine moulding line, so it is not only improved the product quality but improved the production efficiency at the same time.
SYI-CQA and SYI-CQAPE with the high quality and best price, with greater market competitiveness.

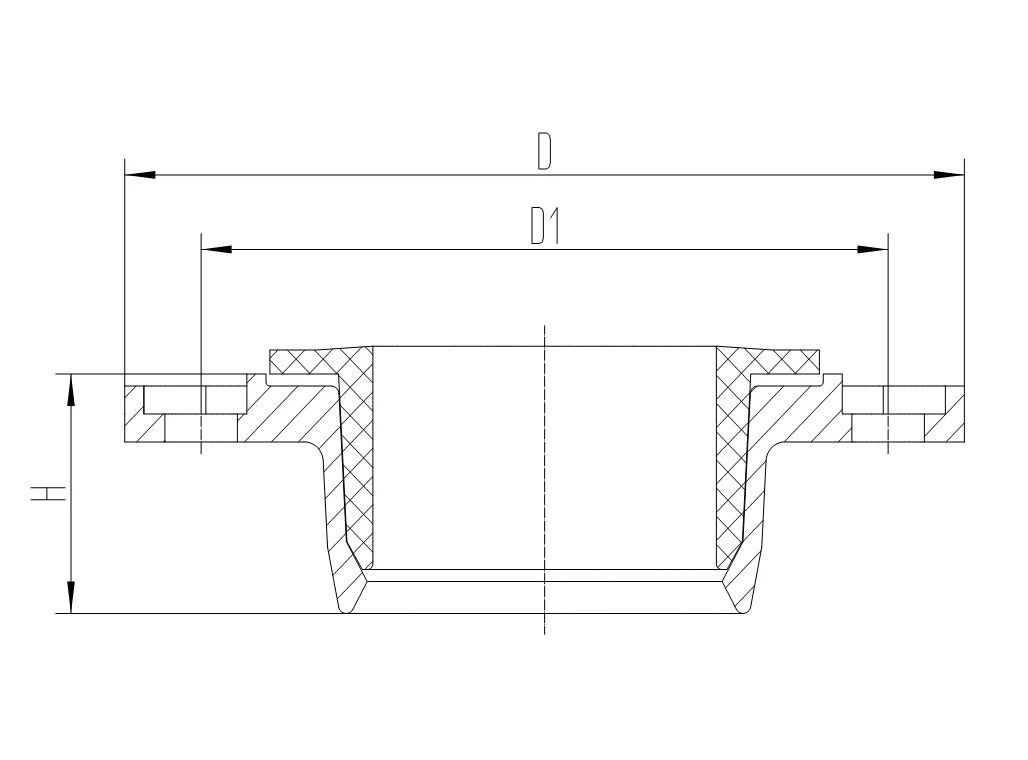

SYI COMPACT Quick Adaptors for PVC pipes Dimensions
SYI S. N. | DN | OD | D | D1 | D2 | H | ||||||
mm | ||||||||||||
SYI-QAPVC4050 | 40 | 50 | 150 | 110 | / | 52 | ||||||
SYI-QAPVC5050 | 50 | 50 | 165 | 125 | / | 52 | ||||||
SYI-QAPVC5063 | 50 | 63 | 165 | 125 | / | 54 | ||||||
SYI-QAPVC60/6563 | 60/65 | 63 | 185 | 135 | 145 | 54 | ||||||
SYI-QAPVC60/6575 | 60/65 | 75 | 185 | 135 | 145 | 57 | ||||||
SYI-QAPVC8075 | 80 | 75 | 200 | 155 | / | 57 | ||||||
SYI-QAPVC8090 | 80 | 90 | 200 | 155 | / | 60 | ||||||
SYI-QAPVC10090 | 100 | 90 | 220 | 180 | / | 60 | ||||||
SYI-QAPVC100110 | 100 | 110 | 220 | 180 | / | 64 | ||||||
SYI-QAPVC125125 | 125 | 125 | 250 | 210 | / | 72 | ||||||
SYI-QAPVC125140 | 125 | 140 | 250 | 210 | / | 76 | ||||||
SYI-QAPVC150160 | 150 | 160 | 285 | 240 | / | 80 | ||||||
SYI-QAPVC200180 | 200 | 180 | 340 | 304 | / | 86 | ||||||
SYI-QAPVC200200 | 200 | 200 | 340 | 304 | / | 90 | ||||||
SYI-QAPVC200225 | 200 | 225 | 340 | 304 | / | 90 | ||||||
SYI-QAPVC250250 | 250 | 250 | 400 | 350 | / | 92 | ||||||
SYI-QAPVC300280 | 300 | 280 | 455 | 402 | / | 98 | ||||||
SYI-QAPVC300315 | 300 | 315 | 455 | 402 | / | 102 | ||||||
SYI-QAPVC350355 | 350 | 355 | 520 | 464 | / | 114 | ||||||
SYI-QAPVC400400 | 400 | 400 | 580 | 515 | / | 128 | ||||||
For other sizes not mentioned above, please contact us.We have right to change the data without further notice. | ||||||||||||

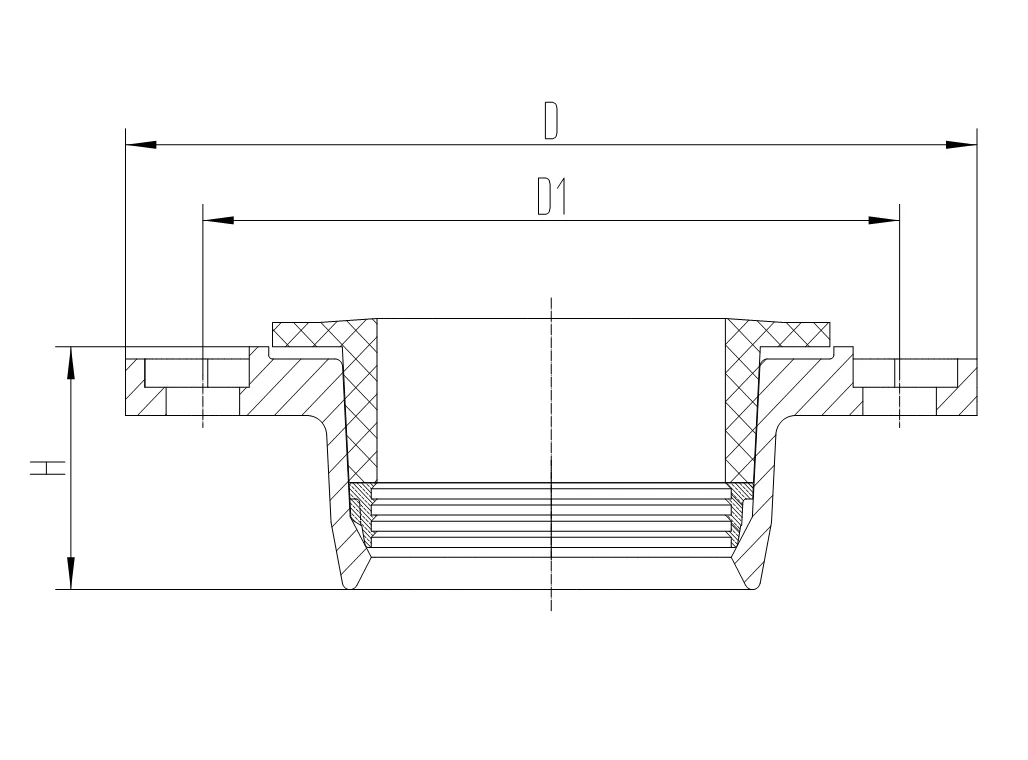

SYI COMPACT Quick Adaptors for PE pipes Dimensions
SYI S. N. | DN | OD | D | D1 | D2 | H | ||||||
mm | ||||||||||||
SYI-QAPVC4050 | 40 | 50 | 150 | 110 | / | 52 | ||||||
SYI-QAPVC5050 | 50 | 50 | 165 | 125 | / | 52 | ||||||
SYI-QAPVC5063 | 50 | 63 | 165 | 125 | / | 54 | ||||||
SYI-QAPVC60/6563 | 60/65 | 63 | 185 | 135 | 145 | 54 | ||||||
SYI-QAPVC60/6575 | 60/65 | 75 | 185 | 135 | 145 | 57 | ||||||
SYI-QAPVC8075 | 80 | 75 | 200 | 155 | / | 57 | ||||||
SYI-QAPVC8090 | 80 | 90 | 200 | 155 | / | 60 | ||||||
SYI-QAPVC10090 | 100 | 90 | 220 | 180 | / | 60 | ||||||
SYI-QAPVC100110 | 100 | 110 | 220 | 180 | / | 64 | ||||||
SYI-QAPVC125125 | 125 | 125 | 250 | 210 | / | 72 | ||||||
SYI-QAPVC125140 | 125 | 140 | 250 | 210 | / | 76 | ||||||
SYI-QAPVC150160 | 150 | 160 | 285 | 240 | / | 80 | ||||||
SYI-QAPVC200180 | 200 | 180 | 340 | 304 | / | 86 | ||||||
SYI-QAPVC200200 | 200 | 200 | 340 | 304 | / | 90 | ||||||
SYI-QAPVC200225 | 200 | 225 | 340 | 304 | / | 90 | ||||||
SYI-QAPVC250250 | 250 | 250 | 400 | 350 | / | 92 | ||||||
SYI-QAPVC300280 | 300 | 280 | 455 | 402 | / | 98 | ||||||
SYI-QAPVC300315 | 300 | 315 | 455 | 402 | / | 102 | ||||||
SYI-QAPVC350355 | 350 | 355 | 520 | 464 | / | 114 | ||||||
SYI-QAPVC400400 | 400 | 400 | 580 | 515 | / | 128 | ||||||
For other sizes not mentioned above, please contact us.We have right to change the data without further notice. | ||||||||||||
Quality Control
SYI Pipeline regards quality as an essential and integral part of our business success.
Until now, we are ISO9001:2015 TUV, BSI Kitemarked, SGS, BV, FM certified, and UL, WRAS listed. We are the approved supplier to many worldwide known countries and authorities.
Manufacturing "SYI" Brand products has evolved as a mark of quality!
Chemical Analyzing
Microstructure Testing
Press Ring Experiment
Spectrum Analyzing

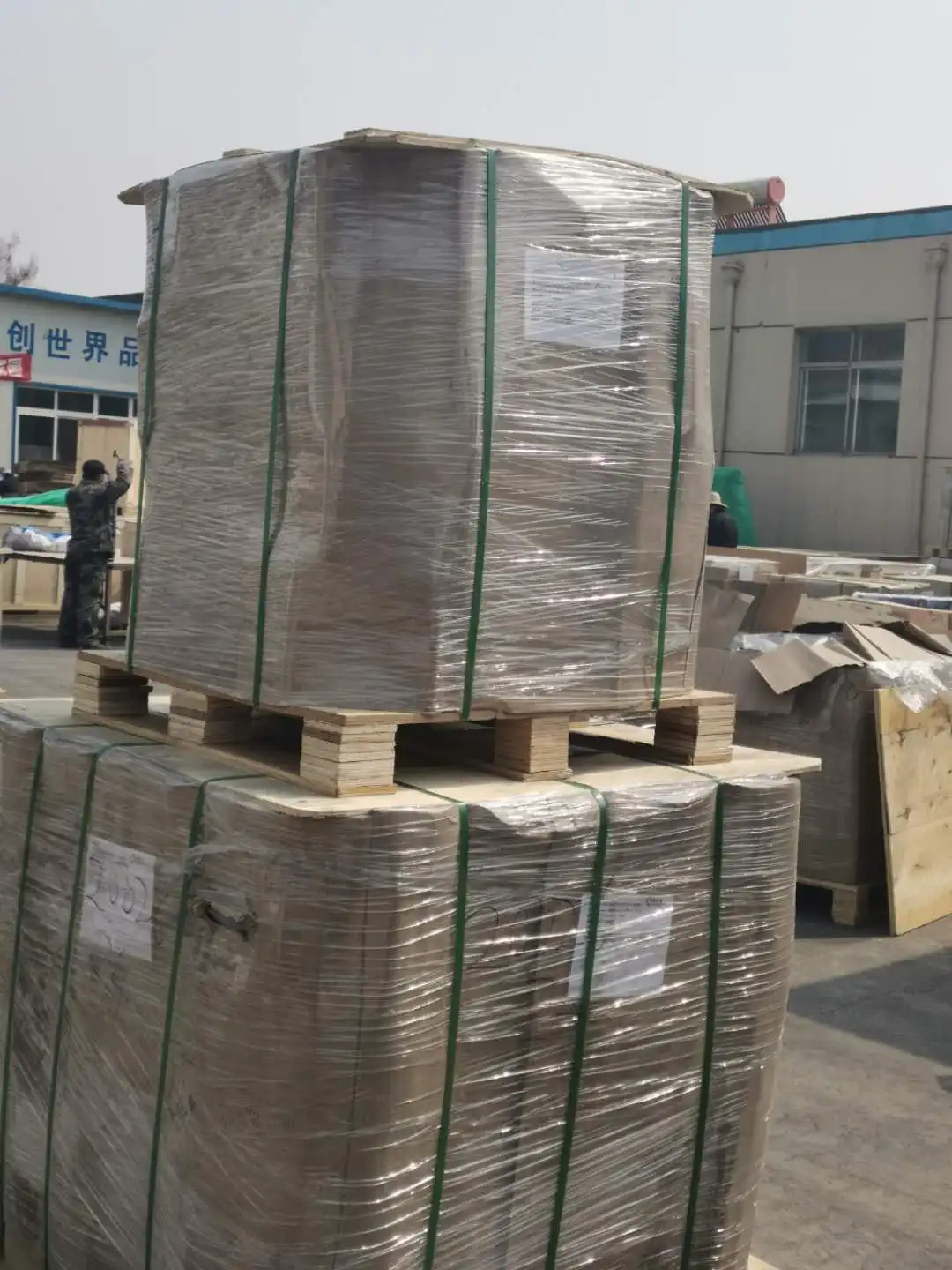

Packing & Delivery
Packing: Different package upon your request,like wood cases&pallets,ply-wood crates&pallets,steel crates&pallets and etc.
Company Profile
SYI Pipeline Corporation - a Proud Member of SYI Group - manufactures a full range of Pipeline products and accessories like Pipes, Fittings, Universal Couplings, Flanged Adaptors, Restrained Adaptors, Dismantling Joints, Clamps, Valves, Fire Hydrants and etc.
Since 2009, SYI Pipeline has developed from a single pipes & fittings seller to a professional project solution provider,
including One-Stop Shop of pipes, fittings, couplings & flanged adaptors, valves, fire hydrants, water meters and all kinds of accessories.
SYI Pipeline has an annual supply capability of 200,000 tons, and it is still developing all the time.
SYI Pipeline regards quality as an essential and integral part of our business success. Until now, we are ISO9001:2015 TUV, BSI Kitemarked, SGS, BV, FM certified, and UL, WRAS listed. We are the approved supplier of many worldwide known countries and authorities. Manufacturing "SYI" Brand products has evolved as a mark of quality!
Along with products themselves, SYI Pipeline also helps customers with products instructions and installation guide.
Since 2009, SYI Pipeline has developed from a single pipes & fittings seller to a professional project solution provider,
including One-Stop Shop of pipes, fittings, couplings & flanged adaptors, valves, fire hydrants, water meters and all kinds of accessories.
SYI Pipeline has an annual supply capability of 200,000 tons, and it is still developing all the time.
SYI Pipeline regards quality as an essential and integral part of our business success. Until now, we are ISO9001:2015 TUV, BSI Kitemarked, SGS, BV, FM certified, and UL, WRAS listed. We are the approved supplier of many worldwide known countries and authorities. Manufacturing "SYI" Brand products has evolved as a mark of quality!
Along with products themselves, SYI Pipeline also helps customers with products instructions and installation guide.
Value Added Services
A dedicated Customer Service team with 50 staff covering Marketing, Sales, Technical, Production, Inspection, Logistics and
Management.
80% have over 5 years working experiences.
100% of our sales can communicate in English fluently.
Free catalogues, certificates.
Individual QCP.
MTC with pictures and videos.
Free Extra Accessories and Repair Tools.
1 specialized Customer Service Staff to follow your each single project.
Professional Logistic Services.
Free Installation Instruction, Product Standards and Inspection Certificates.
One-stop Service
1. Sales Service
40 staff covering the pre-sales, on-sales, after-sales services.
80% have over 5 years working experiences.
100% of our sales can communicate in English fluently.
We promise to respond your questions within 24 hours.
2. Customer Service
For your every single PO, we have 1 Customer Service person to independently follow up.
Professional Logistic Department
Product Installation Instructions are available.
A dedicated Customer Service team with 50 staff covering Marketing, Sales, Technical, Production, Inspection, Logistics and
Management.
80% have over 5 years working experiences.
100% of our sales can communicate in English fluently.
Free catalogues, certificates.
Individual QCP.
MTC with pictures and videos.
Free Extra Accessories and Repair Tools.
1 specialized Customer Service Staff to follow your each single project.
Professional Logistic Services.
Free Installation Instruction, Product Standards and Inspection Certificates.
One-stop Service
1. Sales Service
40 staff covering the pre-sales, on-sales, after-sales services.
80% have over 5 years working experiences.
100% of our sales can communicate in English fluently.
We promise to respond your questions within 24 hours.
2. Customer Service
For your every single PO, we have 1 Customer Service person to independently follow up.
Professional Logistic Department
Product Installation Instructions are available.
