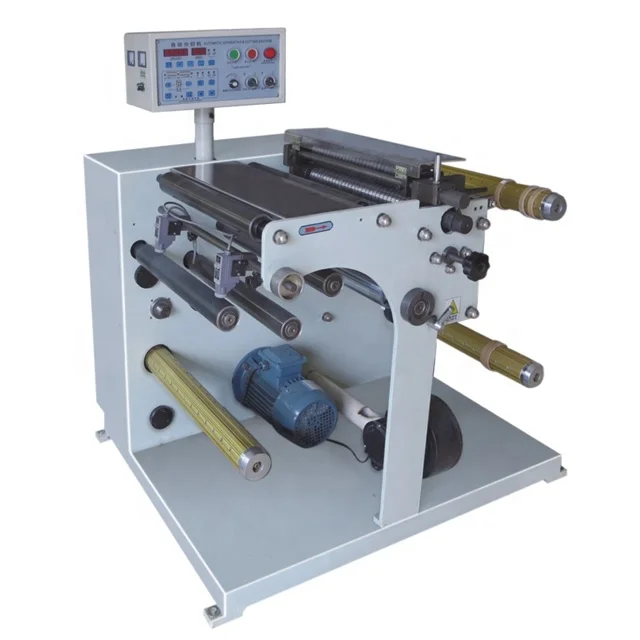

Paper Slitter Rewinder Paper Slitting Rewinding Machine Paper Straw Slitter Rewinder

Technical Parameter

Main Configuration

Unwind width

450mm

Main Motor

2kw

Unwind diameter

900 mm max.

Inverter

Kewo

Rewind diameter

450 mm max.

Material loading shaft

1 piece

Slitting width

13.5 mm min.

Rewinding shaft

2 pieces

Speed

1-100m/min

Deviation rectifying device

1 set

Unwind roll clamping

by air expanding shaft

Meter counter

1 set

Rewind rolls clamping

by air expanding shaft

Tension control device

1 set

Tension control

Closed-loop tension control

Magnetic braking device

1 set

Meter counting

Automatic

Blades on machine

30sets

Deviation rectifying

by Photoelectric eye

Waste paper remove device

1 set

Rewinding roll

Double

Tool box

1 set

Voltage

380v 3PHS 50Hz

Measurement & Weight

Operating person

1 person

Measurement

1100*1000*1350mm

Weight

480kgs
