Price:$17,000.00

Quantity:


Product Overview

Description



Product Details


Here, we take our five-layer air bubble film machine as an example.

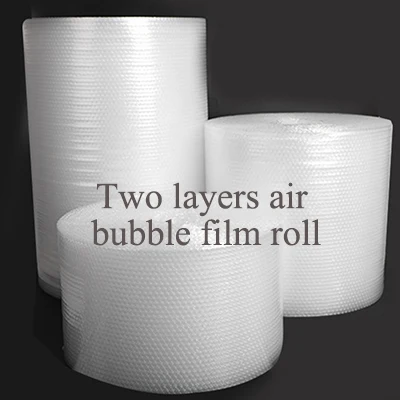

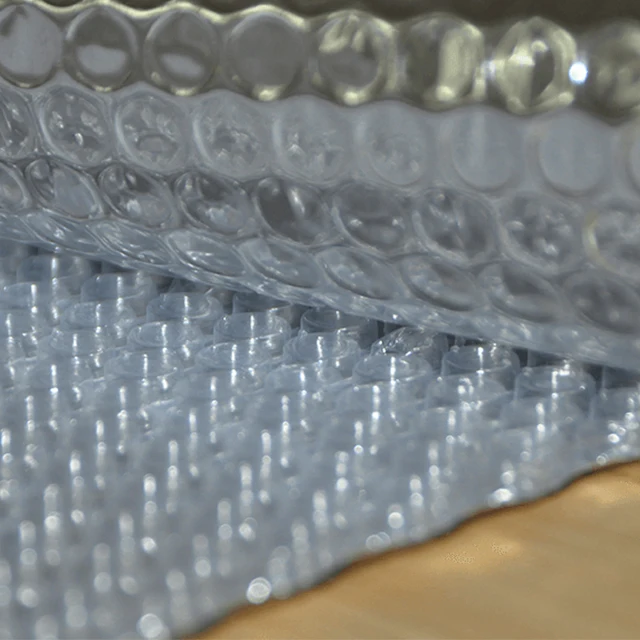

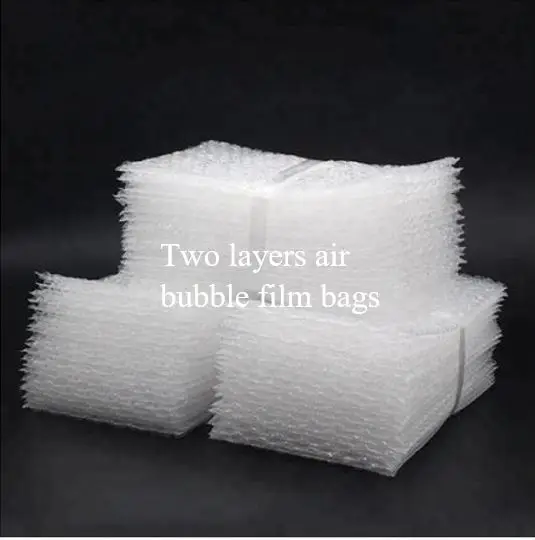

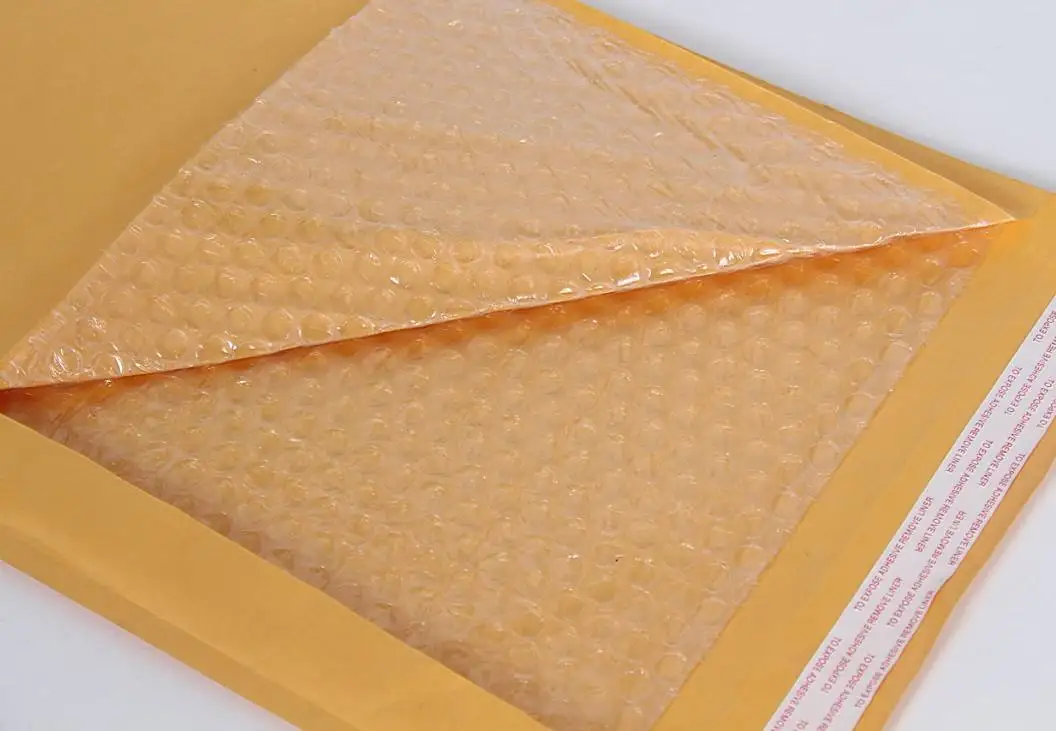

●This multi-layer machine can produce 2 layers air bubble film, 3 layers two-side-flat air bubble film, 3 layers laminated, 4 layers laminated, and 5 layers laminated air bubble film.

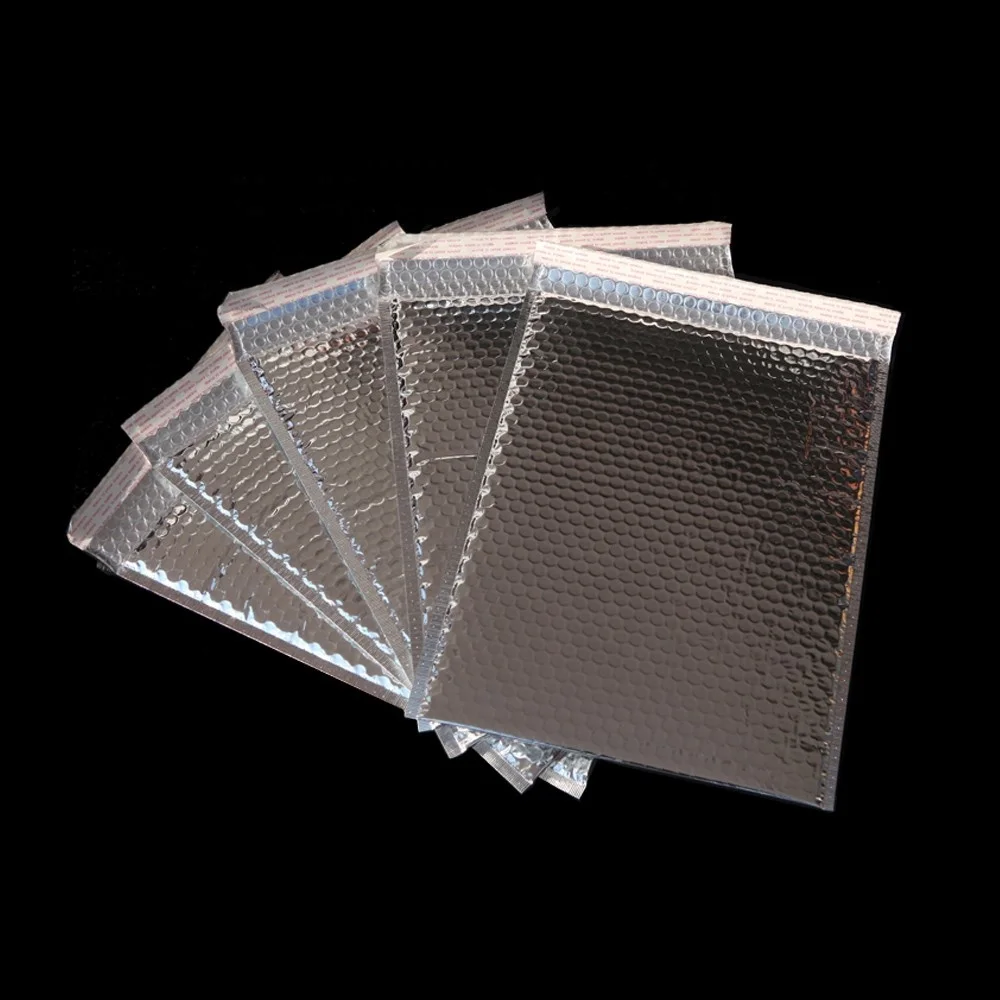

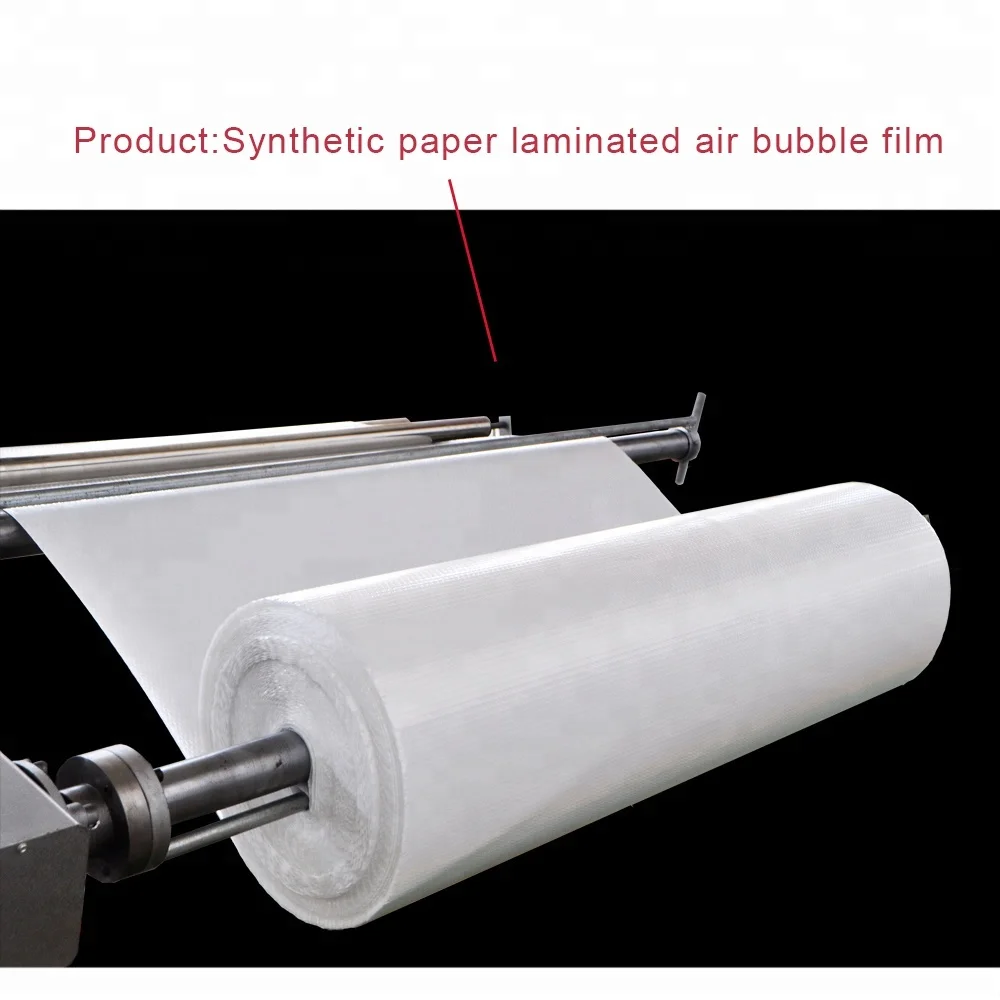

●As for the lamination material, it includes PE coated aluminum foil, PE coated Kraft peper, PE film, PE foam, PE coated
anti-static film, PE coated non-waven fabric and other PE coated materials to air bubble film.




You Could Use Multe-layer Single Screw Air Bubble Film Machine to Produce:




Highlights of our machines:
-- Produce superior quality of air bubble film. We specially design and precisely manufacture all mechanical parts in Shanghai, especially the molds and forming rollers, which ensures our machine can produce air bubble film as thin as 32GSM while with stronger texture compared to others. We helped a lot of our customers win the market with our machines and service, such as becoming top sales on Amazon, Alibaba and win the bids from IKEA, Mazda, Volkswagen, Japan Daiso, and brand logistics etc.
-- Easy to operate. Help you save the labor cost.
·-- 24-hour service and engineers onsite available. We provide 24-hour response service, engineers onsite service including installing, testing, operation training, and lifelong technical support.


Our Recommand:


For Whom
Our machine recommendations
For beginners
1.2m-1.5m wide machine, help you get investment return within 6 months
For who wants to further expand the production capacity
1.5m-2m wide machine or/and two screws extrusion system
For who has production pressure to meet quantity and quality requirements from large companies
2m-3m wide machine or/and two screws extrusion system

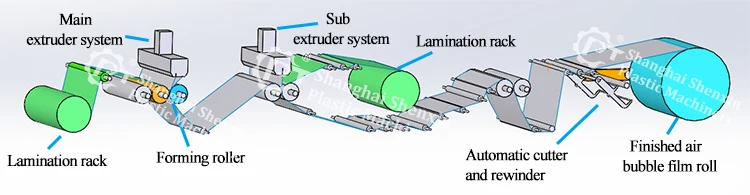

A full set of machine includes:

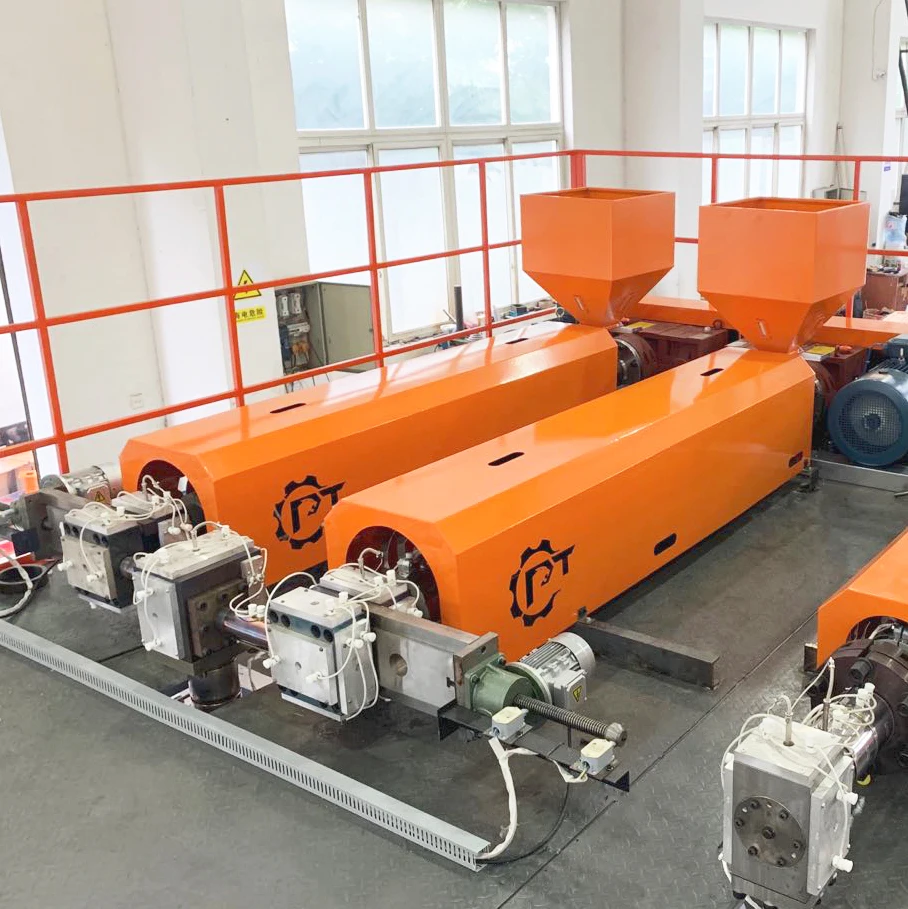

· One single-screw main extrusion set.
· One single-screw sub extrusion set.

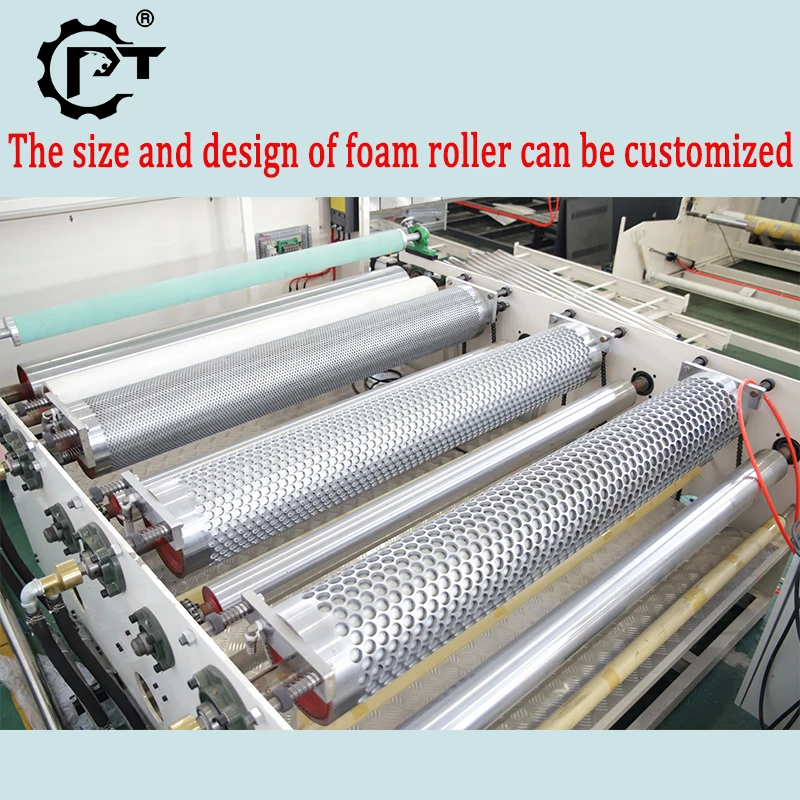

· One air bubble film forming roller (air bubble shape and size can be customized).
· One set of air bubble film forming frame with vertical dividers.
· Two automatic raw material feeder, reducing labor cost.
· One roll winding system, with a fixed-length meter control and a smart alarm.


Optional upgrades:


Automatic Dryer
(dry material)
Recycled Material Processing Machine (save material)
Automatic Water Chiller
(capacity +20%)


Machine Parameters


Film width (mm)
1200
1600
2000
2600
3000
Model
SX-L5-W1200
SX-L5-W1600
SX-L5-W2000
SX-L5-W2600
SX-L5-W3000
Line speed (m/hr)
600 - 2100
600 - 2100
600 - 2100
600 - 2100
600 - 2100
Capacity (kg/hr)
80 - 100
100 - 140
110 - 158
120 - 180
160 - 220
Thickness (mm)
0.04 - 0.3
0.04 - 0.3
0.04 - 0.3
0.04 - 0.3
0.04 - 0.4
Film weight (g/m2)
38 - 300
38 - 300
40 - 300
45 - 300
45 - 300
Main screw Diameter (mm)
Φ65
Φ75
Φ80
Φ90
Φ130
Sub screw Diameter (mm)
Φ45
Φ65
Φ65
Φ75
Φ80
Heating Power (kw)
72
88
110
130
168
Operation Power (kw)
36
44
55
69
79
Installation Power (kw)
100
136
159
202
254
Dimension L×W×H (m)
10 x 5.0 x 2.5
10 x 6.0 x 2.5
11 x 6.5 x 2.5
12 x 7.5 x 2.5
12 x 8.5 x 2.5
Weight (kg)
5000
5500
6500
8500
11000


24/7 Service

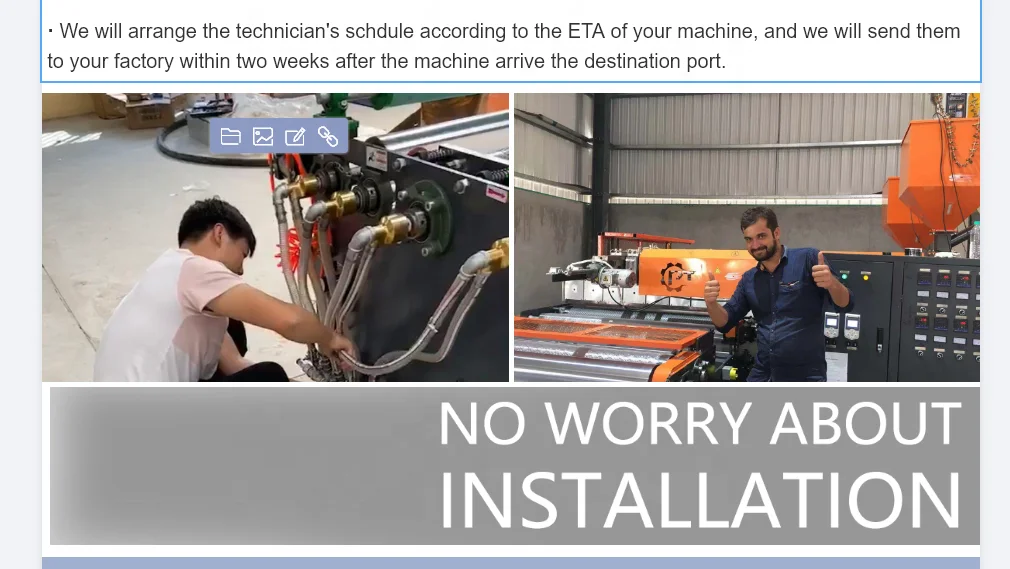

Installation and Training Service
· We will send our engineers to your factory within 2 weeks after the machine arrives.
· Our engineers will help you with machine installation, adjusting, testing and guide your workers.
· Our engineers will help you begin stable production within 5 ~ 10 days depending on the machine typeand size.




Pre-sale Service
· Free consulting about machine type and size.
· Videos in details to show you everything you want to know.
· Anything else based on your production needs.

After-sale Service
· Well experienced engineer avaliable to provide oversea service at your place.
· Installing, testing and training service.
· Lifelong technical support.
· 1 year warranty.


Worldwide Customers' Choice




After You Place the Order






Certifications


We are one of the few verified suppliers passed SGS,CE, ISO 9001 and other certificates.

Different from gold suppliers, verified suppliers are officially examined by Alibaba.com, and proved to be solid and reliable
manufacturers.

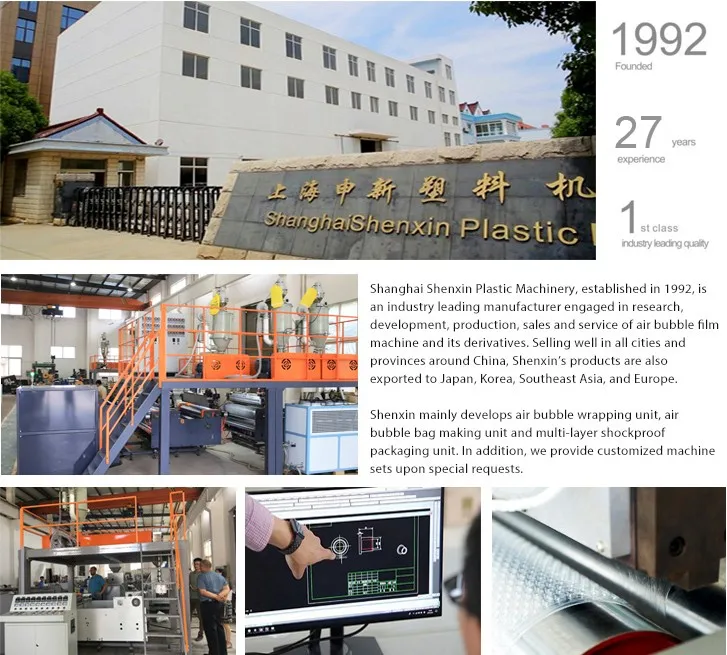

Company Profile
