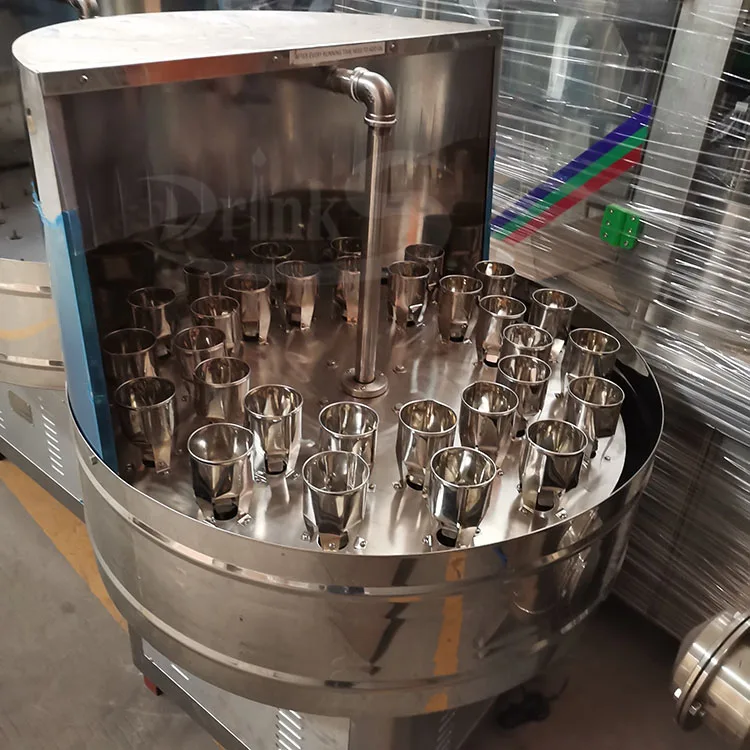

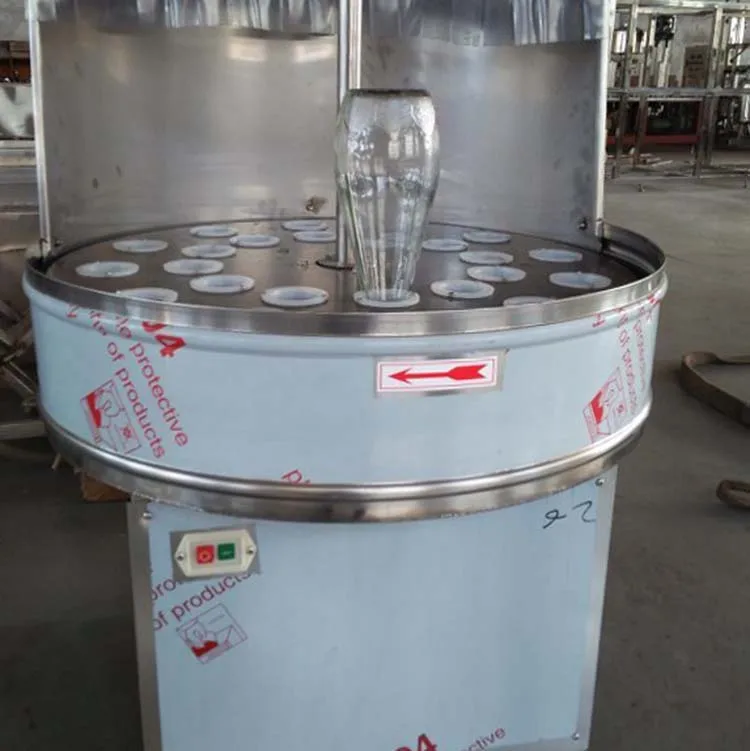

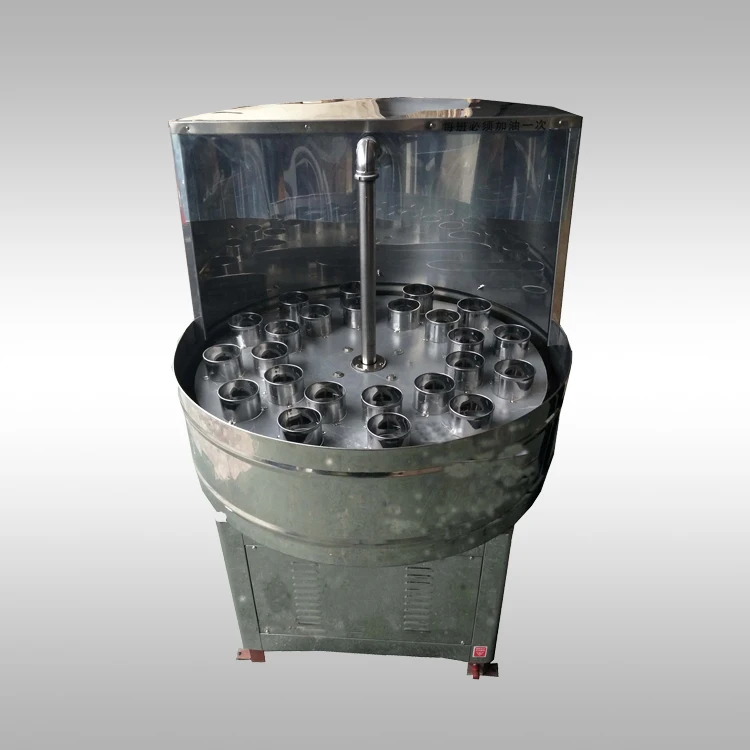

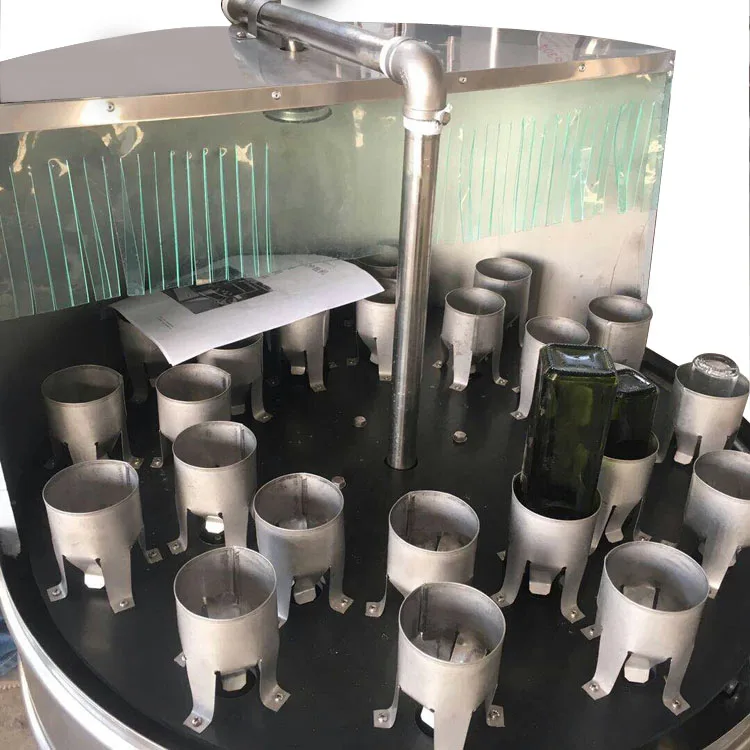

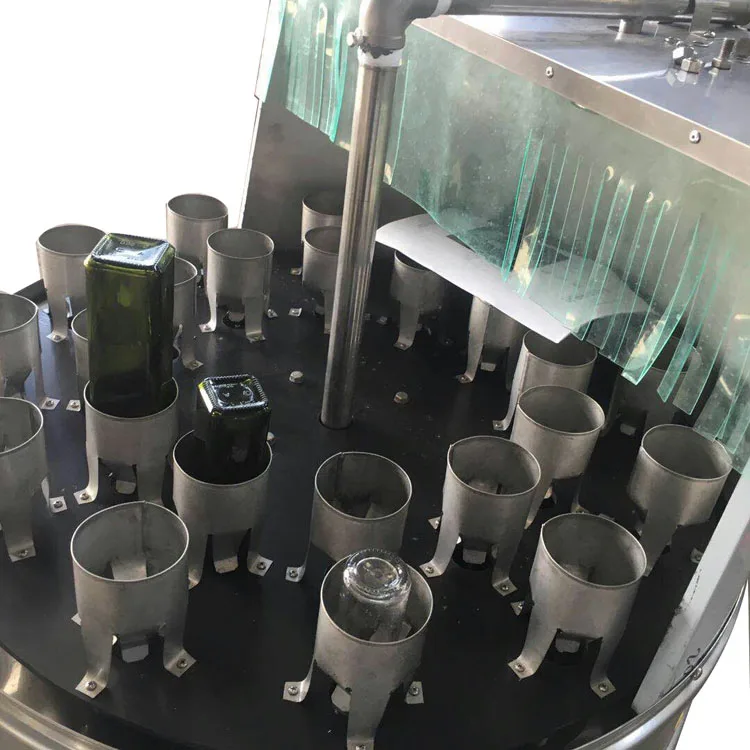

Small Commercial Model Semi Automatic Glass Beer Bottle Washing Machine
- Category: >>>
- Supplier: Zhangjiagang Drinks Packaging Technology Co. Ltd.
Share on (60820174092):
Product Overview
Description
Product Description
New Multifunction Semi-auto PET Plastic Or Glass Bottle Washer Stainless
This is a semi-automatic bottle cleaning equipment. The beer bottle cleaning machine is suitable for glass bottles, plastic bottles and cans. The product is a Semi-automatic liquid filling container glass cleaning equipment, widely used in white wine wine color, sparkling wine, soft drink, juice drink, soy sauce and vinegar production unit clean the glass container. This product is scrubbed by a manual operator outside the bottle and bottle for easy operation. All efficiency can be increased by about 24 times.
Model | XP-24 Bottle washing machine | ||||
Automatic grage | Semi automatic | ||||
Washing heads | 24 heads | ||||
Washing capacity | 500-3000 Bottles per hour | ||||
Suitable for bottle height | 120-380mm | ||||
Suitable for bottle diameter | 12-55mm | ||||
Voltage | AC 380V 50/60HZ | ||||
Power | 0.75KW | ||||
Control mode | Electric | ||||
Weight | 250kg | ||||
Packaging dimension | 1000*1000*1300mm | ||||
Detailed Images
Machine Features
1. The outer wall of the bottle is sprayed and the inner wall is rinsed. The bottle washing is more hygienic and clean；
2. You can use the low-pressure pump to pressurize and wash the bottle according to the customer's needs, with low water consumption.；
3. Simple structure and convenient maintenance；
4. Labor-saving and labor-saving, high production efficiency, suitable for wide bottle types (replace different bottle holders can be used for wide-mouth bottles and fine-mouth bottles).
Working Principle:
1. The outer wall of the bottle is sprayed by a spray head, and the spray pressure can be adjusted by a spray switch. (The pressure of the external water source of this machine needs to be higher than 0.1Mpa, if it is lower than this pressure, you need to bring your own booster pump.) ;
2. When the inner wall is flushed, the lower valve body is stationary on the bracket. The upper valve body is integrated with the upper plate of the bottle flushing through the nozzle and rotates at the same time. When the water inlet of the lower valve body is connected, the water is pressurized to rinse the inside of the bottle through the nozzle.
Hot Sale
Q:Will these products be what I want?
A:If not, you can also visit our homepage and select other products. Our website is://drinksmachinery.en.alibaba.com
Automatic bottle washing machine
Glass bottle unscrambler
Glass beer bottle filling machine
Beer bottle capping machine
Glass bottle labeling machine
Sleeve labeling machine
Our Company
Our Service
What kind of service can your company provide?
A: Throughout the cooperation process, our company can provide the following three services.
1.Sample service
We can send you a video of the work of this machine.
You are very welcome to visit our company and check the operation of the machine on site. We will send someone to pick you up at the airport.
2. Customized service
We can customize the machine according to the customer's requirements (such as material, power, filling type, bottle size, etc.), and our engineers will also provide professional advice to help customers better establish the ideal factory.
3. After sales service
After receiving the final payment, we will provide the bill of lading in time to ensure that the customer receives the goods as soon as possible.
Once you have completed all the preparations, we will send engineers to your factory to install the machines and train your staff for free until they are able to operate the machine well.
We can provide one year warranty and spare parts, and free lifetime technical service.
FAQ
1. Q: Are you a factory or a trading company?
A: We are a factory that produces a complete set of raw water treatment equipment and juice filling production lines. Our company has 5 years of production experience. The factory area is approximately 5,000 square feet. Customers in nearly 20 countries have used our equipment.
2. Q: Where is your factory? How do I get there?
A: The address of our company is Leyu Town, Zhangjiagang City, Jiangsu Province. It is about one and a half hours drive from Shanghai Hongqiao Airport and 40 minutes from Wuxi High Speed Rail. Welcome Chinese and foreign customers to visit our company.
3. Q: How long is the warranty period of your machine?
A: After the device is accepted, it provides a 12-month warranty, the control system provides a 12-month warranty, free accessories and timely and effective service. After the warranty period, provide extensive technical support and lifetime after-sales service.
4. Q: What are the characteristics of your company?
A: We provide turnkey projects for our customers, including pre-sales and after-sales services, providing complete production lines, designing bottle samples, providing layout drawings free of charge, providing auxiliary material supply information, machine installation and commissioning, and employee training.
