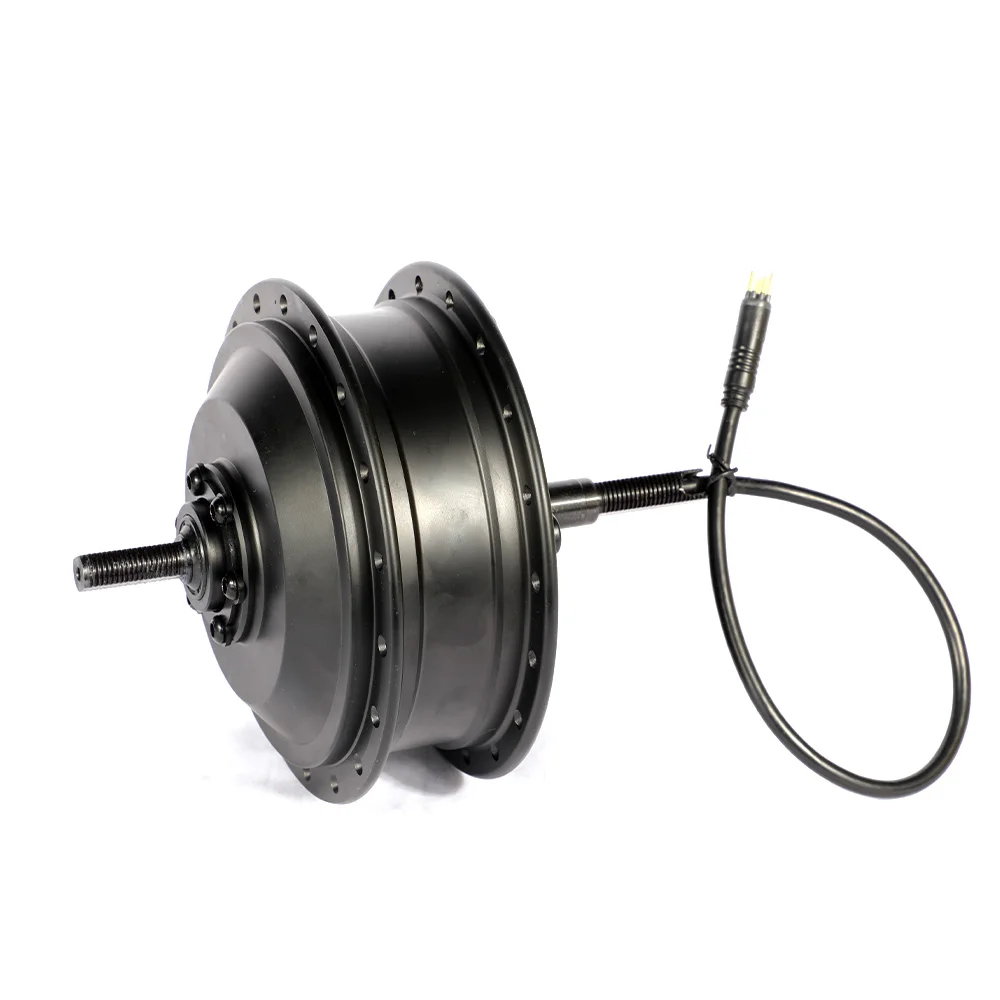

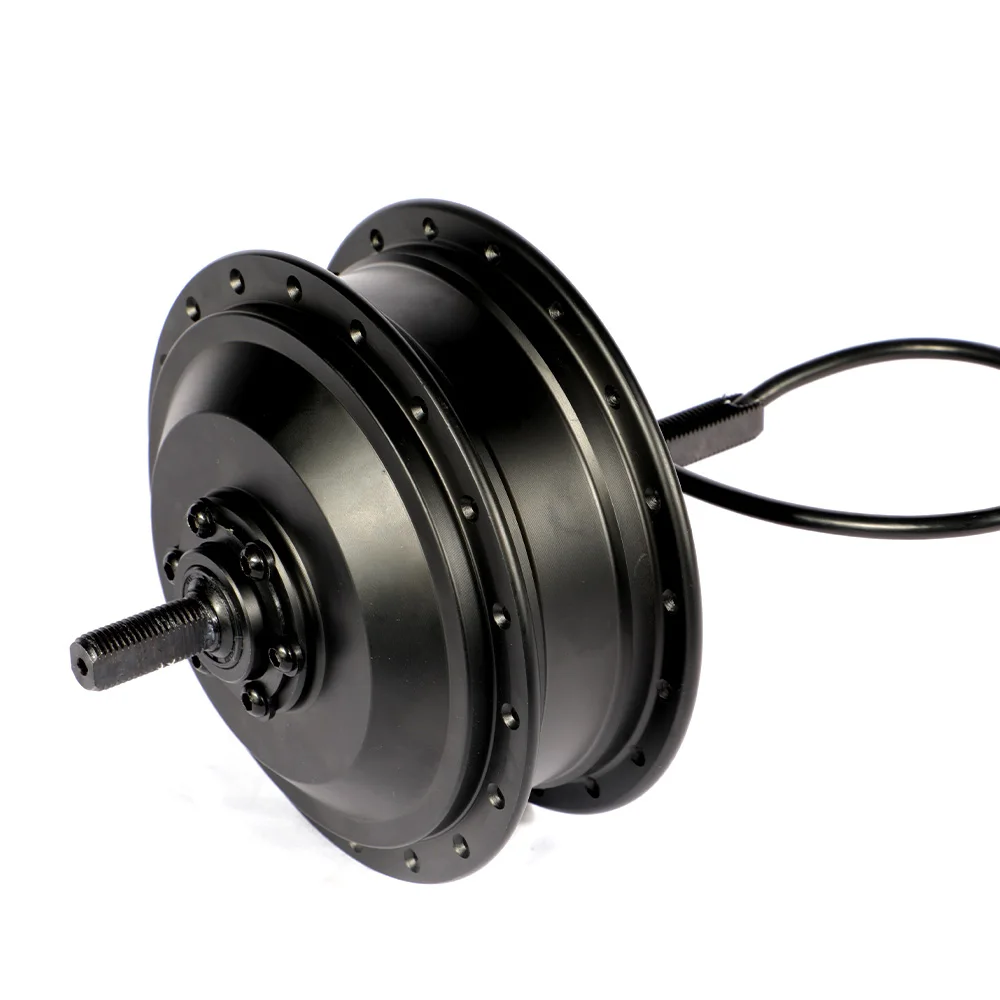

CZJB 90T electric bicycle dc 36v 350w rear wheel hub motor
- Category: >>>
- Supplier: Changzhou Jiabo Machinery Manufacturing Co. Ltd.
Share on (60820182507):
Product Overview
Description
Product Description
Rated Voltage(V) | 36v/48v |
Rated Power(W) | 250w/350w |
Wheel Size | 16''-28'' |
Rated Speed(km/h) | 25km/h |
Rated Efficiency (%) | ≥82% |
Reduction Ratio | 1:5.2 |
Weight (Kg) | 3kg |
Open Size(mm) | 137mm |
Drive and Freewheel | 6-7s |
Cable Location | Shaft Center Right |
Spoke Specification | 36H*12g/13g |
Surface | Matt Black |
Brake Type | V brake/Disc |
Salt Fog Test(h) | 24/96 |
Noise(db) | ≤55db |
Waterproof Grade | IP65 |
Nine pins waterproof cables(1.2 square for 250w/350w;1.5 square for 500w/750w；2.0 square for 750w/1000w)
motor male connector:200mm female: rear :800mm front :1300mm
If you need longer cables,customize is possible.We also can provide motor extension cables.
motor male connector:200mm female: rear :800mm front :1300mm
If you need longer cables,customize is possible.We also can provide motor extension cables.
Our Advantages
Why we use helical tooth instead of straight tooth ?
1.Use Helical tooth which can effective for reduce the gear friction
2.When we are climbing,riding motivation is better than useing straight tooth
Product Application

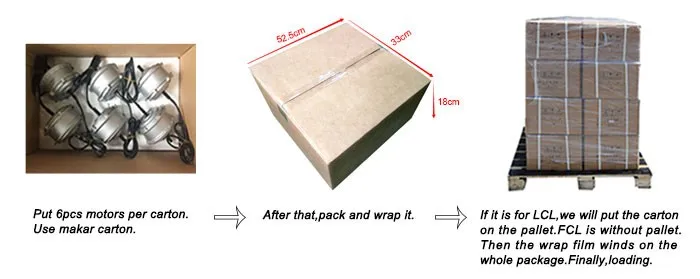

Package

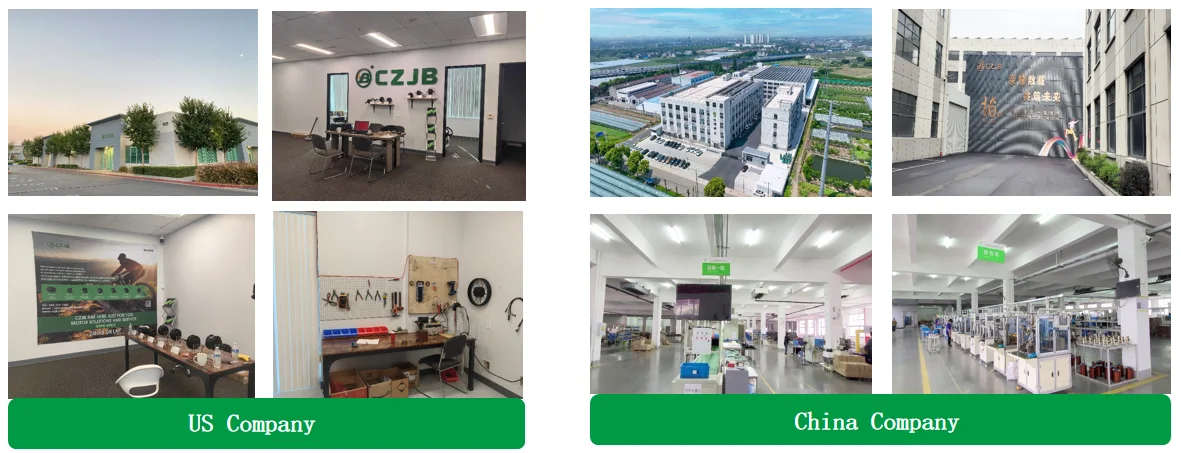

Company Profile
*E-bike hub motor manufacturer
*support e-bike system customization
*16 years professional experience of e-bike gear motor
*continuous R&D
*ODM&OEM
*ISO9001,CE,ROHS,SGS,UKCA,
*Western America Service Center
*support e-bike system customization
*16 years professional experience of e-bike gear motor
*continuous R&D
*ODM&OEM
*ISO9001,CE,ROHS,SGS,UKCA,
*Western America Service Center
