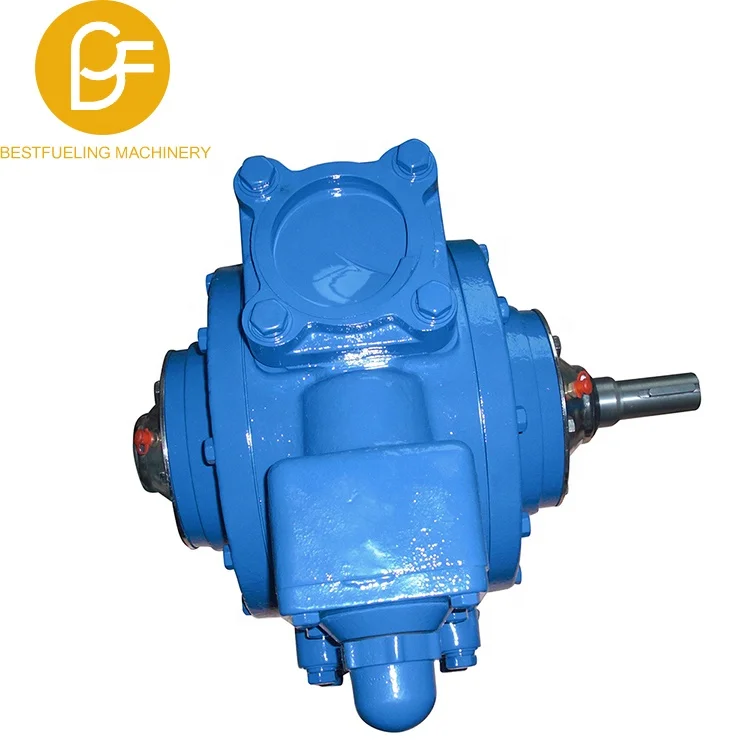

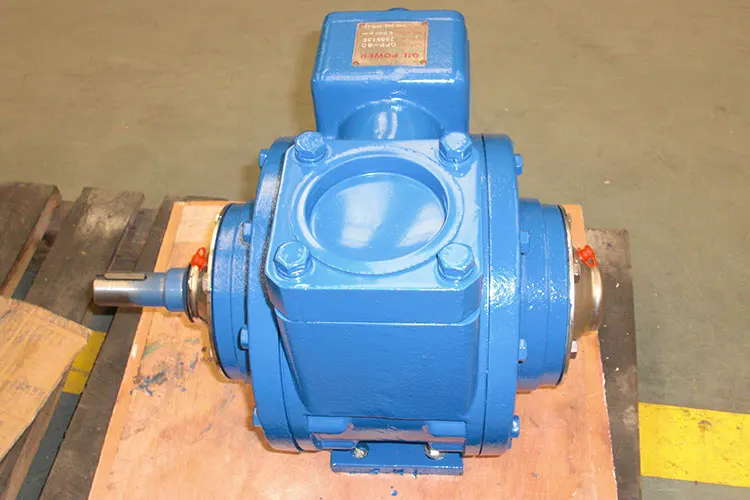

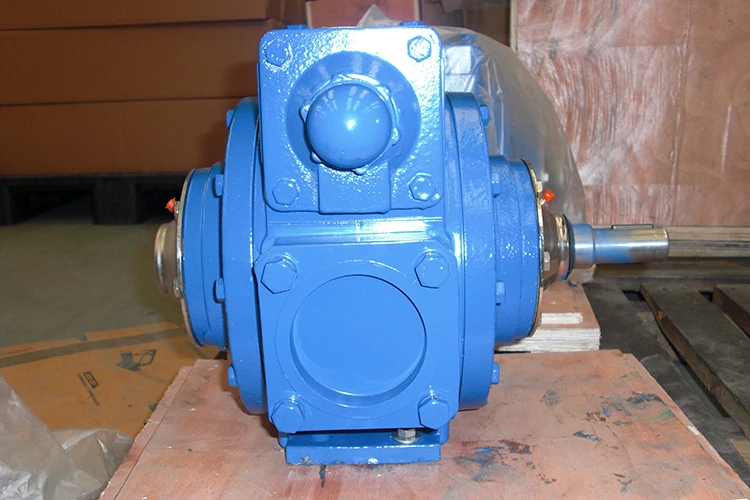

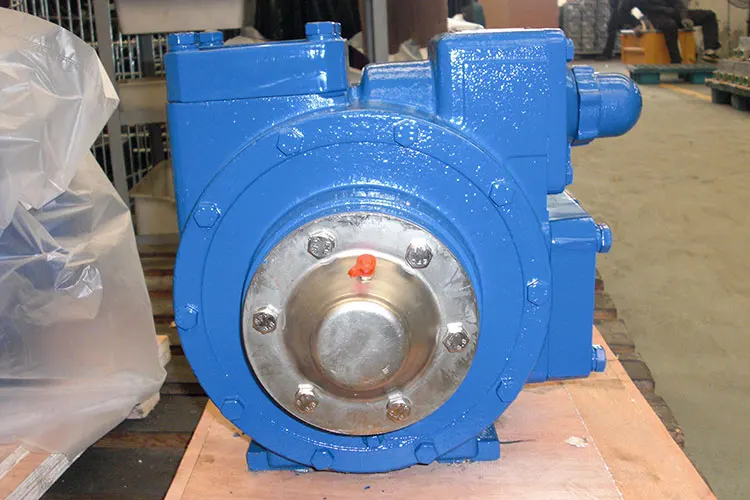

Mini rotary variable self priming vane pump rotary fuel oil dry rotary vane pump with low pressure
- Category: >>>
- Supplier: Wenzhou Bestfueling Machinery Co. Ltd.
Share on (60820190129):
Product Overview
Description
| Model | 650RPM | 600RPM | 550RPM | 500RPM | 450RPM | 400RPM | Weight | |||||||
| G/min | L/min | G/min | L/min | G/min | L/min | G/min | L/min | G/min | L/min | G/min | L/min | Ibs | Kg | |
| YB-50 | 50mm/2" | 80 | 300 | 72 | 720 | 64 | 240 | 56 | 210 | 48 | 180 | 40 | 150 | 66 | 30 |
| YB-65 | 65mm/2.5" | 132 | 500 | 123 | 456 | 114 | 430 | 103 | 390 | 93 | 350 | 82 | 310 | 82 | 37 |
| YB-80 | 80mm/3" | 265 | 1000 | 243 | 920 | 222 | 840 | 200 | 760 | 180 | 680 | 160 | 600 | 133 | 60 |
| YB-100 | 100mm/4" | -- | -- | -- | -- | -- | -- | 505 | 1900 | -- | -- | 405 | 1530 | 295 | 134 |
| Model | YB-40 | YB-50 | YB-65 | YB-80 | |||
| Material | Without motor | Without motor | Without motor, V-Belt driver | Without motor | Without motor, V-Belt driver | Without motor | Without motor, V-Belt driver |
| Size | 32.5*32.5*33cm | 44*33*39cm | 80*55*59cm | 44*33*32cm | 119*55*59cm | 45*40*38cm | 130*47.5*76cm |
| Gross weight | 21kg | 32kg | 90kg | 42.5kg | 110kg | 66kg | 200kg |
| Net weight | 20kg | 31kg | 86kg | 40kg | 92kg | 64kg | 185kg |
| Model | YB-50 | YB-65 | YB-80 | YB-100 | |
| Rated speed | 640RPM | 640RPM | 640RPM | 500RPM | |
| Power | (Hp) | 3 | 5 | 9.5 | 17.5 |
| (KW) | 2.2 | 3.7 | 7.1 | 13 | |
