Hot selling high quality globe valve water leakage stop valve water leakage stop device with electronic globe valve
- Category: >>>
- Supplier: Tianjin Tianfei High-Tech Valve Co. Ltd.
Share on (60820192329):
Product Overview
Description
Product Description
mini motorized ball valve motorized leak detection valve leak proof valve water leak shut off valve
1.Product Description

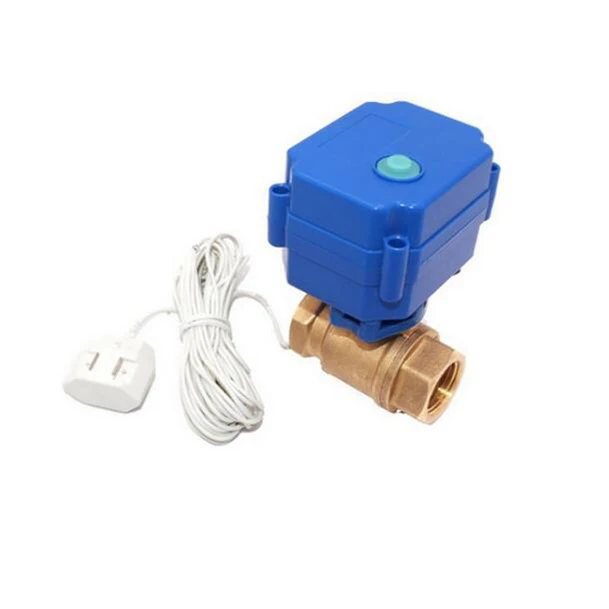

Product Name: CWX-15N Leakage Detection Valve
Product Category: CWX-15N Series
2.Product Features
This product is a compact leak detection valve that can be used in logistics warehouses, factories, hospitals, schools or homes, etc. It is mainly used to detect water leakage in tap water pipes, heating pipes, central air conditioning pipes, etc.
The sensor can be placed directly in a position where water leakage may occur. Once the sensor detects a water leak, an alarm is triggered and the buzzer continuously sounds an alarm and the valve closes quickly.
This product is a compact leak detection valve that can be used in logistics warehouses, factories, hospitals, schools or homes, etc. It is mainly used to detect water leakage in tap water pipes, heating pipes, central air conditioning pipes, etc.
The sensor can be placed directly in a position where water leakage may occur. Once the sensor detects a water leak, an alarm is triggered and the buzzer continuously sounds an alarm and the valve closes quickly.
working voltage | DC5V(match the AC220V power adapter) |
Working current | <100mA |
Standby current | <20mA |
Medium temperature | <95℃ |
Dielectric pressure | 1MPa |
Alarm start time | 1s |
Close time | 4s |
Valve size | DN8-DN25 |
Sensor | normal 6 meter line length, 1 way/2 way optional, Mainframe valve, multiplex need individual controller(most Multi 8 route optional) |
| Brass | Connection | Size | d | L | H | W |
| Both female thread full port | DN8 | 8 | 46 | 31 | 0.287 | |
| DN15 | 15 | 57 | 38 | 0.363 | ||
| DN20 | 20 | 71 | 45 | 0.444 | ||
| DN25 | 23.5 | 72 | 49 | 0.533 | ||
| Both female thread reduce port | DN10 | 8 | 46 | 31 | 0.286 | |
| DN20 | 15 | 66 | 38 | 0.378 | ||
| DN25 | 20 | 72 | 47 | 0.538 | ||
| DN32 | 25 | 86 | 60 | 0.75 | ||
| 3-way vertical | DN15 | 12 | 63 | 49 | 0.365 | |
| DN20 | 15 | 66 | 53 | 0.422 | ||
| Female-male thread full port | DN15 | 15 | 63 | 38 | 0.362 | |
| Female-male thread reduce port | DN20 | 15 | 66 | 38 | 0.392 | |
| DN32 | 20 | 76 | 50 | 0.624 | ||
| Both male thread | DN15 | 15 | 68 | 38 | 0.354 | |
| Stainless steel | Both female thread full port | DN8 | 8 | 46 | 31 | 0.294 |
| DN15 | 15 | 55 | 38 | 0.37 | ||
| DN20 | 20 | 71 | 45 | 0.438 | ||
| DN25 | 25 | 72 | 49 | 0.547 | ||
| Both female thread reduce port | DN10 | 8 | 46 | 30.5 | 0.298 | |
| DN20 | 15 | 63 | 39 | 0.443 | ||
| DN25 | 20 | 75 | 47 | 0.538 |
Tianjin Tianfei High-Tech Valve Co., Ltd. is a professional manufacturer of electric valve and manual valve, is a founding company of Tianjin Valve industry.Tianfei has a professional
R & D team,has won many letters of petent and the recognition of the Tianjin municipal government departments.“CWX”is our brand and our company has passed the
ISO9001,CE,RoHS,NSF61 certificate and so on,the products have exported to many countries and regions worldwide.
Our company motto is novative, simplified, high-valued, As having accumulated rich experiences and resources during more than 10 years developing, we are confident in providing you satisfied products and service in the cooperation. Tianfei pays attention to the quality of the products,use “CWX” valve is your correct choice.
FAQ
1. Are you manufacturer or trading company?
We are manufacturer, we had been produced electric valve for more than 10 year. So we have advantage in price. We also could do OEM.
2. What's the Payment Method?
T/T,Paypal,Western Union, Moneygram,Aliexpress, L/C ect.
3.What's your Minimum Order Quantity (MOQ)?
Our MOQ is 1piece.
4. What about the delivery time?
Sample need about 3 working days, large order delivery time will according to your quantity.
5..Would you have a discount if l have a large order?
A; Yes we could offer different discount according to your order quantity.
6.Where is the factory located?
Tianjin city and welcome to visit our factory.
