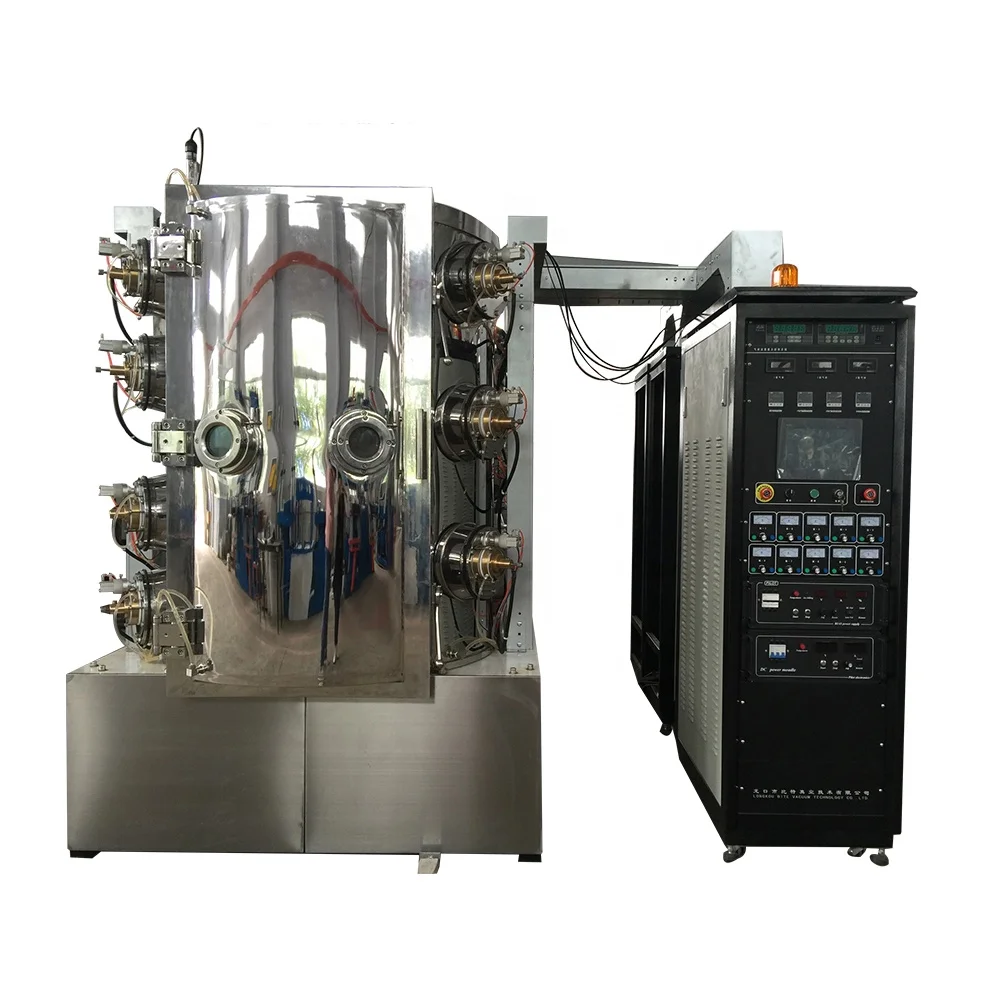

glass beads bangles bracelets vacuum coating machine

The PVD(Physical Vapor Desposition) plating machine applicable to:stainless steel; ceramic and glass. It is very important equipment in the decoration industry widely used for plating various materials, such as TiN, TiC,ZrN,CrN,Ti, Ni, Cr, Au, and Ag etc.



The production is including:watch chain,golf club,mobile phone shell,auto parts, auto lamp, sanitaryware, tap.etc.



Campare with chemical plating, the products plated by our machine has good Surface abrasion resistance and Corrosion Stability. More important it is green environmental protection equipment. There are no waste gass; waste water; waste discharged in process-cycle.



We are supplier of vacuum deposition equipment for industrial surface treatment, The machine is primarily used for component manufactureing,but also in R&D operations.

We are experts in Lean PVD, production integrated physical vapor deposition, Very short cycle times and high flexibility allow the systerms to be integrated in production flows.This supports customers's efforts to realize the fundamentals of lean production; lead time reduction, flow efficiency, production ondemand and reduction of waste and non-value added activities.





 Technical parameter:



Mode Dimension	LKJBT-800	LKBT-1250	LKBT-1416	LKBT-1618
	800*1000mm	1200*1500mm	1400*1600mm	1600*1800mm
Coating mode and main confirguration	Eight multi-arc targets	Twelve multi-arc targets	Fourteen multi-arc targets	Twenty multi-arc targets
Power source	Electric-arc power, Filament power,  Pulsed bias power supply
Process gas control	Mass flowmeter + Electromagnetic ceramic valve
Vacuum chamber structure	Vertical side opening door, pump system postposition, double water cooling

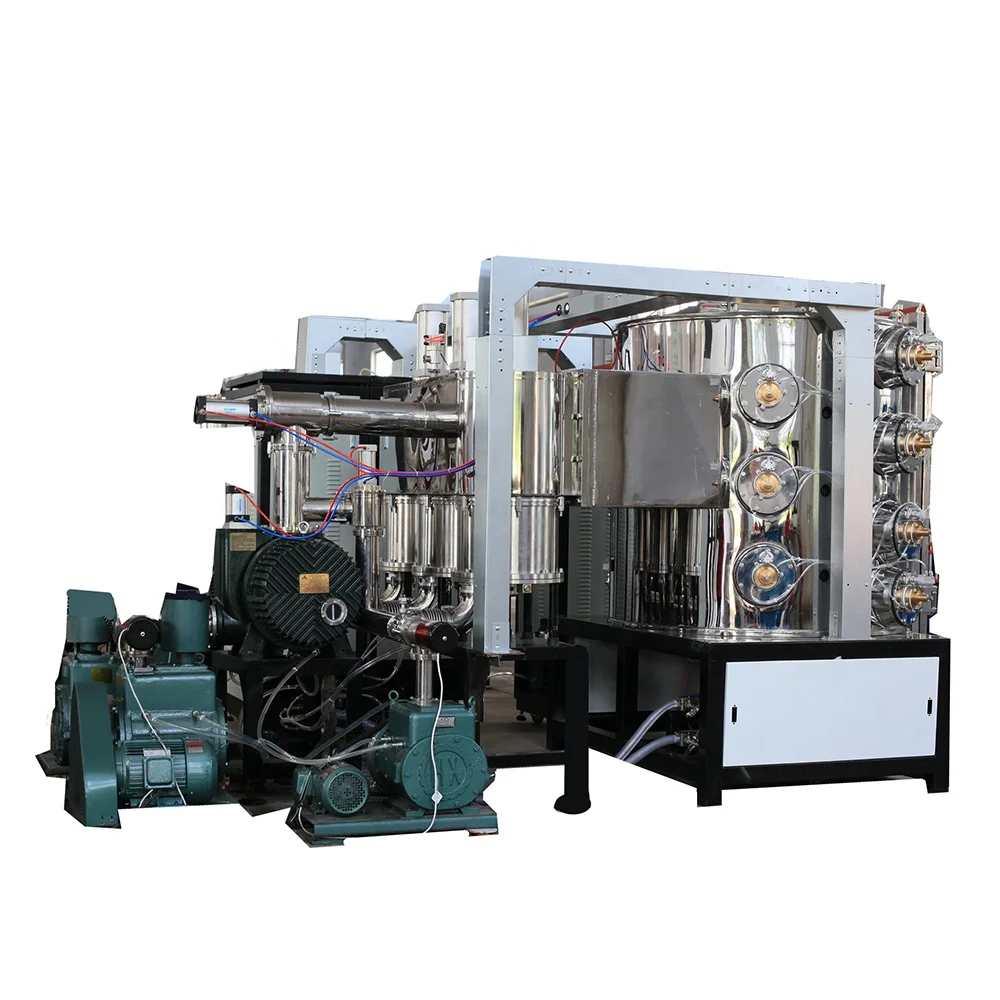

Vacuum system	Molecule pump +Roots pump +Mechanical pump(5.0*10-5Pa) Diffusion pump +Roots pump +Mechanical pump(5.0*10-4Pa)
Workpiece baking temperature	Normal temperature to 350 centi-degree PID control, radiation heating.
Workpiece motion mode	Public rotation Frequency control: 0-20 rotation per minute
Measure mode	Number display composite vacuum gauge: from atmosphere to 1.0*10-5Pa
Control mode	Manual/Automatic/PC/PLC + HMI/PC four choice of control mode
Remark	We can design the dimension of the equipment according to customer’s special technique requirement.

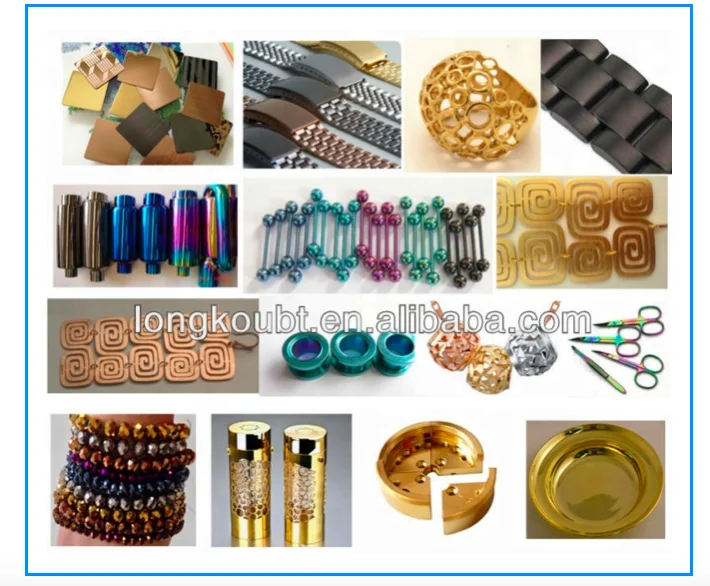

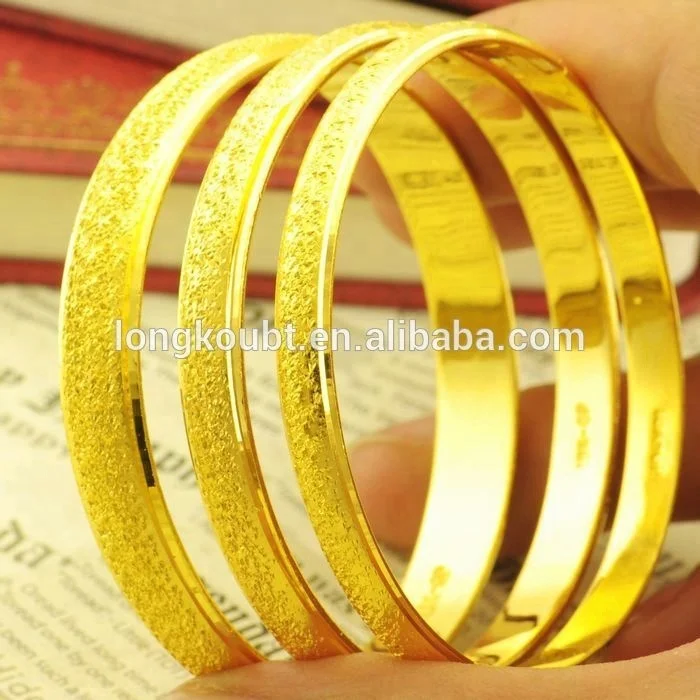

  Our Samples:

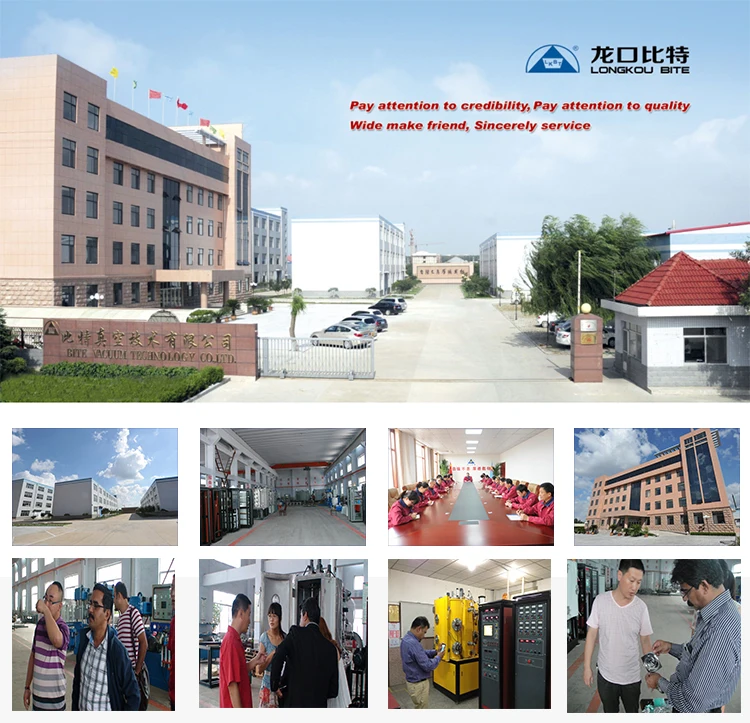

Our Factory:

 Our Customers:

 Packing and Shipping:
