commercial oxygen concentrator spare parts /oxygen generator / O2 oxygen plant

Product Overview

Description

OGP-OX series 3L 5L 7L 10L 15L Oxygen Generator Part



15 LPM zeolite molecular sieve 99% fish farming oxygen generator







Description:

1- Patented products

OGP-OX series molecular sieve is a air separation plant which has already obtained domestic patent.

2-Rational construction

Modular construction is the main points of our molecular sieve. Through the different combination of oxygen units, the oxygen output can be from 3LPM to 15LPM, even higher.

3- The oxygen output is stable and continuously

4- Low-pressure oxygen production working pressure 1.5-2 Bar.

Specification

Item	Unit	OGP-OX3L	OGP-OX5L	OGP-OX7L	OGP-OX10L	OGP-OX15L
Oxygen output	LPM	3	5	7.5	10	15
Oxygen concentration	%	90%±3%
Air flow rate	LPM	36-45	60-75	90-115	150-200	180L/Min
Pressure(inlet)	Mpa	0.14-0.18	0.14-0.18	0.15-0.2	0.18-0.25	0.35
Pressure(outlet)	Mpa	0.06-0.08
Temperature	℃	indoor temperature
Relative humidity	%	≤ 70%±10%
Noise	Db	≤60	≤60	≤60	≤60	≤60
Dimension	mm	200×290	200×410	200×470	200×500	200×880
Net weight	kg	14	17.85	19.1	21.3	32.5

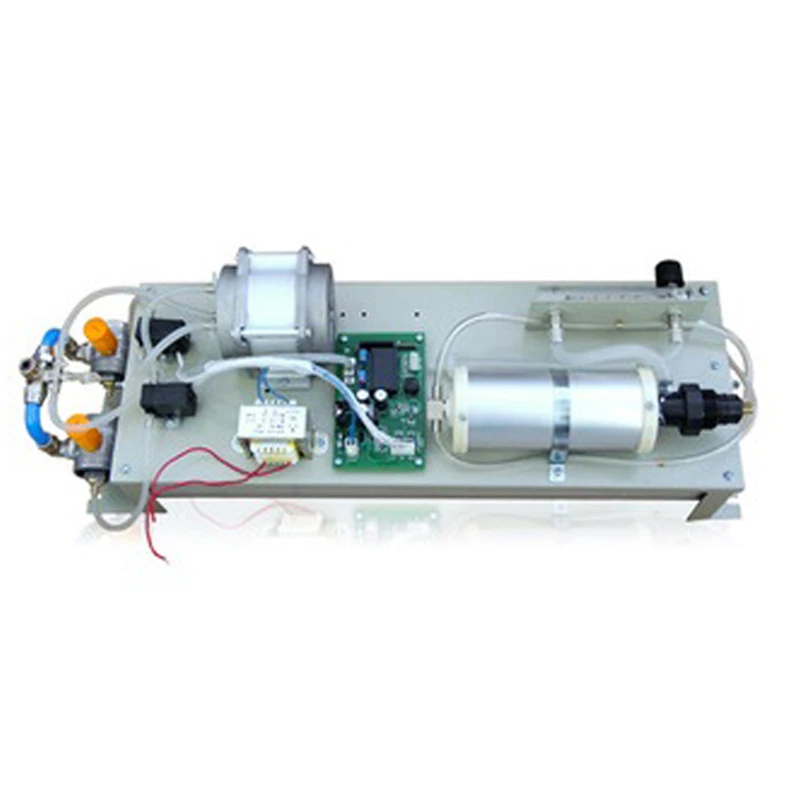

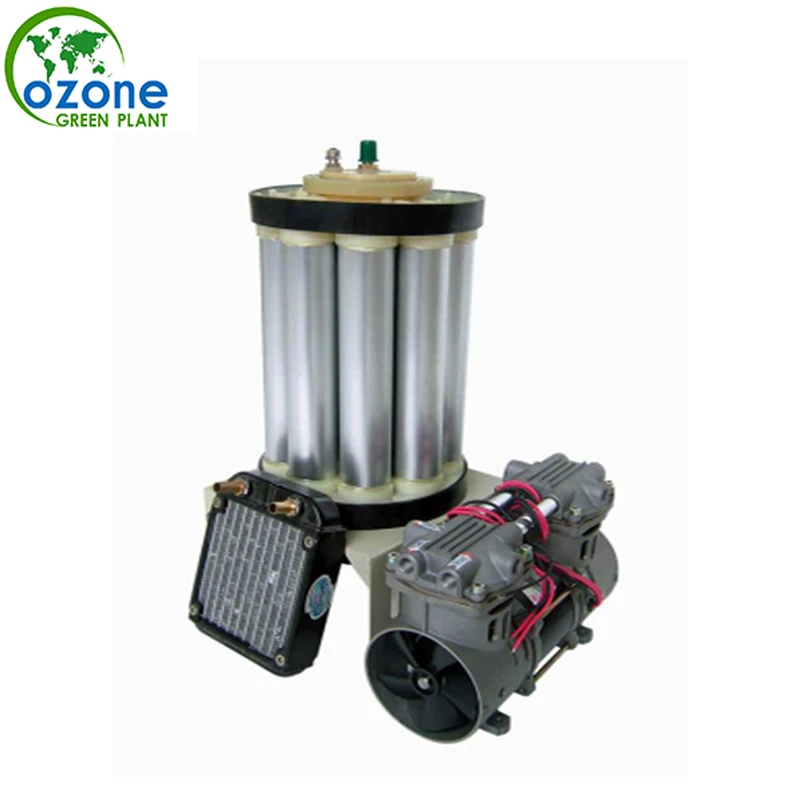

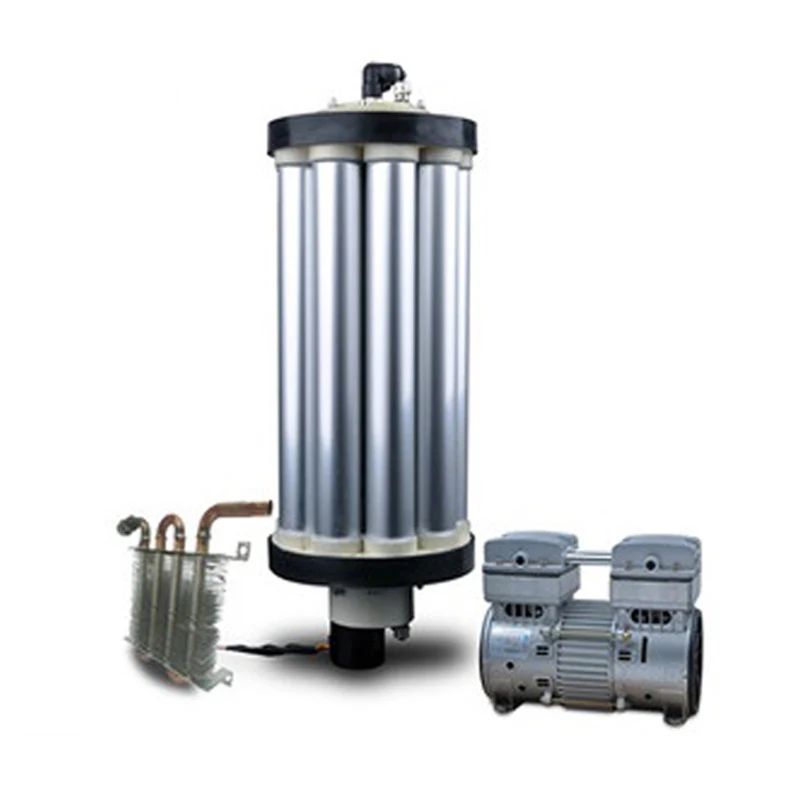

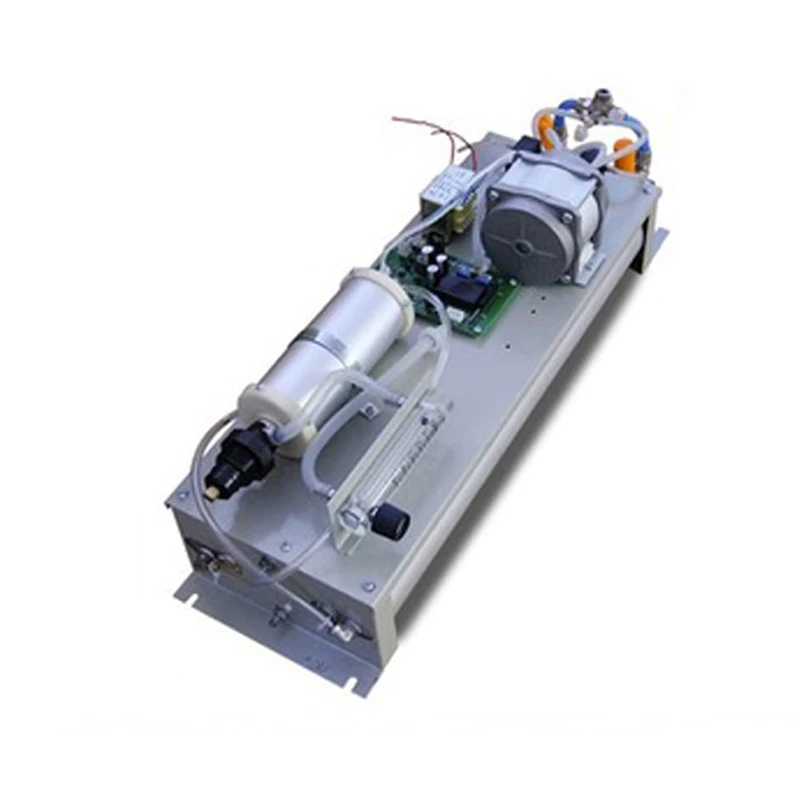

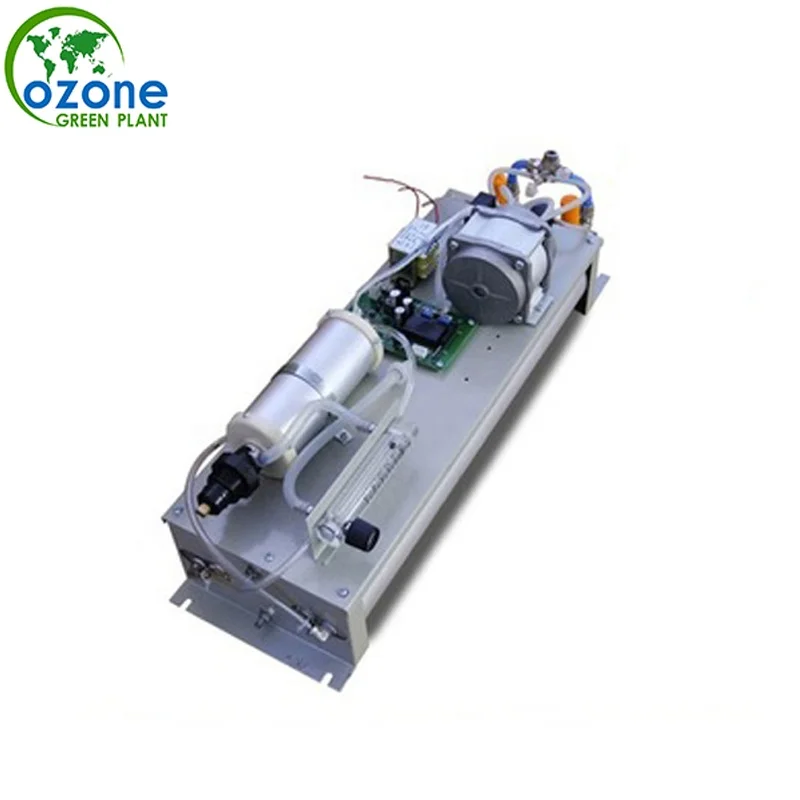

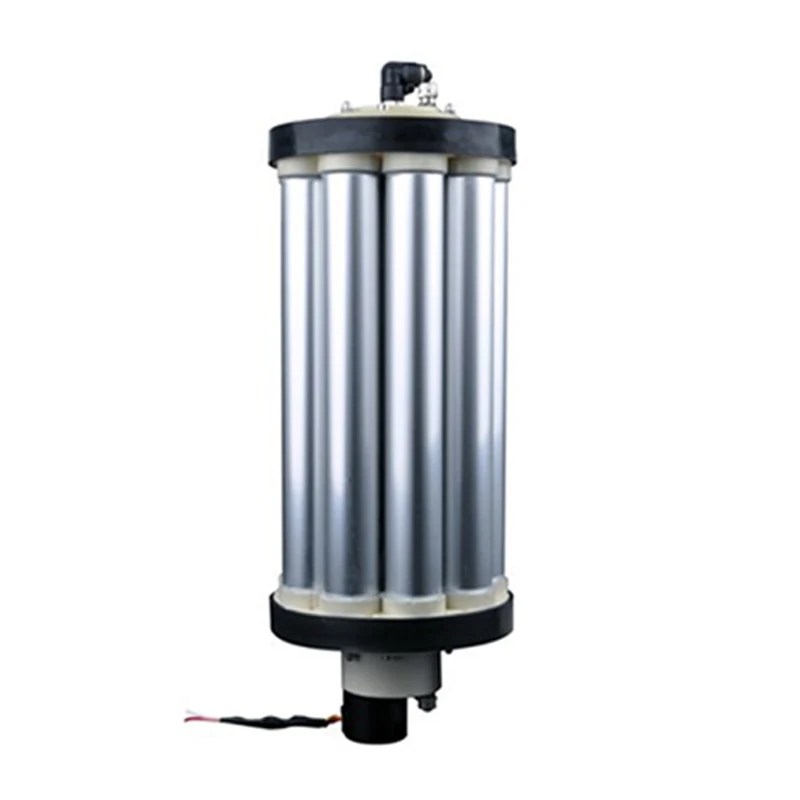

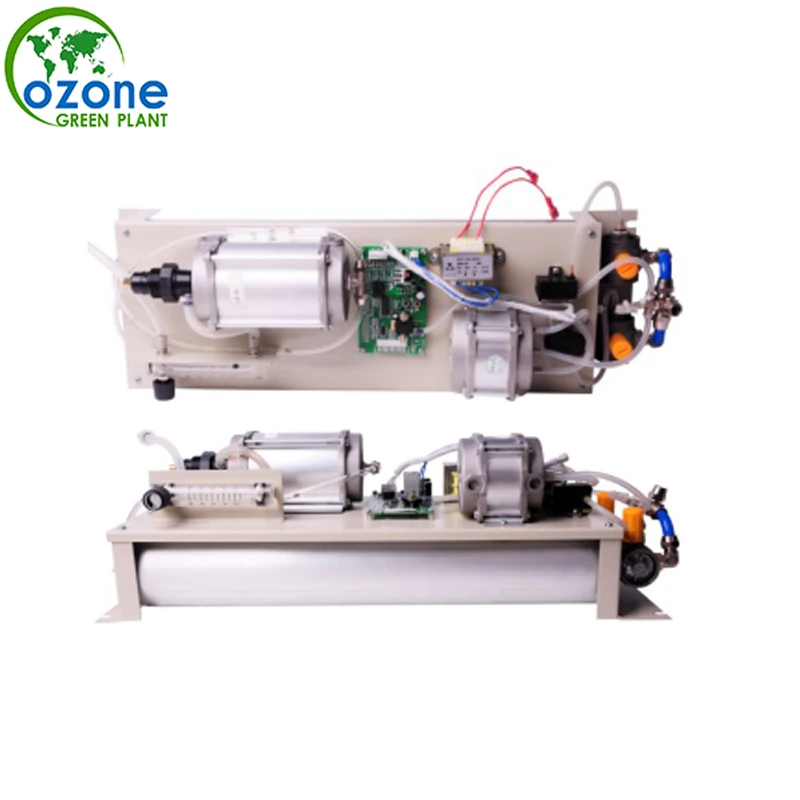

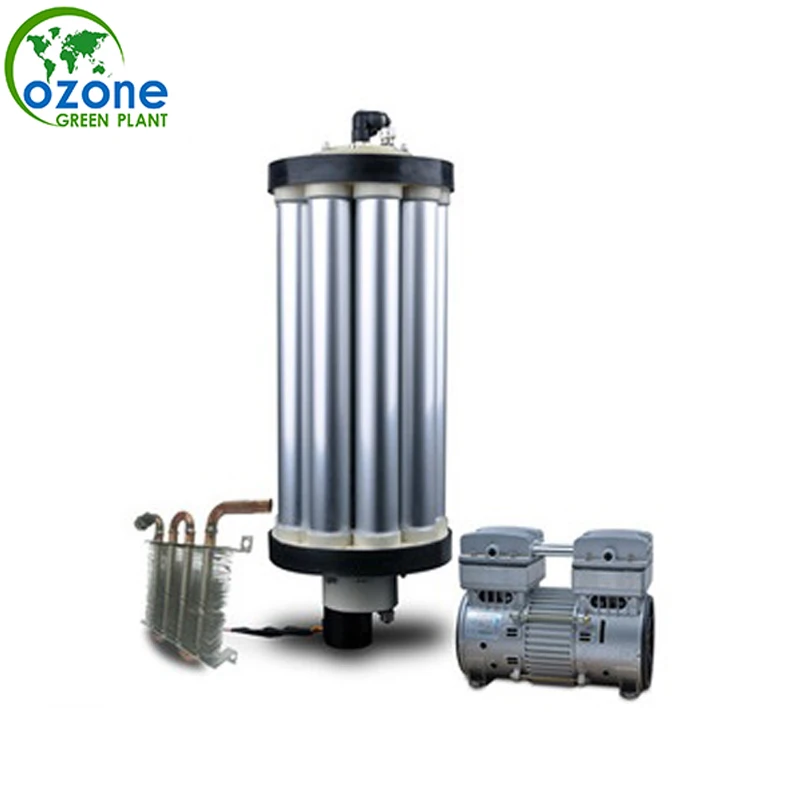

OGP-OX 3L 5L 7.5L 10L oxygen generator part include oxygen tower ,air compressor ,chiller, air flow meter etc.

OGP-OL 3L 5L 8L 10L oxygen generator part include oxygen tower ,air compressor ,chiller, air flow meter etc.

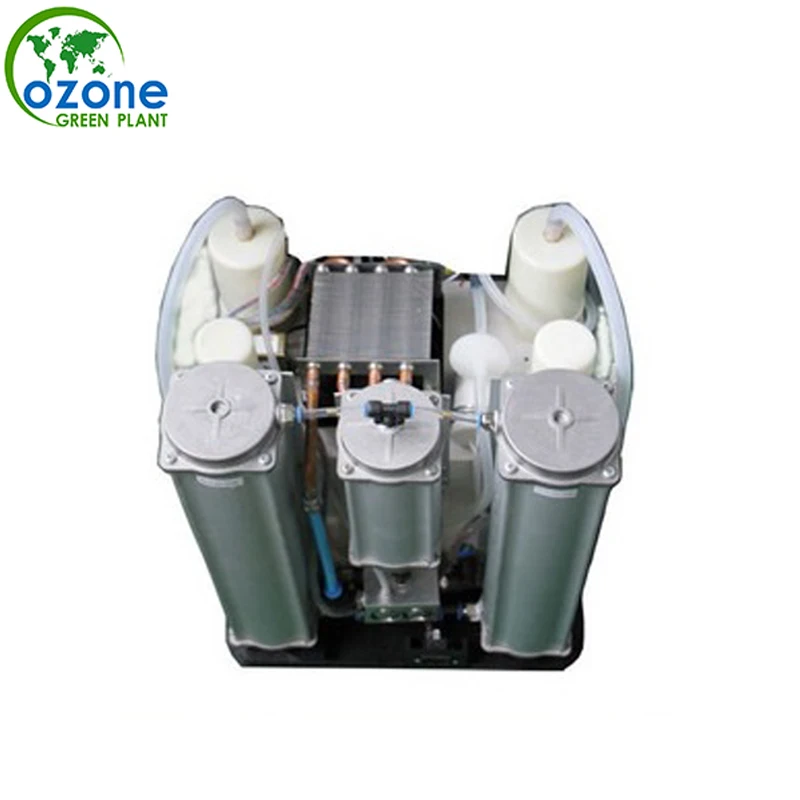

OGP-TOA 3L 5L 8L 10L oxygen generator part include oxygen tower ,air compressor ,chiller, air flow meter etc.
