5kw solar panels system apply for home, factory, farm and other place.

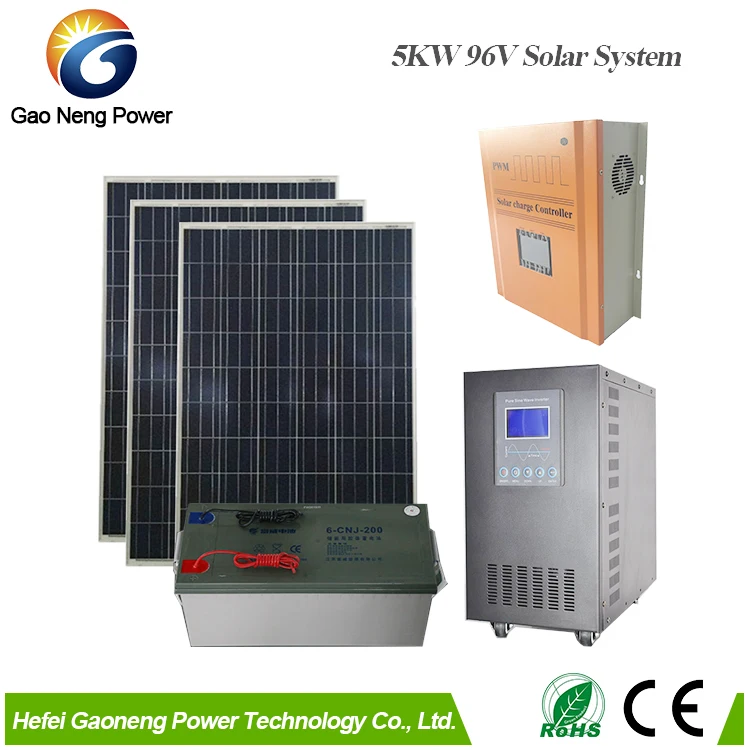

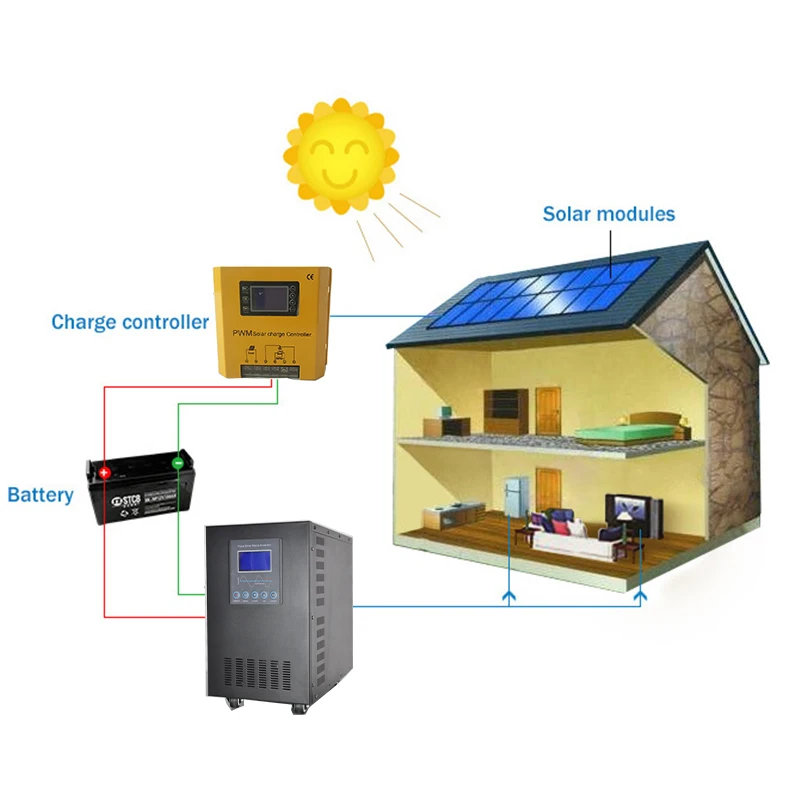

Component of 5kw solar system:
solar panel
frequency inverter
pwm controller
Gel battery
The design of the power frequency circuit, the system stability is good, the failure rate is low, the service life is long
DC mode or AC mode
LCD screen,direct data display
Pure sine wave isolation output

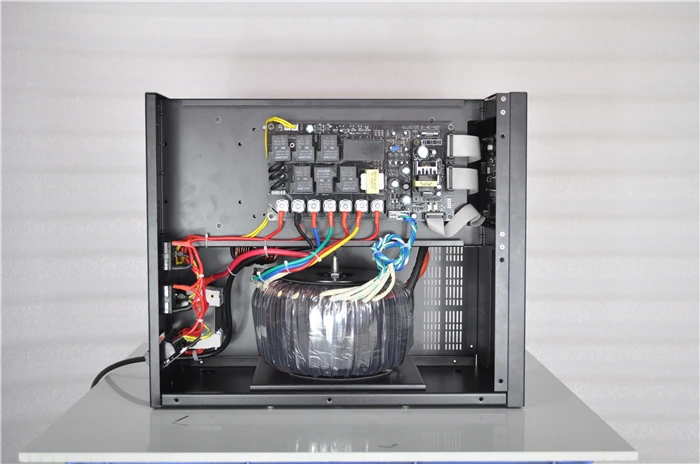

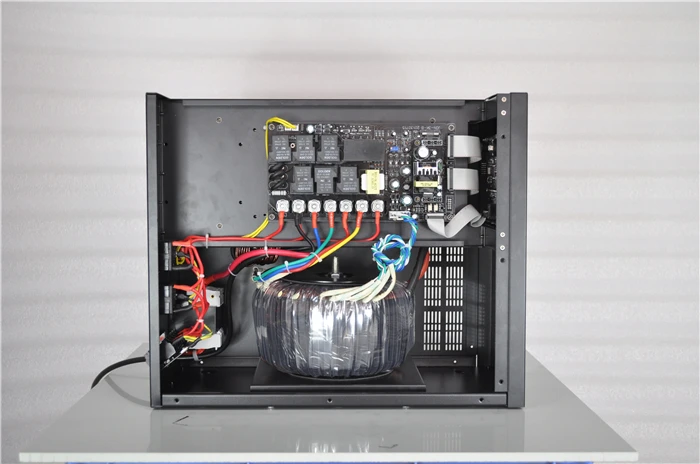

Toroidal transformer, reducing the no-load loss
External battery, easy to adjust your battery capacit
Cable as terminals, avoiding the corrosion on terminals
Low battery resistance for high efficiency of charge and discharge
Low self discharge ratio, deep discharge cycle, strong recovery capability
Workable for altitude up to 5500m
Under voltage protection, over voltage protection, over heat protection, short circuit protection, overload protection and buzzer alarm
Parameters
Model
GNN-5048
Rated power
5000W
Battery
Rated voltage
48V
Charging current
Max15A
AC input
Voltage range
220VAC±20%
Frequency
50Hz±5Hz/60Hz±5Hz
AC output
Voltage range
220VAC±3%
Frequency
50/60Hz±1%(Inverter mode)
Output waveform
Pure sine wave
Conversion time
<10ms(Typical load)
Efficiency
>85%(80% Resistive load)
Over load
110-120%/30s
Protection
Battery overvoltage and low voltage protection, overload protection, short circuit protection, over temperature protection
Display
LED+LCD
Cooling method
Forced air cooling
Operating temperature
0-40℃
Chassis size(mm)
510*252*460mm
Package Size(mm)
600*343*545mm
N.W.(Kg)
31
G.W.(Kg)
35
