This water bottling machine is mainly used for washing, filling and capping PET bottle which can fill non- carbonated drinks such as mineral water, pure water and so on. The bottle washing, water filling and cap sealing are achieved in one machine. The contact time is shorten between material and the outside. And improved the health conditions, production capacity and economic benefits.XGF series bottling machine adopts hanging type conveying-bottle structure to make changing bottle mold more convenient, faster and more laborsaving.The main machine adopts advanced PLC control technology. The key electric elements adopt Mitsubishi, Omron, Siemens, etc international famous products.
Main Advantages:
1.washing filling capping three in one 2.full automatic 3.stainless steel 316 Filling heads 4.separated control cabinet (touch screen,PLC) ,easy operate and maintaince
5. ABB motor 6.CE,SGS,ISO9001
7, Filling speed from 5000-28000bph
Main Technicial Data
Model
XGF14-12-5
XGF16-16-5
XGF18-18-6
XGF24-24-8
XGF32-32-8
XGF40-40-10
Washing Heads
14
16
18
24
32
40
Filling Heads
12
16
18
24
32
40
Capping Heads
5
5
6
8
8
10
Capacity(b/h)
5000
8000
10000
12000
15000
20000
Power(kw)
1.5
2.2
2.2
3
3
7.5
Dimensions(mm)
2200*1550*2450
2850*2450*2450
2910*2150*2450
2850*2200*2450
3430*2630*2450
4300*2930*2450
Weight
2000
2400
2500
4200
6000
7000
Voltage
380V
Bottle Diameter(mm)
50-90
Bottle Height(mm)
150-310
Compressed Air Pressure(Mpa)
0.3-0.7
Certifications
Detailed Images

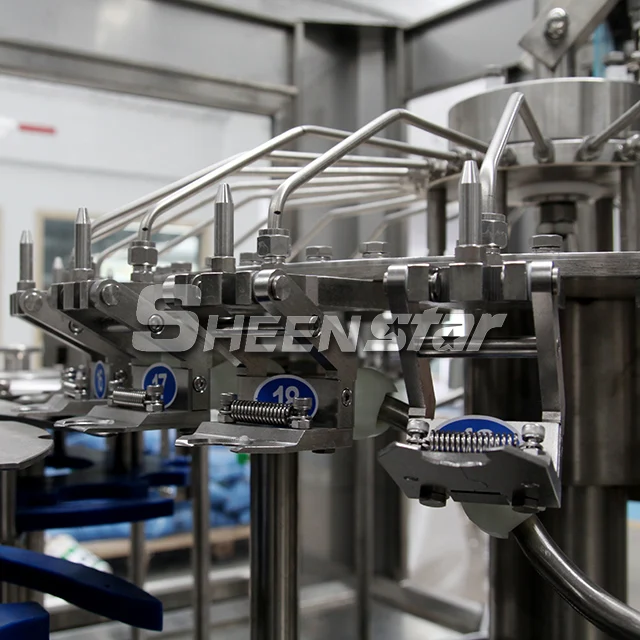

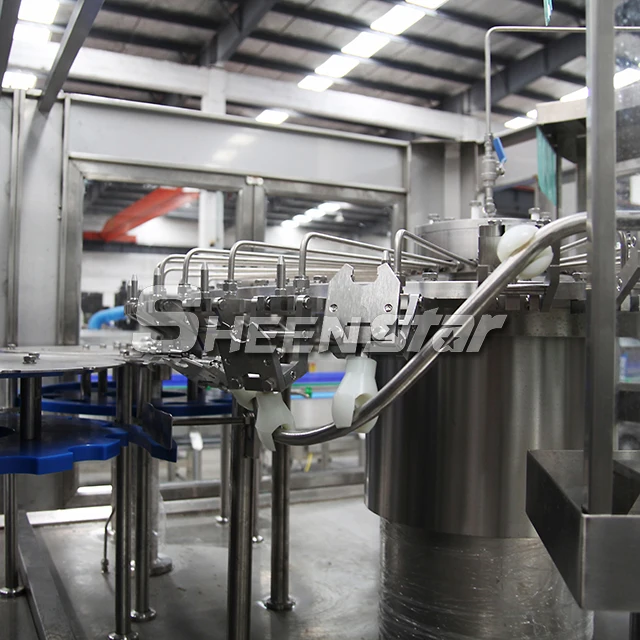

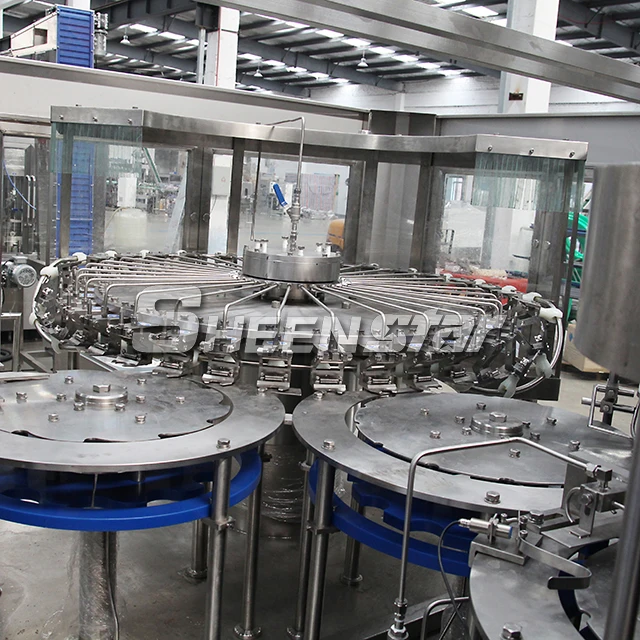

washing part for washing the bottles before filling

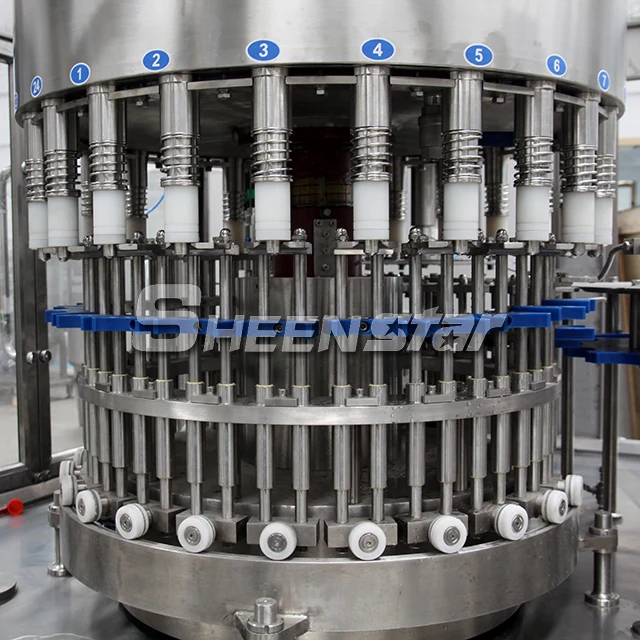

filling part for filling water into bottles

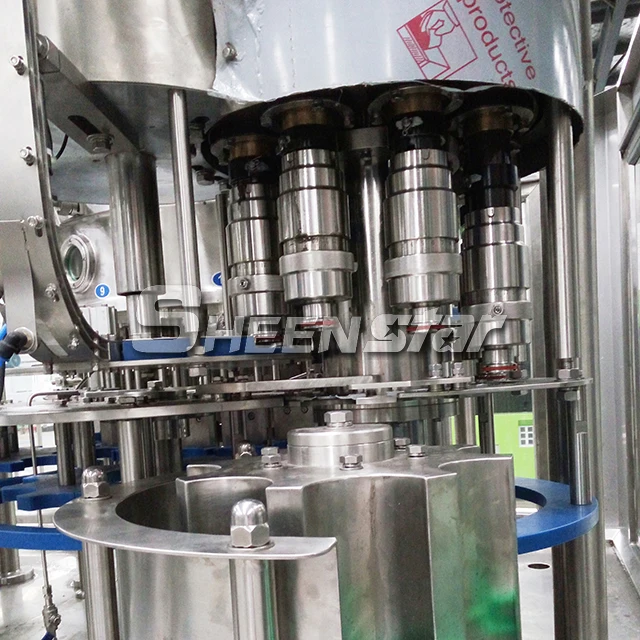

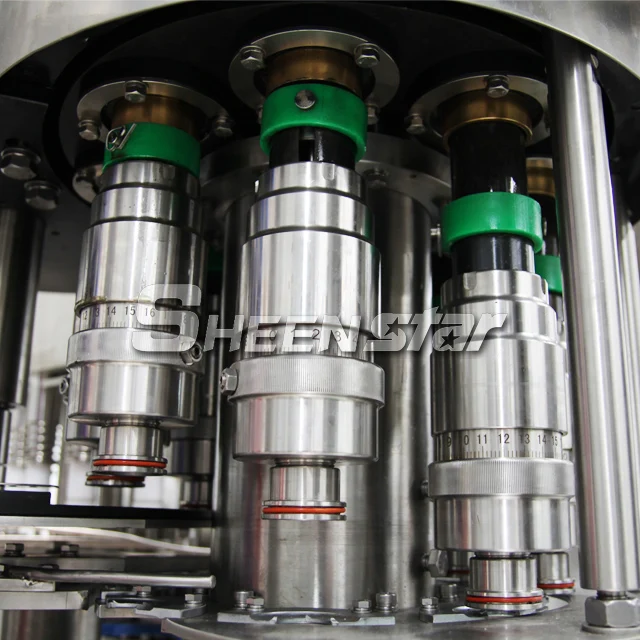

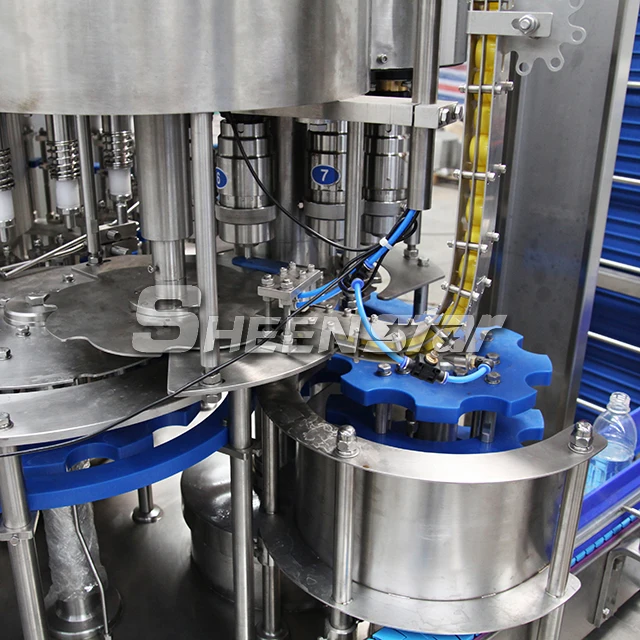

capping part for sealing bottles with caps
Our Service
Packing & Delivery
Packaging
Packaging Details
PE-Film + Wooden Case
In wooden cases, wooden splints, wrap film and other specialized packaging film, to ensure that the machine impact damage in the long time of land and sea transport, thus reaching the customer factory intact
About US

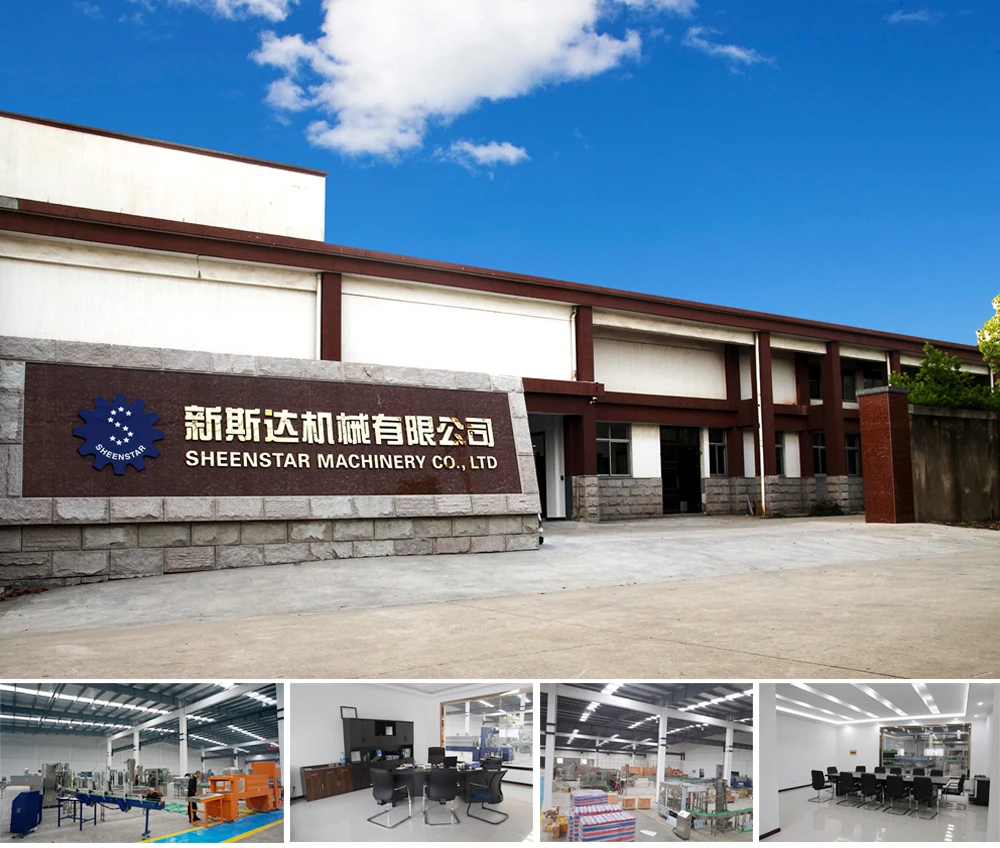

Zhangjiagang sheenstar technology co., ltd. is a professional manufacturer of beverage packaging solutions.

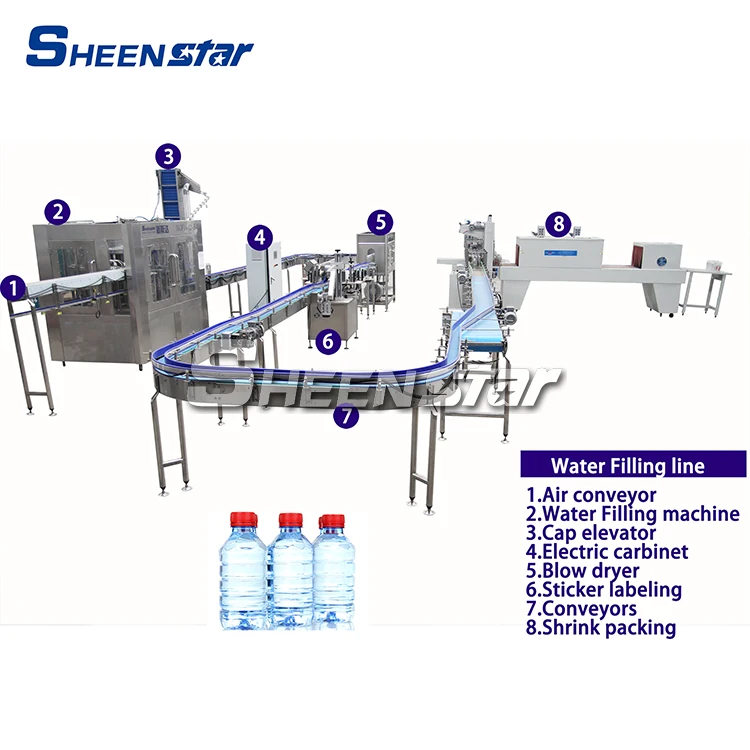

We supply water treatment system, water filling production line, carbonated drink production filling line, juice production filling line, 5 gallon water production filling line. labeling machine and shrink packing machine.
With our machines, bottles can be plastic bottle, glass bottle, barrel and cans. In other words, customized machines can be produced according to clients' requirement.
