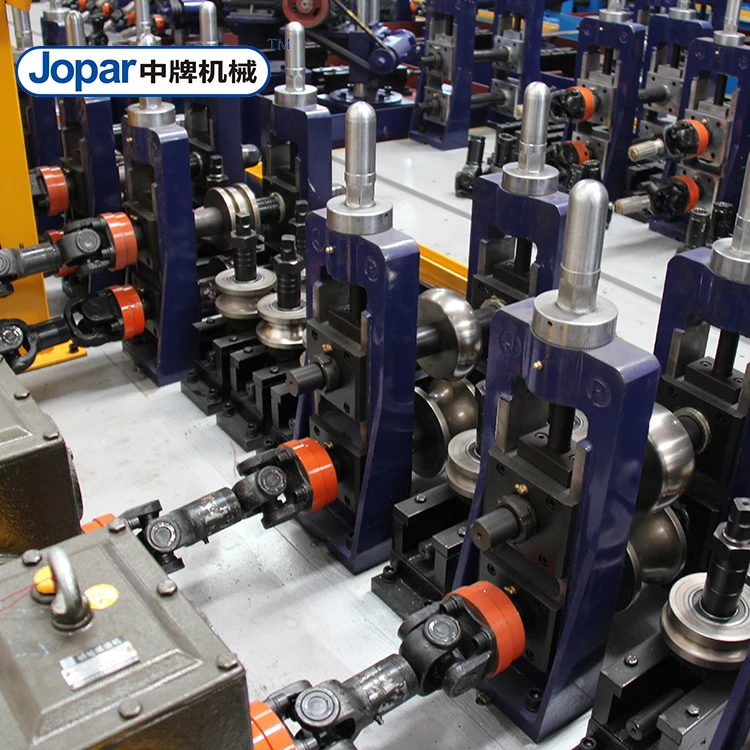

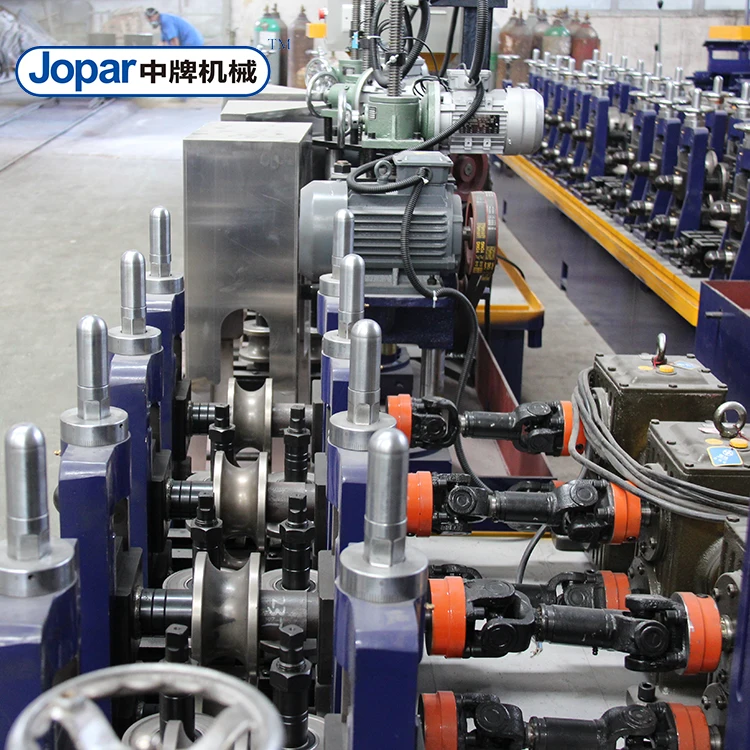

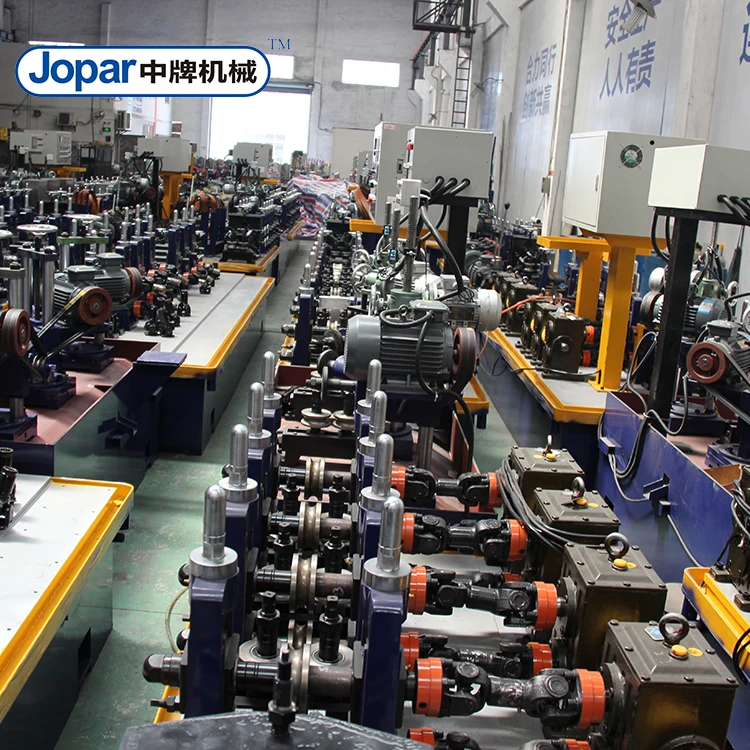

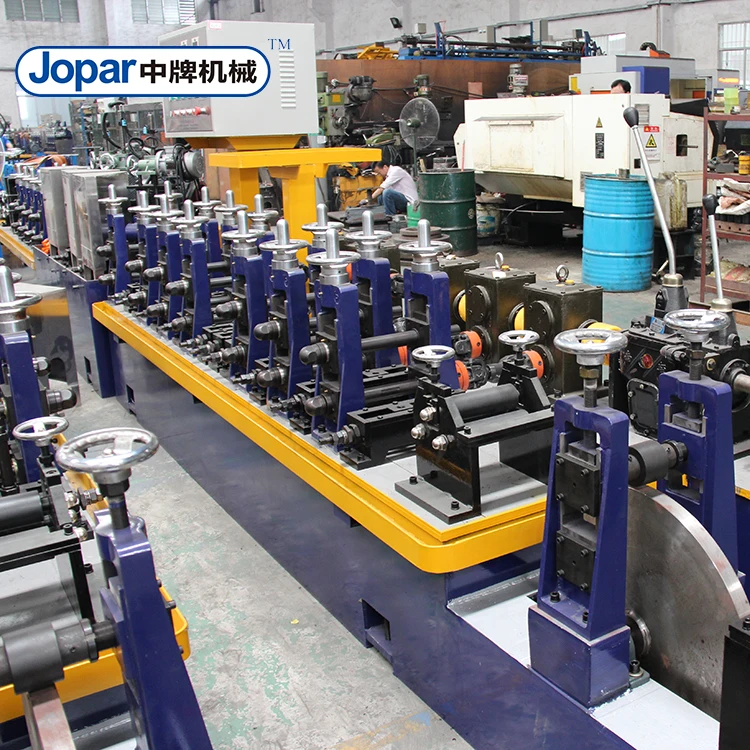

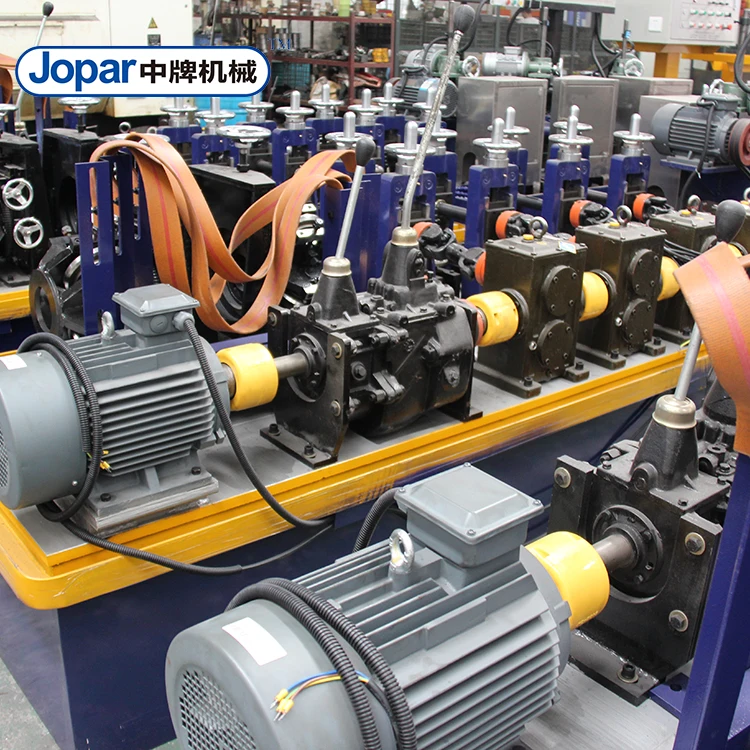

High Speed MS Pipe Making Machinery Fully Automation Steel Tube Mill Machine
- Category: >>>
- Supplier: Foshan Jopar Machinery Co. Ltd.Foshan Ltd.
Share on (60820249217):
Product Overview
Description
Product Description
Specification
Model | Horizontal shaft O.D | Vertical shaft O.D. | Tube Range | Thickness | Drive Motor | Dimension | ||||||
ZP-S40 | 40mm | 25mm | ∅8-51mm | 0.3-2.2mm | 7.5kw+7.5kw | 21.5m*1.1m | ||||||
ZP-S50 | 50mm | 30mm | ∅25-76mm | 0.4-2.5mm | 11kw+7.5kw | 24m*1.2m | ||||||
ZP-S60 | 60mm | 40mm | ∅50-114mm | 0.5-3.0mm | 15kw+15kw | 26m*1.4m | ||||||
ZP-S80 | 80mm | 50mm | ∅89-168mm | 0.8-4.0mm | 18.5 kw+18.5 kw | 32m*2.3m | ||||||
ZP-S100 | 100mm | 60mm | ∅114-219mm | 1.0-6.0mm | 22 kw+22kw | 36m*2.5m | ||||||
ZP-S120 | 120mm | 80mm | ∅168-325mm | 1.5-8.0mm | 37 kw+37kw | 40m*3.0m | ||||||
Support For Customizing Orders | ||||||||||||
The Process flow:
Single/Double Side Uncoiler—Strip Jointing—3 Roller leeling-Tube Making Machine(1.Forming Part,2.Welding Part,3.Sizing
Part)—Cooling System-Outside Weld Bead Grinder—Automatic Cutting System—Run Out Table—Electric Control System—Rolls Sets/Die Sets.
Single/Double Side Uncoiler—Strip Jointing—3 Roller leeling-Tube Making Machine(1.Forming Part,2.Welding Part,3.Sizing
Part)—Cooling System-Outside Weld Bead Grinder—Automatic Cutting System—Run Out Table—Electric Control System—Rolls Sets/Die Sets.
Packing & Delivery
Company Profie
Contact us
FAQ
Can you print the company name or logo on the products?
Yes.
We can print your logo or company name on the products by Stamping or Coating.
We can print your logo or company name on the products by Stamping or Coating.
How long will take to change the roller sets on the machine?
If one worker to change the roller sets, will need about 3 hours to change , But sometime is according to the worker whether have enough
familiar to decide.
familiar to decide.
When is your company delivery time?
Our delivery time is within 30 days , It depend on your quantity.
How many tons for normal machine to production per month?
Our machine is according to the model to decide , under the situation, one machine can
produce 30 tons per month.
produce 30 tons per month.
How we get from the machine for after service?
We will supply technical support for installation , operation and maintain etc ,Also we can arrange the technical engineer to your company .
