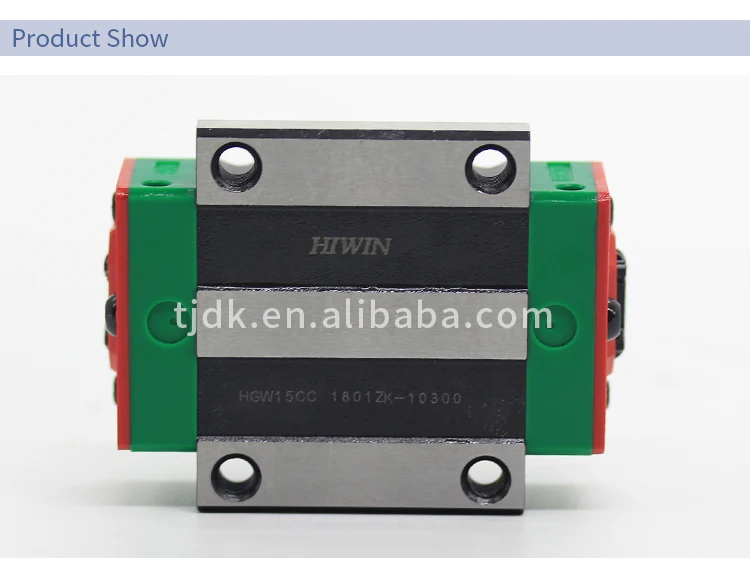

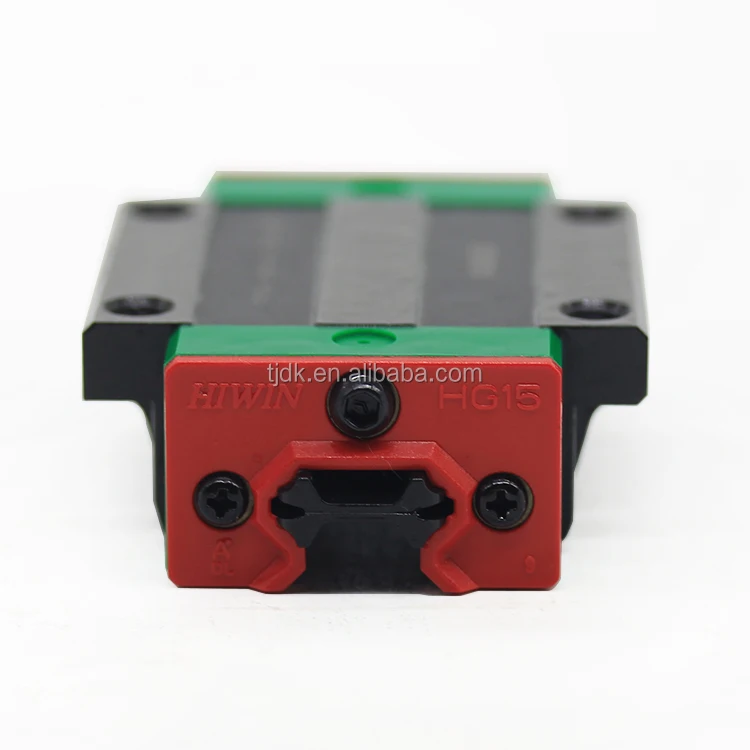

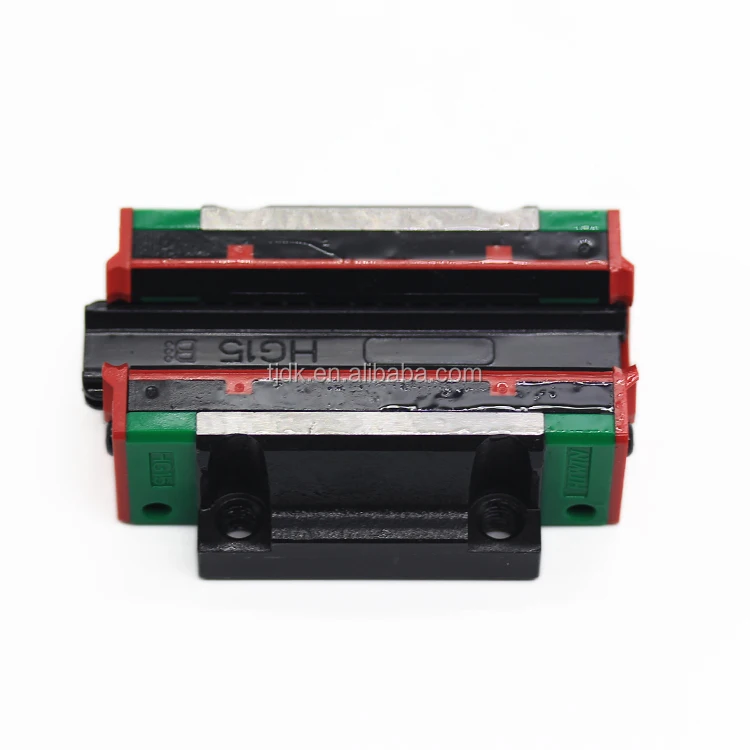

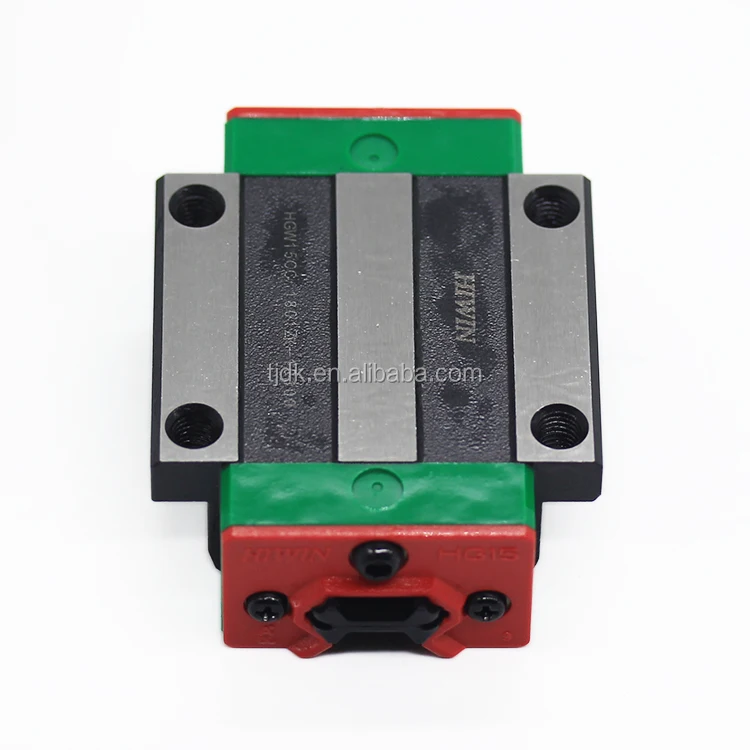

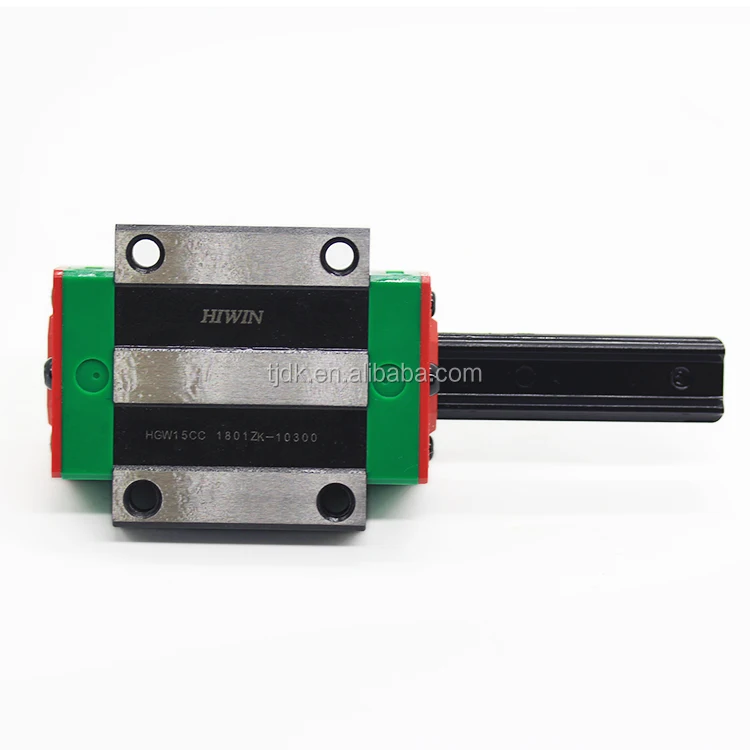

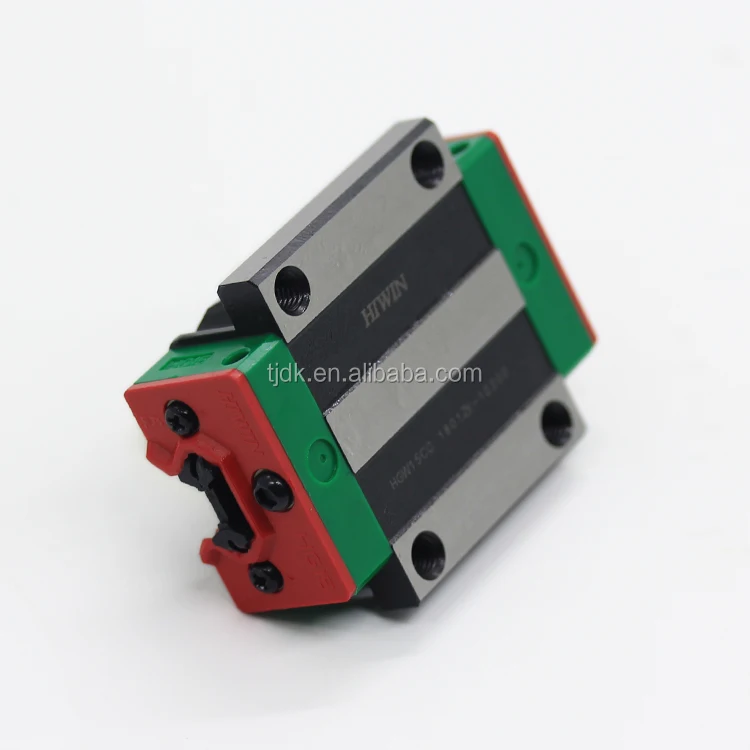

HIWIN HGW20CC HGW20HC cnc linear guide rail motion bearing
- Category: >>>
- Supplier: Ding Kun (Tianjin) International Trade Co. Ltd.
Share on (60820313289):
Product Overview
Description

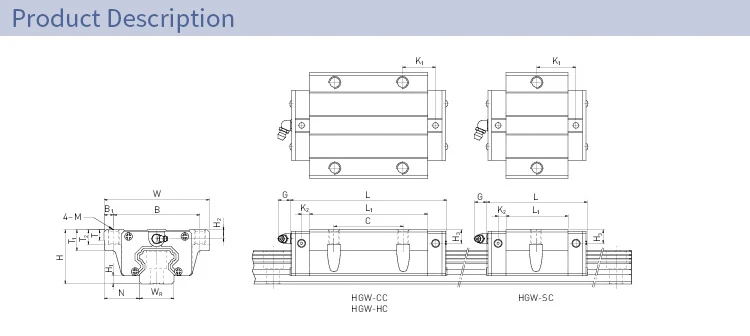

Table Dimensions of the block
| Series/ size | Installation dimensions [mm] | Dimensions of the block [mm] | Load ratings [N] | Weight [kg] | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H | H1 | N | W | B | B1 | C | L1 | L | K1 | K2 | M | G | T | T1 | T2 | H2 | H3 | Cdyn | C0 | |||
| HGW20CC | 30 | 4,6 | 21,5 | 63 | 53,0 | 5,0 | 40 | 50,5 | 77,5 | 10,25 | 6,00 | M6 | 12,0 | 8,0 | 10,0 | 9,5 | 6,00 | 6,0 | 17750 | 27760 | 0,40 |
Dimensions of the rail

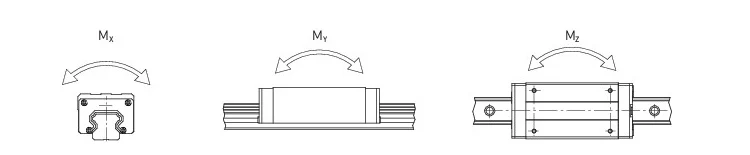

Table Load ratings and torques for series HG/QH
| Series/size | Dynamic load rating Cdyn [N]* | Static load rating C0 [N] | Dynamic moment [Nm] | Static moment [Nm] | ||||
|---|---|---|---|---|---|---|---|---|
| MX | MY | MZ | MOX | MOY | MOZ | |||
| HG_20C | 17750 | 27760 | 178 | 126 | 126 | 270 | 200 | 200 |
* Dynamic load rating for travel distance of 50 000 m
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: 2 days
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
