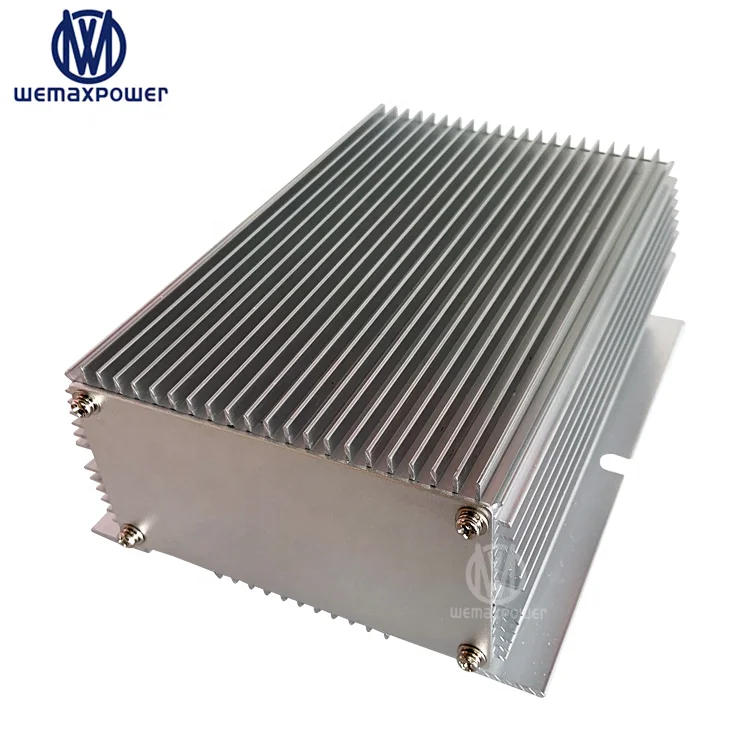

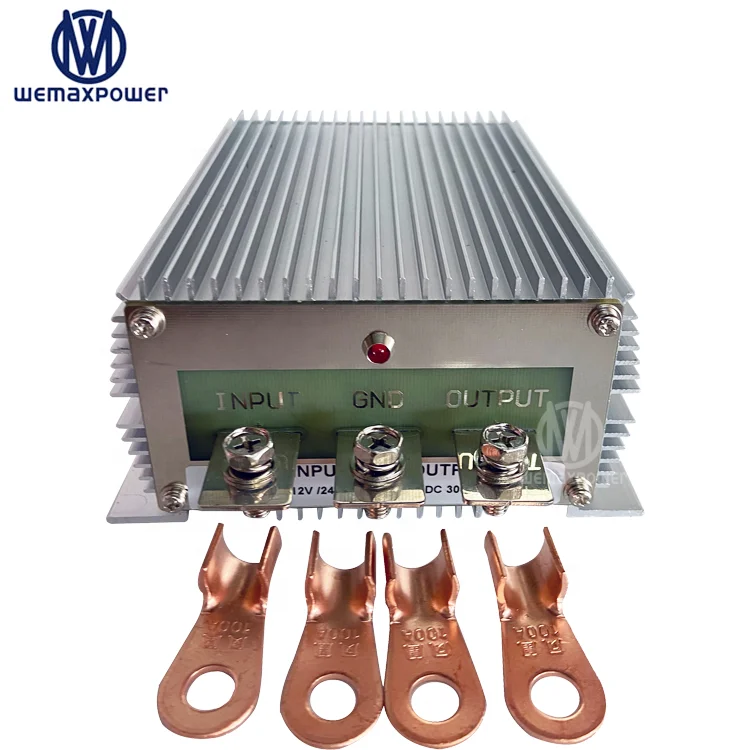

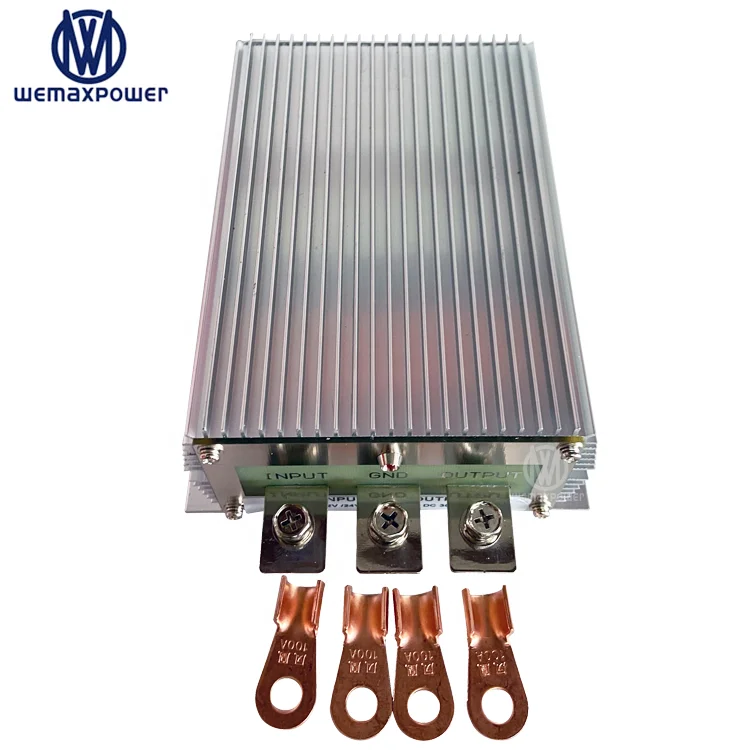

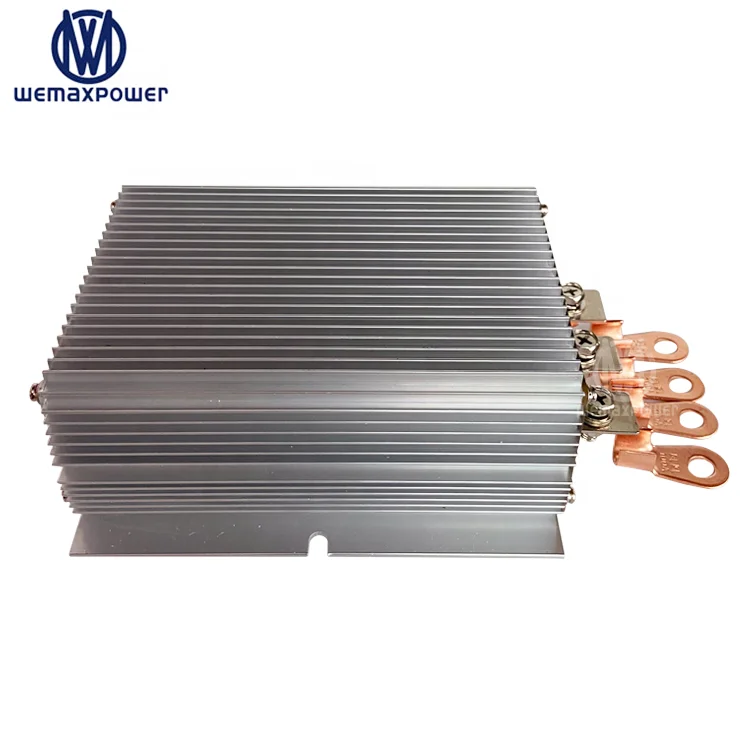

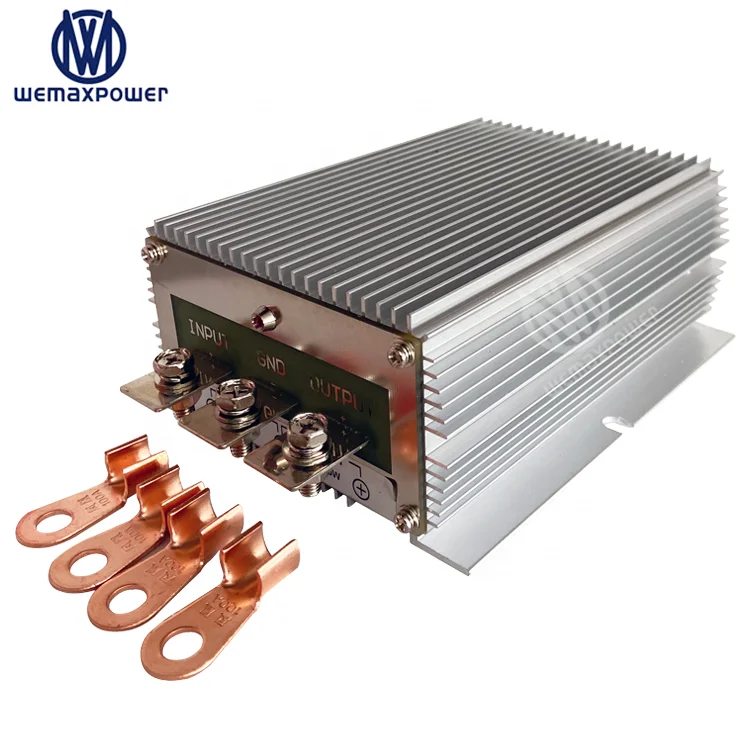

Full power good heat dissipation 600W 25A voltage step up dc dc 12v 24v converter

Share on (60820326236):


Price:$52.00 - $56.00

Quantity:


Product Overview

Description


Full power good heat dissipation 600W 25A voltage step up dc dc


12v 24v converter
dc dc converter



Similar Products
















>>>DC DC 12v 24v converter<<<



Feature


Imported components.


> Full power, stable voltage & current output.
> Wide input voltage range.
> Waterproof & anti-shock protection, Ultra compact size, light weight.
> Industry grade product dc dc 12v 24v converter, efficiency up to 96%.
> Die-cast aluminum shell, epoxy potting.
> Non-Isolated Module.
> 12 months warranty.




Parameters


























































































Model



 WMX-DSD12S2425



Product Name



 DC DC 12v 24v converter



Input rated voltage



 12V DC



Input voltage range



 10-20V DC



Conversion Efficiency



 96%



Output voltage



 24V DC



Output current



 25 Amps



Output rated power



 600 Watts



Voltage regulation



 < 1%



Load regulation



 < 2%



Ripple (full load test)



 < 150mV



No-load current



 < 20mA



Working Temperature



 -40°c ~ +80°c



Waterproof rating



 IP 68



Protections



 Over-load, Over-current, Over-temperature, Over-voltage



Machine size



 150*127*63mm



Package size



 230*152*100mm



N. Weight



 1.55kg



W. Weight



 1.62kg



Cooling way



 Free air convection



Other



 White box packing

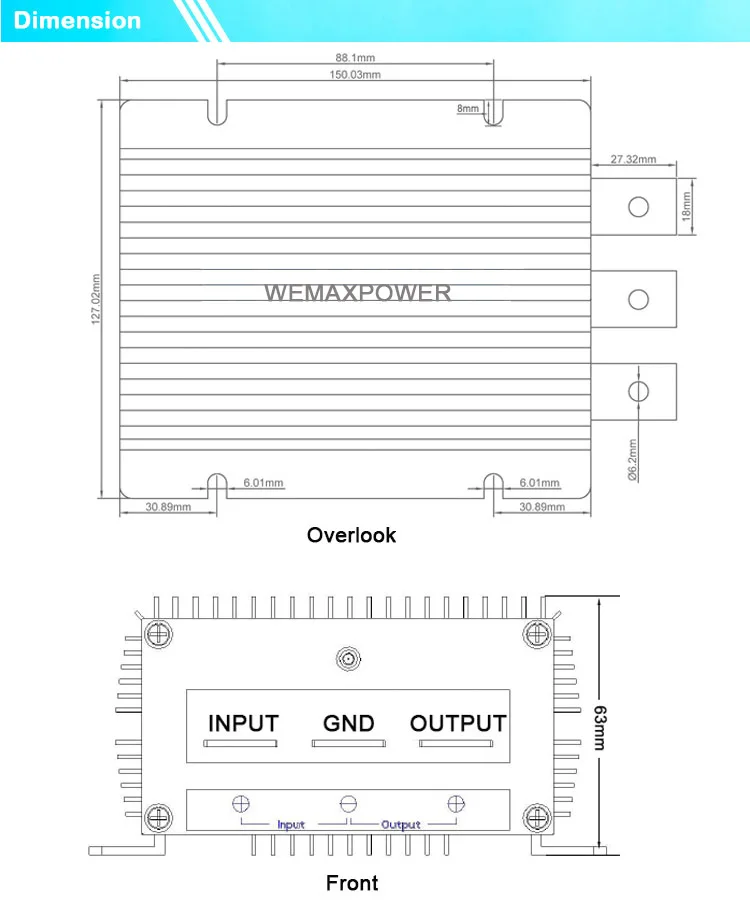

product descriptiondimension
connection diagram


applications


            The dc dc 12v 24v converter is widely used in motors, LED displays, photovoltaic panels, monitoring, on-board electrical appliances, fans, audio and other household appliances,etc.application
