12Gauge Stainless Steel Lacing Anchors Used For The Fabrication Of Removable Insulation Blankets
- Category: >>>
- Supplier: Anping County Huihao Hardware Mesh Product Co. Ltd.
Share on (60820340032):
Product Overview
Description
Product Description

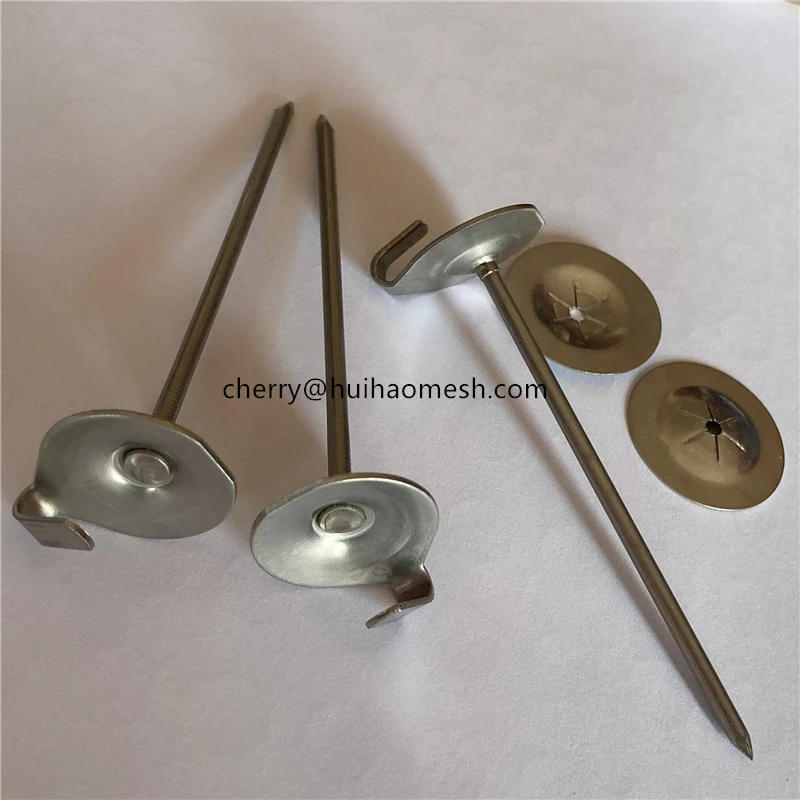

Stainless Steel Insulation Lacing Anchors
Wide choice of fasteners for removable insulation blanket;
Provide strong, durable fixings even in elevated temperature;
Lacing anchors marked NO AB to notify the blanket is asbestos free;
Quiliting pins are used to maintain internal insulation between outer and inner liners;
Available diameters: 2 mm (14 ga) and 2,7 mm (12 ga) as standard
Pins length : 63 mm (2 1/2") and 114 mm (4 1/2") as standard
14 gauge stainless steel insulation lacing anchors
12 gauge stainless steel insulation lacing anchors

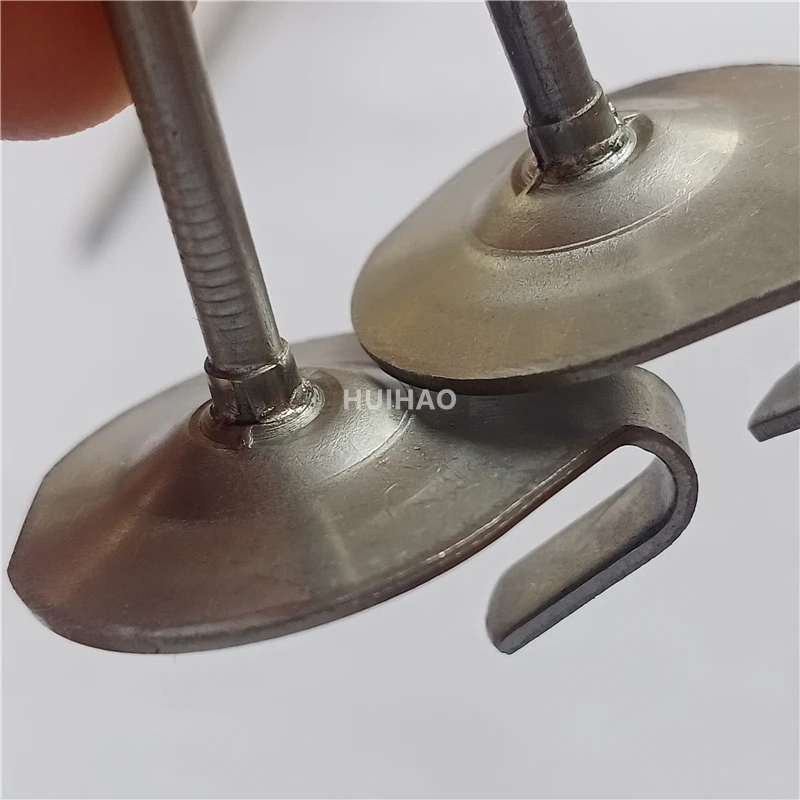

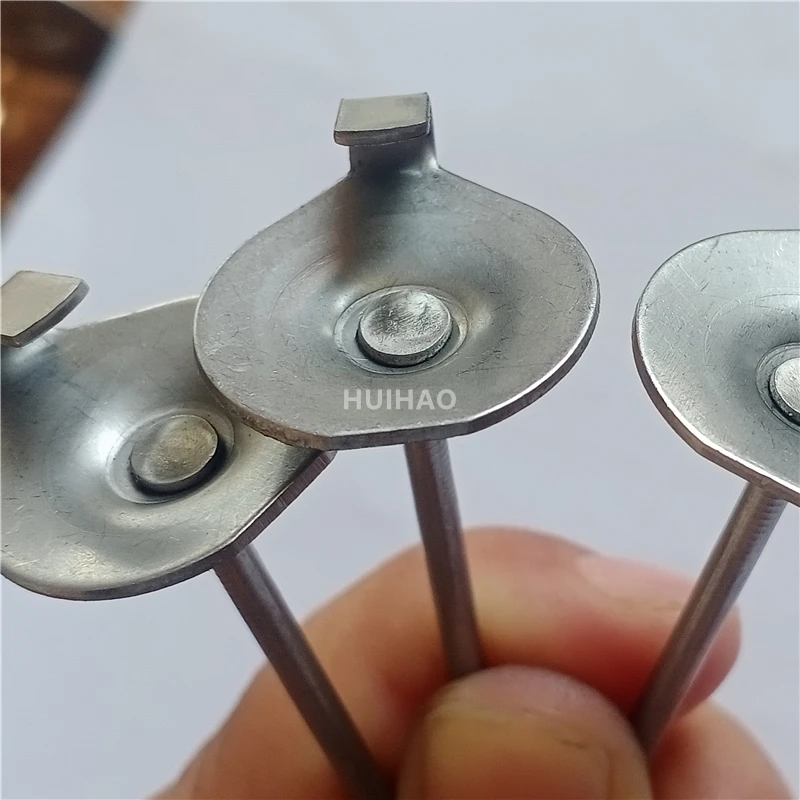

Detailed Images
Material | galvanized steel | stainless steel 304 | stainless steel 316 | ||
pin diameter (D) | 2mm, 2.7mm, 3mm | 2mm, 2.7mm, 3mm | 2mm, 2.7mm, 3mm | ||
base size | 22mm, 30mm | 22mm, 30mm | 22mm, 30mm | ||
base thickness | 1.0mm, 1.3mm | 1.0mm, 1.3mm | 1.0mm, 1.3mm | ||
pin length (L) | as your requirement | 63.5mm, 76.2mm, 114mm | 63.5mm, 76.2mm, 114mm | ||

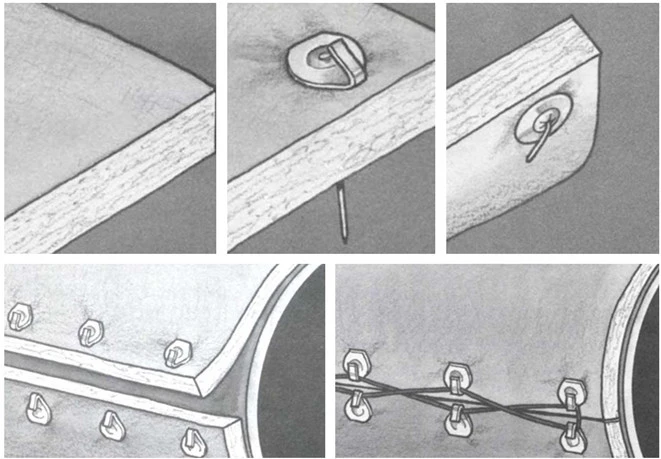

How To Install
Application Of The Stainless Steel Lacing Anchors
1. Prepare insulation blanket
2. Press lacing anchor through blanket
3. Secure lacing anchor with self locking washer and bend the spindle
4. Apply insulation blanket
5. Secure blanket by lacing through hooks with lacing wire
2. Press lacing anchor through blanket
3. Secure lacing anchor with self locking washer and bend the spindle
4. Apply insulation blanket
5. Secure blanket by lacing through hooks with lacing wire

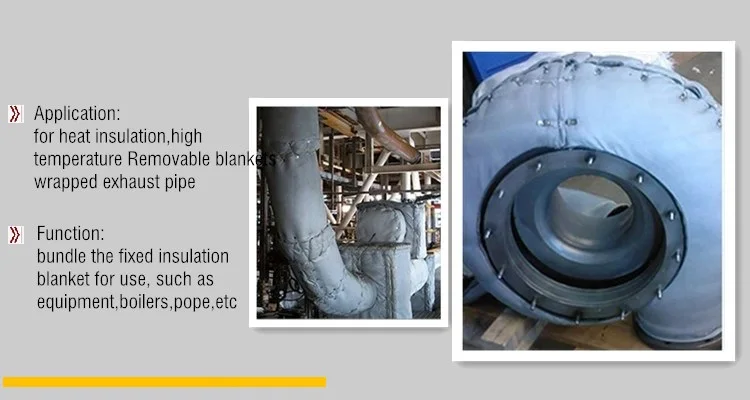

Application
Stainless steel insulation lacing anchors
Typical application is for the fabrication of lacing blankets or removable covers with the anchor assisting in fabricating the blanket plus providing a "seam edge" for lacing two sides of the finished insulation blanket together including various blanket materials. This type anchor is somewhat more economical than the standard lacing anchor and also serves to eliminate weight in the overall removable cover or blanket.
Quality Control
common inspection facilities
micrometers
vernier caliper
thread plug
thread ring gauge
common inspection measurements
exterior inspection:surface finish judgement
size inspection:within common difference
thread inspection:mainlander the precision of the thread,inspected by Go/No gogage
physico-chemical inspection facilities
salt-fog test machine
rally machine
hardness machine
spectrum analyzer
toolmaker microscope
altimeter
projector
stud welder
physico-chemical inspection measurements
decay preservation inspection:mainly under the test of salt-fog experiments to inspect the surface finish and the reservation from decay
intensity inspection
material inspection
thread inspection
hardness inspection
welding inspection
Related Products
Our production includes a full line of insulation fasteners:
Insulation fixing pinsSelf adhesive insulation pinsInsulation hangersInsulation anchors
Lacing anchorLacing ringCup head weld pinsPerforated base pinsQuilting pins&Duct liner pins
CD weld pinsSelf locking washers & dome capsInsulation Impaling Clipsdrive pins

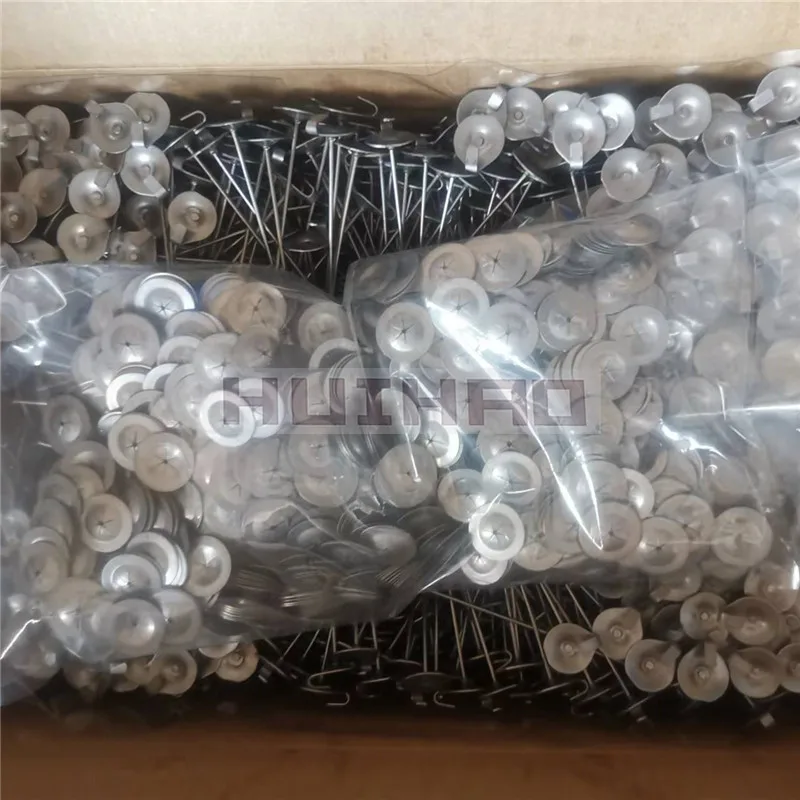

Packing & Delivery
250pcs/500pcs/1000pcs per carton according to the insulation pin size, 48 cartons per pallet.
Our Company
Factory Of Insulation Lacing Anchors
A.Skilled and experienced workers
B.Perfect processing capabilities including shearing, sawing, punching, drilling, welding and additional fabrication expertise
C.Better engineering, tighter tolerances, better prices, shorter lead times
D.Better value, quicker turnarounds, flexibility in options.
B.Perfect processing capabilities including shearing, sawing, punching, drilling, welding and additional fabrication expertise
C.Better engineering, tighter tolerances, better prices, shorter lead times
D.Better value, quicker turnarounds, flexibility in options.
Workshop Of Lacing Anchors
One-to-one order service
Door to door logistics service
Cartographic confirmation service
Processing customization service
Packaging design service
Document making service
Inspection and inspection service
Why choose Anping Huihao Hardware Mesh product limited
1. Are you a manufacture or a trader?
We are a manufacture, located in Hebei province, China.
2. Do you support product customization?
Yes, the material, the surface finish, the wire diameter, the length all could be customized.
3. Can i get samples?
Yes, samples for quality confirm are supported in our company.
4. Can you accept small orders?
Yes, for common size, we could accept small orders.
5. can you supply design service?
yes, we can supply CAD drawing
6. can you supply installation guide?
yes, installation guide is avable for every order.
7. How do you control and ensure product quality?
1) Confirm with you every details before quoting.
2) Before production, we will reconfirm all the details again.
3) During production, we strictly implement "IATF 16949 Quality Management System" standard.
4) We will send you videos and pictures during the production and shipment process.
8. Advantage Of Huihao Hardware Mesh Product Limited.
Cooperate with us, we can ensure:
1) Competitive price: we sale what we manufacture.
2) On-time delivery: we have the auto-production line to ensure the on-time delivery.
3) Excellent quality: we have rich experience, our products are in line with international standard.
4) Good after-sale service: we offer good after-sale service for each order.
We are a manufacture, located in Hebei province, China.
2. Do you support product customization?
Yes, the material, the surface finish, the wire diameter, the length all could be customized.
3. Can i get samples?
Yes, samples for quality confirm are supported in our company.
4. Can you accept small orders?
Yes, for common size, we could accept small orders.
5. can you supply design service?
yes, we can supply CAD drawing
6. can you supply installation guide?
yes, installation guide is avable for every order.
7. How do you control and ensure product quality?
1) Confirm with you every details before quoting.
2) Before production, we will reconfirm all the details again.
3) During production, we strictly implement "IATF 16949 Quality Management System" standard.
4) We will send you videos and pictures during the production and shipment process.
8. Advantage Of Huihao Hardware Mesh Product Limited.
Cooperate with us, we can ensure:
1) Competitive price: we sale what we manufacture.
2) On-time delivery: we have the auto-production line to ensure the on-time delivery.
3) Excellent quality: we have rich experience, our products are in line with international standard.
4) Good after-sale service: we offer good after-sale service for each order.
