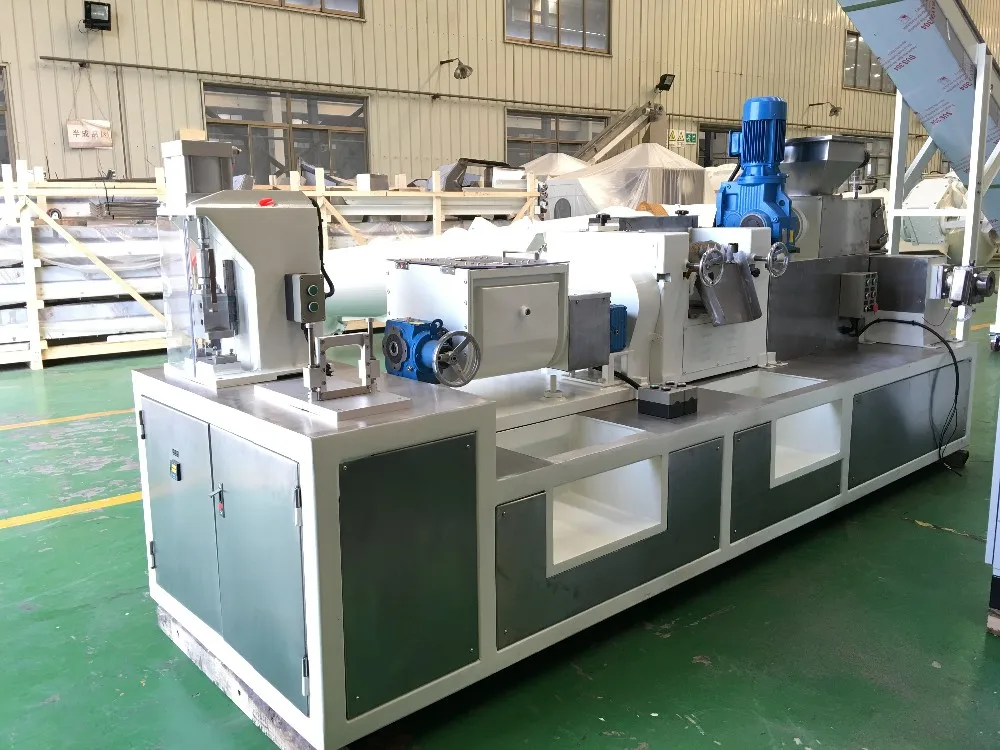

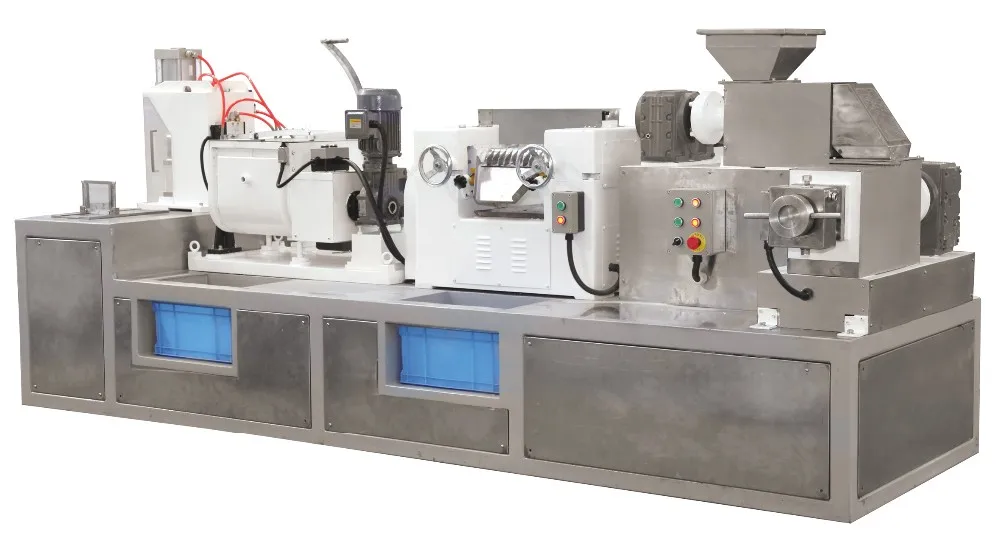

100kg Small Bar Hotel Soap Making Machine

Z2.  Three Roll Mill S150

The roller diameter is φ150mm, the roller adopts stainless steel whose surface material is treated by cold and hard treatment, the roller is antifriction and anticorrosion, easy to adjust the clearance, dependable and reliable.

Motor Power is 3.0KW

Z4.  Duplex Plodder XCT100

This machine has two stages, driven by independent driving and transmission system. The first plodder is acting as a simplex refiner to make soap pellets in the vacuum condition. In the final plodder, the soap is pressed and extruded out in billets through the orifice to feed the downstream cutter or stamper. The integrated motor and gear box has higher driving efficiency, and with specially designed sealing, it can avoid the oil leakage from the gearbox into the screw chamber to cause soap contamination. The lengthened screw chamer design can reach 1:6 for the screw diameter vs effective barrel length, which can extrude the material effectively and increase the compactness. The barrel inner body is made of high quality seamless stainless steel, without any water leakage. The refining plate or net can be installed on the first plodder front part to enforce the martial refining effects to optimization. The final plodder speed can be adjusted by VFD. There is a level sensor on the vacuum chamber door to realize the auto run and stop control of the first plodder. Specially designed and continuously improved water cooling system and the different screw inner diameter and pitch design are especially suitable for the laundry soap and toilet soap. Except the aluminum screws, all parts contacting with soap are made of high quality stainless steel.

Z5. Stamper

This machine is for soap shape forming. This type is re-designed and improved based on the original XD120 stamper by using linear guide rails, so the friction force is only 1/20 of the original cast iron V shape rails. The transmission parts have been enlarged to enforce the stamping function. And the biggest soap can be 300g. It has the advantages of smooth running, low vibration and noise,high productivity and long working life.The speed can be adjusted by VFD according to upstream plodder output speed and the bar weight. It has infeed and discharge conveyors.

XPD120 semi-automaticType:

Optional :  XD120 automatic type:

It can refrigerate the cooling liquid rapidly, and feed the cooling liquids to the heat exchanger by the pump. This machine is mainly used on XPD120 stapmers. The compressor uses the famous product of France. This machine has the advantages of high efficiency, energy saving, low vibration and reliable performance etc.

1, As P&G's global strategic partner and appointed supplier for soap, toothpaste and packaging machinery, we've been serving P&G's factories world-wide.
2, Set up the global sales and after-sales network, serving more than 700 customers in more than 50 countries, including of P&G, Unilever, Reckitt Benckiser, Wilmar, Colgate, NICE, EVYAP, WINGS, GIV, NUVO, etc.
