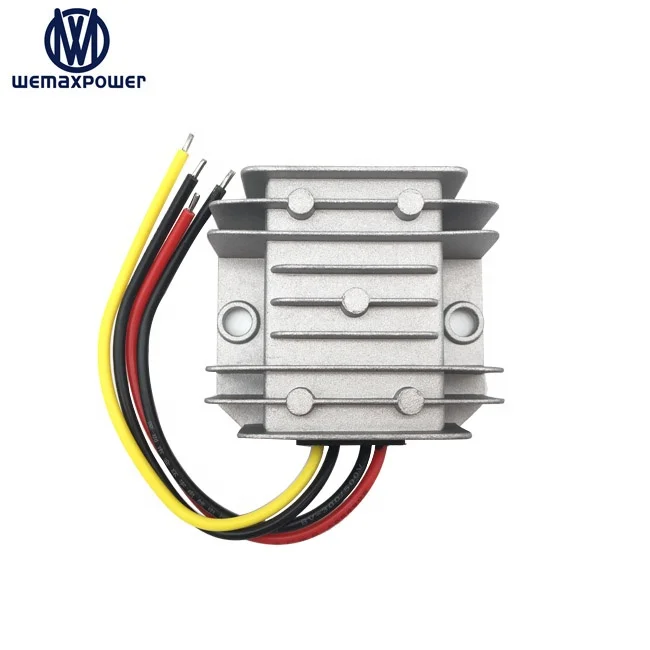

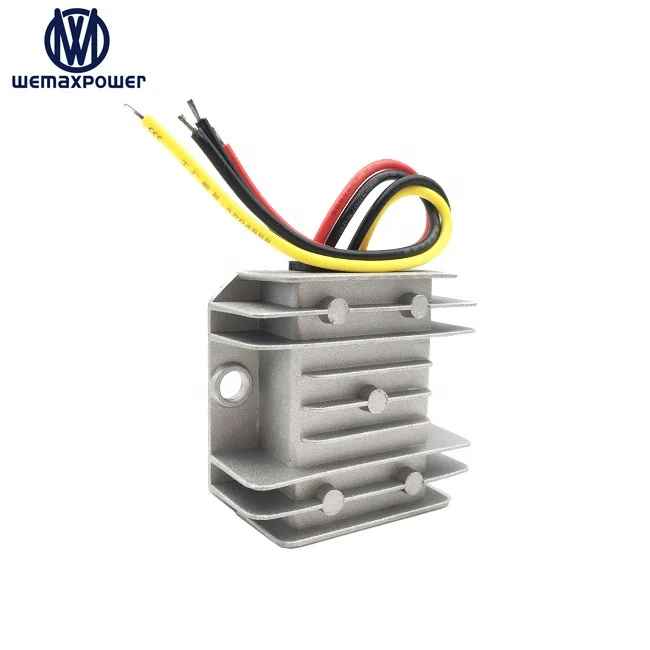

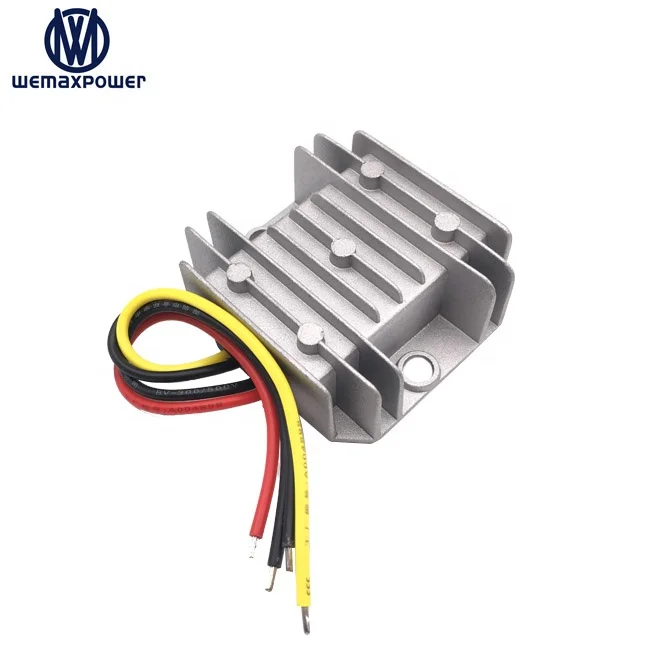

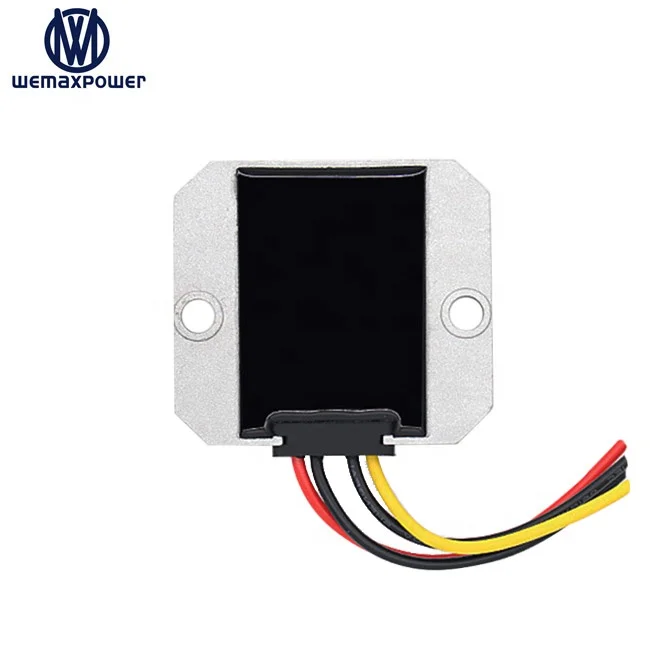

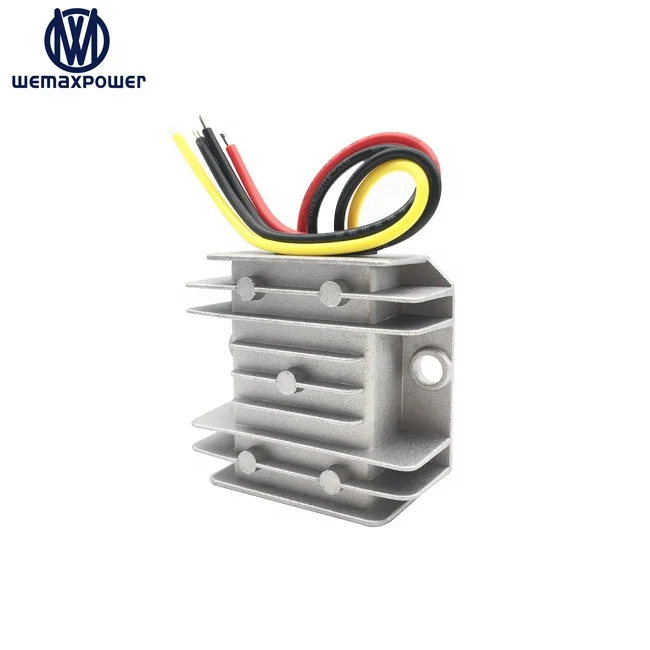

Boost module 12vdc step up 36vdc voltage dc regulator 2A dc 12v to 36v converter

Share on (60820408616):


Price:$4.73 - $5.06

Quantity:


Product Overview

Description


Boost module 12vdc step up 36vdc voltage dc regulator 2A dc


12v to 36v converter



dc dc converter


>>>12v to 36v dc dc converter<<<



Fetures


» High quality components.


» Full power, stable voltage & current output.
» Wide input voltage range 10-16vdc.
» Waterproof IP67 & anti-shock protection, Ultra compact size, light weight.
» Industry grade product , efficiency up to 96%.
» Die-cast aluminum shell, epoxy potting.
» Non-Isolated Module.





Specification


















































































 Series No.



 WMX-D12D36



 Model



 WMX-DSD12S3602



 Product Name



dc 12v to 36v converter



 Input rated voltage



 12Vdc



 Input voltage range



 10-16Vdc



 Conversion Efficiency



 96%



 Output voltage



 36Vdc



 Output current



 2Amps



 Output rated power



 72Watts



 Voltage regulation



 < 1%



 Load regulation



 < 2%



 Ripple (full load test)



 < 150mV



 No-load current



  < 20mA



 Working Temperature



 -40°c ~ +80°c



 Waterproof rating



 IP 67



 Protections



 Over-load, Over-current, Over-temperature, Over-voltage

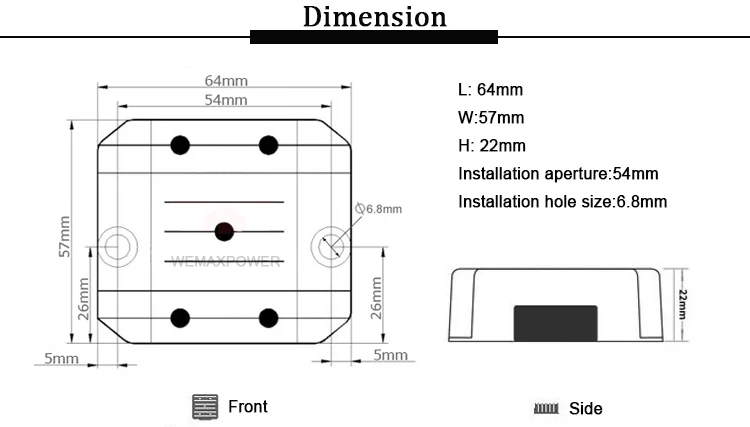

 Machine size



 57*64*22mm



 N. Weight



 125g



 Cooling way



 Free air convection






Product Description


dc dc converterdimensionconverter advantageSales qualificationFactory showdc dc applicationLogistics transportation








Buyer Feedback


review





FAQ


Q: Why choose us?
A: Guangzhou Wemaxpower technology Co., Ltd is the dc dc converters manufacturer for more than 10 years.The performance of the converters are very stable,and the product technology is updated every year.
Q: Is there any requirement of the load?
A: Yes, the dc dc converters are with fixed voltage output, so it can not be used for charging the batteries directly. If you have any requirement for charging the batteries, you may choose the dc dc chargers.
Q: Why are other products cheaper than yours?
A: Because other suppliers use cheap components, the products are with not enough power output.Our products are used imported components, they can support long-term full load work.
Q: What about your after sales-service?
A: 1.Guarantee time: 1 year
     2.Return policy: we can exchange goods if there is any quality problem within warranty period.
Q: Our Payment & Logistics
A: 1.Payment terms L/C,T/T,Western Union,MoneyGram,Paypal.etc.
     2.Shipping terms: By DHL, UPS, FedEX, TNT, EMS,Sea.etc
Q: What can you get from us?
A: 1.Excellent products (unique design, strict quality control )
     2.Great service(OEM,ODM, after-sales services, fast delivery)
     3.Professional business consultation.
Q: What is the MOQ of the dc 12v to 36v converter?
A: Low MOQ, 1~5 units for sample testing is available.
