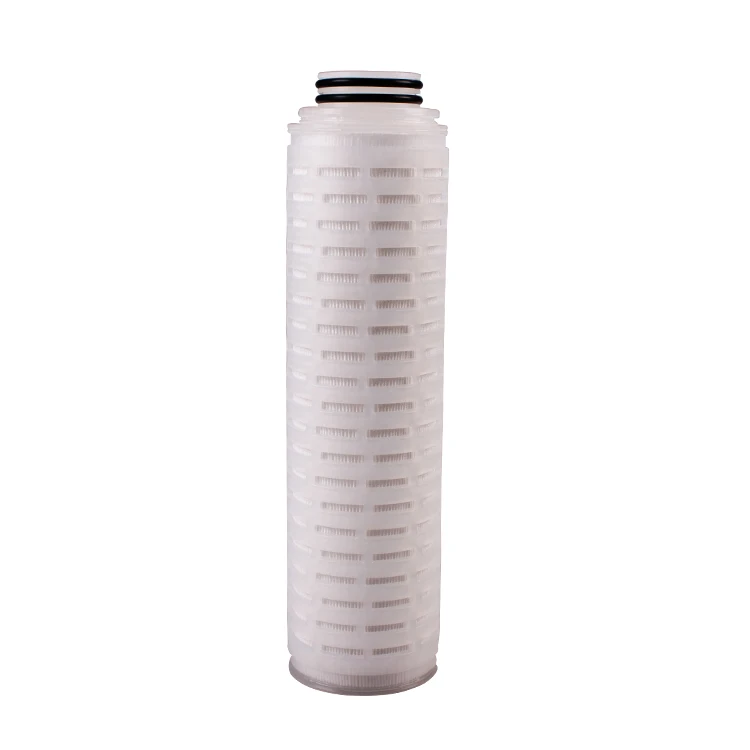

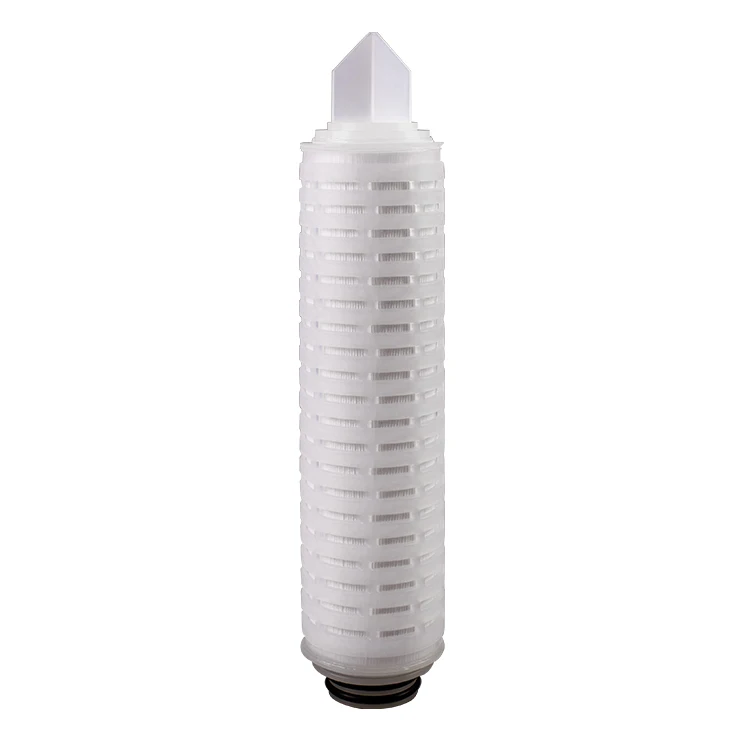

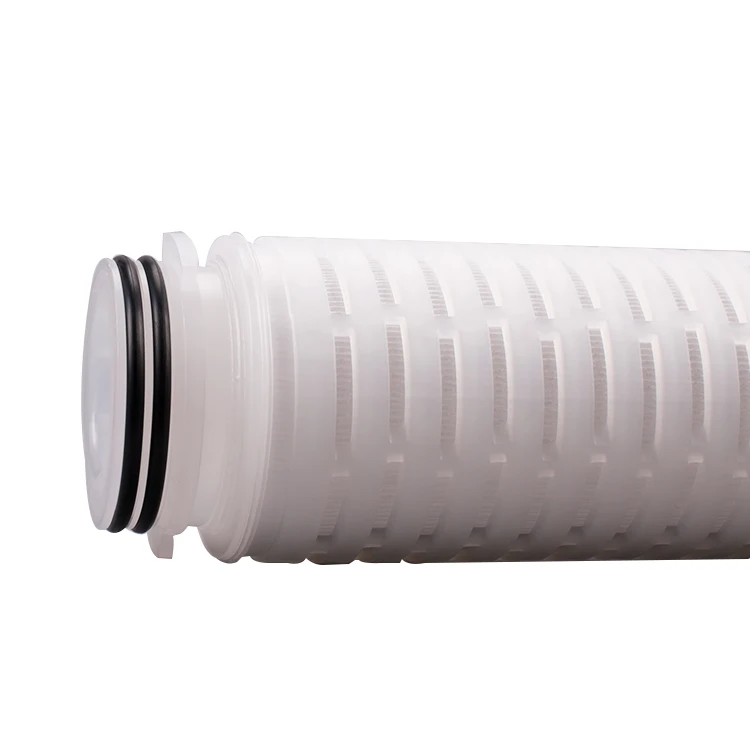

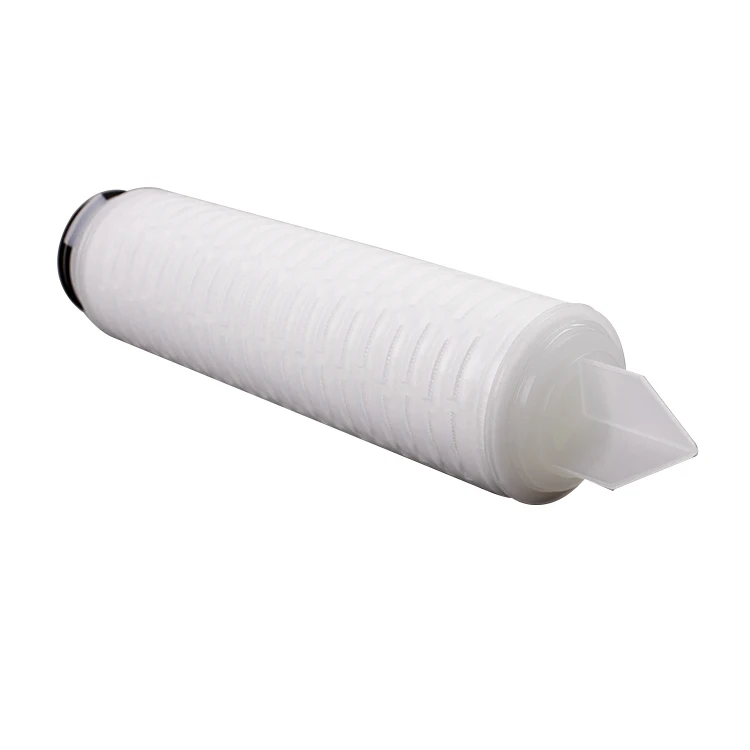

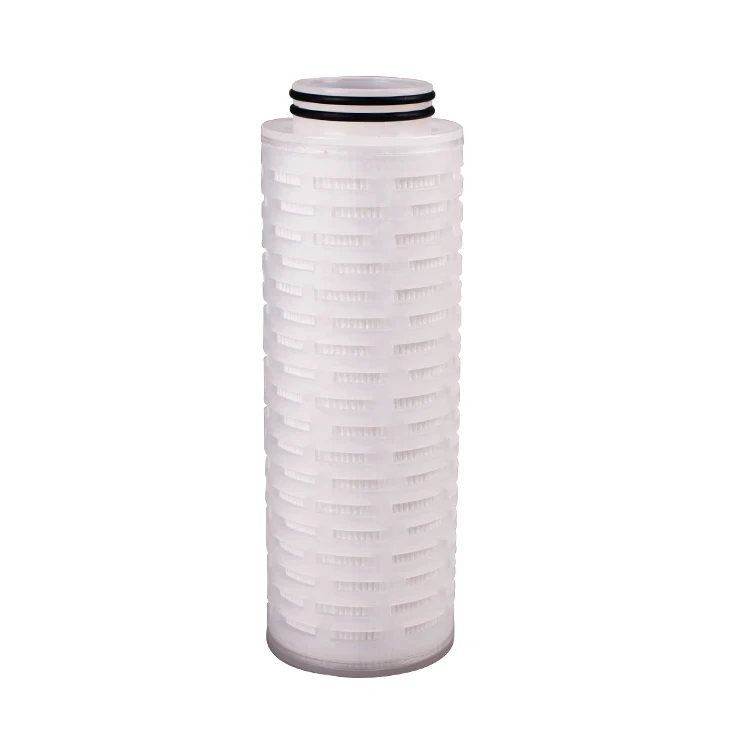

Strong Acid Ressitance PTFE Membrane corrisive Liquid water Filter Cartridge/Element

Product Overview

Description



Materials of Construction

Filter Media: Expanded Polytetrafluoro-ethylene (ePTFE) Membrane

Hardware: Polypropylene

Center Core: Polypropylene

Supporting Material: Polypropylene

End Caps: Polypropylene

Gasket/O-rings: Silicone,Buna-N,,EPDM. Teflon

Dimensions

Outside Diameter:2.67”<68mm>

Length: 9.75”~40”<248mm~1016mm>



Specifications can be customized



Performance Specifications



Retention Ratings: 0.05,0.1,0.2,0.45,1.0μm

Maximum Differential Pressure:  80 psid(5.5bar)@68℉(20℃)

20 psid(1.4bar)@230℉(95℃)



Recommended Change Out Differential Pressure:

35psid(2.4bar)



Applications



• Corrosive Liquid Filtration, Particle Filtration

• Solvent Sterilization

• Mineral Water, Purified Water, Ozone And Other Strong Oxidizing Liquids For Sterilization And Filtration

• Sterilization Filtration Of Medicinal Liquid Etc.

Product Name	Retention Rating	Cartridge Length	End Configurations	Materials of O-rings/Gaskets
PTF	0.05,0.1,0.2, 0.45,1.0μm	9.75”,10”,20”,30”,40”	DOE=No Symbol 3=SOE with 222 O-rings, Flat Closed End 8=SOE with 222 O-rings, Fin End 7=SOE with 226 O-rings, Fin End	N=Buna-N E=EPDM V= S=Silicone F=Teflon



FAQ



1.OEM service available ?

Yes,  OEM service is available, but the EVS brand price better than OEM



2.Payment Term:

We can accept  L/C, T/T, Western Union, MoneyGram, Paypal



3.Certicification:

We had passed ISO9001,NSF,CE, certified



4.Shipping :

If your order is not big enough , Door to Door Service is the best choice via UPS,FEDEX,DHL,EMS.

For big quantity, by air or by sea through your forwarder is one Normal Way , we also can provide cost-effective forwarder for your reference.



5.Sample:

For our first cooperation, buyer afford the sample fee and shipping cost, and the cost will be refund when made formal order.



6. Lead time:

In normal Condition, for one 20 GP container, lead time need 15-20 days, and for one 40 GP container, leadtime should be around 30days.
