Food machinery wet food grinder bean rice milk making machine
- Category: >>>
- Supplier: Shanghai Tiangang Machine Manufacture Co. Ltd.
Share on (60820507005):
Product Overview
Description
Food machinery wet food grinder bean rice milk making machine

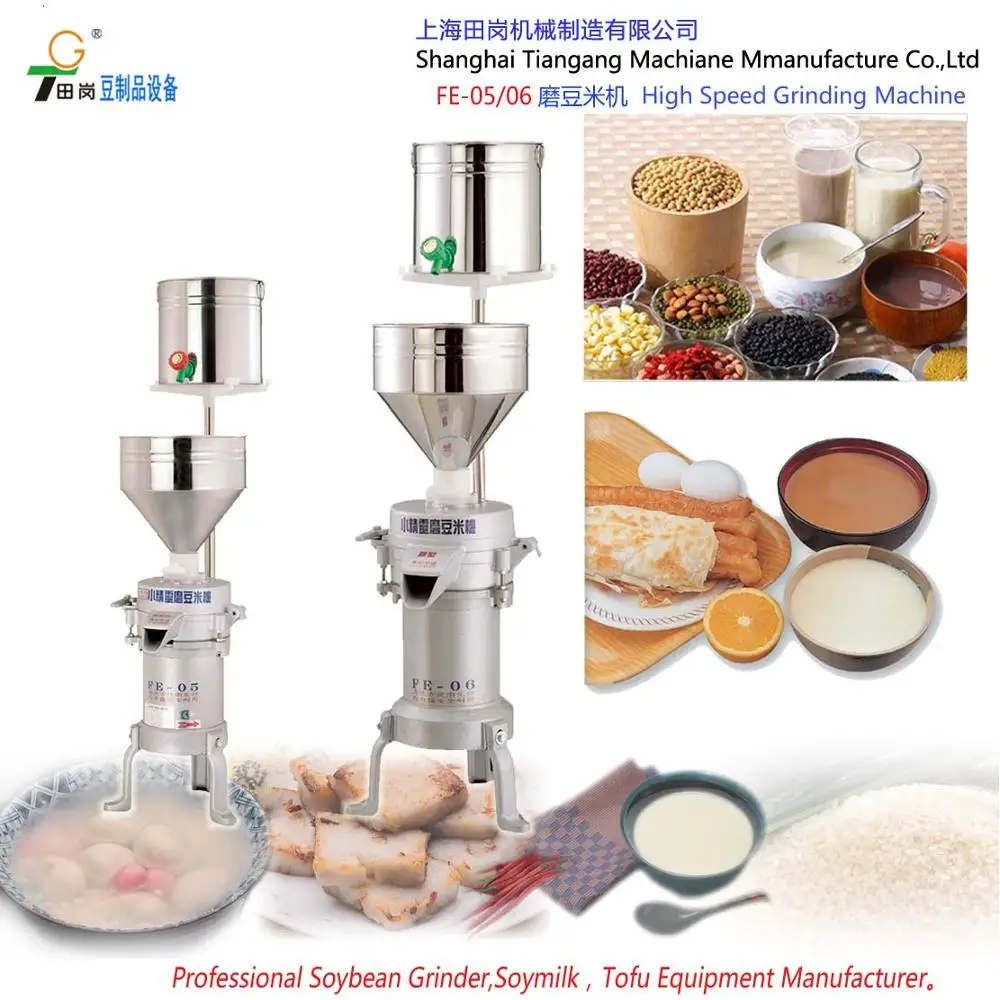

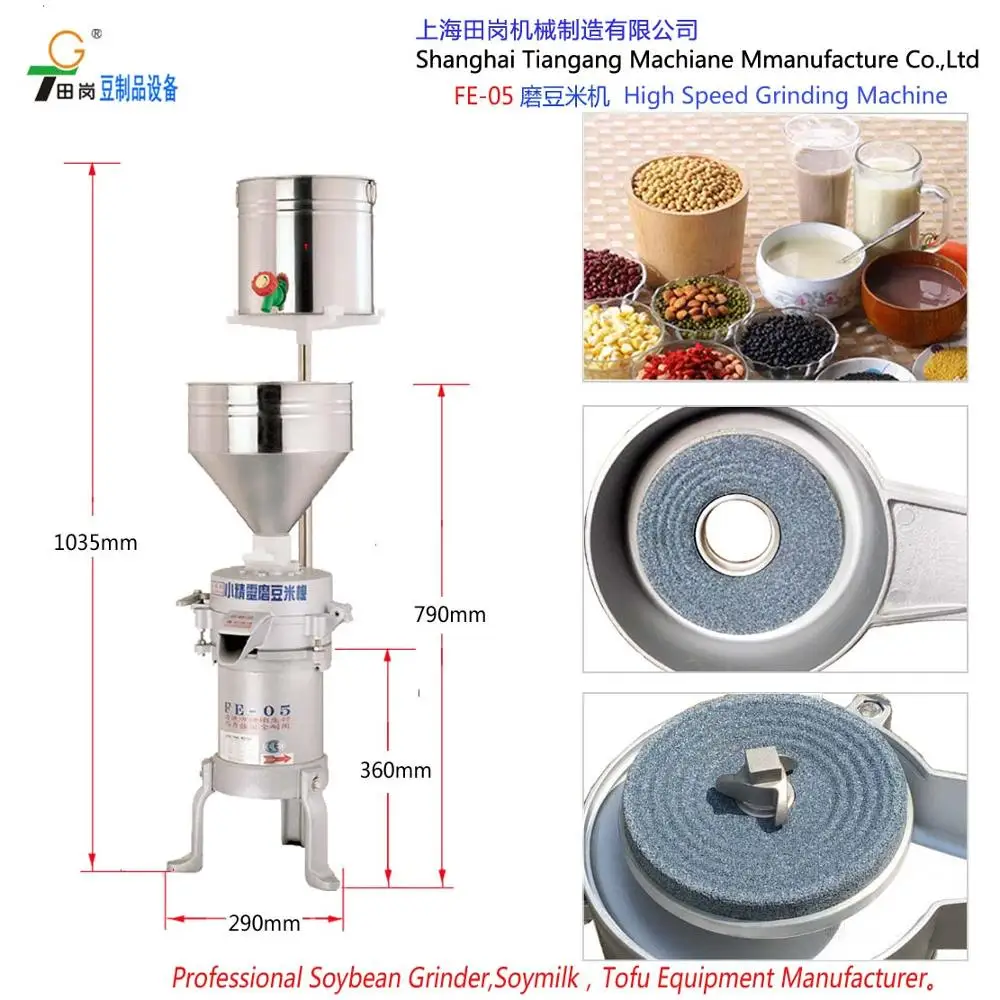

FE-05 High Speed Grinding Machine
Features:
1、Specially designed grindstone angle makes been-grinding fast and rice-grinding fine.,use aluminum-alloy accurate die-casting
2、Newly designed motor with more sufficient power.Special water-prooof design with safety&durability .
Application:
Apply to make soybean milk rice milk mung bean paste and chili sauce、 soaked soft goods grinding fine and other functions。
Output: 20-40kgs/hr;Diameter of the grinding stone :125mm,
Material of the grinding stone: corundum.
Power:370W;Voltage:220v/50Hz;Speed:1720/1430 R.P.M.
Weight:22kgs；Gross Weight:28kgs
Size:490*299*1033mm;Packing size:300*350*800mm,
Features:
1、Specially designed grindstone angle makes been-grinding fast and rice-grinding fine.,use aluminum-alloy accurate die-casting
2、Newly designed motor with more sufficient power.Special water-prooof design with safety&durability .
Application:
Apply to make soybean milk rice milk mung bean paste and chili sauce、 soaked soft goods grinding fine and other functions。
Output: 20-40kgs/hr;Diameter of the grinding stone :125mm,
Material of the grinding stone: corundum.
Power:370W;Voltage:220v/50Hz;Speed:1720/1430 R.P.M.
Weight:22kgs；Gross Weight:28kgs
Size:490*299*1033mm;Packing size:300*350*800mm,
Working principle:
The working principle of the colloidal mill is that: Under the effect of centrifugal force and being run by relatively high speed between the rotating gear and the fixed gear, the liquid and the semi-liquid materials is efficiently emulsified, homogenized, dispersed and mixed during the course of being cut, milled and shocked with high frequency. After that you can get the satisfied and processed material.
Application Scope:
The working principle of the colloidal mill is that: Under the effect of centrifugal force and being run by relatively high speed between the rotating gear and the fixed gear, the liquid and the semi-liquid materials is efficiently emulsified, homogenized, dispersed and mixed during the course of being cut, milled and shocked with high frequency. After that you can get the satisfied and processed material.
Application Scope:
The colloidal mill is widely applied in sorts of products of many fields by its advantage such as foodstuffs industry, medicine industry, chemical industry and everyday chemical industry etc.; the products including soybean milk, fruit jam, peanut butter, artificial corn milk, cream, perfumery compound, pigment, greasing oil, dyestuff, pant, fish live oil, pollen, honey, tooth-paste and so on.

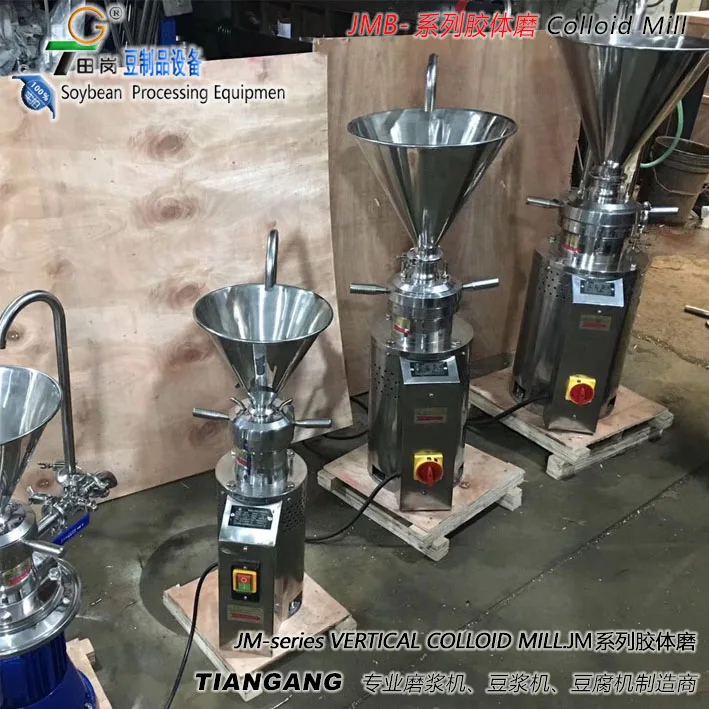

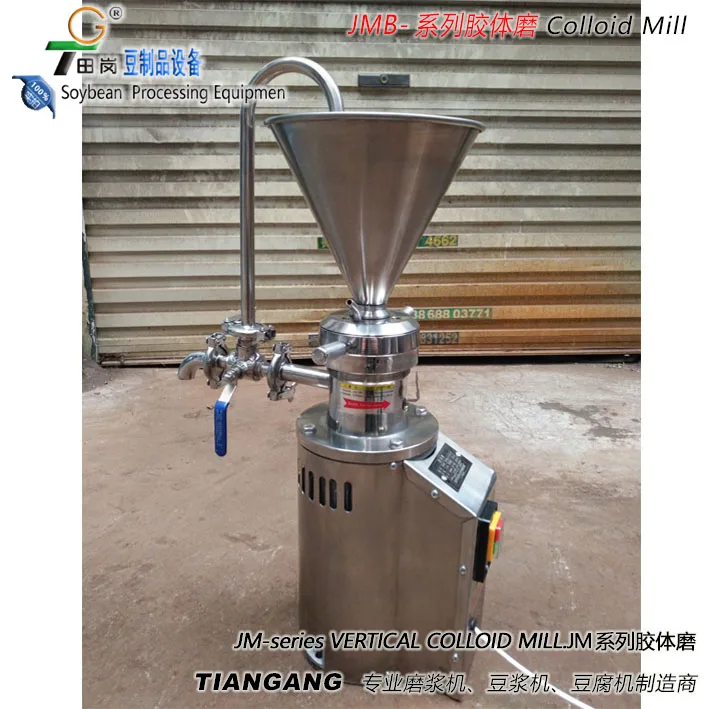

JM-50 VERTICAL COLLOID MILL;
Voltage:220V/50Hz;Power:1100W;
Motor speed:2880r/min
Thin degree:1-0.01mm;
Out put:0.02-0.5t/h (Varies According to Materials
pioperteies) Weight:40kg;
pioperteies) Weight:40kg;
Size: 270*270*650mm;
Gross Weight:45kgs;
Gross Weight:45kgs;
Packing size:300*300*740mm
To produce peanut butter, it is recommended to choose a model above JM-60.
To produce peanut butter, it is recommended to choose a model above JM-60.
JM-60 VERTICAL COLLOID MILL;
Voltage:220V/50Hz;Power:1500W
Thin degree:1-0.01mm;
Out put:0.05-0.5t/h (Varies According to Materials
pioperteies) Weight:45kg;
Size: 270*270*650mm;
Gross Weight:50kgs;
Packing size:300*300*740mm
JM-65 VERTICAL COLLOID MILL;
Thin degree:1-0.01mm;
Out put:0.05-0.5t/h (Varies According to Materials
pioperteies) Weight:45kg;
Size: 270*270*650mm;
Gross Weight:50kgs;
Packing size:300*300*740mm

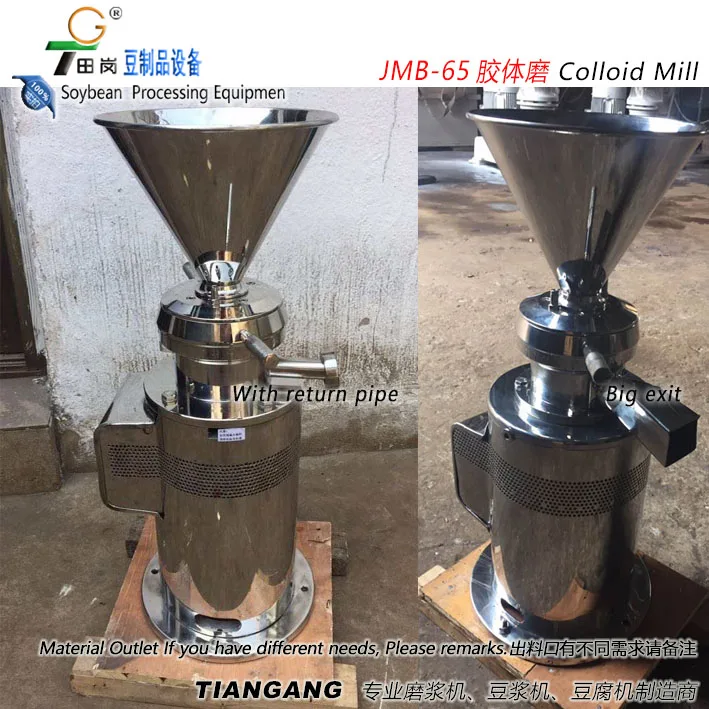

JM-65 VERTICAL COLLOID MILL;
Voltage:220V/50Hz;Power:1500W
Out put:0.05-0.5t/h (Varies According to Materials
pioperteies) Weight:50kg;
Size: 270*270*650mm;
Gross Weight:55kgs;
Packing size:300*300*740mm
Out put:0.05-0.5t/h (Varies According to Materials
pioperteies) Weight:50kg;
Size: 270*270*650mm;
Gross Weight:55kgs;
Packing size:300*300*740mm
JMB-80 Vertical Colloid Mill Machine
Voltage:380/50Hz
Customizable 220V/60Hz motor.
(Three-phase power supply)
Power:3KW;
(Customizable 4KW motor.)
Speed:1700-3500r/min;
Adjusting Range of Space:1-0.01mm;
Out put:0.1-0.5t/h
Speed:1700-3500r/min;
Adjusting Range of Space:1-0.01mm;
Out put:0.1-0.5t/h
(Varies According to Materials pioperteies)
Weight:95kg;
Size: 360*360*800mm;
Gross Weight:105kgs;
Packing size:450*450*870mm
Weight:95kg;
Size: 360*360*800mm;
Gross Weight:105kgs;
Packing size:450*450*870mm
Shanghai Tiangang Machine Manufacture Co.Ltd. has been engaged in manufacturing soybean processing machine for .
Our products are widely used all over the world . Mainly including Food grinding machine,Colloid mill,Commercial Soya milk machine, Tofu making machine, packaging and other soybean processing machinery.
Also,we can provide whole sets of soymilk and tofu processing line, consist of soybean soaking,suction of soybeans,grinding and separating,cooking,breaking,pressing and sterilization ,packaging other.
More importantly is we can design turn-key project according to customers' needs. Our salesmen as well as engineers are know very well about our products,they will serve you with all their profession and sincerity.
Looking forward to cooperating with you in the near future !
Our products are widely used all over the world . Mainly including Food grinding machine,Colloid mill,Commercial Soya milk machine, Tofu making machine, packaging and other soybean processing machinery.
Also,we can provide whole sets of soymilk and tofu processing line, consist of soybean soaking,suction of soybeans,grinding and separating,cooking,breaking,pressing and sterilization ,packaging other.
More importantly is we can design turn-key project according to customers' needs. Our salesmen as well as engineers are know very well about our products,they will serve you with all their profession and sincerity.
Looking forward to cooperating with you in the near future !
