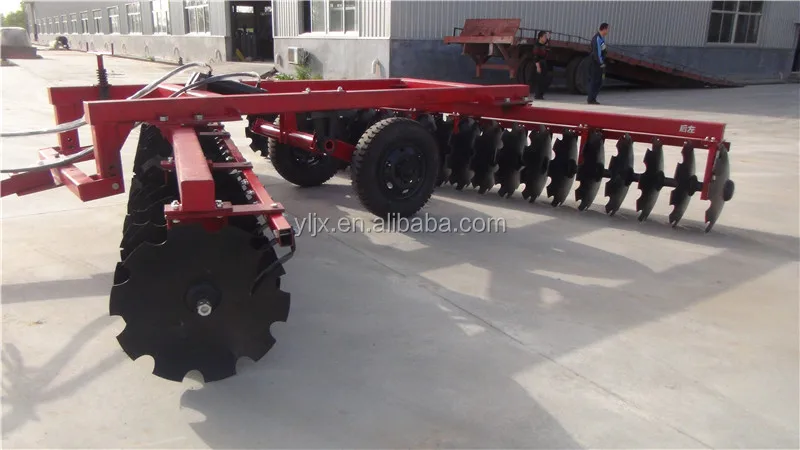

farm tillage equipments Hydraulic offset heavy duty disc harrow

Product Overview

Description



Product Description





 1BZ-2.2/2.5/3.0/3.4 product with 20/24/28/32 discs is used for operation in the field as crop residue processing before tillage, breaking hardened and impervious soil surface, crushing and spreading straw in the field, shattering soil after tillage, planning the land and preserving soil moisture. It can be used as tillage instead of plough on the cultivated land. With the efficient productivity, reasonable utilization of the power, great ability of cutting and shattering the soil , the soil surface is smooth and loosening after harrowing, it is well suitable for heavy clay soil waste land and weedy field as well.





Specification



Model	1BZ-2.0	1BZ-2.2	1BZ-2.5	1BZ-3.0	1BZ-3.4	1BZ-4.0	1BZ-5.3
Working width(m)	2.0	2.2	2.5	3.0	3.4	4.0	5.3
Working depth(mm)	180~200	180~200	180~200	180~200	180~200	180~200	180~200
No. of disc	18	20	24	28	32	36	48
Dia. of disc(mm)	660	660	660	660	660	660	660
Weight(kg)	1200	1250	1350	1450	1550	1950	2530
Fitted power(hp)	70	80	80~100	100	120	120	140
Linkage	Trailed

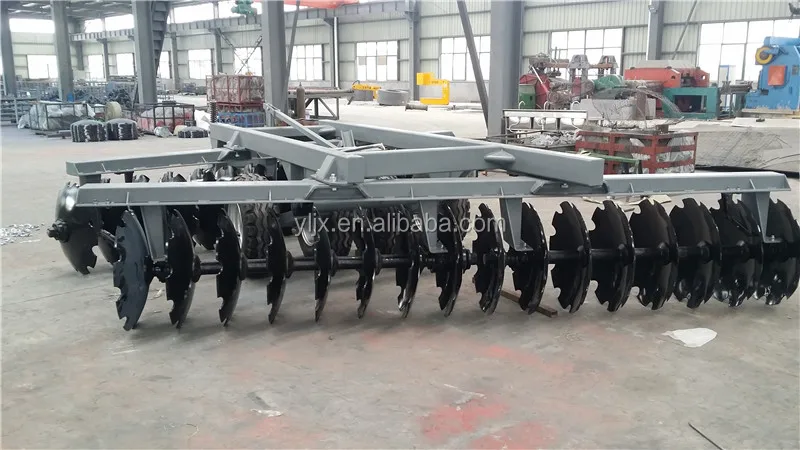

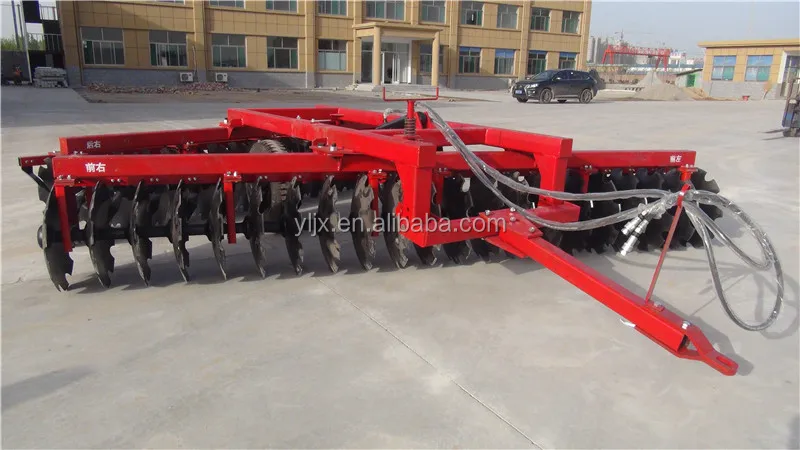

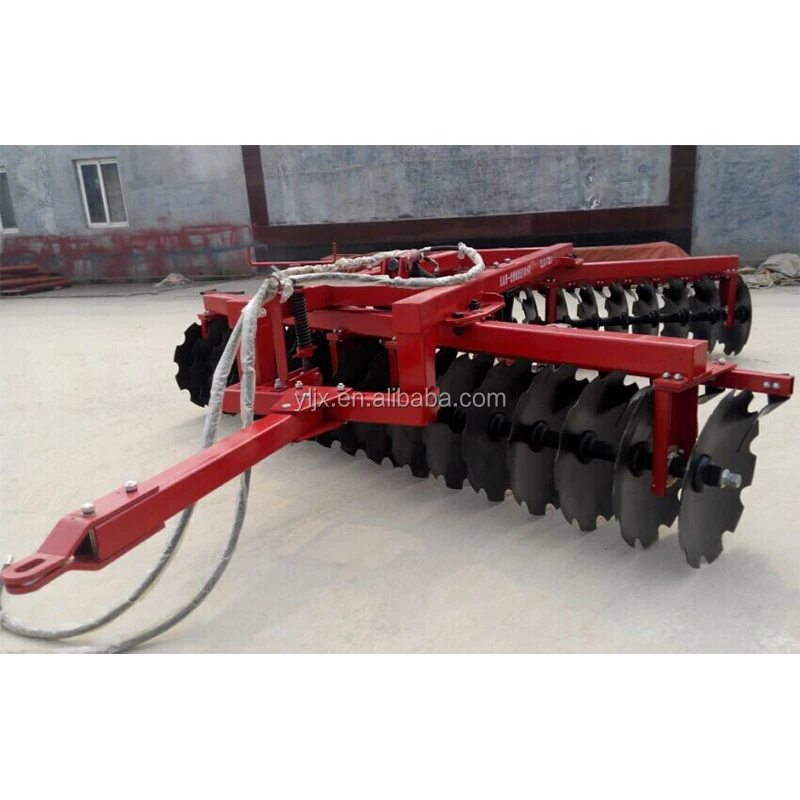

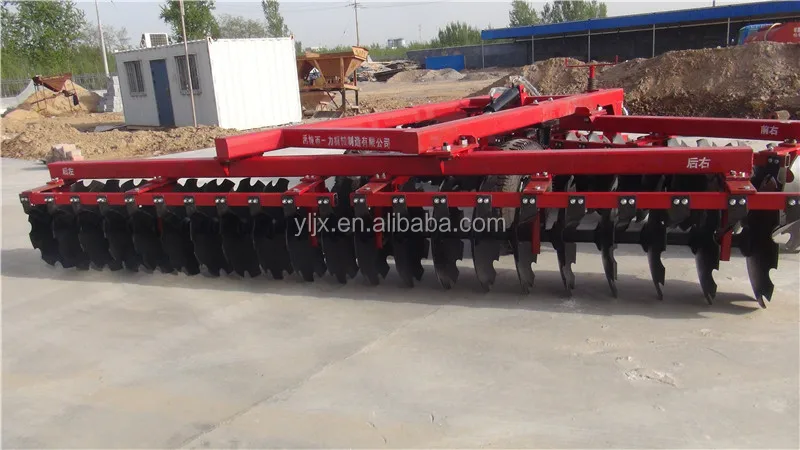

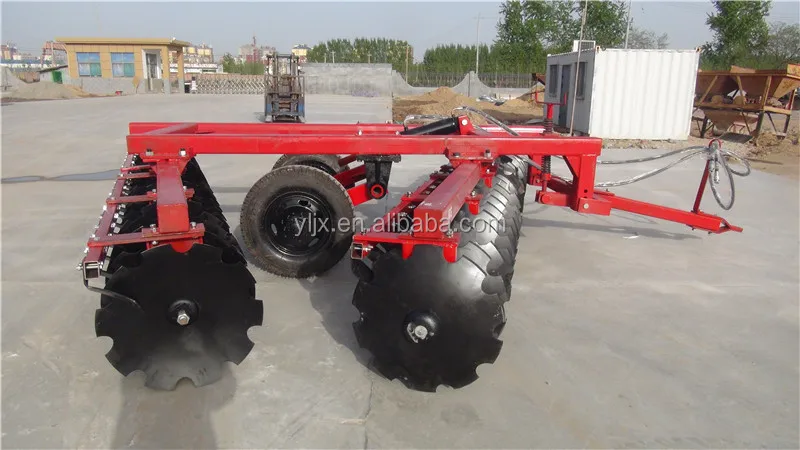

Product show

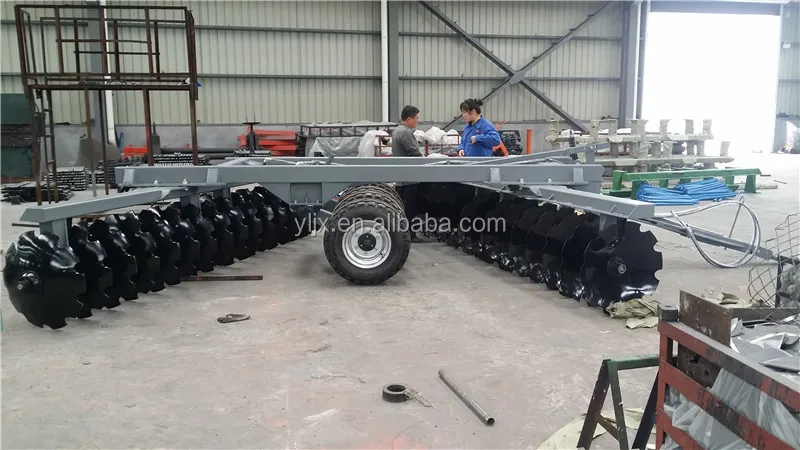

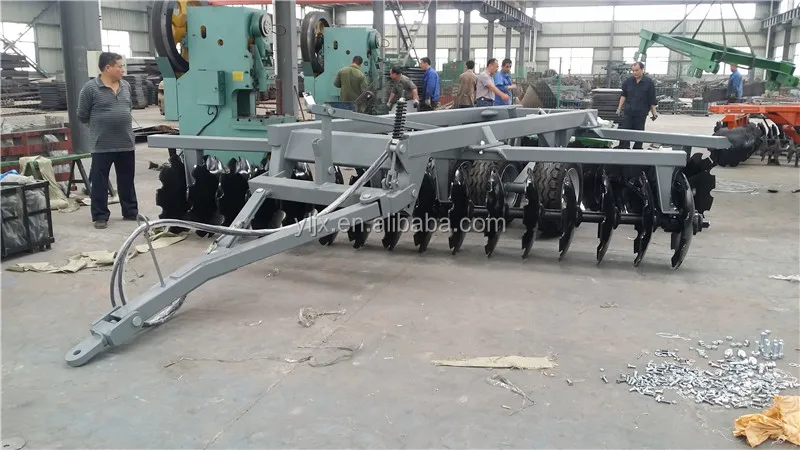

Our factory









Customer visit









FAQ





Q1: Are you a factory or trading company?
We are a factory with self-supported import and export right.
Q2: How can I trust on your company?
We are a fully registered manufacture and exporting company by China Export Registration Authorities. Moreover, our products have been exporting to a number of countries including Switzerland, Russia, Spain, Netherlands, Australia, Peru, Thailand, Pakistan, Indonesia, Tanzania, Nigeria, South Africa, Sudan, Congo etc. The good faith, punctual, strict quality control and reasonable price, throughout s the pledge we to each customer.
Q3: Where is your factory located? How can I visit there?
Our factory is located in Yucheng City, Shandong Province, China. About 1 hour away from Jinan Airport. All our clients are warmly welcomed to visit us!
Q4: How can I place an order from your website?
It is very easy.Once you find the implement you need on our website and place an inquiry against it, or, get to the inquiry section and leave us a message there with name, country and phone number, we will get in touch with you at the earliest. You can also e-mail us directly or join us on live chat for instantaneous answers.



Q5: How can I make the payment?
payment method: 100%T/T

30% by T/T Deposit ,70% by T/T before shipping.
Irrevocable L/C at sight could be also accepted.
Q6: At which port do you usually ship the good?
We usually ship goods via Qingdao , Tianjin port of China.
Q7. How about the Warranty ?
12 months warranty from the time of the goods arrive at destination.

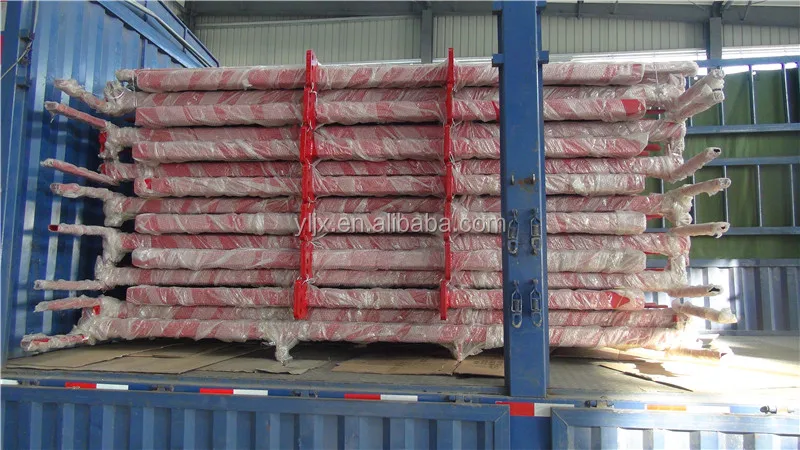

package







Contact me



Please do not hesitate to contact us for a quicker answer to  your question or concern
