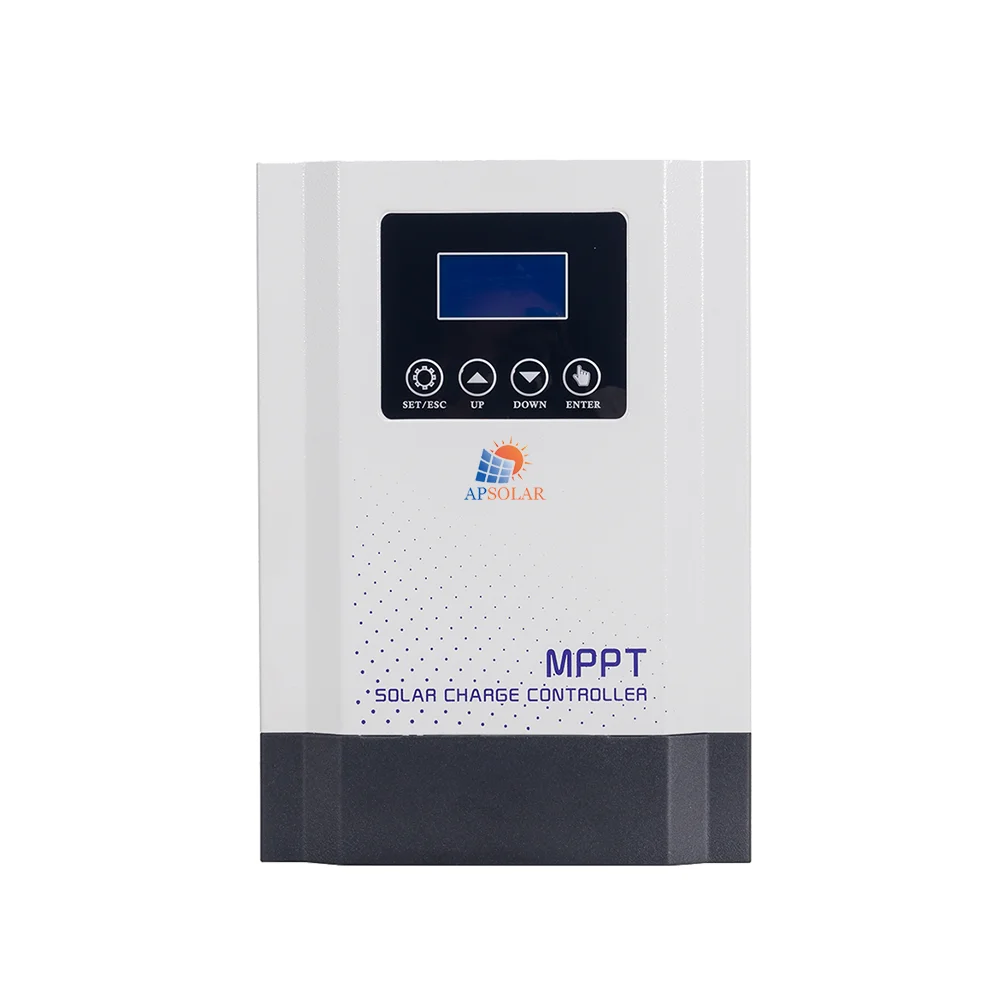

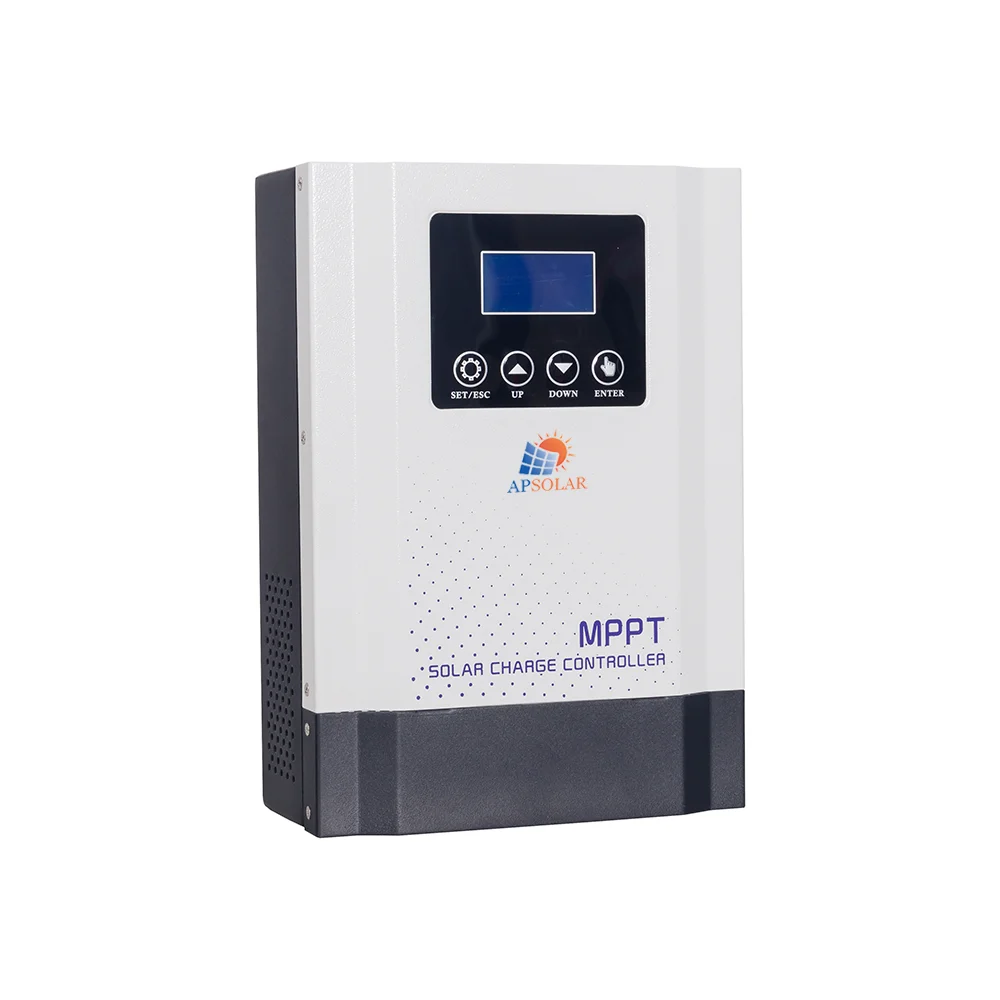

Solar Energy Inverter MPPT Solar Controller 60A 48V
- Category: >>>
- Supplier: Dongguan Amplec Electronic Co. Ltd.
Share on (60820518003):
Product Overview
Description
Product Description
This solar battery charge controller is a smart tracking algorithm using MPPT charging technology and has less power loss performing at 97.5-99% efficiency, maximizing energy harvest. The tracking algorithm is automatic and varies with weather conditions. This charge controller also has temperature compensation protection using the included battery temperature sensor. Charges 12, 24, 36 and 48 volt solar systems with multistage charging technology and adjusts according to battery type.
The MPPT charger controller includes LCD display to show charging status and faults. An LCD displays key information such as battery voltage, solar panel voltage, solar panel charging current and charge mode. Users are able to revise and set the default parameters according to system design.

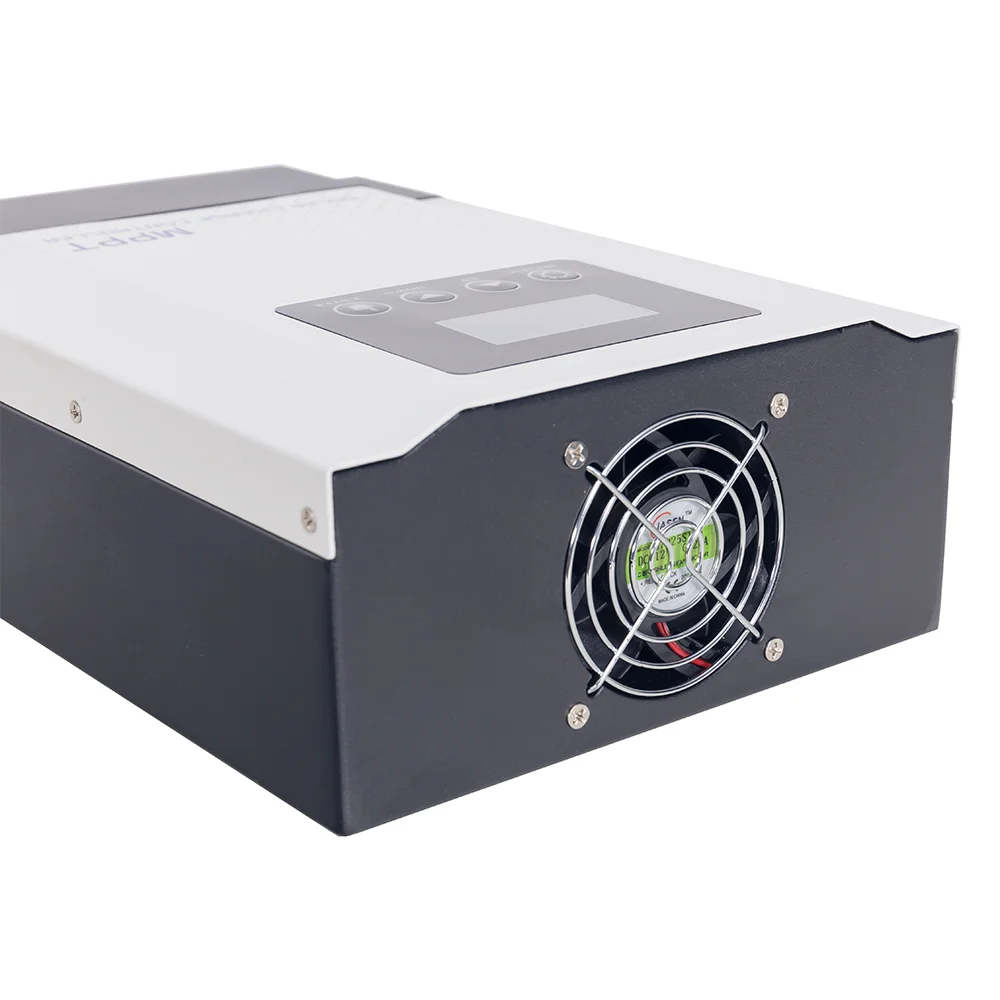

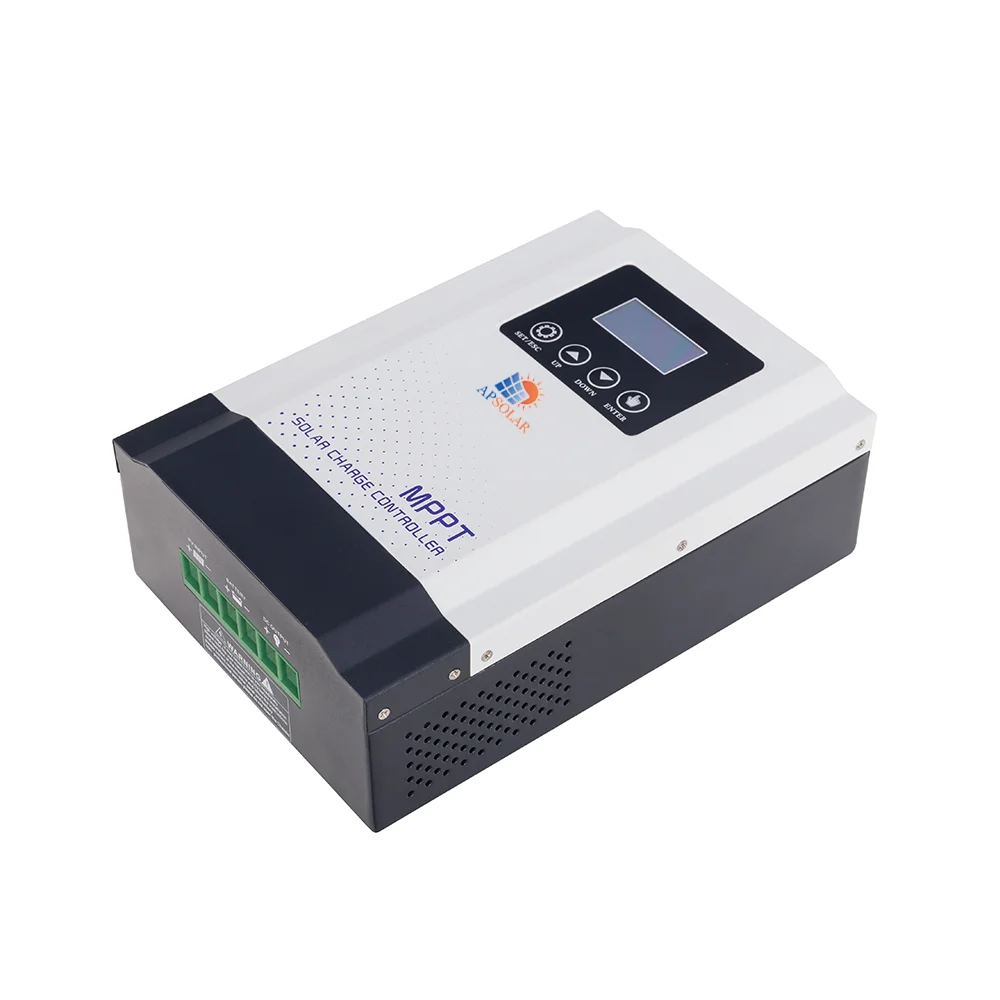

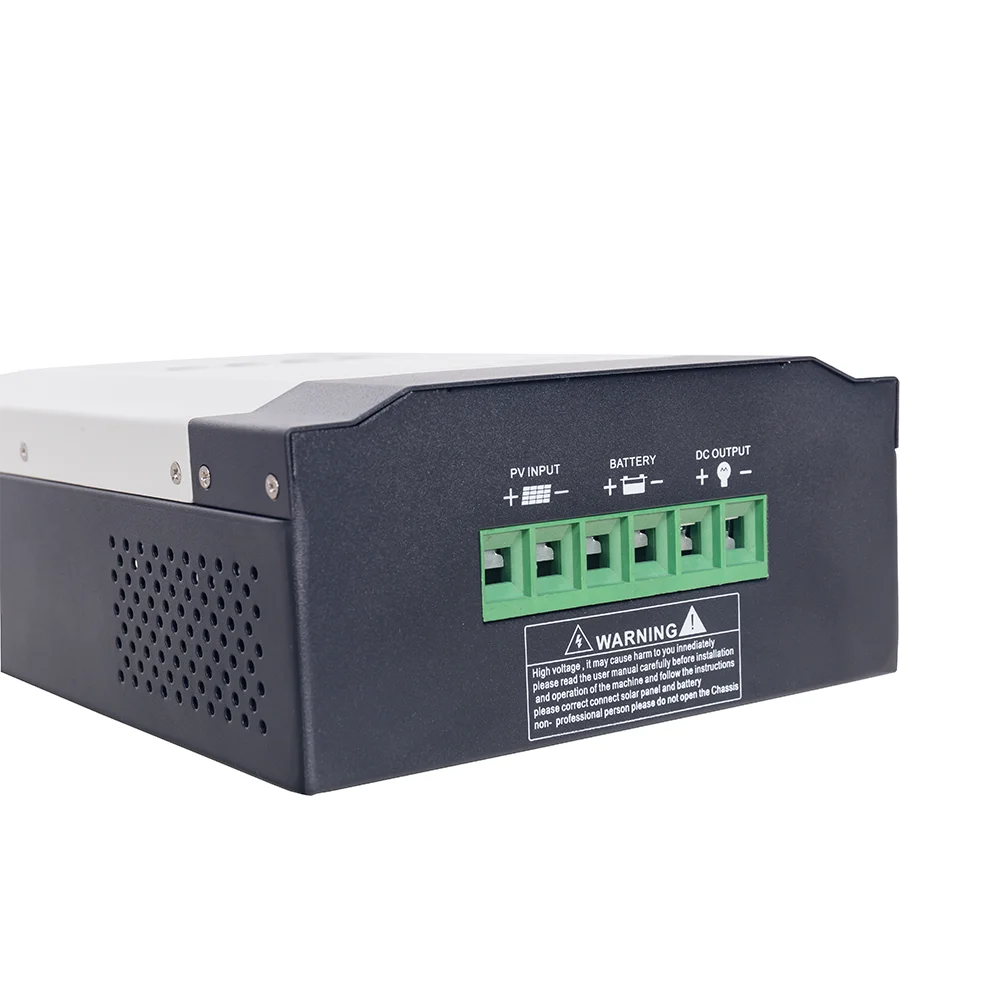

Detailed Images
Specification
MPPT Model | 20 | 30A | 30A | 40A | 50A | 60A | |||||
System voltage | 12V/24V | 12V /24V | 12V/24V/36V/48V | ||||||||
Charging type | MPPT (automatic maximum power point tracking) | ||||||||||
Charging mode | 3 stages: constant current (MPPT), constant pressure, float charge | ||||||||||
System type | DC12V/24V/ DC12V / 24Vautomatic | DC12V/24V/36V/48V DC12V / 24V / 36V / 48V automatic | |||||||||
Battery voltage range | 9V-16V(12VDC) | ||||||||||
18V-30V(24VDC) | |||||||||||
27V-48V(36VDC) | |||||||||||
36V-60V(48VDC) | |||||||||||
PV input characteristic
MPPT voltage range | 14VDC-100VDC(12V System) |
38VDC-100VDC(24V System) | |
42VDC-150VDC(36V System) | |
72VDC-150VDC(48V System) | |
Low voltage protection | 16V(12V System) |
30V(24V System) | |
48V(36V System) | |
60V(48V System) | |
Low pressure recovery | 22V(12V System) |
34V(24V System) | |
50V(36V System) | |
65V(48V System) | |
Overvoltage protection | 105V(12V System) |
105V(24V System) | |
160V(36V System) | |
160V(48V System) | |
Over-voltage recovery | 95V(12V System) |
95V(24V System) | |
145V(36V System) | |
145V(48V System) |
Max. charge current | 20A | 30A | 30A | 40A | 50A | 60A | |||||
Over current Protection | 25A | 35A | 35A | 45A | 55A | 65A | |||||
Over-Temp | 75℃ | ||||||||||
Packing size(MM) | 230*175*75 | 230*175*75 | 260*200*110 | 260*200*110 | 260*200*110 | 260*200*110 | |||||
Weight (KG) | 1.2 | 1.5 | 2.1 | 2.3 | 2.5 | 2.7 | |||||

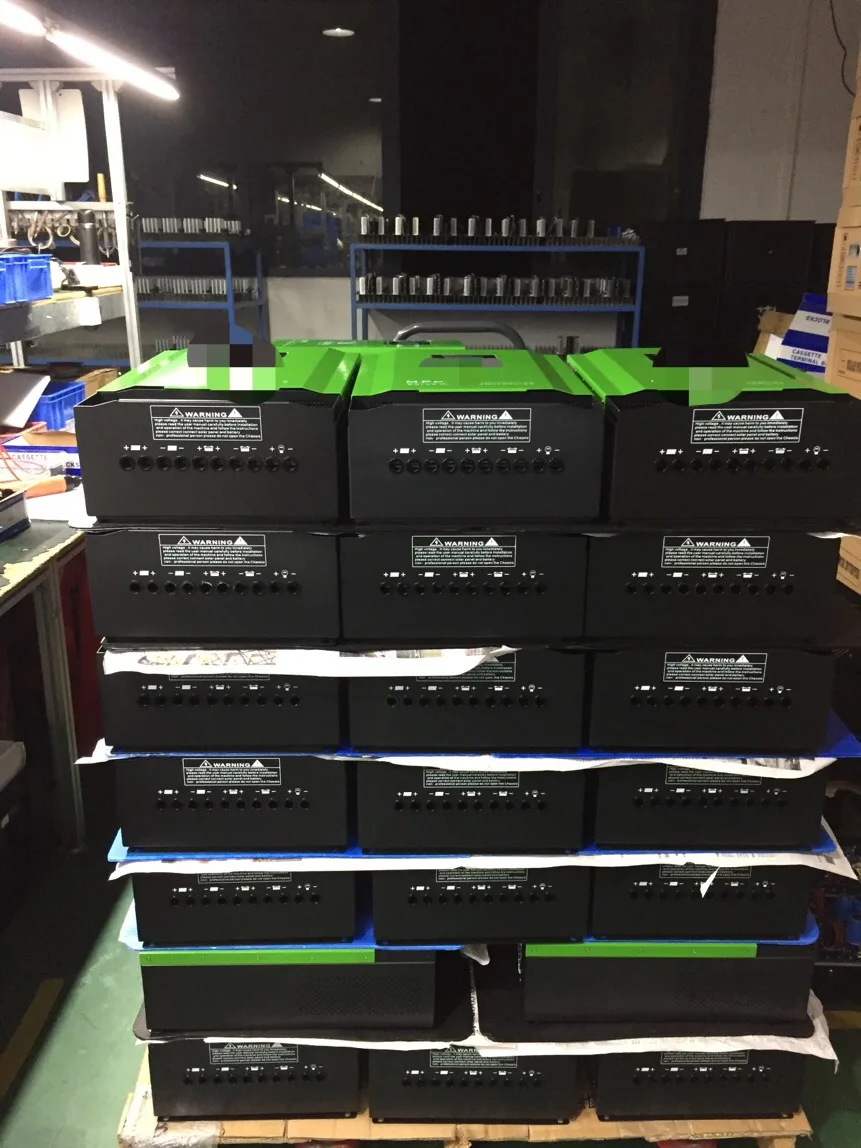

Packing & Delivery

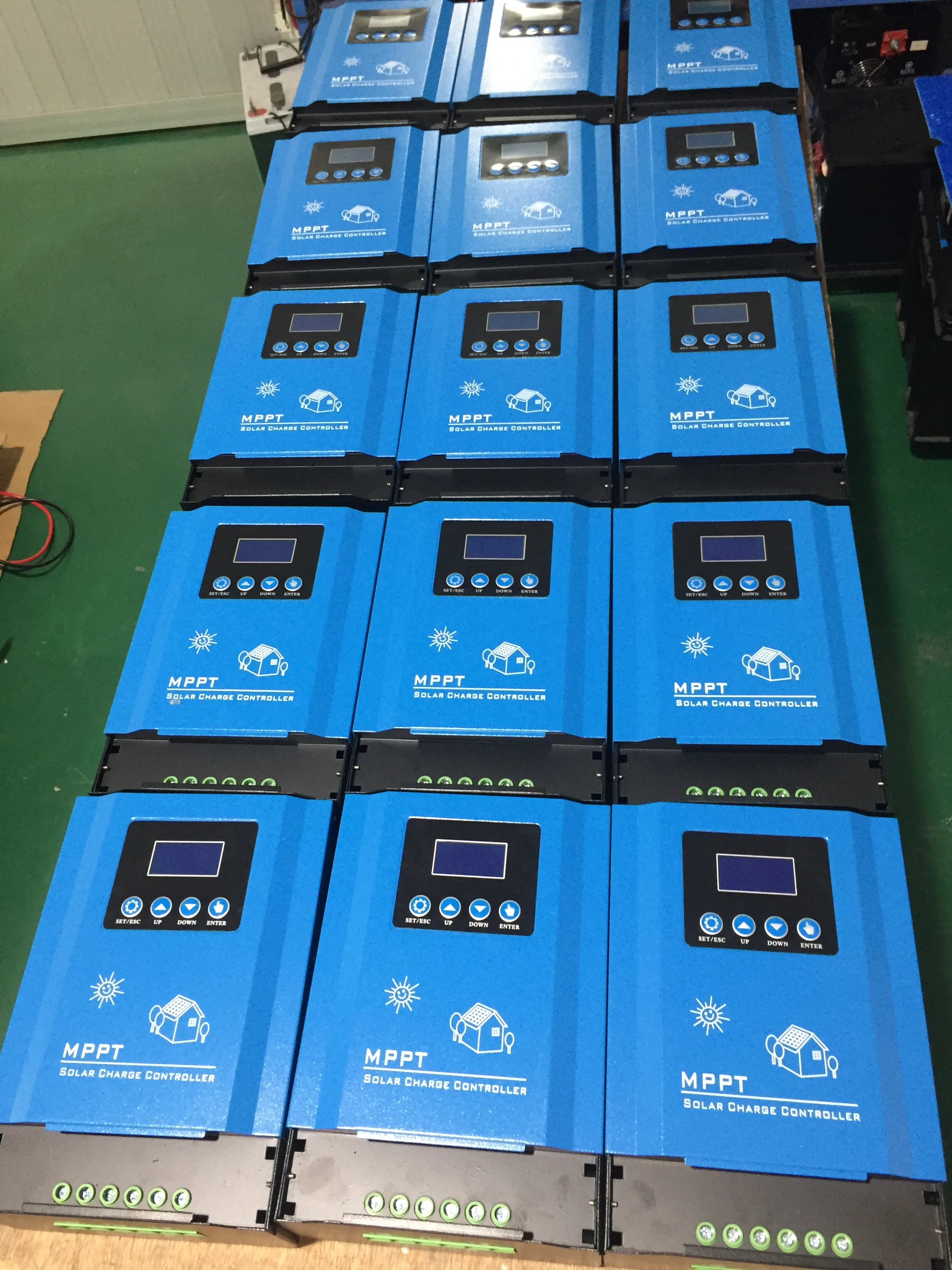

Finished solar controller MPPT
Bubber package and put in carton
Carton box packed,1pcs in one carton
Our Service
1. OEM Manufacturing allowed: Product, Package...
2. Sample order
3. Any inquiry replied in 24 hours.
4. 100% goods test before delivery, professional installation assistant step by step.
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 10 days after receiving your advance payment for regular order
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: Sample can be sent upon request as you requested, sample fee refund after order placed
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
