Laboratory Heating Equipments Classification and 1700 Max temperature Dental Ceramic Furnace

Product Overview

Description



 Laboratory Heating Equipments Classification and

1700 Max temperature Dental Ceramic Furnace

 Product Description





Detailed   introduction

              Laboratory Heating Equipments Classification

           and 1700 Max temperature Dental Ceramic Furnace

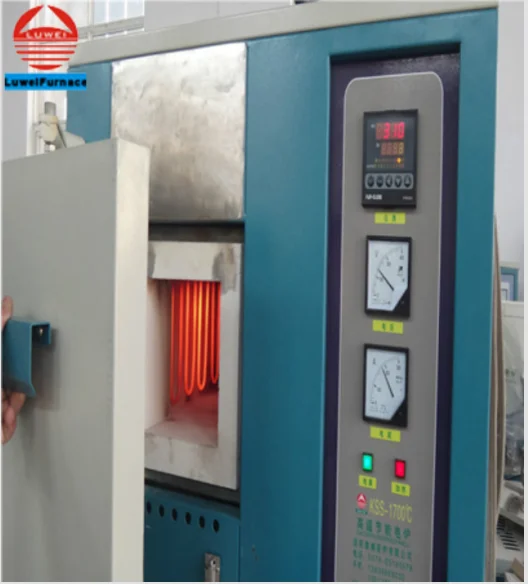

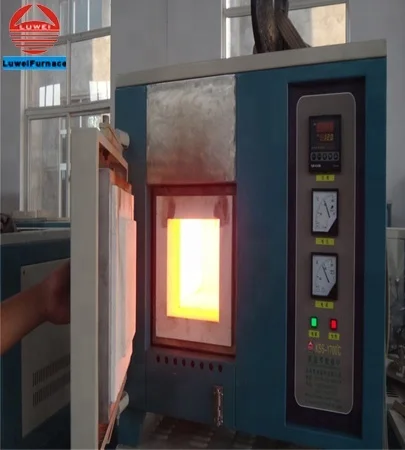

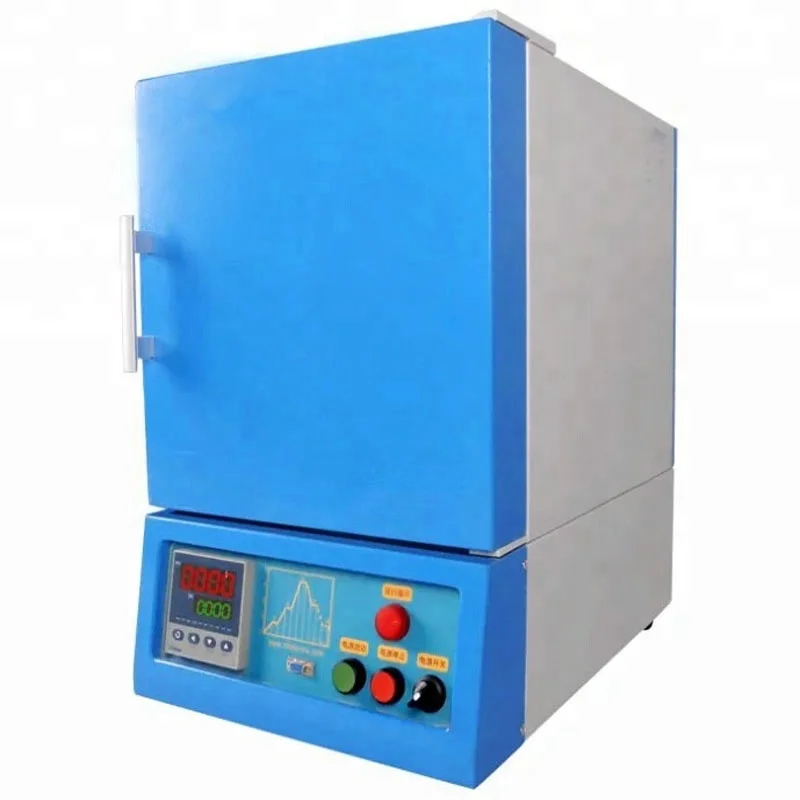

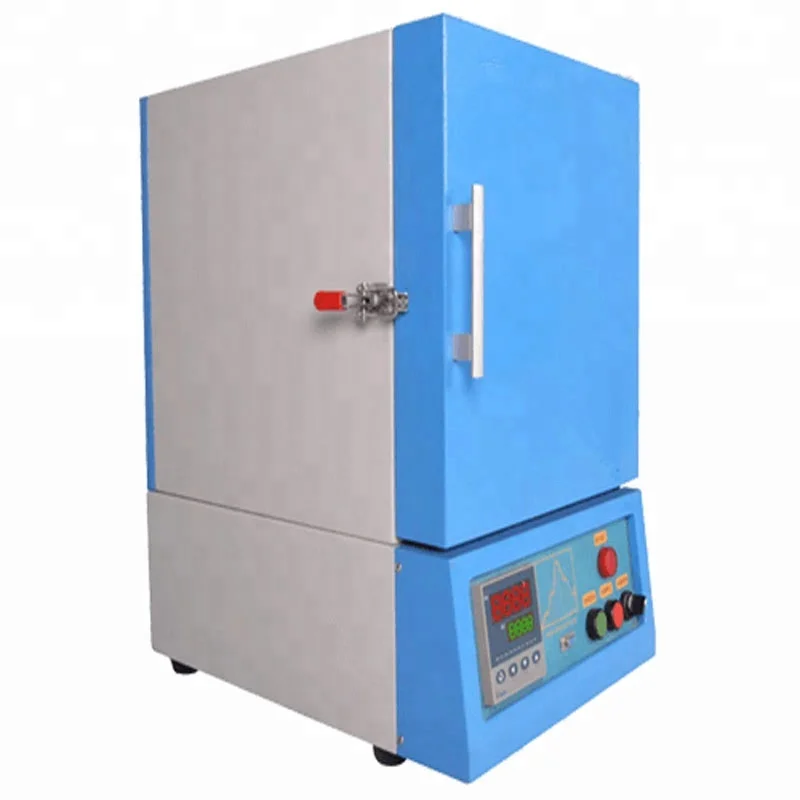

 1.It  is  vertical structure, the upper part is chamber, and the electric control part is at the bottom.



2.Unique furnace design, side open door, from left to right,the furnace door can be significant and durable;



3.Temperature control instrument is a double line LED display dial,mainly used for temperature control,   high temperature control precision,   sensitive reaction, programmable PID control,safe and reliable operation.

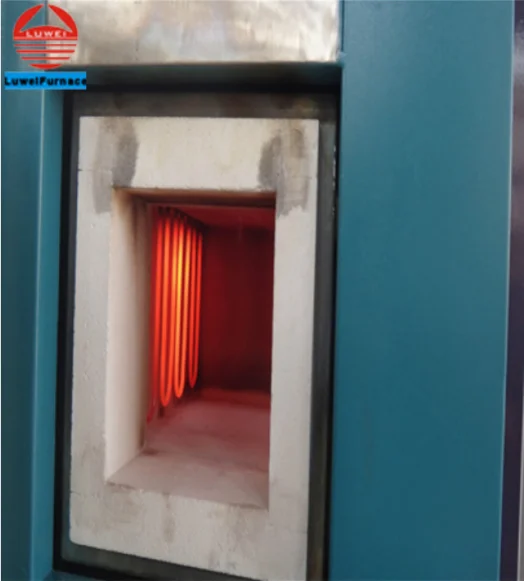

Furnace structure	The advanced air-cooled double-layer furnace structure has a fan installed between the shell, which can rapidly raise and lower temperature and ensure a good working environment.
Electrical equipment	Intelligent electrical apparatus,  Long service life, stamping resistance, safety, no noise, etc.
Temperature type	1000C   1200C  1400C  1600C  1700C  1800C (Can  be  Customized )
Power Supply	220v/380v

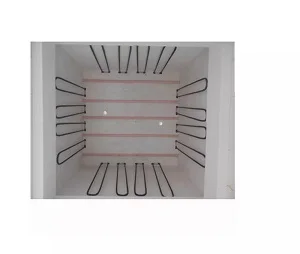

Heating element	Resistance wire,Silicon carbide,Silicon molybdenum rod
Chamber  size(mm)	100×100×100   300×200×200  400×300×200 200×150×150   400×200×200  400×300×300 (Can  be  Customized )
The  furnace chamber material	High temperature fiberboard or high temperature brick (Refractory interior wall material with different signals according to furnace temperature)   Ceramic fiber materials,High temperature resistance, small heat conduction, no pollution (Selection of thermal insulation materials based on different temperatures)
Uniformity of Furnace Femperature Field	±1℃(According to the size of the furnac chamber)
Temperature Controller	PID control   Automatic constant temperature and time control function
Control  Accuracy	±1℃
Heating  Rate	1℃/h--40℃/min(adjustable)
Temperature Measuring Element	K,Platinum and rhodium S,Platinum and rhodium B
Furnace Shell Temperature	≤45℃
Computer Interface	RS485/RS232/USB

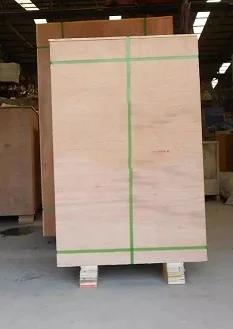

Packing & Delivery









           INSIDE                                      MIDDLE                                    OUTSIDE

PACKED BY  PLASTIC                        FOAM--FILLED                      PACKED   BY   PLYWOOD CASE













Qualification Certificate

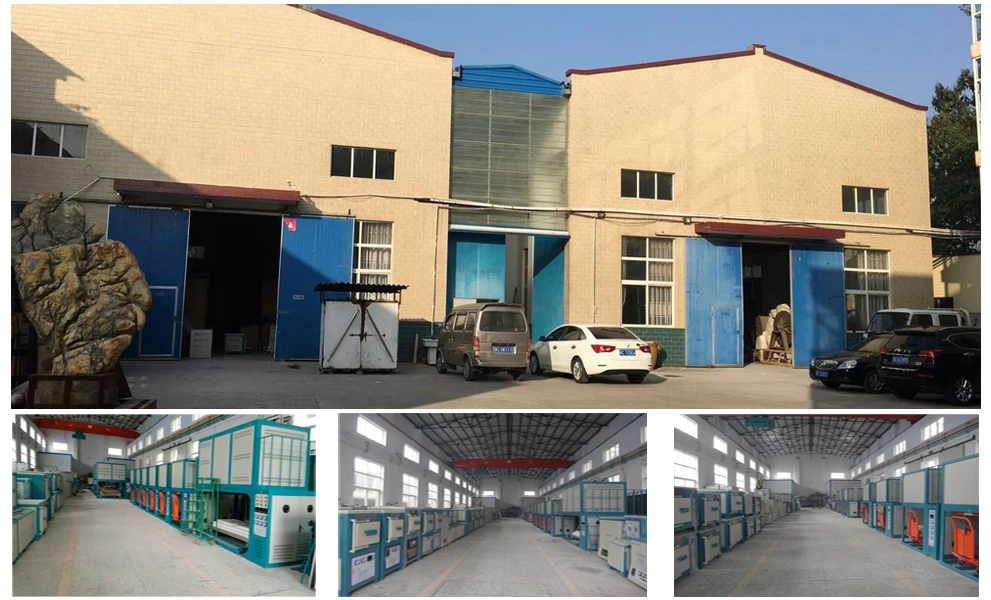

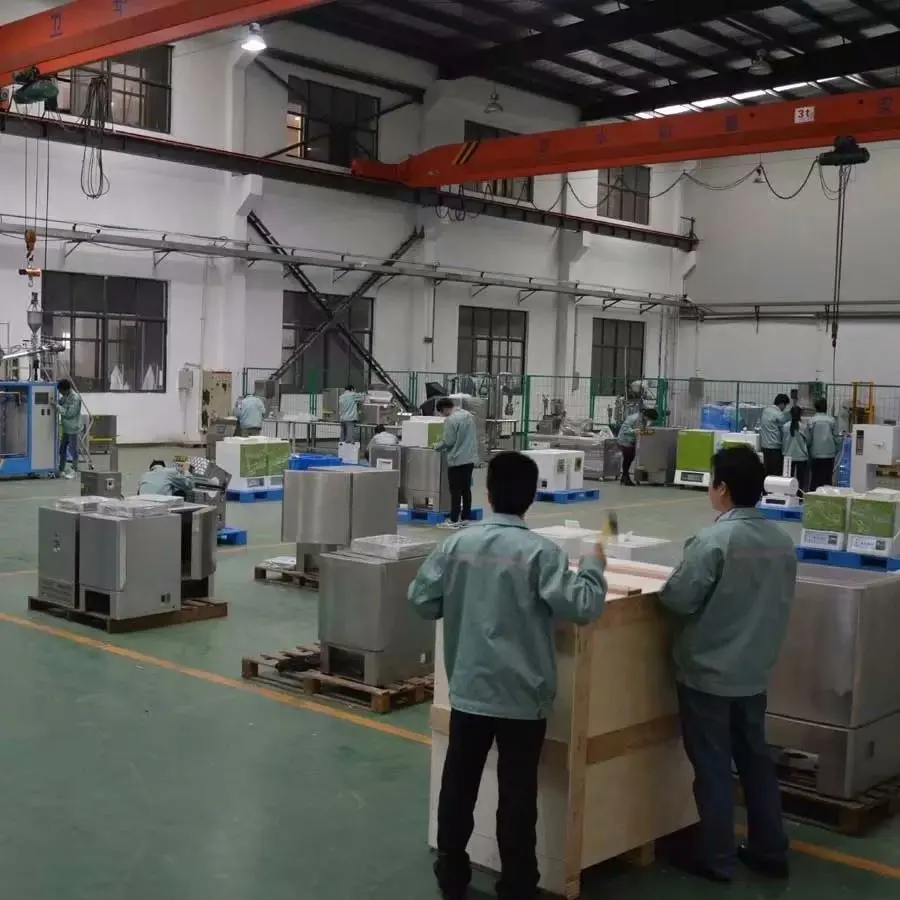

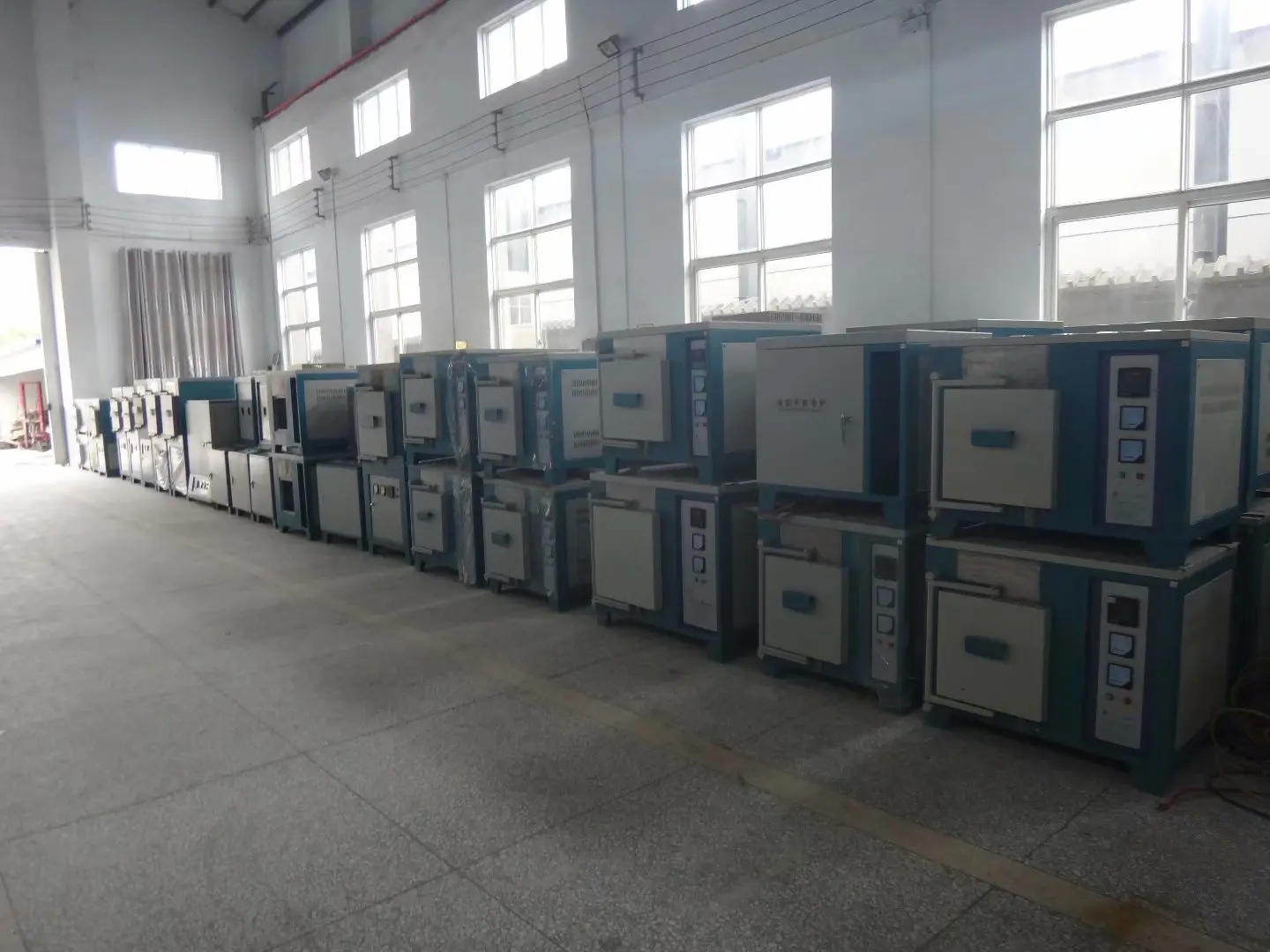

Our  Factory







FAQ

 1.Are you  trading company  or  manufacture?

A: We have  own  factory and excellent technical team ,and we accept  OEM  service.



2.How  about  your delivery  time?

A:Shipped  in  30 days  after payment .

   Specific  delivery time depends on  the terms  and  the quantity  of  your order.



3.Do you test all your goods before delivery?

A:Yes ,we  have 100% test  before delivery  and  we will  send  your  photos.



4.Can  I  ask  for specical  design?

A:Sure ,we  have a poweful  technical deparment  for supporting  it.
