HM-920/1100YTB

Full Automatic Thermal Film Laminating Machine



Usage:

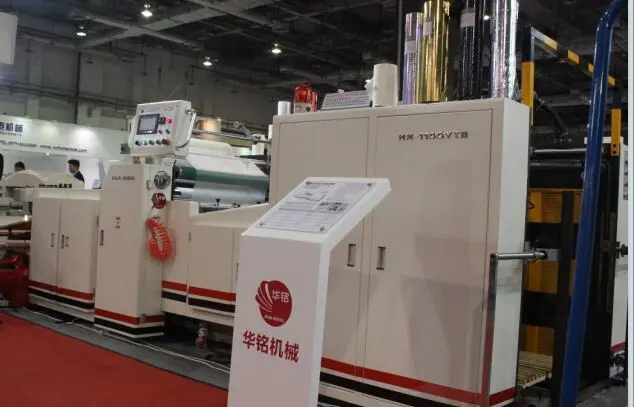

    HM-920/1100YTB Automatic Laminating Machine is a new double-purpose type laminator for pre-coating film and glueless film.The machine consists of paper feeding system,film coating system,separating system,delivery system.Electircal system is centralized controlled by PLC system with touch screen.Heating roller is equipped with built-in oil heating model with smart contant tempetature system to make film laminating tempetature more precision.The machine centralizes the feature of compact structure,high automatization and humanized operarion design,which is a good choice for large and middle model film laminating enterprise.



Configuration and Construction:

1. Automatic feeder adopts oil-free vacuum pump system to realize automatic paper feeding.
2. Automatic paper feeding system is equipped with protecting device for photoelectric controlled paper miss and automatic stopping.
3. Man-machine interface system:color touch screen make operation easy and convenient.Input the paper size ,distance and speed,etc can realize the whole machine automatical operation.Operator can check the status of machine on touch screen.
4. Feeding table adopts air-sucking paper feeding and equipped with front guide device to make paper feeding,folding stable and neat.
5. Equipped with built-in oil heating model with smart contant tempetature system to ensure film temperature stable and even.
6. Automatic hydraulic system can provide the stable pressure,which can be adjusted according to need.
7. Air shaft with dividing rule make the loading,unloading and positioning of the film more accurate.
8. Air shaft is equipped with clutch tension system to control tension and speed.
9. Film cutting knife cuts film width to make it meet paper size.
10. Film perforated knife can perforate film edge to realize automatically separating.
11. Separating system:disc flying knife film-cutting device with precision and high speed.
12. Anti-curve device can avoid paper curvature due to shrinkage of film.
13. Pneumatic separating system can automatically cut paper.
14. After separation,paper sheets will be sent to the vibrating jogger table automatically and will be put in order.



Technical Parameters:

Model	HM-920YTB	HM-1100YTB
Max.Paper Size	930*880mm	930*980mm
Min.Paper Size	300*350mm	300*350mm
Work Speed	0-50m/min	0-50m/min
Paper Thickness	125-500gsm	125-500gsm
Total Power	21kw	21kw
Overall Dimension	4700*1900*1900mm	4700*2000*1900mm
Weight	2800kgs	3000kgs
Voltage	380V	380V
Max.Paper Feeding Height	950mm	950mm
Min.Paper Feeding Height	500m	500m

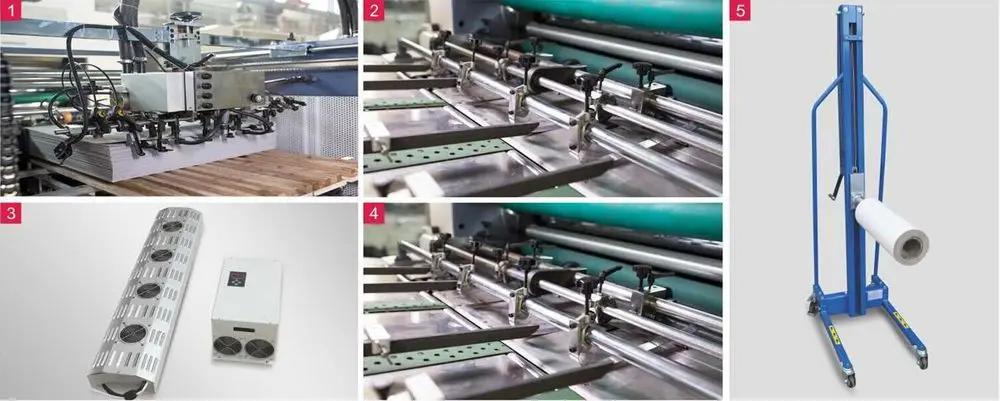

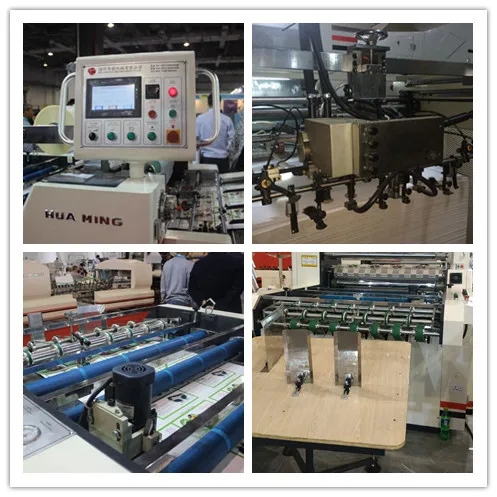

The Introduction of Some Parts:

1. High quality feeder with 4 head sucker for paper suction make paper feeding more steady and rapid.Optioned with Germany Mabeg feeder without stopping and paper pre-stacker with Maximum paper feeding height 950mm to push paper to feeder accurately.
2. Servo control and lay gauge with high precision to gurantee accurancy of paper overlapping.
3. Electromagnetic Heating(1)improve heating speed. (2)save electric charge (3)accurately control temperature (4)environmental protection
4. Disc flying knife make paper cutting more precision and fast
5. Film Loader(optional) can save operator working time.
