Четырехъядерный процессор I.MX6 SoM поддерживает Android 6,0 Linux4.1.15 с QT5.6
- Category: Development Systems, and IoT Products >>>
- Supplier: Baoding Forlinx Embedded Technology Co. Ltd.
Share on (60820549275):
Product Overview
Description
Quad Core I.MX6 SoM Supports Android6.0 Linux4.1.15 With QT5.6

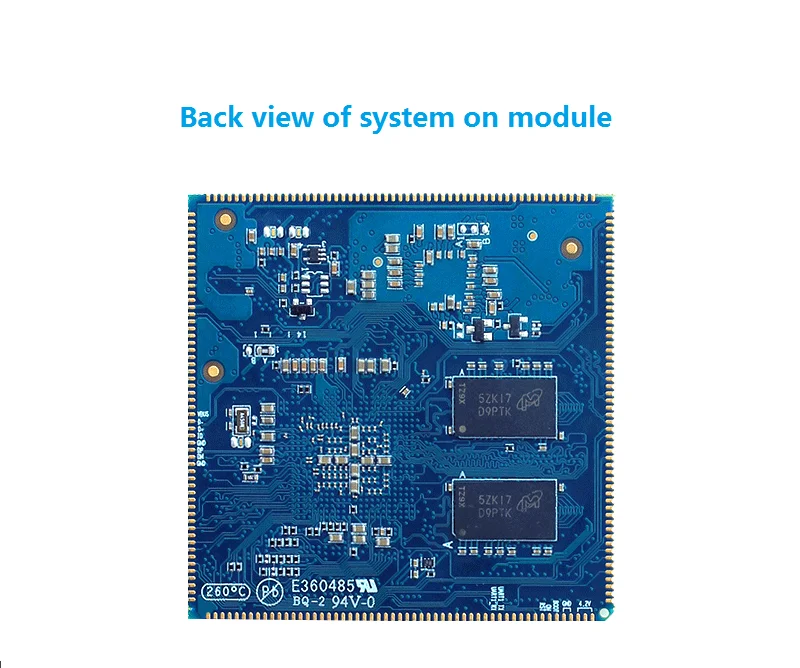

FETMX6Q is a Cortex-A9 featuring SoM designed based on i.MX6Q processor with frequency up to 1.0GHz, designed with 8-layer EING PCB. Edge soldering package takes it perfect electronical character and interference immunity, the SoM is integratged with minimum system, the SoM is designed with LCD interface that it can run with LCD without a carrier board for booting and debuging. Both commercial grade and industrial grade are optional to users.
the SoM is integrated with minimum system

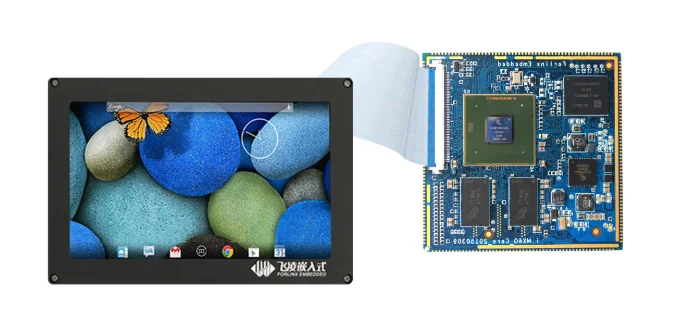

SoM with minimum system and with LCD interface, which is very convenient for usres to do incoming quality control and aging by running the system just with connection of a 4.2V power input but no need support of the carrier board.
OS Supporting
Application:
Automotive infotainment, digital signage, HMI, in-flight entertainment, intelligent industrial control system, IP phones, IPTV, portable medical, tablets.
Plenary product information for reference

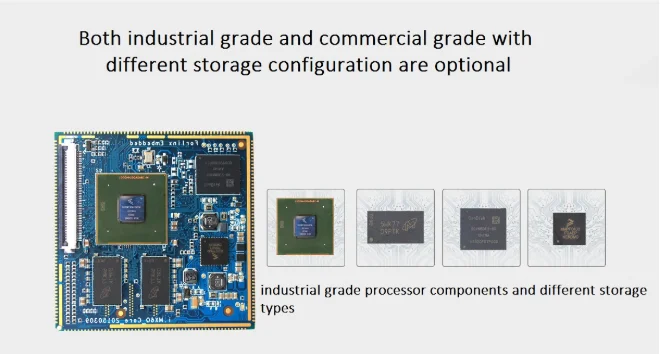

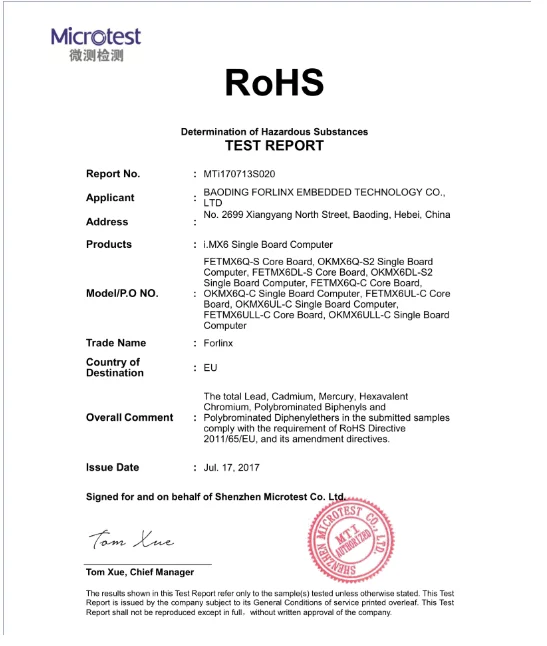

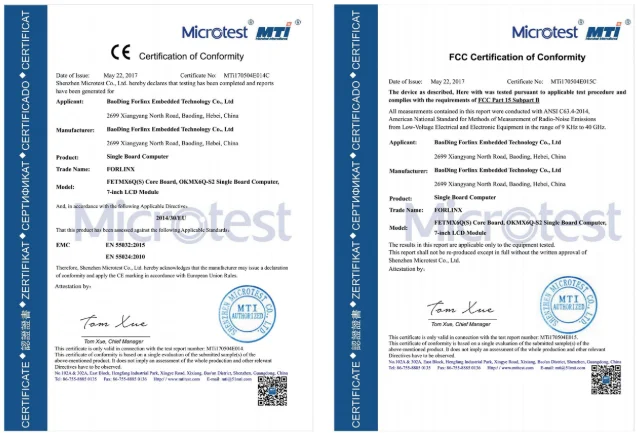

CE/ FCC/ RoHS Certified
Hardware Features
FETMX6Q CPU Module | |||
CPU | Freescale i.MX6Quad | I2C | 3-ch |
Architecture | Cortex-A9 | SPI | 2-ch |
Main Frequency | 1.0GHz | CAN | 2-ch |
RAM | 1GB DDR3(2GB optional) | USB HOST | 1-ch, USB2.0 |
FLASH | 8GB eMMC | USB DEVICE | 1-ch, USB2.0 |
Input voltage | 4.2V | SD/MMC/SDIO | 2-ch, SD/MMC |
2D/3D | Supported | Ethernet | 1-ch Gb Ethernet port |
Audio | IIS interface | MiniPCIE | 1-ch |
PMU | MMPF0100NPEP | UART/IrDA | 4-ch(contains 1 debug port) |
Size | 60mm*60mm | EINT/GPIO | Supported |
Packing Type | Stamp holes | Video Codec | Hardware codec |
OS | Android4.4/Android6.0 Linux3.0.35+QT4.8.5/ Linux4.1.15+ QT5.6 | HDMIv1.4 | 1-ch |
LCD | RGB24bit(2-ch 8-bit LVDS) | Camera | 1-ch, 5.0MP parallel camera |
GPU | Vivante GC355/VIVANTE GC320 | SATA | 1-ch, only available for i.MX6Q |
Software Features
Item | Android4.4 | Android6.0 |
Compiler | arm-fsl-linux-gnueabi-gcc-4.6.2, JDK1.6.0-45 | arm-fsl-linux-gnueabi-gcc-4.9, JDK1.7.0-131 |
| flash OS image by SD card and USB OTG | flash OS image by USB OTG | |
| flash EXT4 file system | flash EXT4 file system | |
| flash tool MFG Tools is supported by Windows XP/ 7 and Vista | flash tool MFG Tools is supported by Windows XP/ 7 and Vista | |
UBBOT | booting mode option(eMMC/ SD/ USB OTG) | booting mode option(eMMC/ SD/ USB OTG) |
| UBBOT start logo(7'' LCD and 10.1'' LVDS display) | UBBOT start logo(7'' LCD and 10.1'' LVDS display) | |
| RAM(1GB/ 2GB) | RAM(1GB) | |
Kernel | version: Android-KK4.4.2 | version: Android6.0.1_2.1.0 |
file system: EXT4/ NFS/ FAT32/ NTFS | file system: EXT4/ NFS/ FAT32/ NTFS | |
eMMC(8GB) | eMMC(8GB) | |
watchdog driver | watchdog driver | |
RTC driver | RTC driver, RX8010 | |
IO driver | IO driver | |
| user key: 2(VOL+, VOL-) | user key: 2(VOL+, VOL-) | |
| SPI, can communicate with MCP2515 | SPI driver | |
| IIC driver | IIC driver | |
| DVP OV5640 camera module driver | DVP OV5640 camera module driver | |
| USB UVC camera driver | USB UVC camera driver | |
| PWM driver | PWM driver | |
| capactive touching driver | capactive touching driver | |
| LCD backlight driver | LCD backlight driver | |
| LCD driver(7'': 800* 480, 10.1'': 1280* 800) | LCD driver(7'': 800* 480, 7'': 1024* 600) | |
| Linux kernal USB host driver: U-disk, USB Hub, USB mouse, USB keypad | Linux kernal USB host driver: U-disk, USB Hub, USB mouse, USB keypad | |
| USB device driver | USB device driver | |
| TF/ SD/ MMC card driver: tested up to 64GB | TF/ SD/ MMC card driver: tested up to 64GB | |
| UART driver: 5 | UART driver | |
| WM8962/ WM8960 audio driver | WM8960 audio driver | |
| Ethernet(AR8031) | Ethernet(AR8031) | |
| 3G driver | ||
| 4G, ME909S-821 | 4G, ME909S-821 | |
| WIFI, RTL8723BU, STA | WIFI, RTL8723BU, STA | |
| BT, RTL8723BU | BT, RTL8723BU | |
| GPS VK1613 | GPS, VK1613 | |
| CAN2.0B | CAN2.0B | |
| HDMIv1.4 | HDMIv1.4 | |
| USB to serial port | ||
| SATA hard disk, SATA II, 3.0Gbps | SATA hard disk, SATA II, 3.0Gbps | |

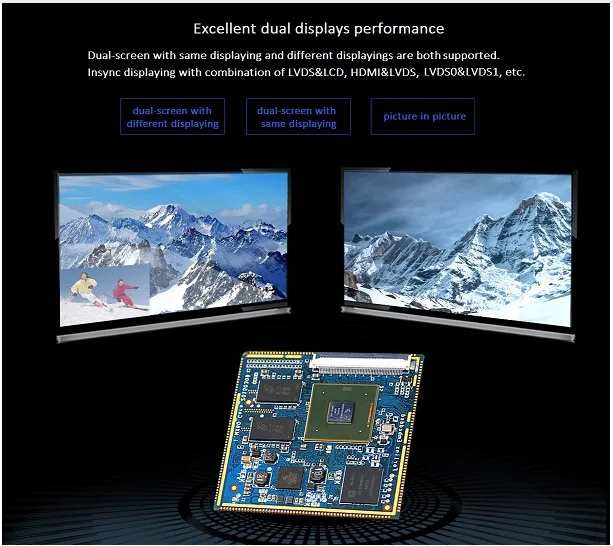

| LVDS single/ dual channel | LVDS single/ dual channel | |
| Testing App | WIFI setting tool | WIFI setting tool |
| RTC | RTC | |
| SPI to CAN MCP2515 | i driver | |
Flexcan | Flexcan | |
| IP address modifying | IP address modifying | |
| sleeping mode waken up | sleeping mode waken up | |
| TTL to RS232 | TTL to RS232 | |
| record/ play back testing | record/ play back testing | |
| 3G wireless network | ||
| 4G wireless network | 4G wireless network | |
| speaker testing | speaker testing | |
| RGB display backlight testing | RGB display backlight testing | |
| watchdog | watchdog | |
MMC/ TF/ SD card and U-disk auto mounting and unloading; SATA2ext4 hard disk auto mounting and unloading | MMC/ TF/ SD card and U-disk auto mounting and unloading; SATA2ext4 hard disk auto mounting and unloading |
Linux QT4.8.5 / Linux QT5.6 | ||
Cross compiler | arm-fsl-linux-gnueabi-gcc-4.6.2 | ARMv7architecture, support hard floating-point calculation |
Flashing method | USB download flashing | USB one-key flashing |
Single/multiple files automatic flashing | Support system files flashing in EXT4 format | |
Flashing tool:MFG tools, |
| |
UBOOT | Boot method selection(eMMC),boot-up logo is not available at present | Source codes are provided |
Linux kernel | Version:Linux-3.0.35 | Support system files flashing in EXT4 format |
Driver | eMMC driver(4G/8G) | LCD backlight driver, adjustable up to 255-grade |
Watchdog driver | LCD driver(standard 7" LCD) | |
RTC driver | USB Host driver | |
I/O driver | USB Device driver | |
User key driver:4 | TF/SD/MMC card driver: up to 32GB | |
SPI driver | Serial driver:4 | |
I2C driver | WM8962 audio driver | |
Camera driver OV5640 | Ethernet driver(AR8031,1000/100/10Mbps) | |
PWM control driver | 3G driver | |
Capacitive touch driver | USB to serial driver | |
LVDS1/2-ch(1-ch support 1366×768 resolution,2-ch support 1920×1080 resolution) |
| |
APPs | WIFI config tool | GPS test |
Telnet | Access to Internet via 3G | |
RTC test | USB camera test | |
SPI to CAN MCP2515 | Recording & play test | |
Flexcan | I2C test | |
IP/Mac address modification | GPU test | |
Sqllite database | IPU test | |
Sleep/awakening | VPU test | |
TTL to RS232 | Speaker test | |
RS485 test | RGB screen backlight adjustment test | |
Recording/play test(support ALSA interface) | 1080p videos and mp3 files play test | |
Access to Internet via GPRS | Watchdog test | |
Automatically mount and disconnect MMC/TF/SD card,U disk | Boa Web Server | |
FTP network | SPI test | |
