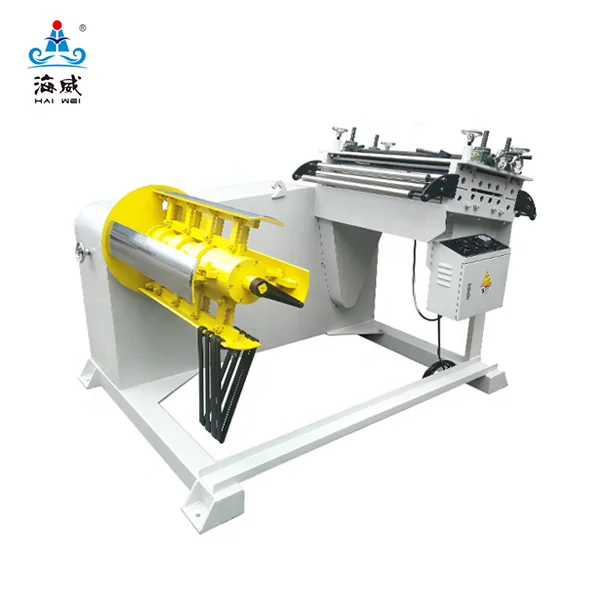

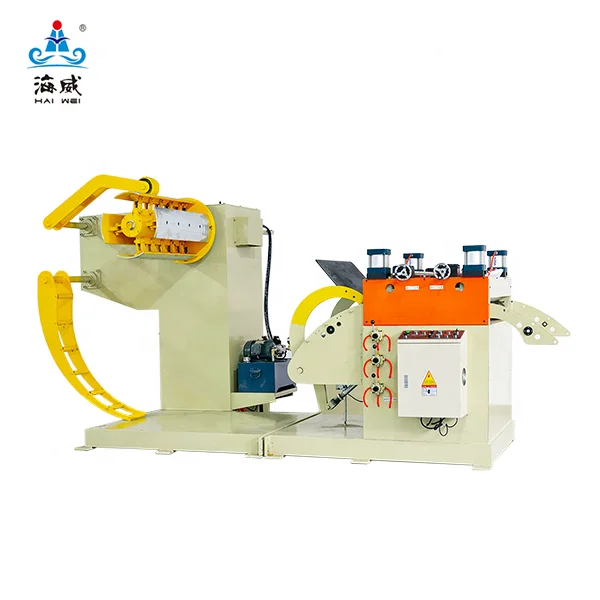

800mm Wide Steel Coil Decoiler Straightener Machine for Decoiling and Straightening
- Category: >>>
- Supplier: Dongguan City Haiwei Intelligent Equipment Incorporated Company
Share on (60820555975):
Product Overview
Description
Product Description
| Model | UL-800A | |||||
| Material | Carbon steel, HR, CR, Aluminum,Stainless steel, Galvanized steel, Copper etc. | |||||
| Max. material width (mm) | 800 | |||||
| Material thickness (mm) | 0.3~2.2 | |||||
| Coil I.D. (mm) | 450~530 | |||||
| Coil O.D. (mm) | 1200 | |||||
| Max. coil weight (kg) | 2000 | |||||
| Mandrel expansion | Manual | |||||
| Straightening speed (m/min) | 15 | |||||
| Pinch rolls (mm) | Φ56×4 | |||||
| Straightening roll (mm) | Φ42×7 (Upper 3/Lower 4) | |||||
| Input power | 3phase AC 380V/415V | |||||
Main Features
1. ULA models achieve the maximum use of precious space by putting decoiler and straightener together.
2. Coil is centered by manual expansion of the jaws.
3. ULA models that are made up of non-motorized decoiler and motorized straightener are powerful enough to feed the metal strip smoothly.
4. Equipped with 11 rolls including 7 straightening rolls and 4 pinch rolls.
5. The gaps between the upper and lower rolls are adjusted individually by hand wheels with reference indicator on the side of the frame.
6. High-hardness rolls are heat-treated alloy steel and have been hard-chrome plated and precision ground.
7. Equipped with Japanese electromagnetic contactor and electronic components, ULA models have fewer breakdowns and longer lifetime.
8. Equipped with inverter, ULA models allow an easy adjustment to the payoff speed.
2. Coil is centered by manual expansion of the jaws.
3. ULA models that are made up of non-motorized decoiler and motorized straightener are powerful enough to feed the metal strip smoothly.
4. Equipped with 11 rolls including 7 straightening rolls and 4 pinch rolls.
5. The gaps between the upper and lower rolls are adjusted individually by hand wheels with reference indicator on the side of the frame.
6. High-hardness rolls are heat-treated alloy steel and have been hard-chrome plated and precision ground.
7. Equipped with Japanese electromagnetic contactor and electronic components, ULA models have fewer breakdowns and longer lifetime.
8. Equipped with inverter, ULA models allow an easy adjustment to the payoff speed.
Detailed Images

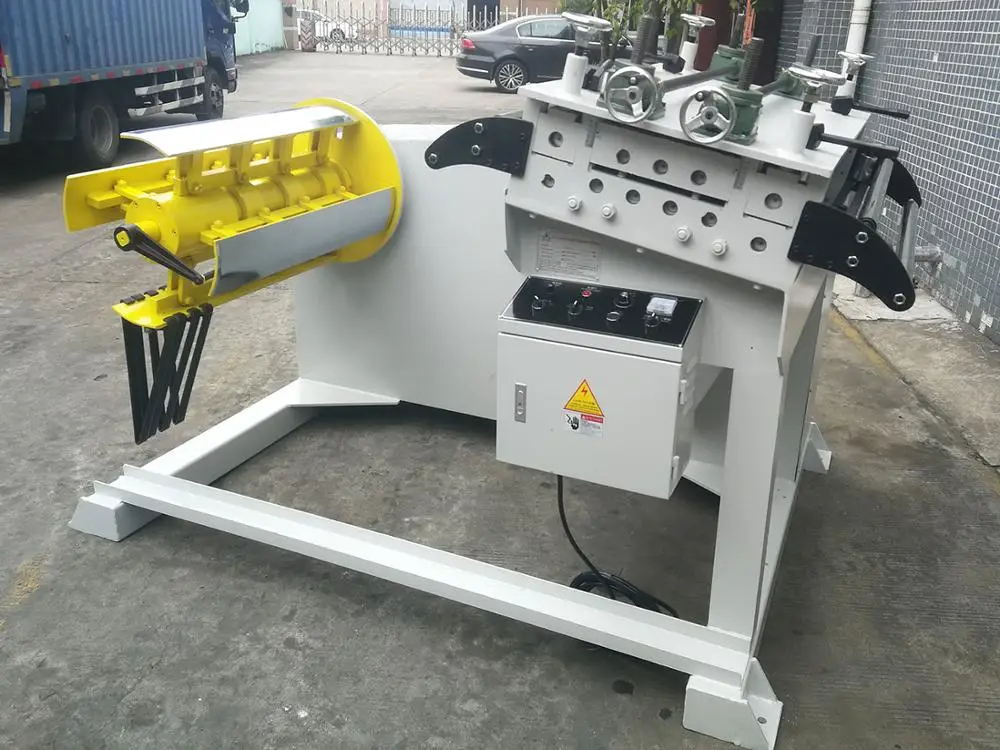

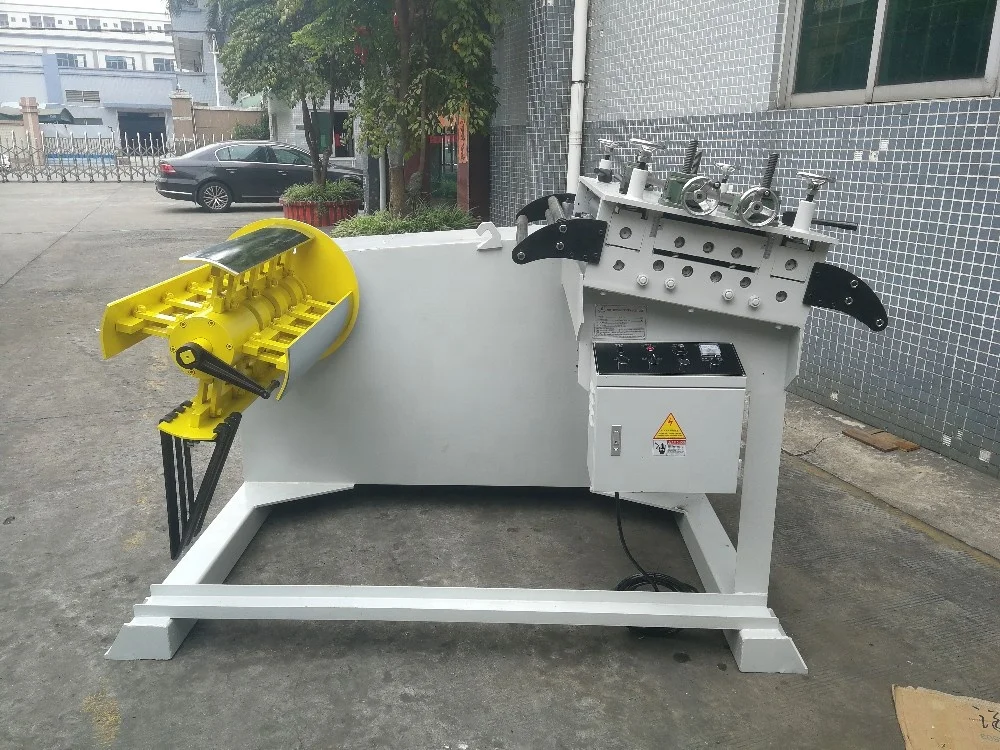

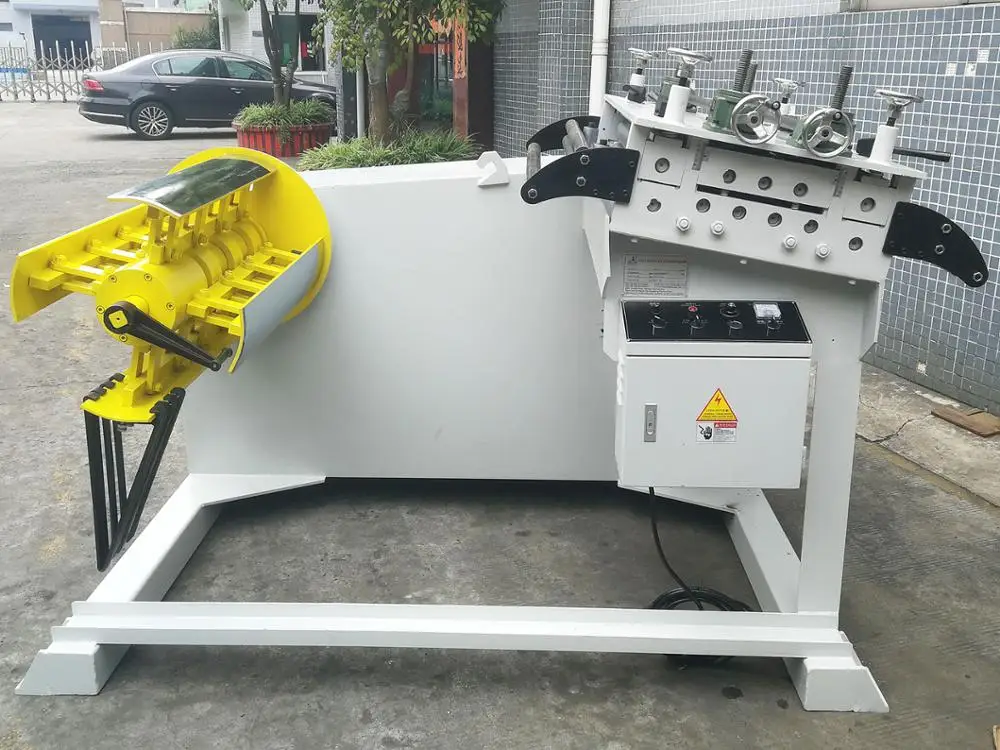

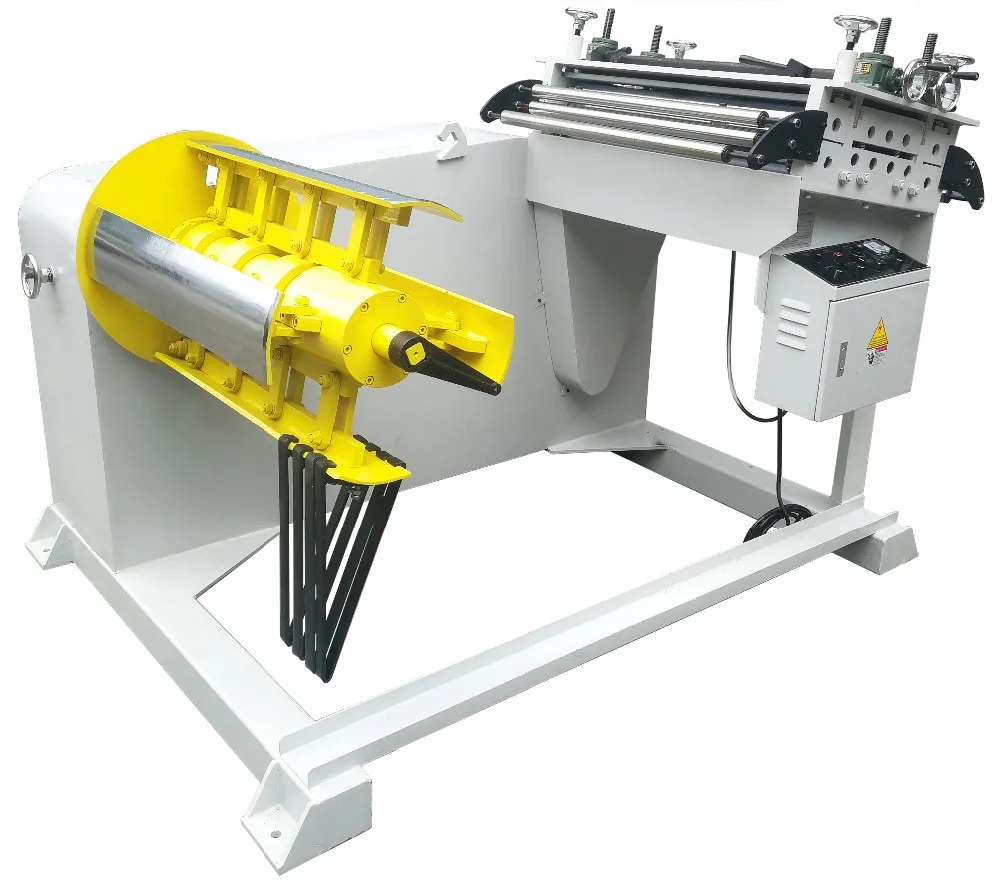

Unique design that decoiler and straightener are intergrated into a single machine save floor space.

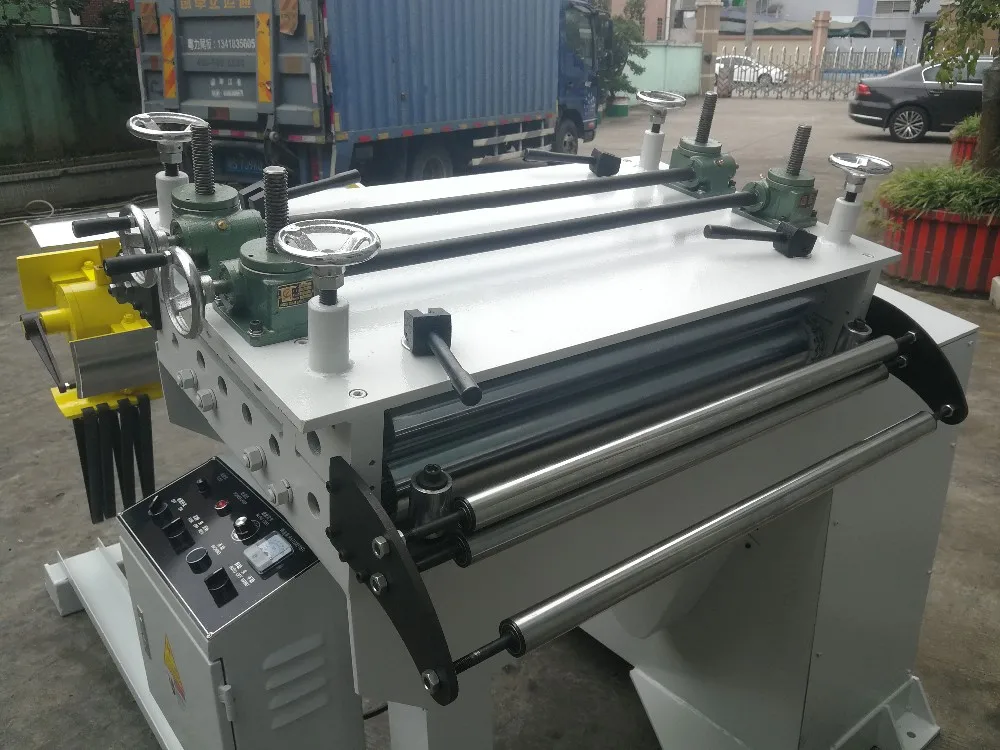

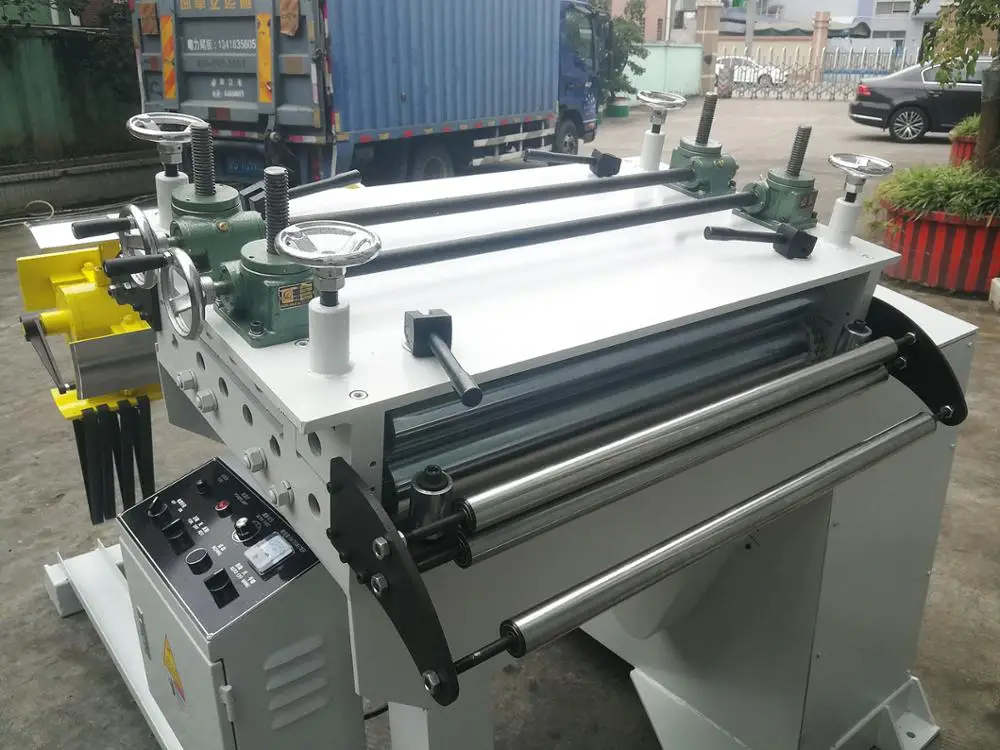

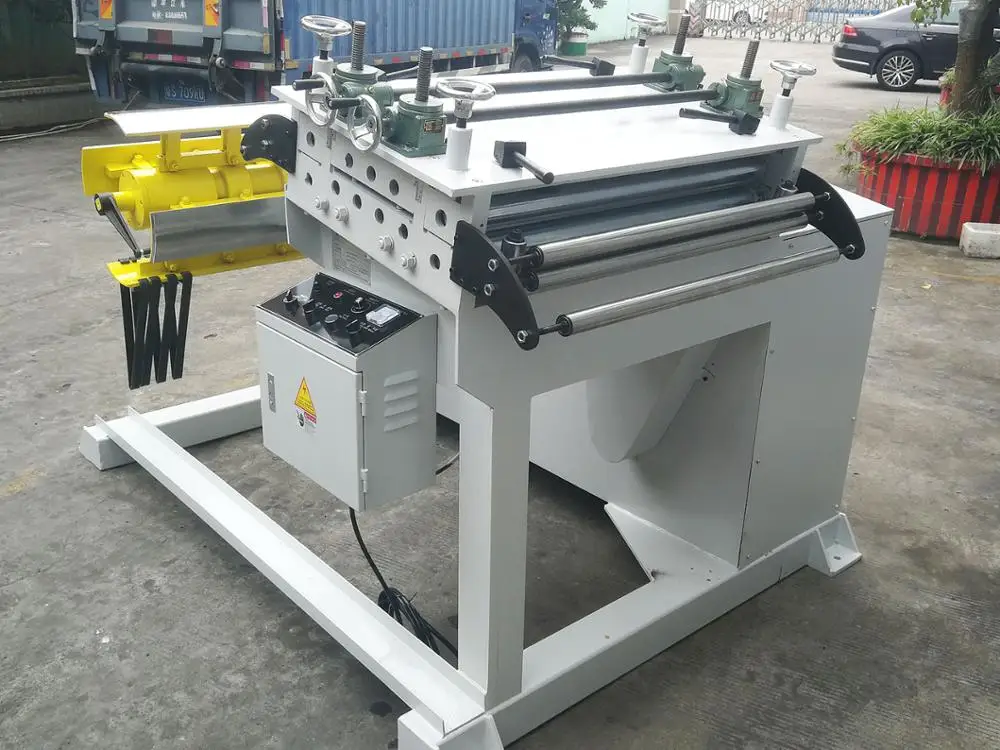

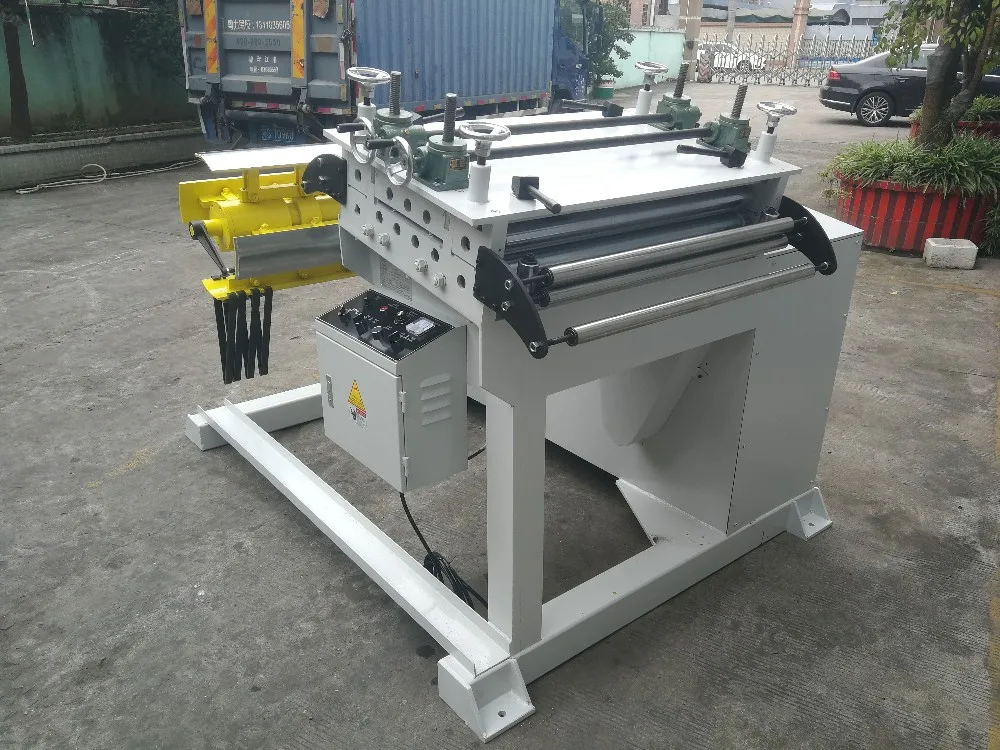

The gaps between the upper and lower rolls are adjusted by hand wheels with reference indicator on the side of the frame.
Certifications
Packing & Delivery
Our Service
After-Sales Service
Pre-Sales Service
* Inquiry and consulting support.
* Provide customized machines.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.

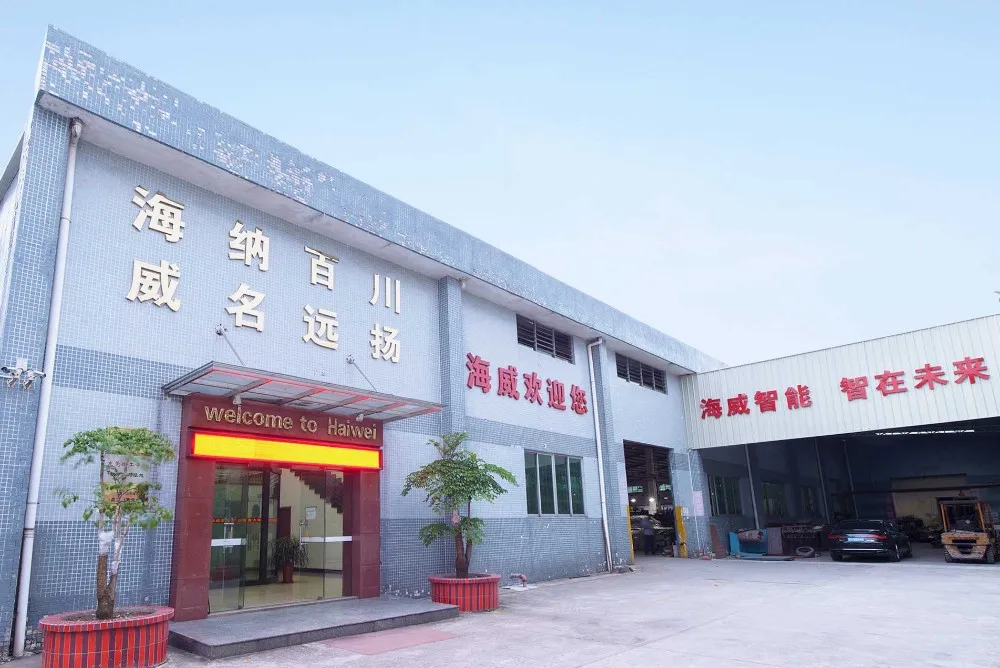

Our Company
Professional and Passion
HAIWEI, a professional stamping automation equipment manufacturer, is a collection of designs, research & development, productions and after-sales services, located in Dongguan China. Our products have been widely applied in automotive, appliances, furniture, cookware, hardware products and other industries. Extensive experience in manufacture and world-wide commercial cooperation allows us to provide you with high-quality equipment and first-class service.
The wide range of automatic equipment that we supply including 3 in 1 decoiler straightener feeder, 2 in 1 decoiler straightener, decoiler, coil straightener, press feeder, coil blanking line as well as all kinds of press transfer including 2D transfer, 3D transfer, single bar transfer and long beam transfer between multi-press etc.
HAIWEI has been consistently providing industry-leading products for 10 years. We are honored to have earned preferred-vendor status with many of the leading auto parts suppliers for Volkswagen, Toyota, Hyundai, Geely, Yutong Bus, IKEA and more. Growing demand for high productivity and quality in manufacturing industry urges us continue to improve R&D ability and machines performance.
HAIWEI is active in global markets with the permit for import and export. We have run lots of successful projects with local manufacturers in The Czech Republic, Italy, Portugal, Ireland, Spain, Canada, Mexico, South Africa, as well as Asian markets, such as South Korea, Malaysia, Indonesia, and India.
It is our principle to supply superior products and excellent services. The international teams provide you with professional, swift and convenient services. HAIWEI aims to supply superior products and excellent services to create value for customers on the basis of integrity, innovation, and win-win cooperation. No matter what you inquire, we are ready to offer the best solution for you!
WHY MORE FACTORIES CHOOSE HAIWEI EQUIPMENT
Extensive Experience HAIWEI has been active in global markets for over 10 years with the permit for import and export. We have run lots of successful production lines with worldwide manufacturers. The experience we accumulate and the challenge we fight off give the confidence to provide satisfactory solutions.
One-stop Service From design to after-sale service, HAIWEI sticks to customer-centric principle. Technical support is consistently provided during the whole machines lifetime. Not only can we manufacture high-performance equipment, but we have the capability to design and product the whole automatic production line.
Specific Solution There are electrical engineers, mechanical engineers and software engineers in our team. Using advanced engineering software and tools, our engineers can analyze your application and provide a custom specific solution to meet every unique need. During long-standing research and development, HAIWEI creates a wide variety of technical solutions, such as high-speed design, space-saving design and multi-language operating system
Dependable Quality HAIWEI continues to control the entire supply chain and quality from raw material to machines assembly. All machines are certified with European CE. Less maintenance and purchase cost help you maximize efficiency and profits.
