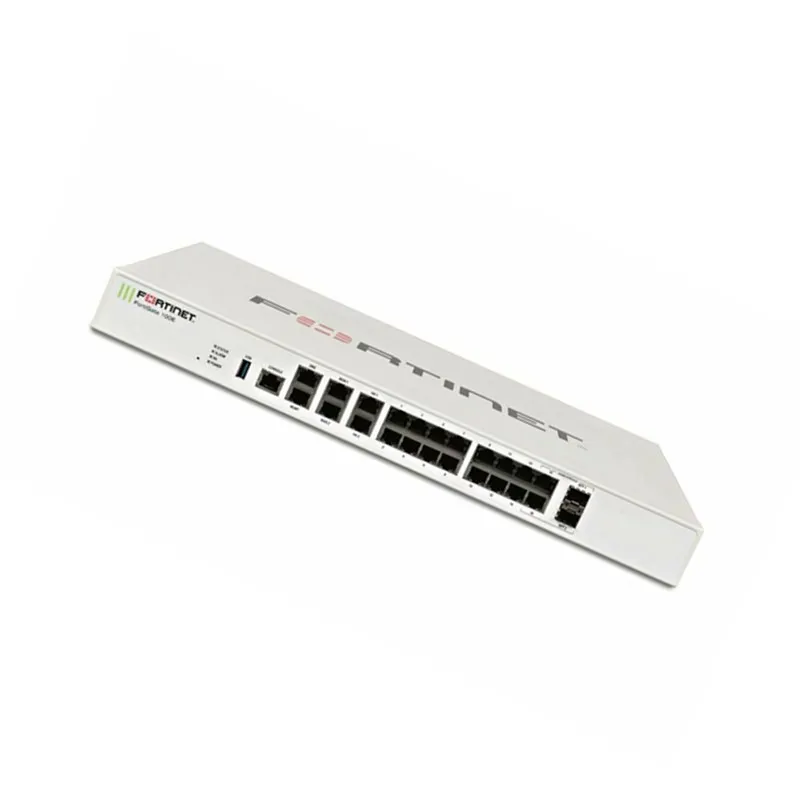

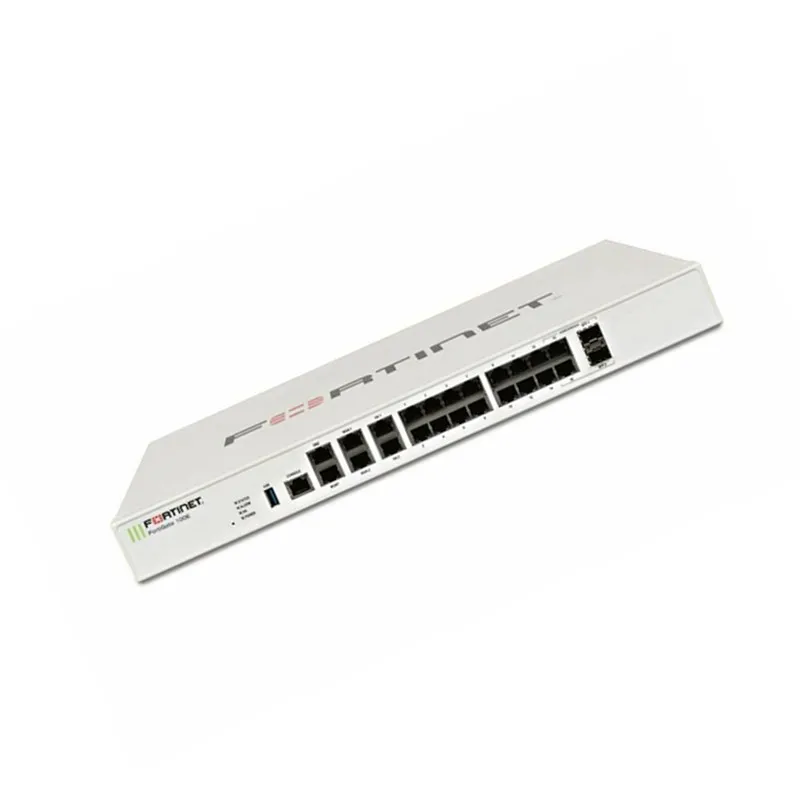

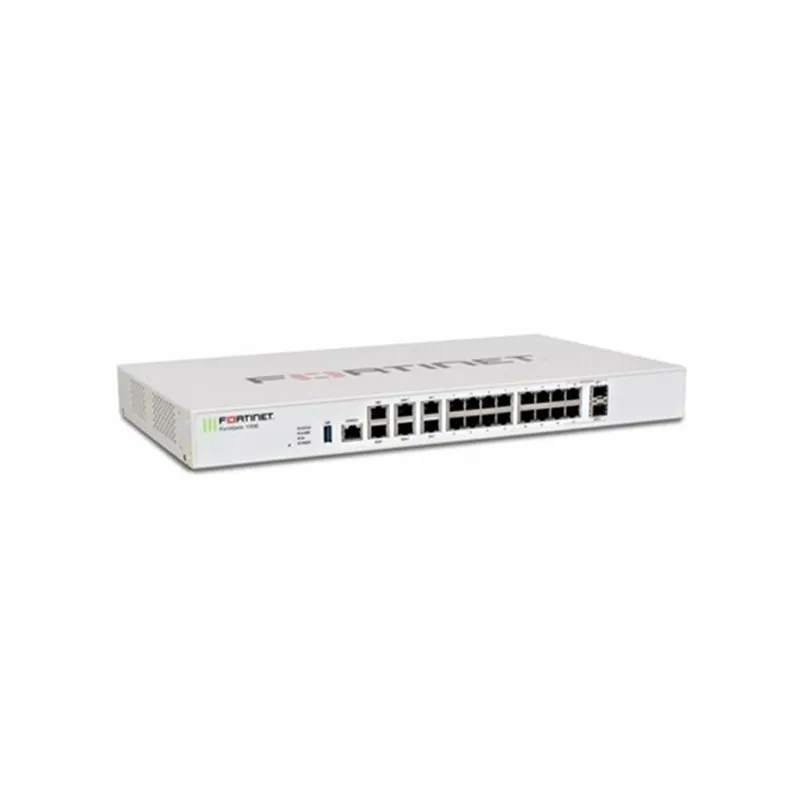

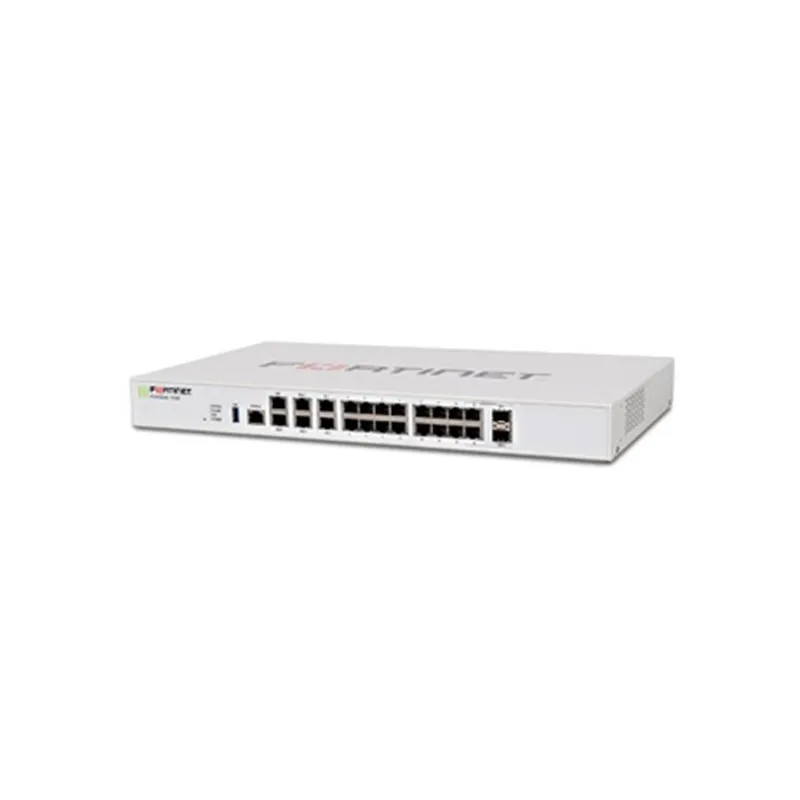

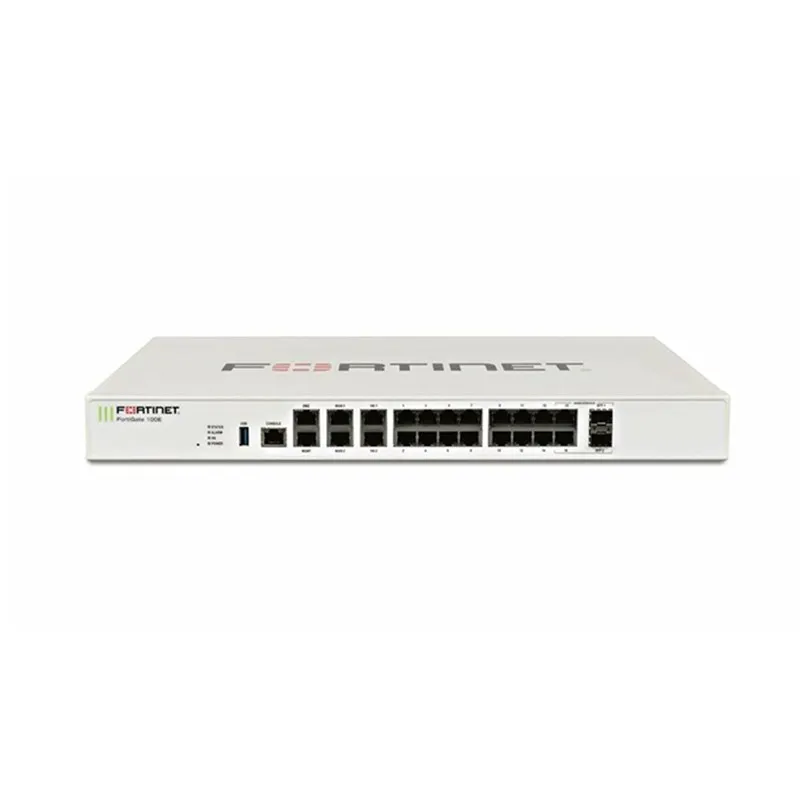

New Original Fortinet FortiGate 100E Network Security/Firewall FG 100E
- Category: Firewall & VPN >>>
- Supplier: Shenzhen Importgm Technology Co. Ltd.
Share on (60820556360):
Product Overview
Description
Product Detail
FOrtinet Firewall FG-100E
The FortiGate 100E series delivers next generation firewall capabilities for mid-sized to large enterprises, with the flexibility to be deployed at the campus or enterprise branch. Protect against cyber threats with security processor powered high performance, security efficacy and deep visibility.
Description: 20x GE RJ45 ports (including 2x WAN ports, 1x DMZ port, 1x Mgmt port, 2x HA ports, 14x switch ports), 2x Shared Media pairs (including 2x GE RJ45 ports, 2x SFP slots). Maximum managed FortiAPs (Total / Tunnel) 64 / 32.
Interfaces | ||
1. USB Port | 5. 2x GE RJ45 HA Ports | |
2. Console Port | 6. 14x GE RJ45 Ports | |
3. 2x GE RJ45 MGMT/DMZ Ports | 7. 2x GE RJ45/SFP Shared Media Pairs | |
4. 2x GE RJ45 WAN Ports | ||
SPECIFICATIONS | ||
Hardware Specifications | ||
GE RJ45 Switch Ports | 14 | |
GE RJ45 Management/HA/DMZ Ports | 1 / 2 / 1 | |
GE SFP Slots | - | |
GE RJ45 PoE/+ Ports | - | |
GE RJ45 WAN Ports | 2 | |
GE RJ45 or SFP Shared Ports | 2 | |
USB Port | 1 | |
Console Port | 1 | |
Internal Storage | - | |
Included Transceivers | 0 | |
System Performance - Enterprise Traffic Mix | ||
IPS Throughput 2 | 500 Mbps | |
NGFW Throughput 2, 4 | 360 Mbps | |
Threat Protection Throughput 2, 5 | 250 Mbps | |
System Performance | ||
Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 7.4 Gbps | |
Firewall Latency (64 byte UDP packets) | 3 μs | |
Firewall Throughput (Packets Per Second) | 6.6 Mpps | |
Concurrent Sessions (TCP) | 2 Million | |
New Sessions/Second (TCP) | 30,000 | |
Firewall Policies | 10,000 | |
IPsec VPN Throughput (512 byte) 1 | 4 Gbps | |
Gateway-to-Gateway IPsec VPN Tunnels | 2,000 | |
Client-to-Gateway IPsec VPN Tunnels | 10,000 | |
SSL-VPN Throughput | 250 Mbps | |
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 300 | |
SSL Inspection Throughput (IPS, avg. HTTPS) 3 | 130 Mbps | |
SSL Inspection CPS (IPS, avg. HTTPS) 3 | 130 | |
SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3 | 125,000 | |
Application Control Throughput (HTTP 64K) 2 | 1 Gbps | |
CAPWAP Throughput (HTTP 64K) | 1.5 Gbps | |
Virtual Domains (Default / Maximum) | 10 / 10 | |
Maximum Number of Switches Supported | 24 | |
Maximum Number of FortiAPs (Total / Tunnel Mode) | 64 / 32 | |
Maximum Number of FortiTokens | 1,000 | |
Maximum Number of Registered FortiClients | 600 | |
High Availability Configurations | Active | |
Dimensions | ||
Height x Width x Length (inches) | 1.44 x 8.52 x 5.5 | |
Height x Width x Length (mm) | 44.45 x 432 x 254 | |
Weight | Rack Mount, 1 RU | |
Form Factor | 7.28 lbs (3.3 kg) | |
Order Information
Product | SKU | Description |
FortiGate 100E | FG-100E | 20x GE RJ45 ports (including 2x WAN ports, 1x DMZ port, 1x Mgmt port, 2x HA ports, 14x switch ports), 2x Shared Media pairs (including 2x GE RJ45 ports, 2x SFP slots). Maximum managed FortiAPs (Total / Tunnel) 64 / 32 |
FortiGate 101E | FG-101E | 20 x GE RJ45 ports (including 2x WAN ports, 1x DMZ port, 1x Mgmt port, 2x HA ports, 14x switch ports), 2x Shared Media pairs (including 2x GE RJ45 ports, 2x SFP slots) 480 GB onboard storage. Maximum managed FortiAPs (Total / Tunnel) 64 / 32 |
FortiGate 100EF | FG-100EF | 14x GE RJ45 ports (including 2x WAN ports, 1x DMZ port, 1x Mgmt port, 2x HA ports, 8x internal switch ports), 8x SFP ports. Maximum managed FortiAPs (Total / Tunnel) 64 / 32. |
FortiGate 140E | FG-140E | 42x GE RJ45 ports (including 2x WAN ports, 1x Mgmt port, 1x HA port, 38x switch ports), 2x GE SFP DMZ slots. Maximum managed FortiAPs (Total / Tunnel) 64 / 32. |
FortiGate 140E-POE | FG-140E-POE | 42x GE RJ45 ports (including 2x WAN ports, 1x Mgmt port, 1x HA port, 24x RJ45 GE PoE/PoE+ ports, 14x switch ports), 2x GE SFP DMZ slots. Maximum managed FortiAPs (Total / Tunnel) 64 / 32. |
