Sophia IP65 24W DC24V or 100 240VAC machine led tube work light

Product Overview

Description

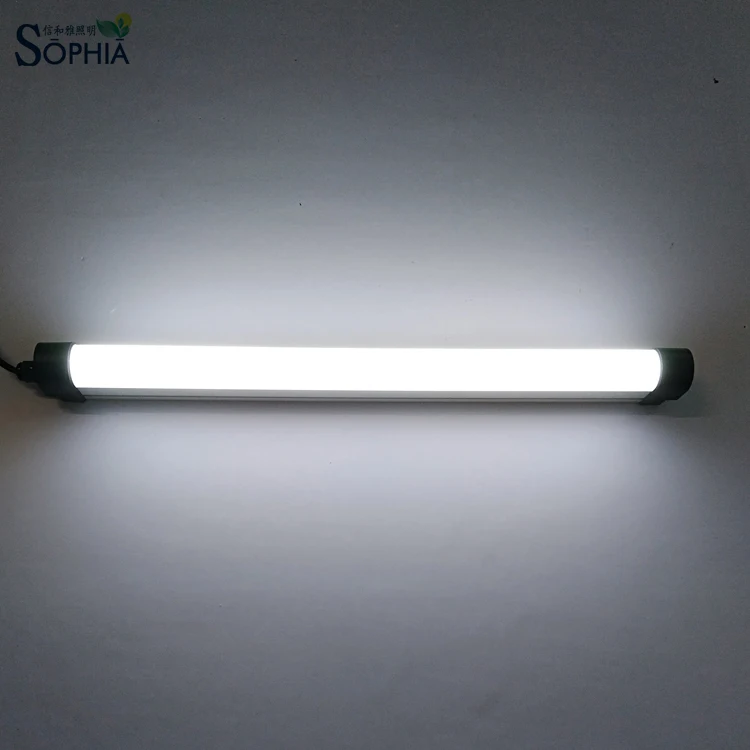

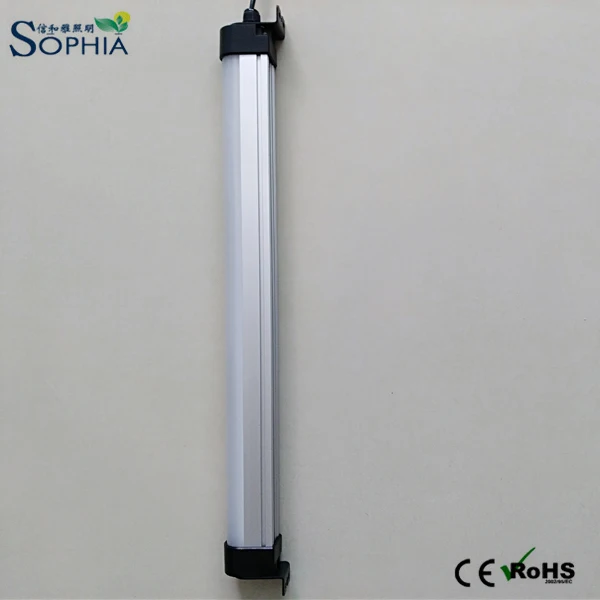

Sophia ML32 weather resistant led light bar suitable for machine illumination and other industrial environment



Solid & compact

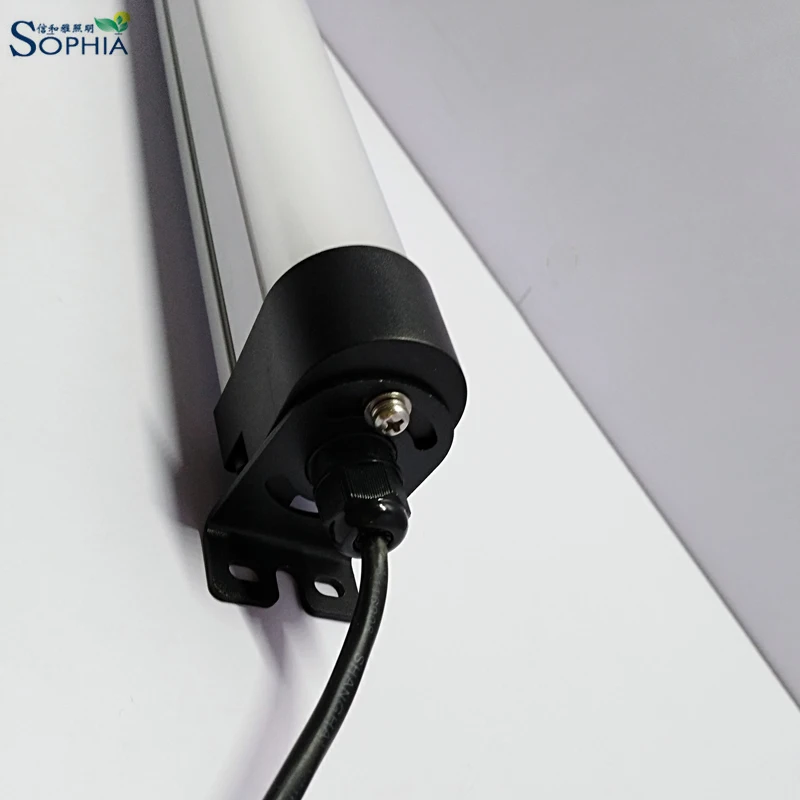

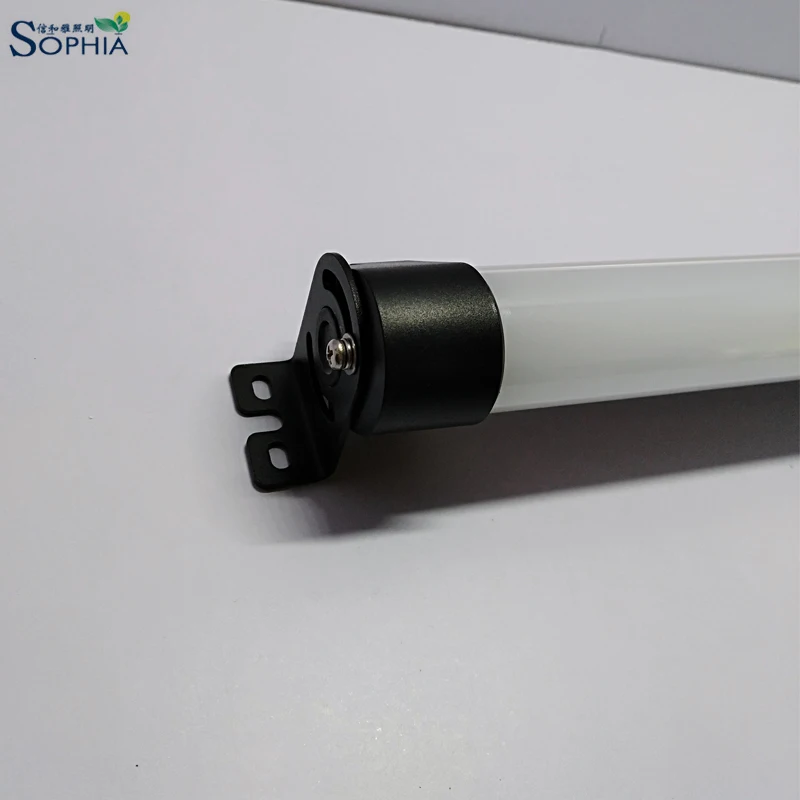

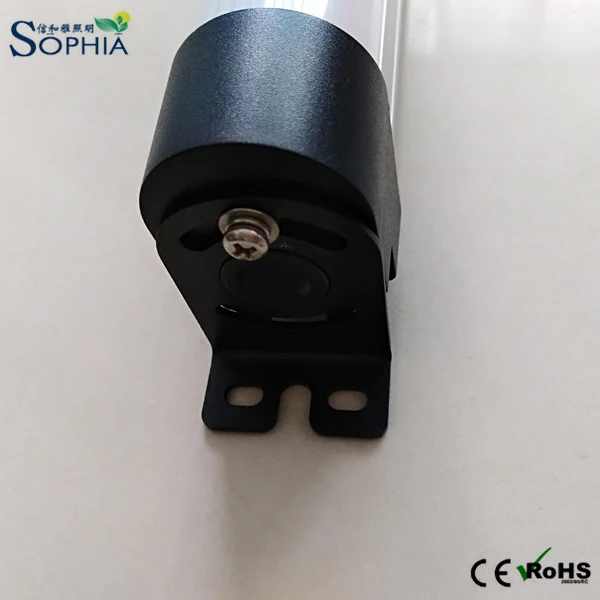

180° Swivel



Feature

Use the latest Energy saving led lightings technology, High purity aluminum alloy body,reinforced PC cover, strong and compact, can withstand toughest environment, no glare, maintenance free .

Bright, Light evenly and uniform

24VDC or 100-260VAC

Mounting angle adjustable



Model ML32-XXX	24V DC			230V AC
	Current(A)	Power(W)	Lumen(LM)	Current(A)	Power(W)	Lumen(LM)
300mm	0.45	10.8	1080	0.05	12	1200
450mm	0.68	16.2	1620	0.08	18	1800
600mm	0.9	21.6	2160	0.11	24	2400
900mm	1.35	32.4	3240	0.16	36	3600
1200mm	1.8	43.2	4320	0.22	48	4800



Model ML32-XXX	Lighted Length L1(mm)	Body length L2 (mm)	Installation length L3 (mm)
300mm	300	359	376
450mm	450	509	526
600mm	600	659	676
900mm	900	959	976
1200mm	1200	1259	1276
