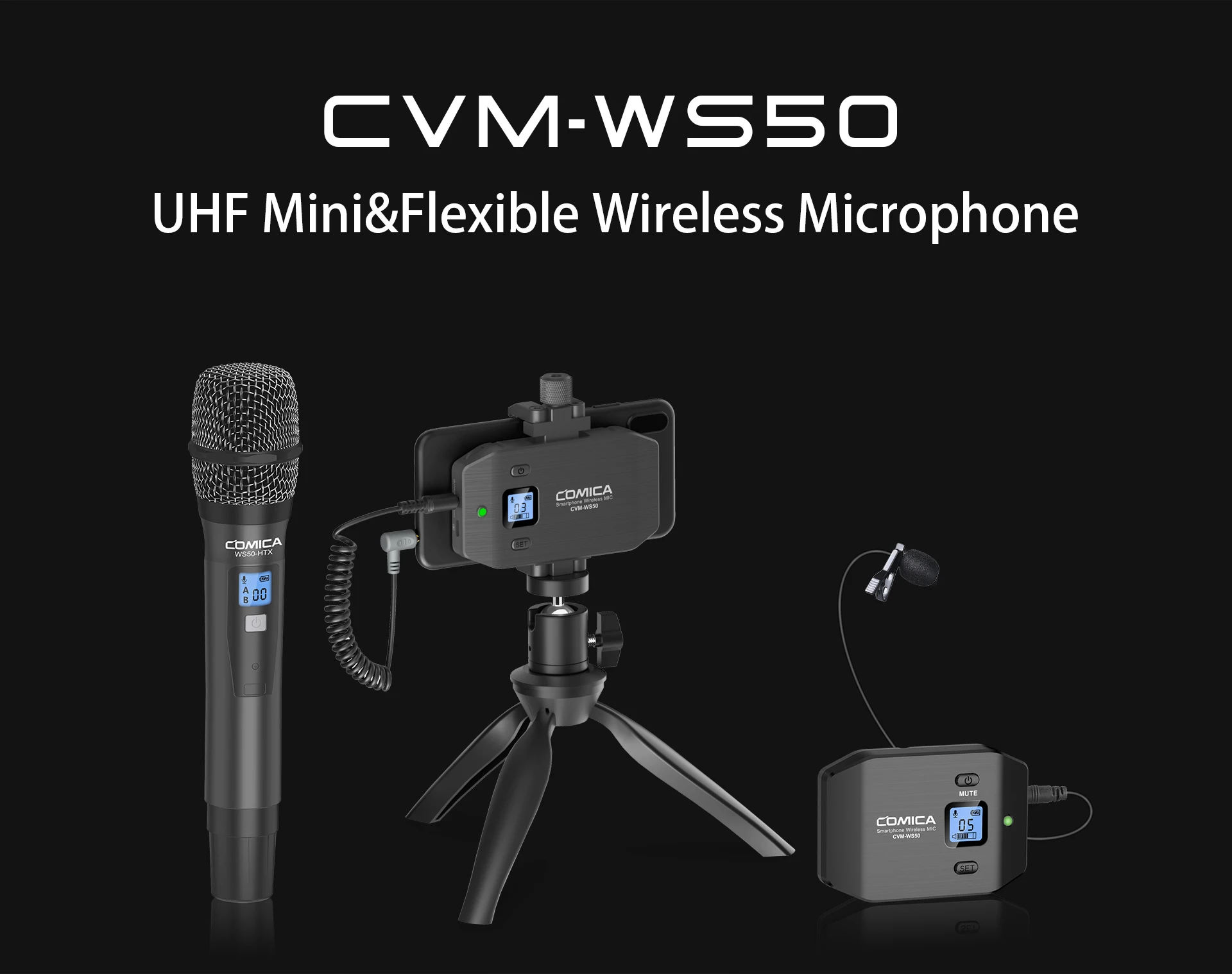

Comica CVM WS50(H) беспроводной микрофон для смартфона, с УВЧ 6 каналами, Профессиональный Гибкий петличный микрофон для видео и воспроизведения

Product Overview

Description

Comica CVM-WS50(H) Wireless Smart Phone Microphone, with UHF 6 Channels,Professional Flexible lavalier mic for video&volgging

-------------------------------------------------------



Description



WS50 is a creative wireless microphone for smartphone with built-in mobile phones holders. With built-in lithium polymer batteries, it uses UHF wireless technology and high-resolution LCD code screen, stepless adjustable volume at receiving end, and integrated into power monitoring, audio dynamic display bar, real-time monitoring and other functions; the working distance is up to 60 meters (30 meters in barrier area), it can assist your phone for video recording and achieve professional sound effects.





Main Features

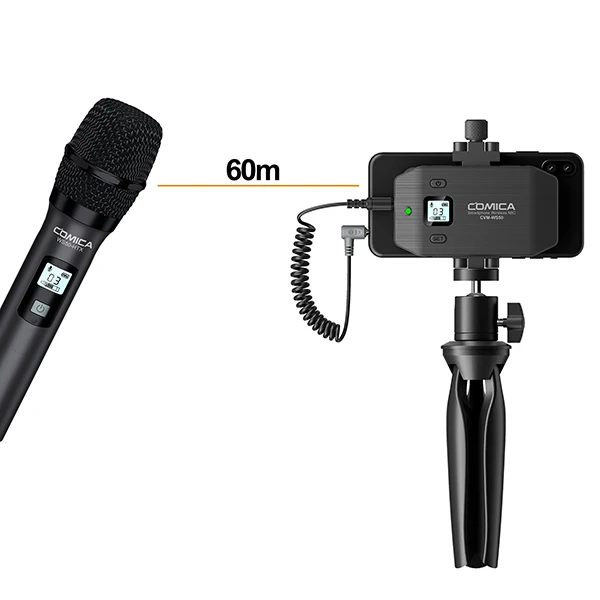

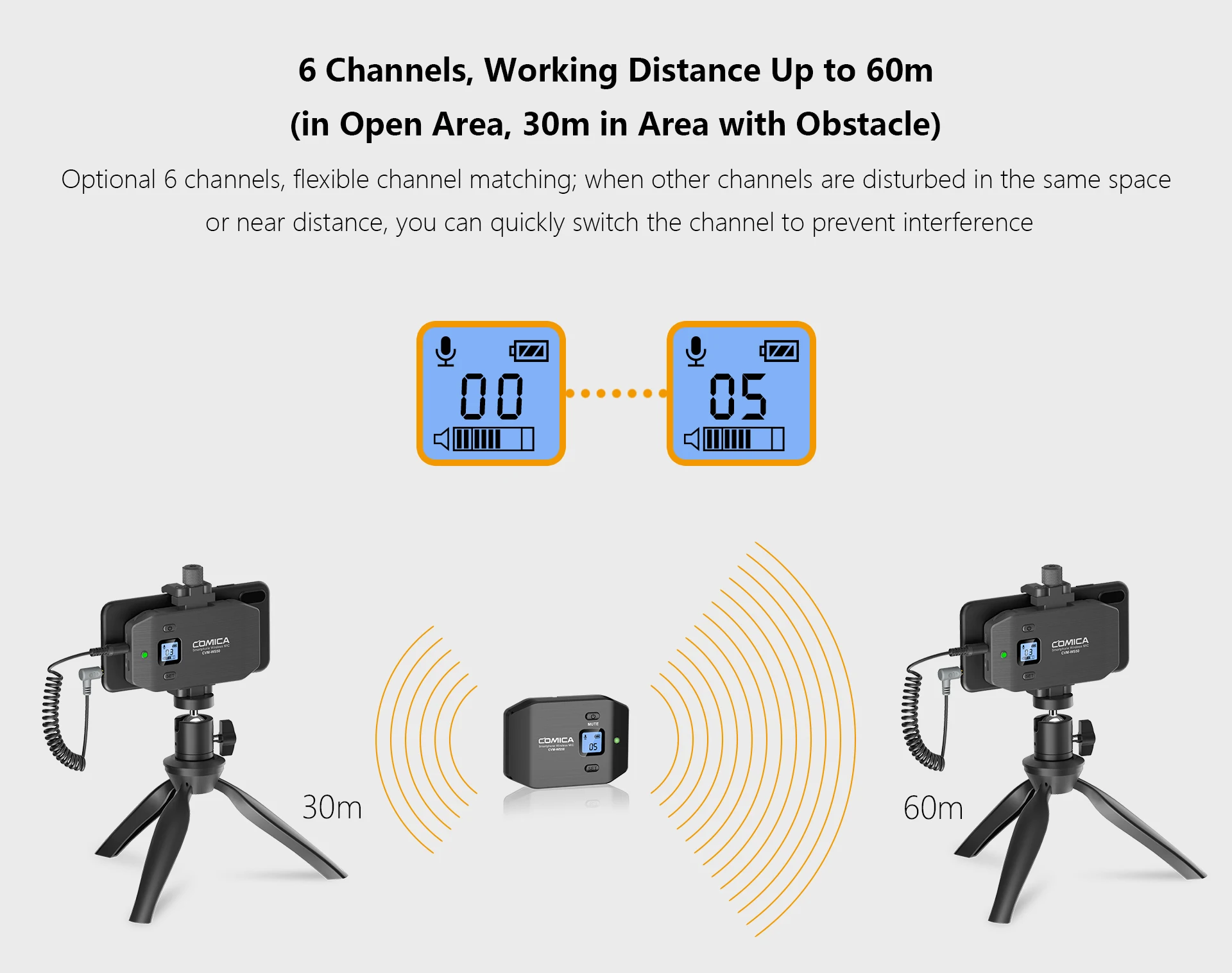

• Working Distance Up to 60m (In Open Area, 30m in Barrier Area) ;

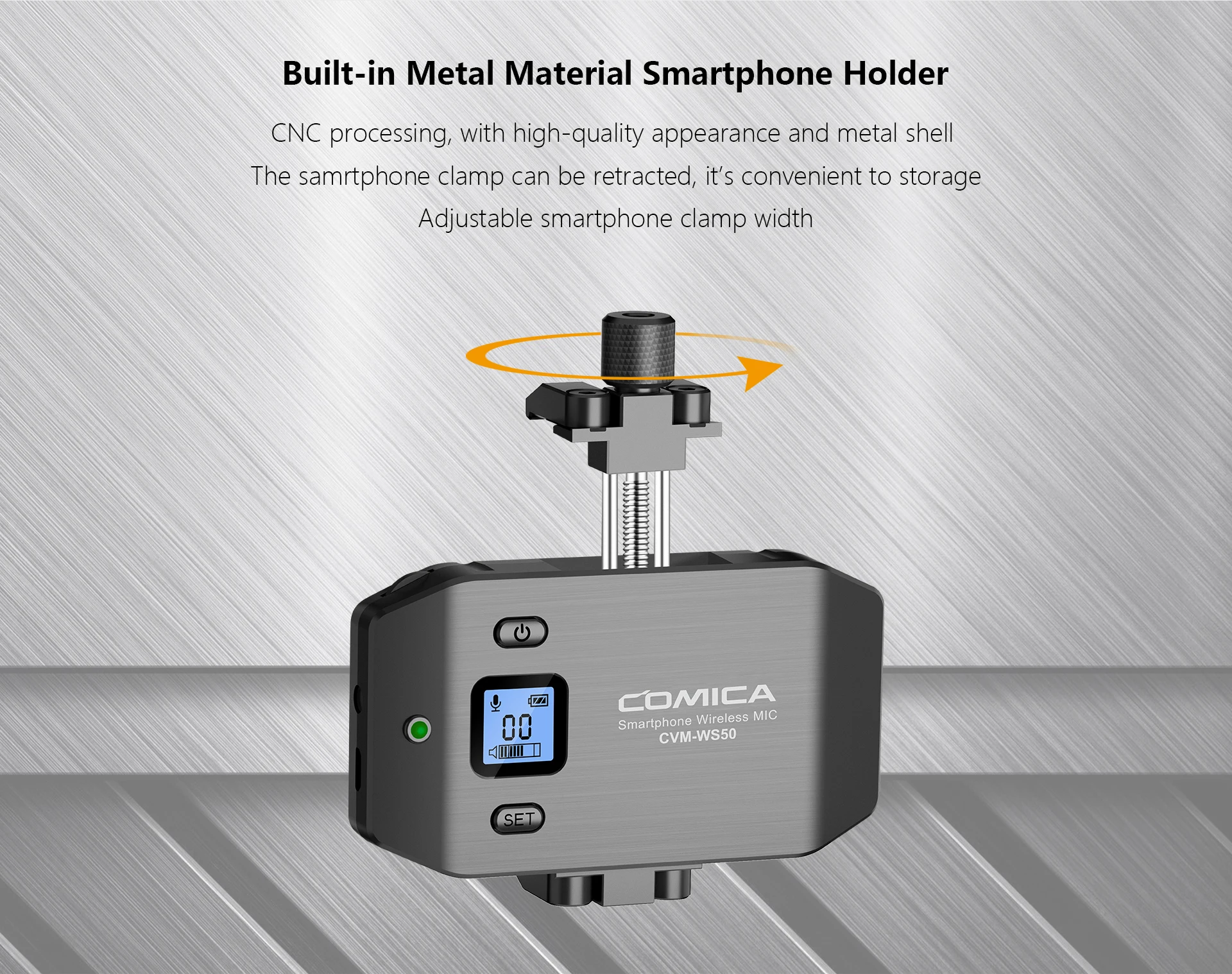

• Built-in Metal Material Smartphone Holder;

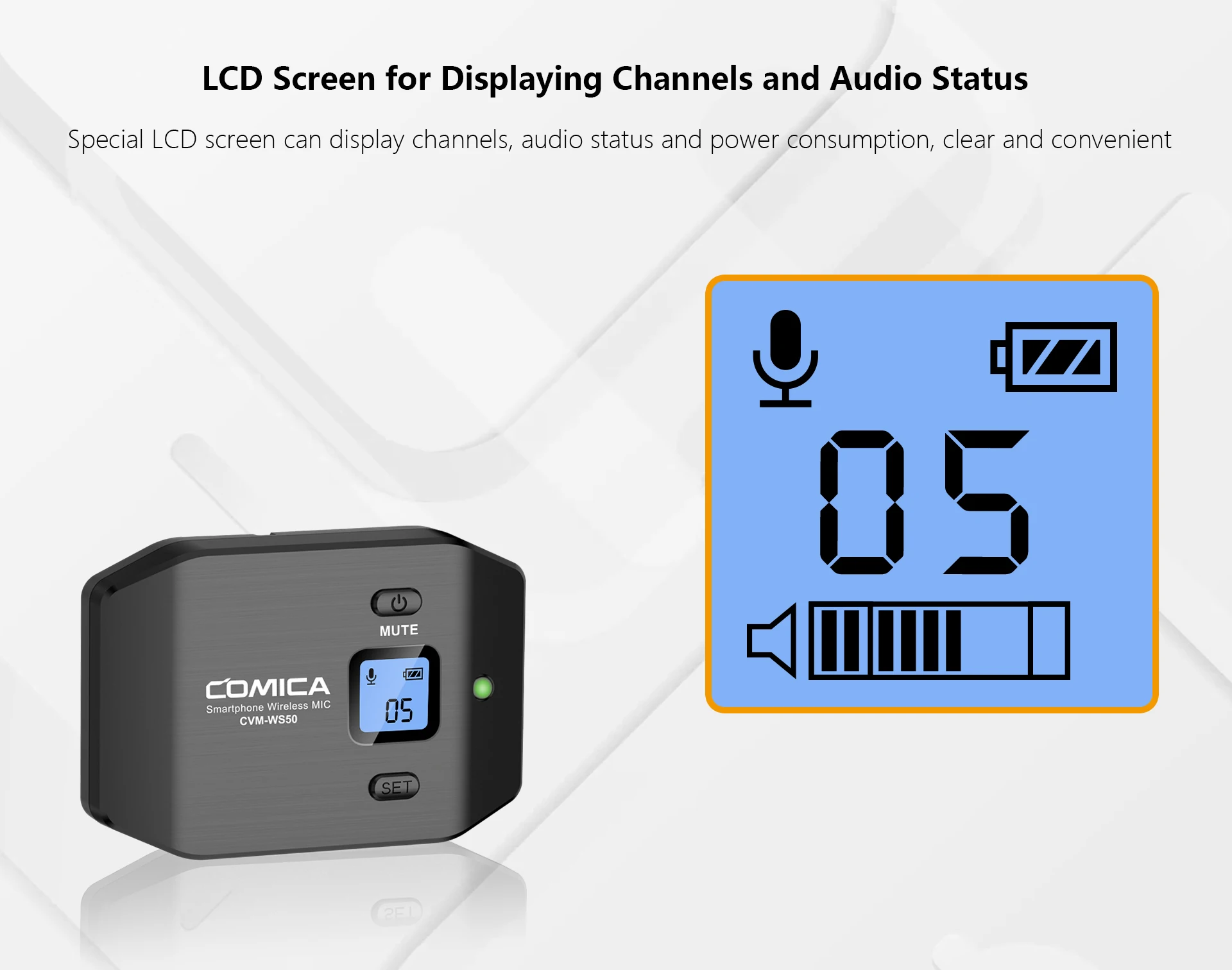

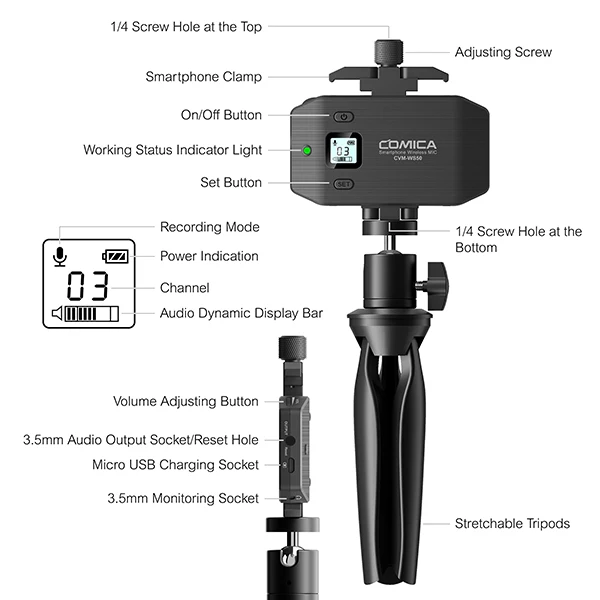

• LCD Screen for Displaying Channels and Audio Status;

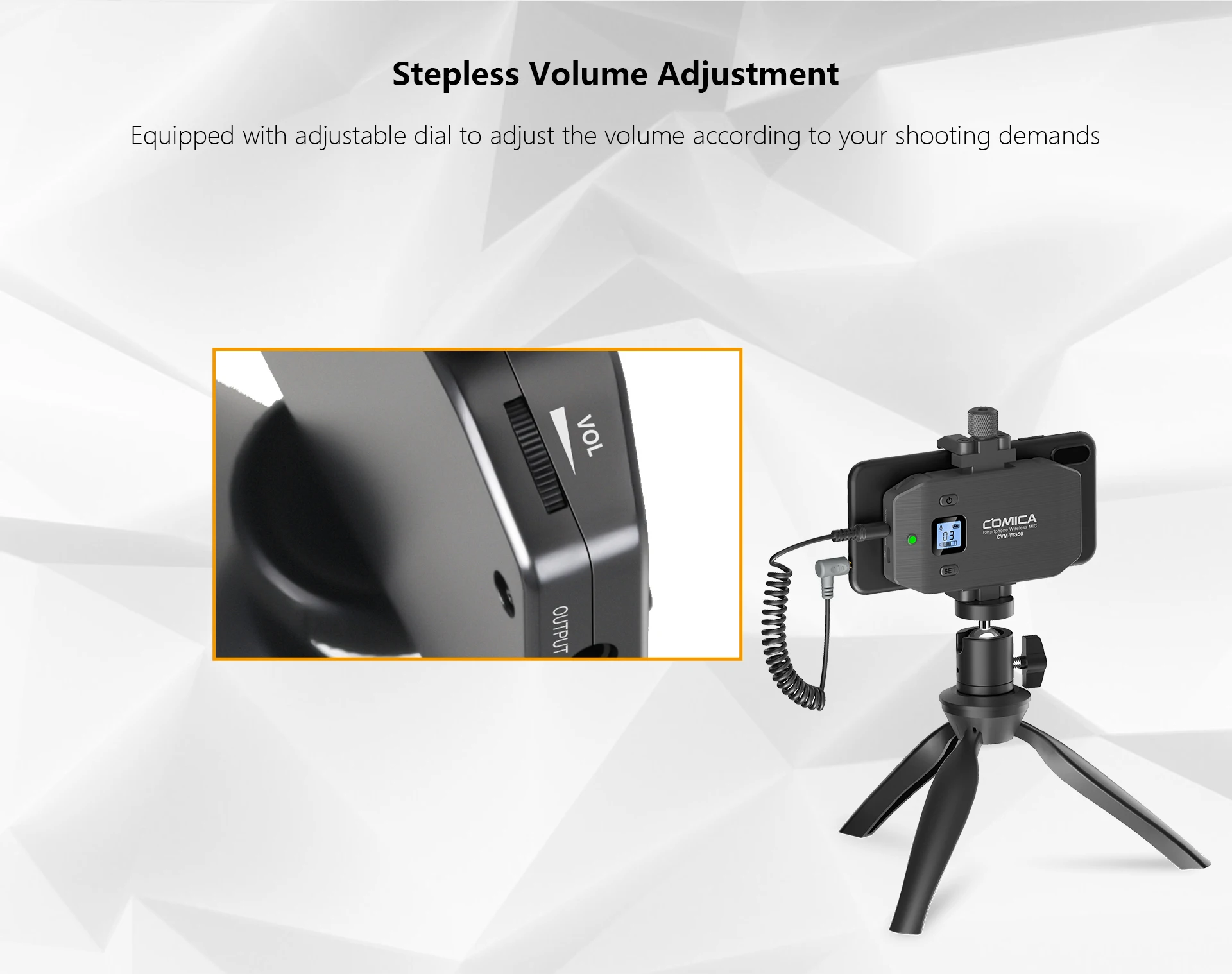

• Stepless Volume Adjustment;


• Real-time Audio Monitor;

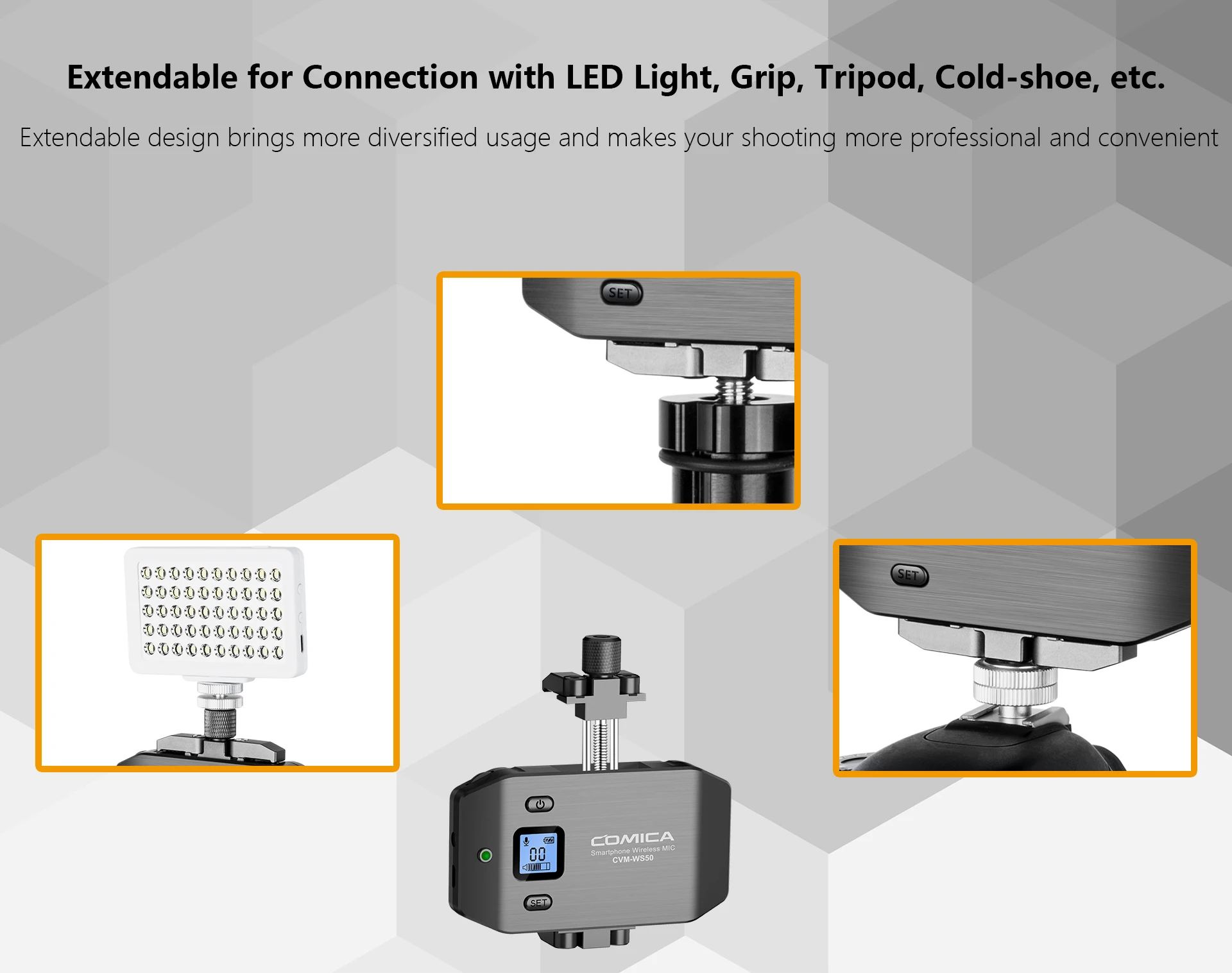

• Extendable for Connection with LED Light, Grip, Tripod, Cold-shoe, etc;

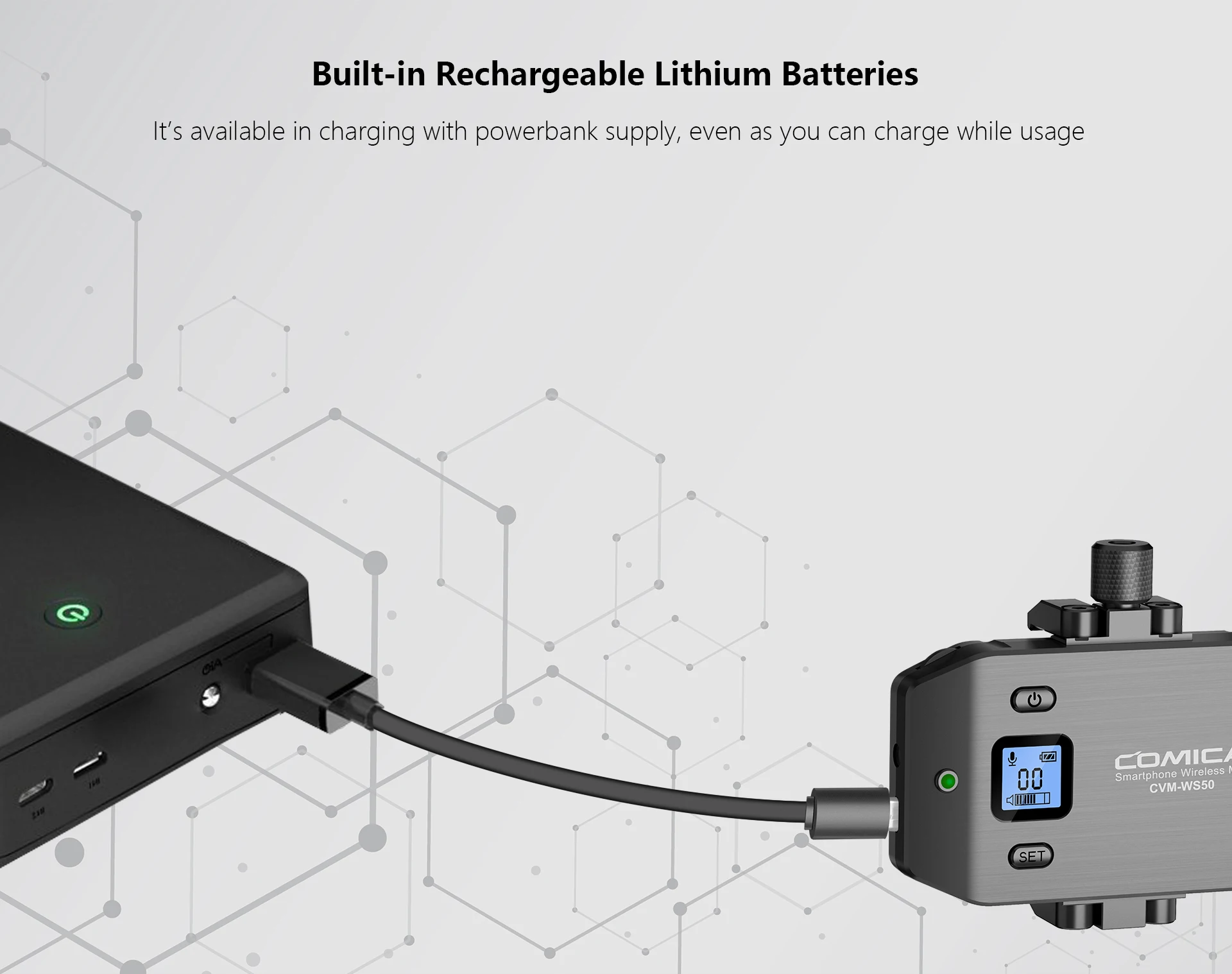

• Built-in Rechargeable Lithium Batteries;

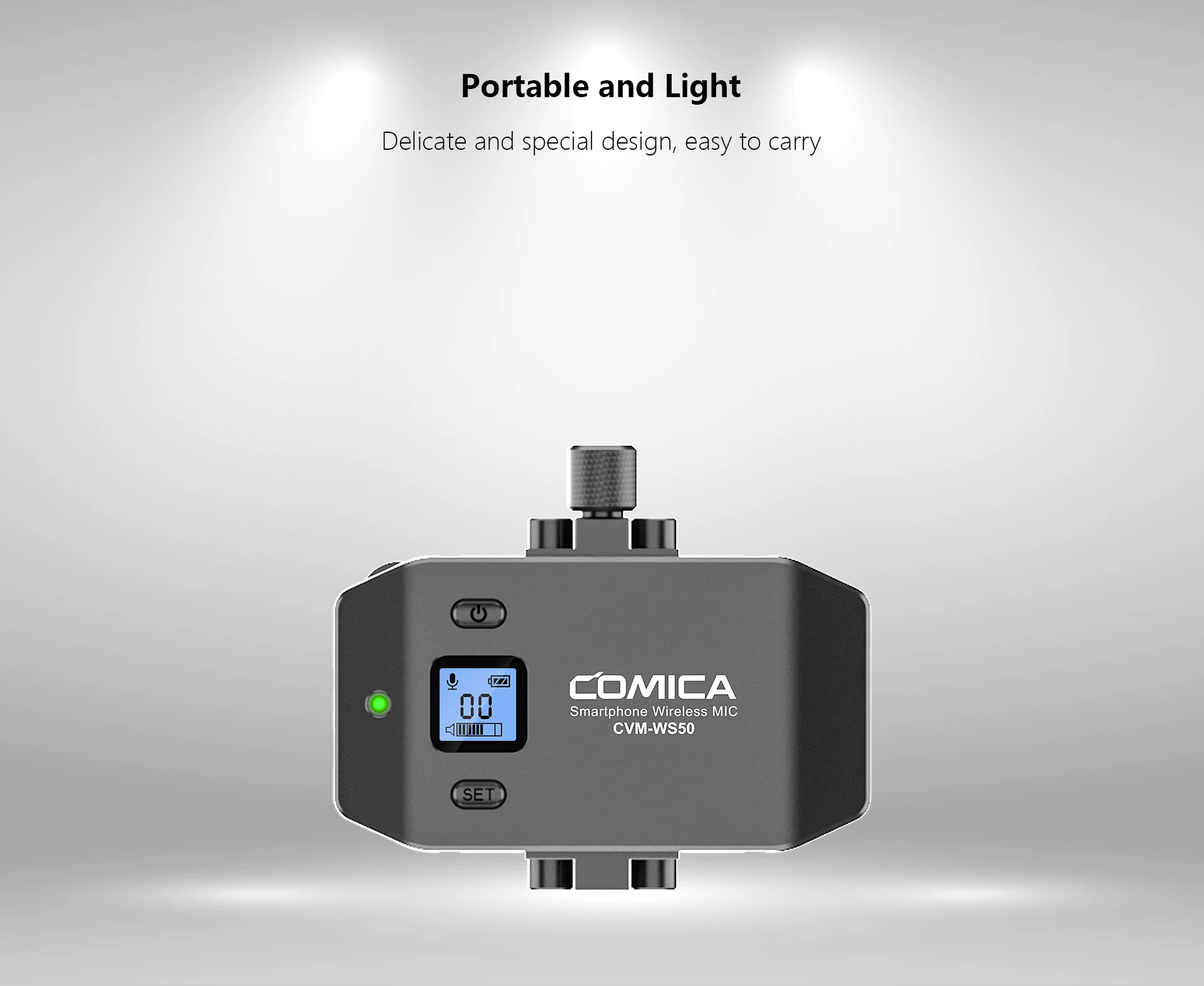

• Portable and Light;





Notice

1. This product is compatible with both IOS and Android system, and when used with the iphone 7 or above, you need to use the original adapter cable;


2.  For smart phones with IOS system (Iphones), this Mic works well either in Audio or Video mode;


3. For the smart phones with Android system, this Mic works well in audio mode, it may not be compatible with partial smart phones in video mode (Then we suggest you to try the 3rd party APP);


4. To avoid signal interference during usage, please set the phone to flight mode;


5. The working distance will be affected by the surrounding environment. In the process, please try to make sure the environment is barrier free and turn off the WIFI of your smart phone;


6. During usage, the receiver should not be close to other UHF transmitters, radio stations and other devices which may cause interference;


7. Please keep this product in dry environment;


8. Do not expose the device in rain or humid environment, or there will be a danger of short circuit;

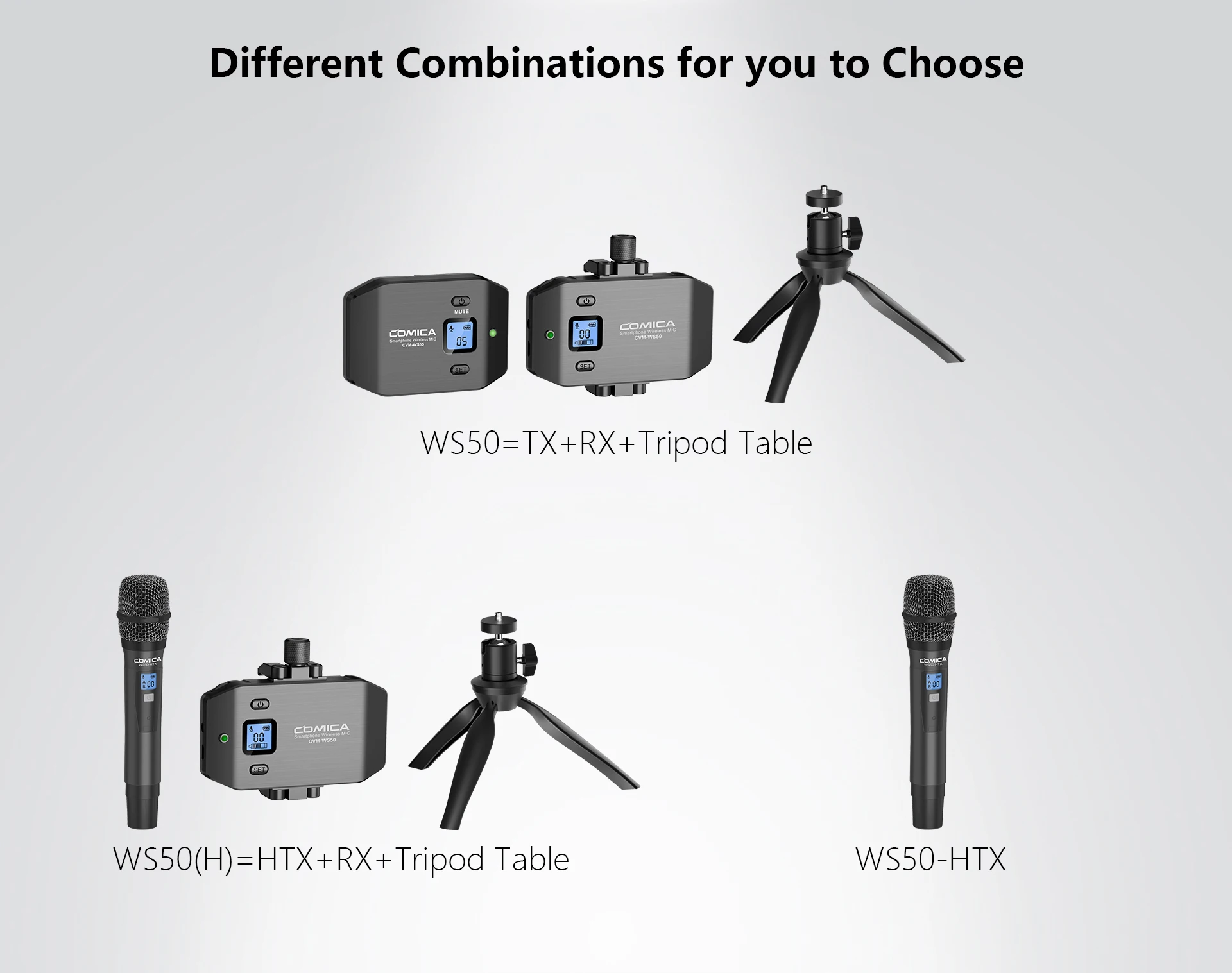

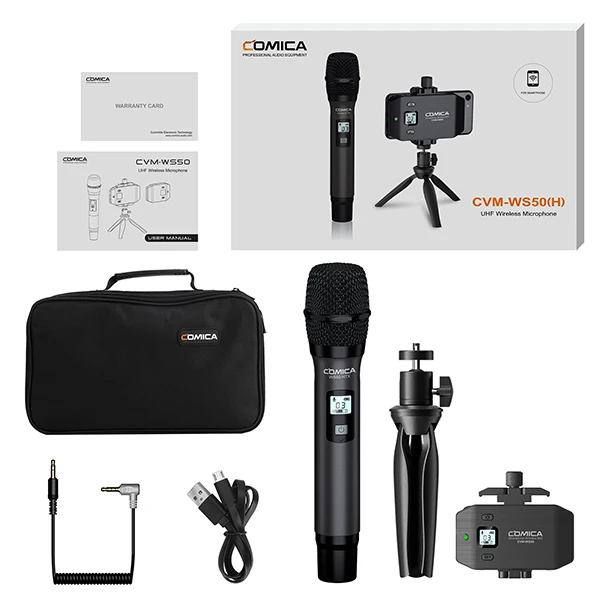

 Packing List

1. Hand-held Transmitter


2. Receiver


3. Ordinary Grip


4.  3.5mm Audio Mic


5. TRRS Audio Output Cable


6. USB Charging Cable


7. Belt Clip


8. Wind Muff


9. Portable Case


10. User Manual


11. Warranty Card



Specification:

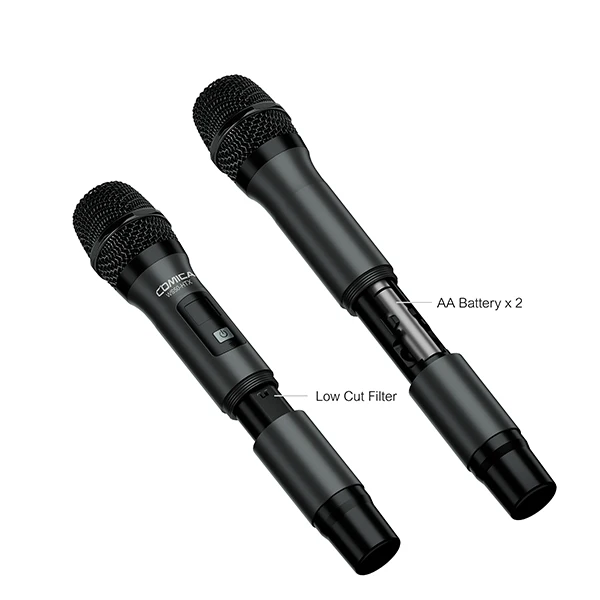

Hand-held Transmitter (HTX)

Carrier Frequency	520.00MHz ~ 526.00MHz
Signal/Noise	>65dB
Antenna	PCB Antenna
Transmitting power	15dBm
Stray Radiation	<-60dBc
Sound Delay	<20ms
Audio Distortion	<0.5%
Battery	2pcs AA Battery
Dimension	Φ 53.5 (MAX) x 248mm
Operating Temperature	0℃ ~ 50℃
Storage temperature	-20℃ ~ 60℃



Receiver

Channels	6(0~5)
Wireless Frequency	520.00MHz ~ 526.00MHz
Signal / Noise	>65dB
Antenna	1/4Wavelength Wire Antenna
Receiving Sensitivity	-95dBm
Sound Delay	<20ms
Audio Distortion	<0.5%
Frequency Response	20Hz ~ 18KHz
Audio Input Socket	3.5mmSocket
Batteries	Polymer Lithium Battery 3.7V 1150mAH
Charging Socket	Micro USB
Dimension	104 x 57.6 x 16.3mm
Charging Socket	0℃ ~ +50℃
Storage Temperature	-20℃ ~ +60℃
Duration	8 Hours



------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
