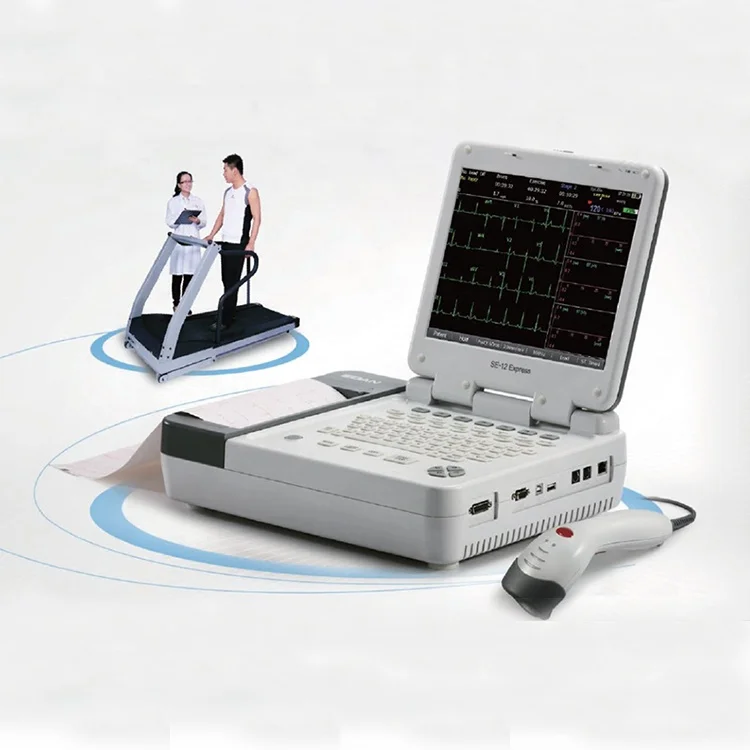

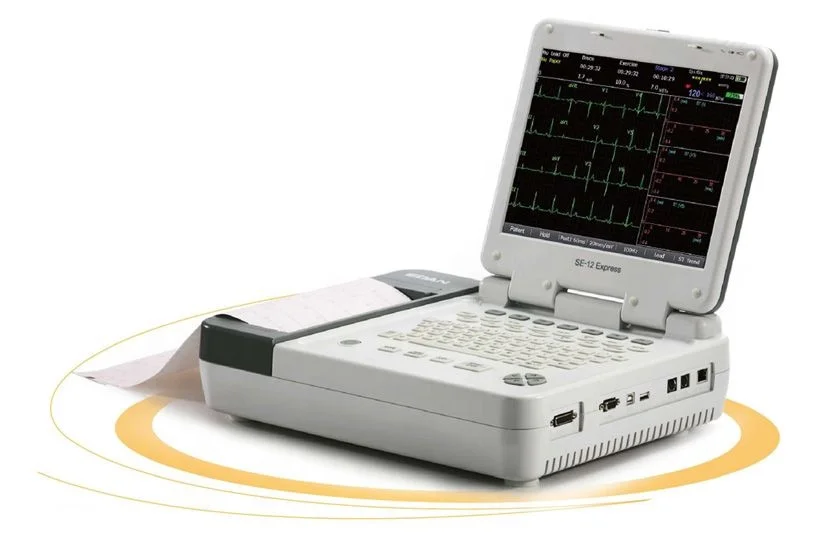

Portable digital 12.1" TFT touch screen 12 channel resting ECG/EKG machine

Share on (60820678028):


Price:RUB 153,350.60 - RUB 191,688.25

Quantity:


Product Overview

Description

Product Description



12.1"  high resolution color touch screen with grid display

Alphanumeric keyboard

One-touch operation with age and gender shortcuts

Support barcode scanner to simplify workflow

Weak signal detection with the most advanced 24 bits A/D converter technology

Anti-noise technology with comprehensive filters and the high CMRR over 115dB

120s real-time ECG waveforms freezing and review to assist your diagnosis

Extend printing once arrhythmia is detected to further your rhythm analysis

Integrated advanced ECG analysis: Vector ECG

Built-in high resolution thermal printer to print on normal thermal paper and A4 size fax paper

external USB printer (optional) support

200 ECGs internal memory which can be enlarged by USB flash disk

Smart ECG viewer software for data management on PC (option)

Data transmitting to PC via LAN/WIFI

Standard ECG formats: PDF, SCP, FDA-XML and DICOM data export

Bi-directional communication with SE-1515 Data management system

Compatible with reputable treadmills and bicycles

Support exercise blood pressure monitor

Customized exercise protocols in addition to Bruce and Modified Bruce

Multi-format reports export ( optional)

Barcode scanner support ( optional)

Stress test ( optional )

VCG ( optional)



Specification



Input Circuit Defibrillation protection
Lead Standard 12 leads
Acquisition Mode Simultaneous 12 lead acquisition (10-24 seconds adjustable)
A/D Converter 24 bits
Input Voltage Range ±5mVpp
Time Constant ≥3.2s
Frequency Response 0.05Hz-150Hz(-3dB)
Calibration Voltage 1mV±2%
Sensitivity 2.5, 5, 10, 20, 10/5, AGC(mm/mV)
Input Impedance ≥50MΩ(10Hz)
Input Circuit Current ≤10nA
Noise Level ≤12.5µVp-p
Anti Baseline Drift Automatic
Patient Leakage Current NC:<10µA(AC)/10µA(DC) NC:<10µA(AC)/10µA(DC)
Patient Auxiliary Current NC:<10µA(AC)10µA(DC) NC:<10µA(AC)/10µA(DC)
Filter

EMG Filter: 25Hz/35Hz/45Hz/OFF

DFT Filter: 0.5/0.15/0.25/0.5/0.32/0.67Hz

Lowpass Filter: 150Hz/100Hz/75Hz

AC Filter: 50Hz/60Hz
CMRR ≥115dB
Recording Mode Auto/Manual/Rhythm/R-R/OFF
Rhythm Lead Single lead or three leads selectable
Power Supply AC:110V-240V, 50/60Hz
Battery

Built-in rechargeable Li-ion battery

Battery: voltage=14.8V, for about 350 copies ECG printing
Recorder Thermal printer/External printer
Record Paper Folder paper, Rolled paper
Paper width 216mm, 210mm
Record Speed 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s(±3%)
Dimension 420mm×330mm×120mm
Display 800×600 dots TFT color LCD
External Input/Output

Input:≥100kΩ:Sensitivity 10mm/V±5%

Output:≤100kΩ:Sensitivity 1V/mV±5%
Communication Ports Ethernet, RS232, USB
