Original 320x240 33 pins 5.5 inch TFT LCD Panel Display NL3224BC35 20
- Category: >>>
- Supplier: Shenzhen Wu He Tian Cheng Technology Co. Ltd.
Share on (60820691411):
Product Overview
Description
Product Description
Original 320x240 33 pins 5.5 inch TFT LCD Panel Display NL3224BC35-20
NL3224BC35-20 General Features
Panel Brand | N | Panel Model | NL3224BC35-20 |
Panel Size | 5.5 inch | Panel Type | a-Si TFT-LCD , LCM |
Resolution | 320(RGB)×240 , QVGA | Pixel Format | RGB Vertical Stripe |
Display Area | 111.36(W)×83.52(H) mm | Bezel Opening | 116.4x88.5 |
Outline Size | 134(W)×104.5(H) ×13(D) mm | Surface | Antiglare, Hard coating (2H) |
Brightness | 400 cd/m² (Typ.) | Contrast Ratio | 400:1 (Typ.) (TM) |
Viewing Angle | 55/55/5/40 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive |
Best View on | 12 o'clock | Response Time | 5/25 (Typ.)(Tr/Td) |
Display Colors | 262K | Lamp Type | 2pcs CCFL, 40K hours, without driver |
Frequency | 60Hz | Touch Screen | without |
Weight | 210g (Typ.) | Application | Navigation |
Signal Interface | CMOS (1 ch, 6-bit) , 33 pins | ||
Input Voltage | 3.3/5.0V (Typ.)(VDDIO/VCI) | ||
Environment | Operating Temp.: -10 ~ 70 °C ; Storage Temp.: -30 ~ 85 °C | ||

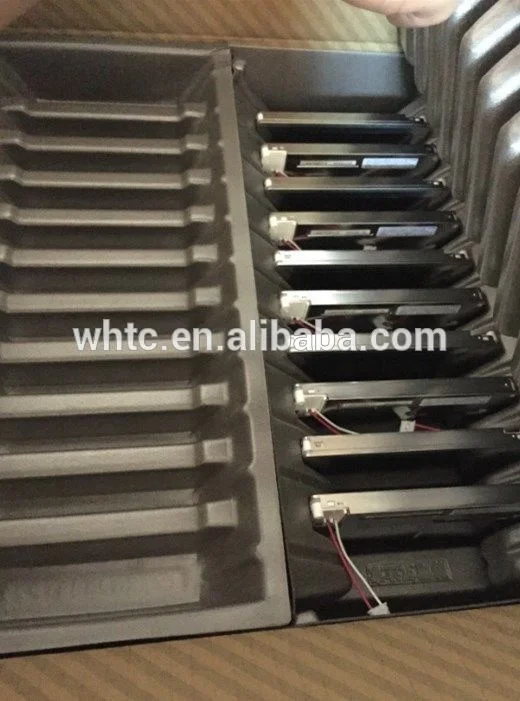

Packaging & Shipping
Package Details | Amount | Net Weight | Carton Size(LxWxH) |
120pcs/carton | 9.8KG | 575x360x225mm |
Delivering Time:
Sample: 5-7 working days
100pcs-5K: 10-15 working days

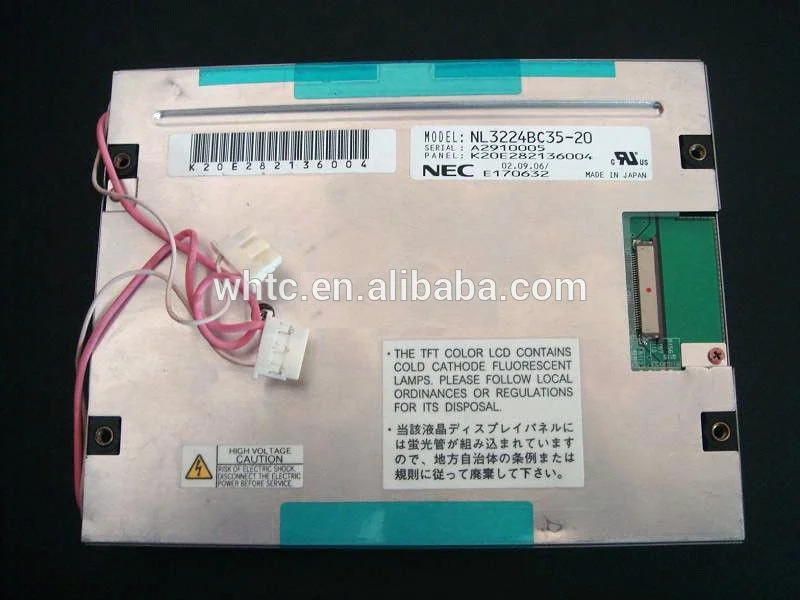

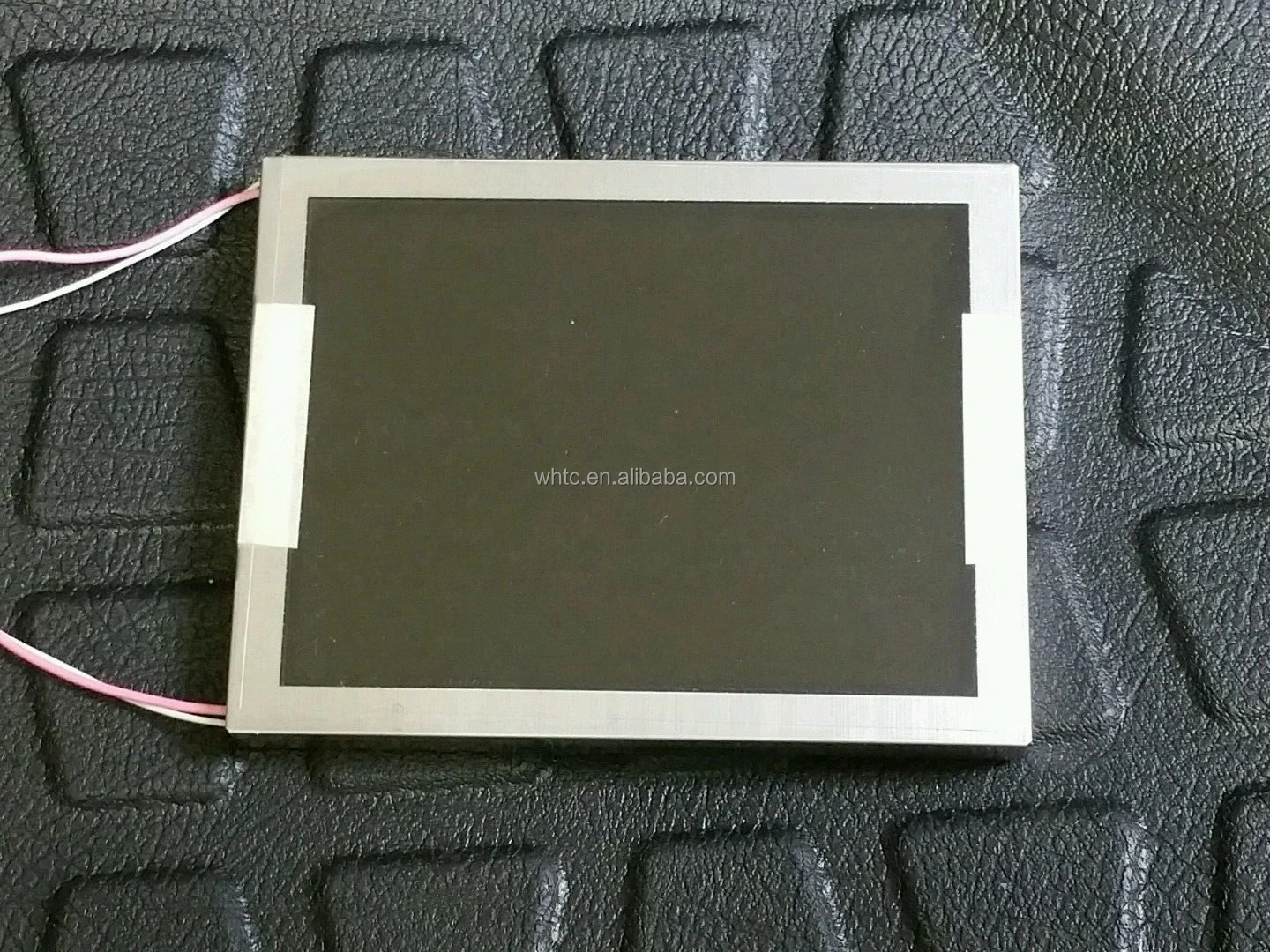

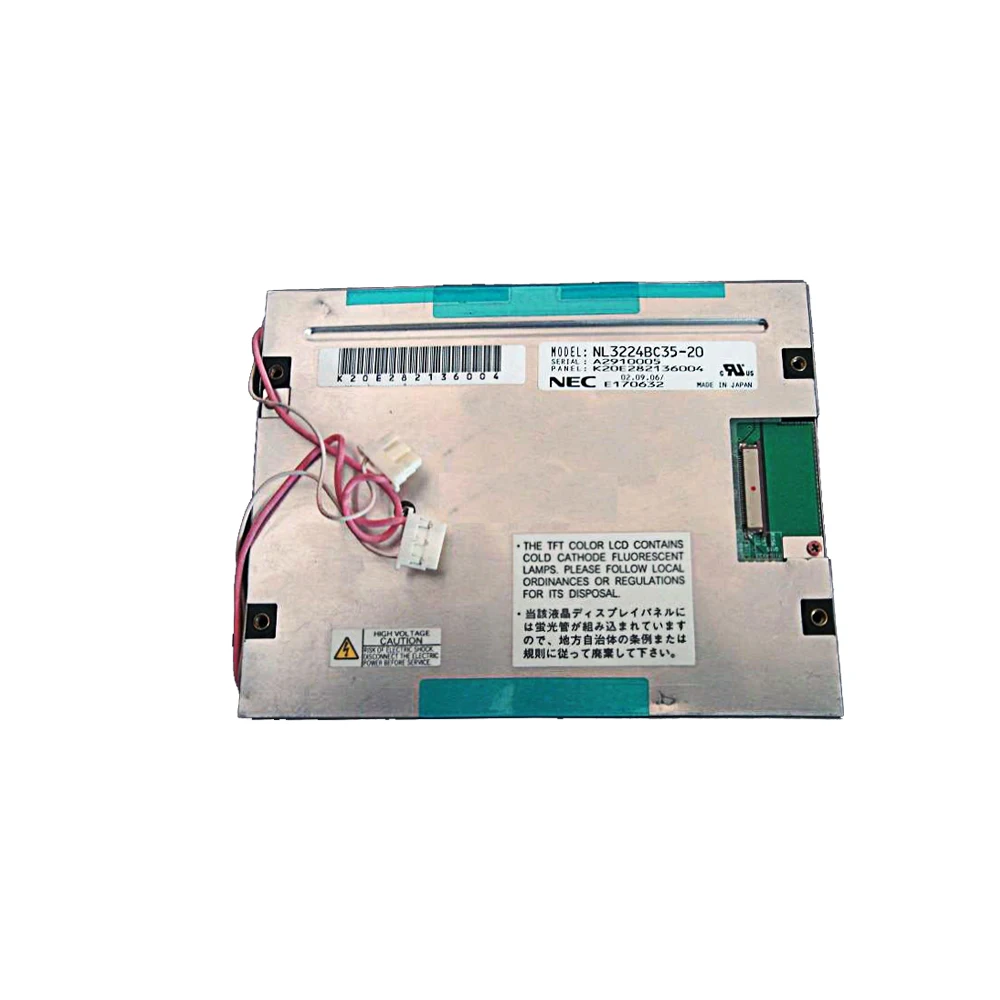

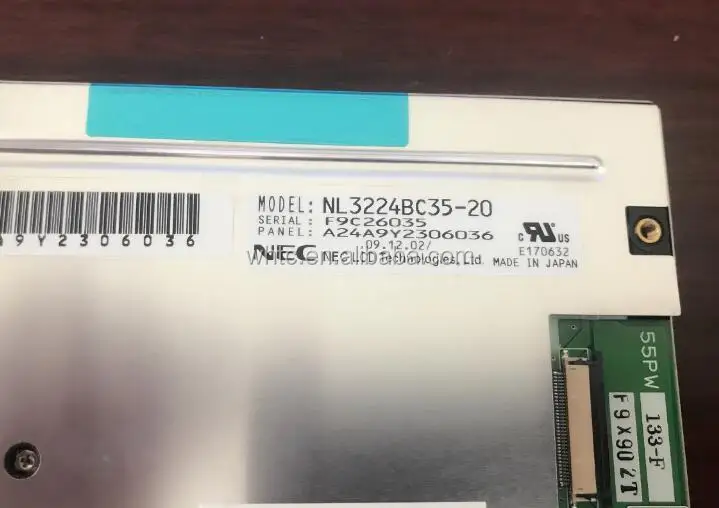

Detailed Images
FAQ
Q: 1. How to choose a display for my project?
A: (1) If you are looking for a replacement display, please let us know your model or checking your datasheet, then we can confirm if we have the same one to you.
(2) If you are looking for a display for your new project, please tell where you will use the display, and the size, resolution that you want, then we can recommend the suitable display to you.
Q: 2. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q: 3. What is the lead time for sample?
A: Current sample needs 1-3 days, customized sample needs 15-20 days.
Q: 4. Do you have any MOQ limit?
A: Our MOQ is 1PCS.
Q: 5.How long is the warranty?
A:12 Months.
Q: 6. what express do you often use to send the samples?
A: We usually ship samples by DHL, UPS, FedEx or SF. It usually takes 3-5 days to arrive.
Q: 7. What's your acceptable payment term?
A: Our usually payment term is T/T. Others can be negotiated.
Q: 8. Do you accept to customize the display as require?
Yes, we customize the Touch panel, FPC, brightness, driver IC, interface as customer’s requirements.
Q: 9. How to proceed the order if I have logo to print?
A: Firstly, we will prepare artwork for visual confirmation, and next we will produce a real sample for your second confirmation. if sample is ok, finally we will go to mass production.
