According to eggs weight different, this machine can sort eggs in 5 grades by weight
Easy to operate and maintance, save labour
Commodity

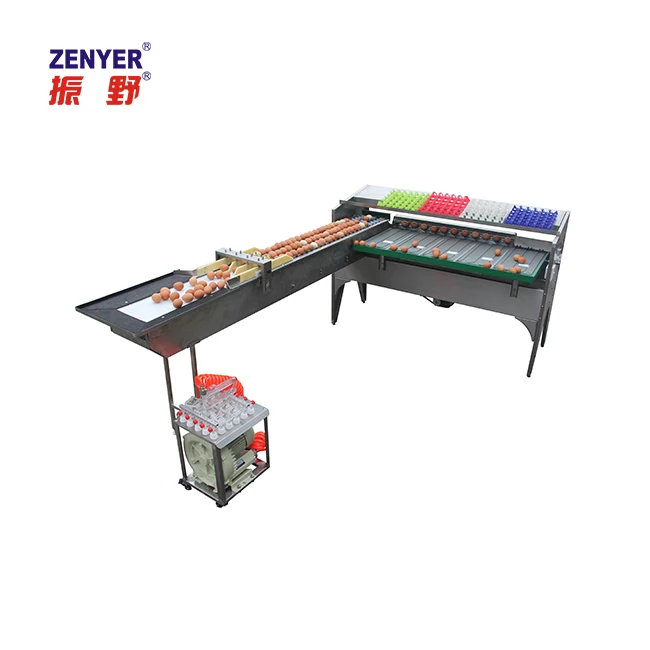

Egg grading printing machine
Product code
102BS
Type
ZYF-JS3-L
Material
Stainless steel
Capacity
5400eggs/hour
Precision
±1g
Voltage
220V
Power
867W
Grades
5
Function
Vacuum egg lifter, candling, printing, grading
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) According to eggs weight different, machine can grade Chicken eggs and duck eggs into 5 grades.
3) Machine can process the fresh eggs or boiled eggs. 4)The machine is made of stainless steel, which is safety, hygiene, and easiy operated
5) vacuum egg lifter and printer for option. it can install on egg grading machine
Certifications
Detailed Images
Vaumm egg lifter

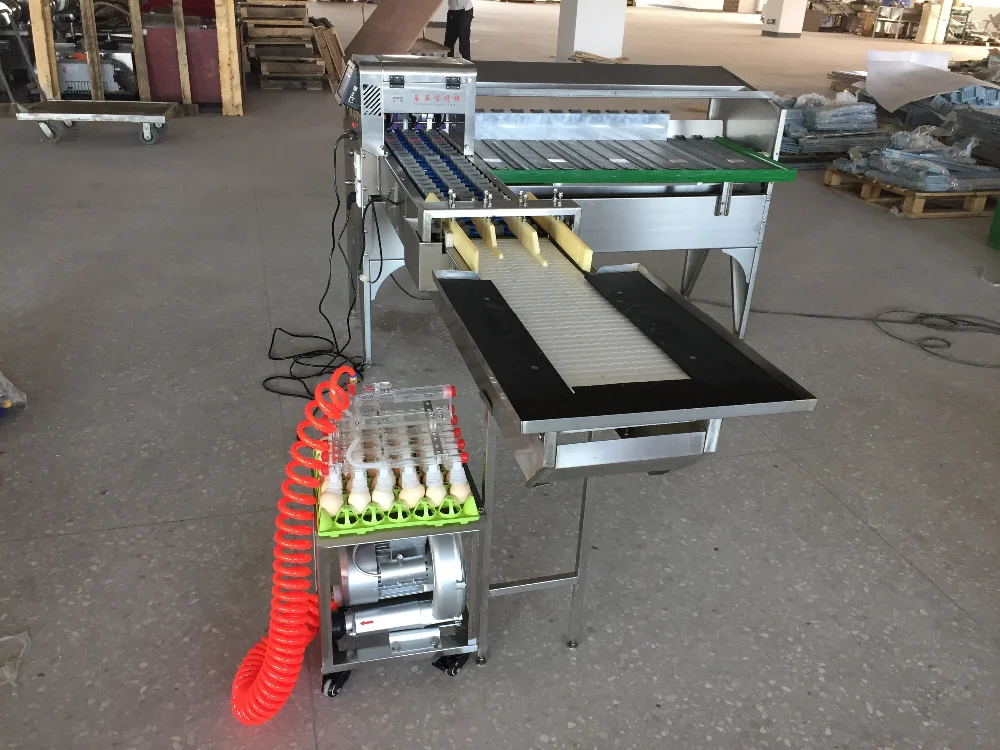

First, Eggs are sucked onto the accumulator of egg grading machine by a vacuum egg lifter (5*6 eggs each suck). The vacuum egg lifter is run by a motor but lift up and down by hand, that helps workers to load eggs onto the egg machine more easily
Candling

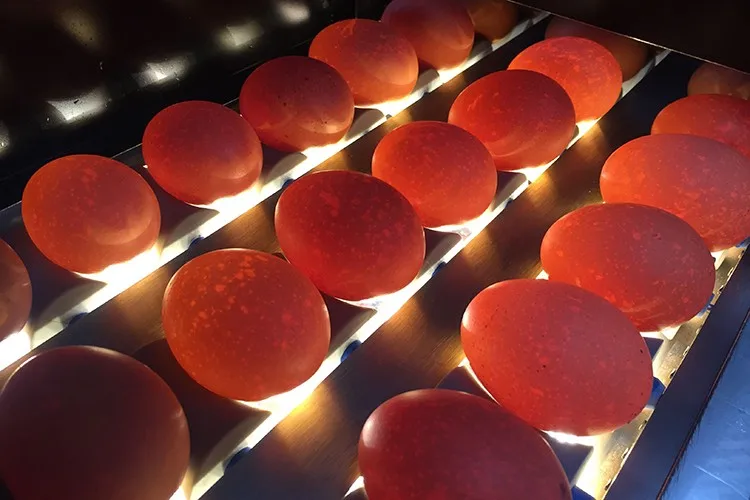

Candler with LED light source has been installed under the roller of grader to help operators to check whether there is any damage of eggs. For example eggs with cracks, eggs with black core, eggs having gone bad can be selected out by hand.
Printing
Printer can also be installed on the grader to print company name, brand name, production date, expiration date, batch number etc.
Grading
After candling and printing, eggs will enter the weighing part of grader. Egg grading machine can at most separate eggs into 5 sizes. Eggs of different size fall down onto to different lanes of the egg collecting board of grader.
Packing & Delivery
Packaging
Size
1.72*0.77*1.2 M
2.4*0.4*0.47 M
Gross Weight
350KG
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
