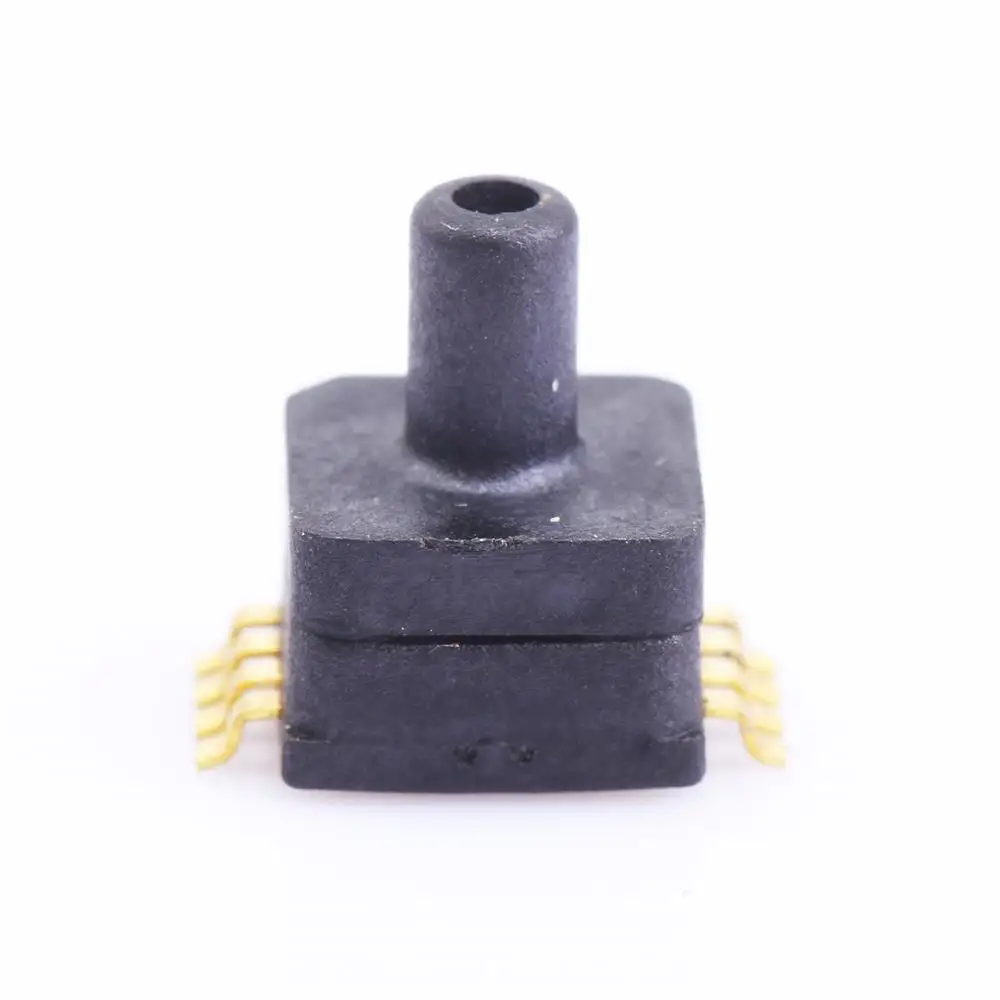

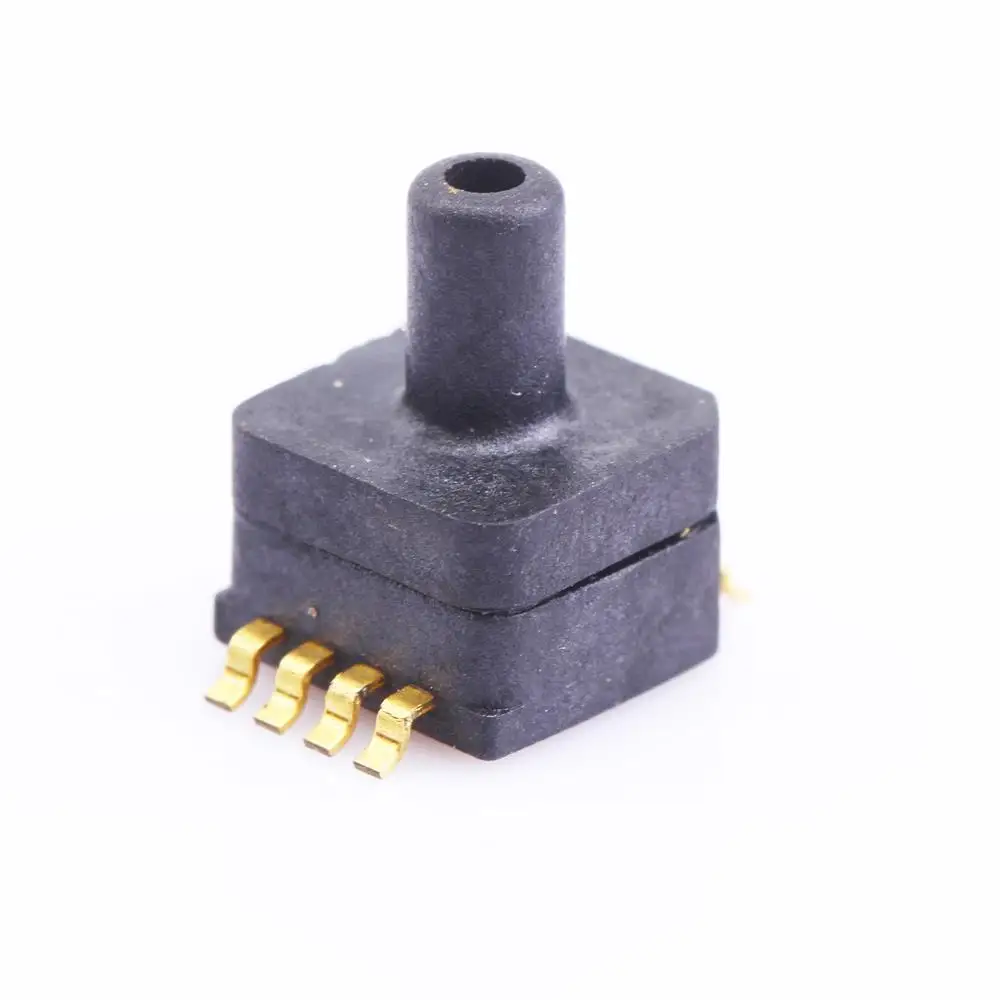

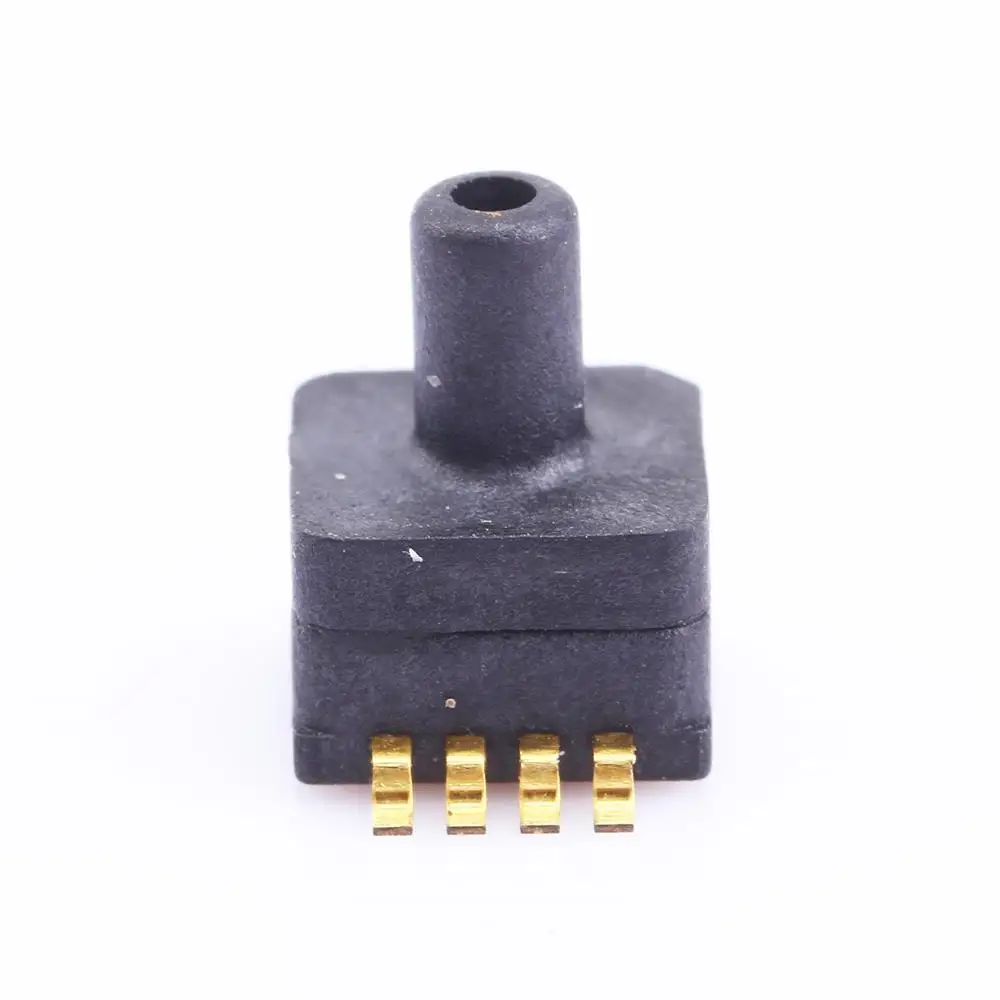

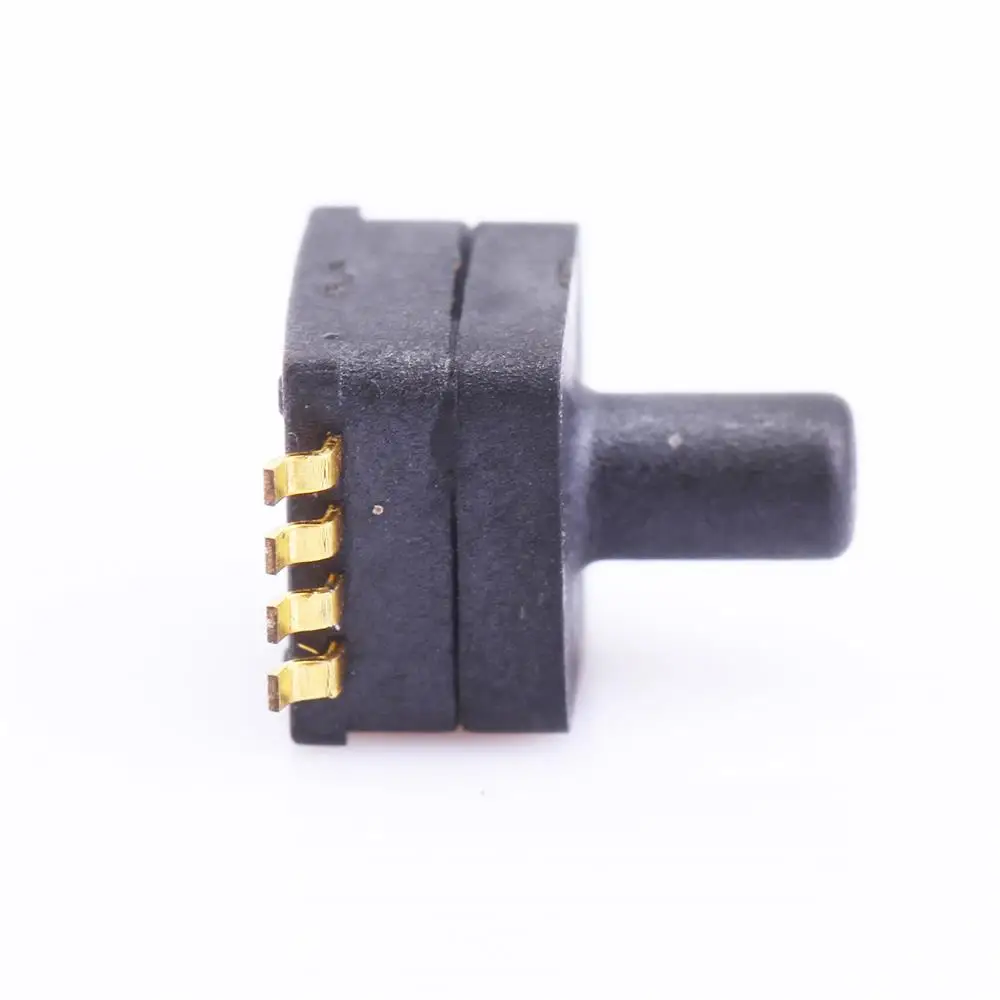

SMD 105PSI Absolute air Pressure Sensor for medical equipment
- Category: >>>
- Supplier: WuHu CFSensor Co. Ltd.
Share on (60820758077):
Product Overview
Description
Product Description
Feature
Ranges: 0~100kPa…1000kPa(0~15PSI…100PSI)
MEMS Technology
Absolute
SMD package
For non-corrosive gas or dry air
Working temp.: -10℃~+100℃(-14℉~+212℉)
Easy to use and embed in OEM equipment
Application
For Small household appliances field, such as electric cooker,milk machine,purifier,coffee machine etc,medical instruments and device.
For Automotive electronics field, such as tire pressure gauge,MAP sensor etc.
For Other fields, such as massage appliance,air spring and air bed,animals blooding pressure equipment,gastrointestinal medical device etc.
Introduction
XGZP180 is a piezoresistive pressure sensor that was designed for extremely space sensitive application where the sensing element is to be integral to the OEM products. The core is a silicon piezoresistive pressure sensing die that is designed and fabricated by MEMS technology. The pressure sensing die is composed of a springy diaphragm and four resistors integrated in the diaphragm. Four piezo-resistors build up a Wheatstone bridge structure. When the springy diaphragm is pressured, Wheatstone bridge produces a linear voltage signal(mV) that is proportional to input pressure.
With standard SOP8 package, It is easy for users to install by surface mounting or welding.
With good repeatability, linearity, stability and sensibility, XGZP180 is very facile for users to calibrate output, thermal drift and make temperature compensation by using exterior operational amplifier or integrated circuit.
Although there is a layer gel covering the chip,this design is intended for non-corrosive gases and is not recommended for liquid for very long application.
Performance Parameter
Unless otherwise specified, measurements were taken with a supply voltage of 5 Vdc at
a temperature of 25±1℃ and humidity ranging from 25%~85%.
| Specicications | Min. | Typ. | Max. | Unit |
| Pressure Range1 | 100,350,700 | kPa | ||
15,52.5,105 | PSI | |||
1,3.5,7 | Bar | |||
| Ambient Temperature | -10/14 | +100/212 | ℃/℉ | |
| Storage Temperature | -40/-40 | +125/257 | ℃/℉ | |
| Bridge Resistance | 4 | 5 | 6 | KΩ |
| Offset/Zero Output | -30 | +30 | mV | |
| FS Output | 50 | 100 | 150 | mV |
Temp. Coefficient of Resistance | 1800 | 2400 | 3000 | ppm/℃ |
TCO(Temp. Coefficient of Offset) | -0.2 | 0.2 | %FS/℃ | |
TCS(Temp. Coefficient of Span) | -0.25 | -0.21 | -0.17 | %FS/℃ |
Non-linearity | -0.3 | 0.3 | %FS | |
Hysteresis | -0.3 | 0.3 | %FS | |
Annual Drift | -1.0 | 1.0 | %FS | |
| Repeatability | -0.3 | 0.3 | %FS | |
Note: Unless otherwise specified,measurements were taken on base of above testing condition. | ||||

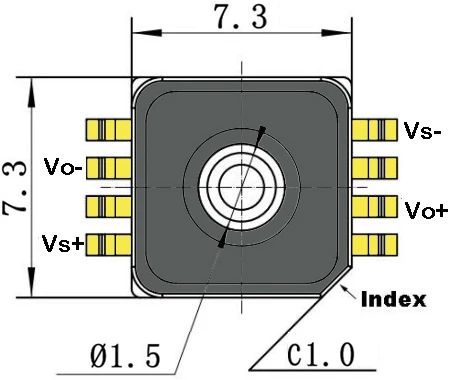

Dimension (Unit:mm/Inch)
Electric Connection
| Symbol | Vs+ | GND | vo+ | Vo- |
| Definition | Power+ | Power- | Output+ | Output- |
Order Guide
Notes
1.ESD protection required
2.Attention that the medium should be compatible with the pressure parts.
3.Please contact us if special request on parameter and application.
Warranty
CFSensor warrants its products against defects in material and workmanship for 12 months from the date of shipment. Products not subjected to misuse will be repaired or reploced. CFSensor reserves the right to make changes without further notice to any products herein. CFSensor makes no warranty, representation or guarantee regarding the suitability of its products for any particular application. CFSensor does not assume any liability arising out of the application or use of any product or circuit and specifically disclaims, and all liability, without limitation consequential or incidental damages. The foregoing warranties are exclusive and in lieu of all other warranties, whether written, oral, implied or statutory. No implied statutory warranty or merchant ability or fitness for particular purpose shall apply.
