Dual Battery Start relay 4 Pin Large Current 500A 12V 24VDC Car Power Switch,Starting Relay,Auto Start Contactor,Heavy current
- Category: >>>
- Supplier: Yueqing Taixin Electric Co. Ltd.
Share on (60820765251):
Product Overview
Description
1.Product attributes
Features:
- It help extend battery life.
- Universal 12V applications.
- Prevents primary battery discharge.
- Made of water resistant black phenolic plastic.
- The main function of this product is to switch on, it can be used alone, it can be also connected to control to use, but this product does not include additional control relay, and if the controller is connected, it mainly used in the dual battery.
Specifications:
Product series: auto relay
Contact load: high power
Contact switching current: 500A
Contact switching voltage: 7.8VDC
Contact form: transformation type
Rated current: 500A
Protective features: sealing type
Coil power: 12V DC, 24V DC
Weight: 235g
CONTACT DATA
| Contact material | AgSn0_27In_20_33 |
| Contact form | 1H(1A) |
| Contact Ratings | 500A |
| Contact Resistance | 100mMax at 6VDC 1 A |
| Max Switching Current | 500A |
| Max Switching Voltage | 14VDC |
| Max Switching Power | 500A |
| Life Expectancy Electrical | 100,000 Operations(at 30 Operations/minute) |
| Life Expectancy Mechanic | 10,000,000 Operations |
COIL SPECIFICATION
| Nominal Voltage (VDC) | Coil Resistance() | Max Operate Voltage (VDC) | Mix Release Voltage (VDC) | Max Applicable Voltage (VDC) |
| 12 | 16 | 8 | 1.2 | 14 |
| 9 |
CHARACTERISTICS:
| Temperature Range | -30~80° |
| Vibration Resistance | 10-55Hz,1.5mm |
Shock Resistance Operations Extremes Damage Limits | 50g |
| 100g | |
| Humidity | 40-85% |
| Insulation Resistance | 100mΩ min at 500vdc |
| Safety Standard | |
| Dielectric Strength Between Open Contacts | 2000VAC(for 1 minuter/s) |
| Between Contacts and coil | 1500VAC(for 1 minuter/s) |
| Operate Time | 50ms |
| Release Time | 50ms |

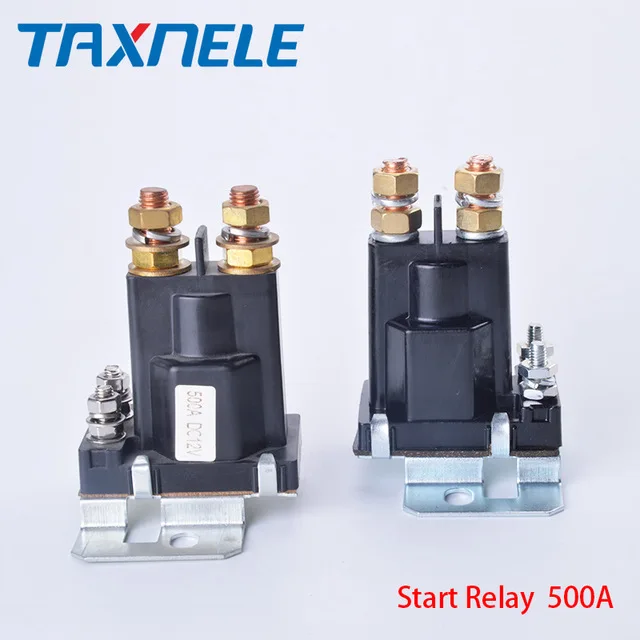

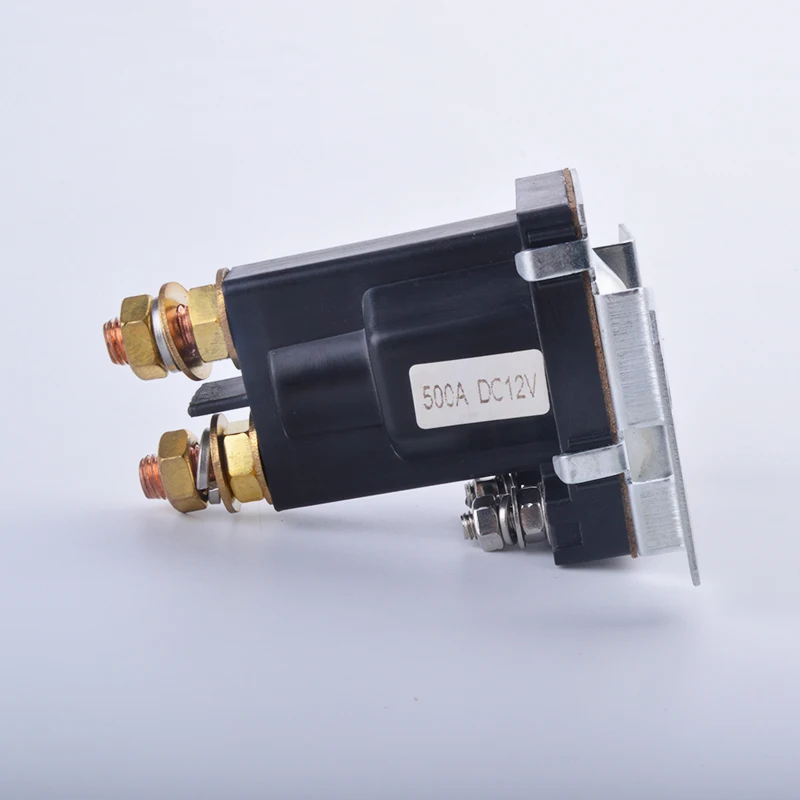

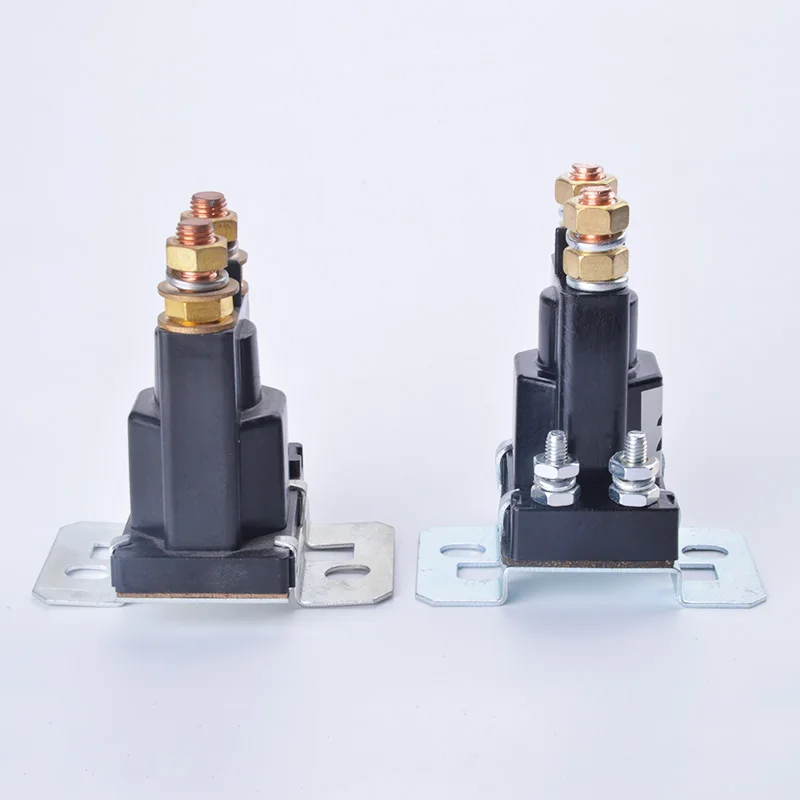

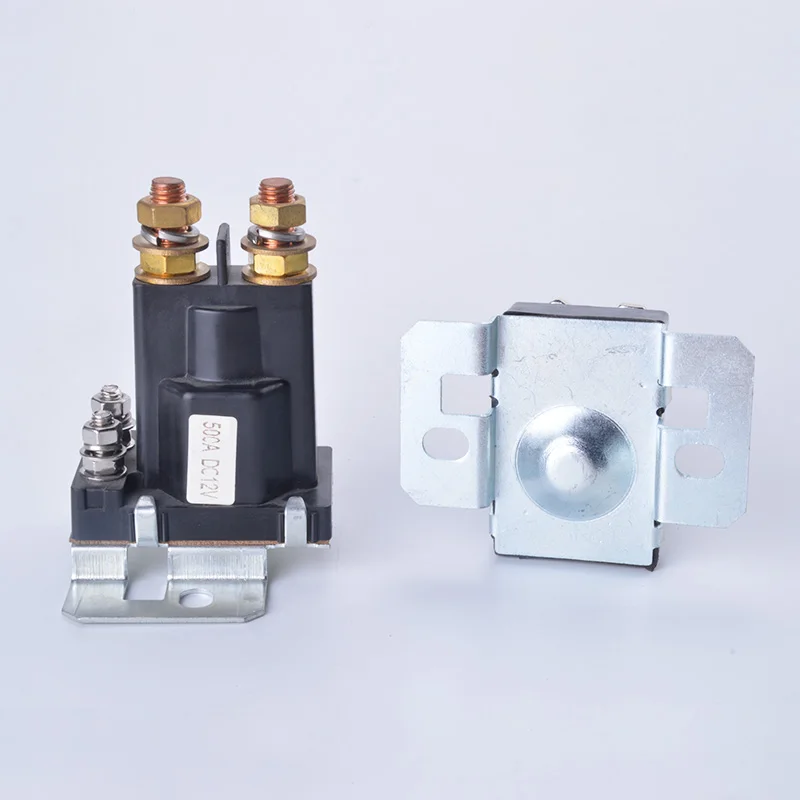

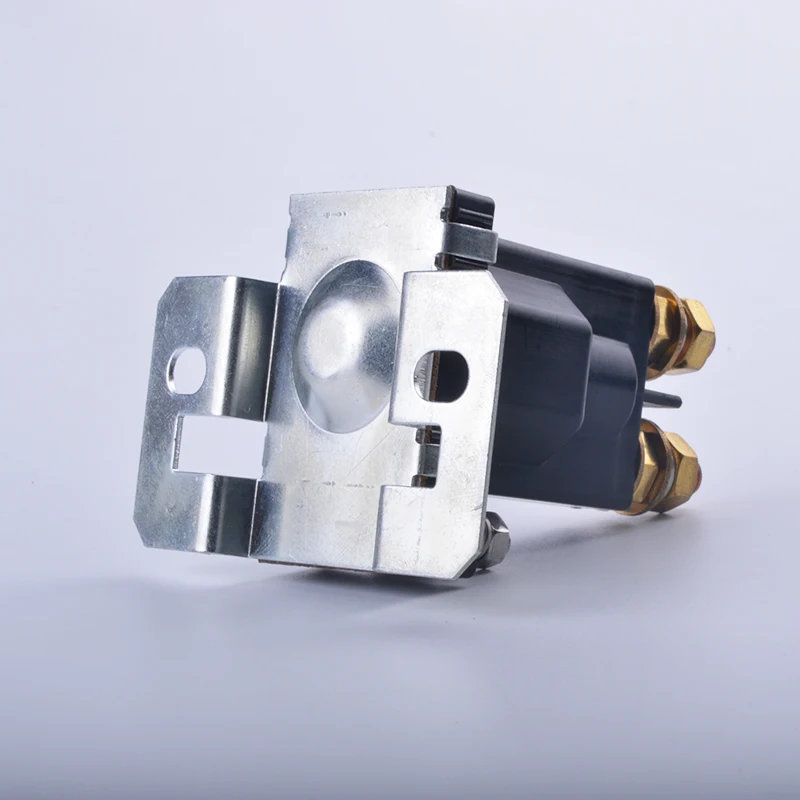

2.Product display
