Beer Can Filling And Sealing Machine Aluminum Can Filler Seamer Beer Can Filling Production Machine SHTGF30 6

Product Overview

Description

Welcome to>>Hangzhou Youngsun Intelligent Equipment Co., Ltd.

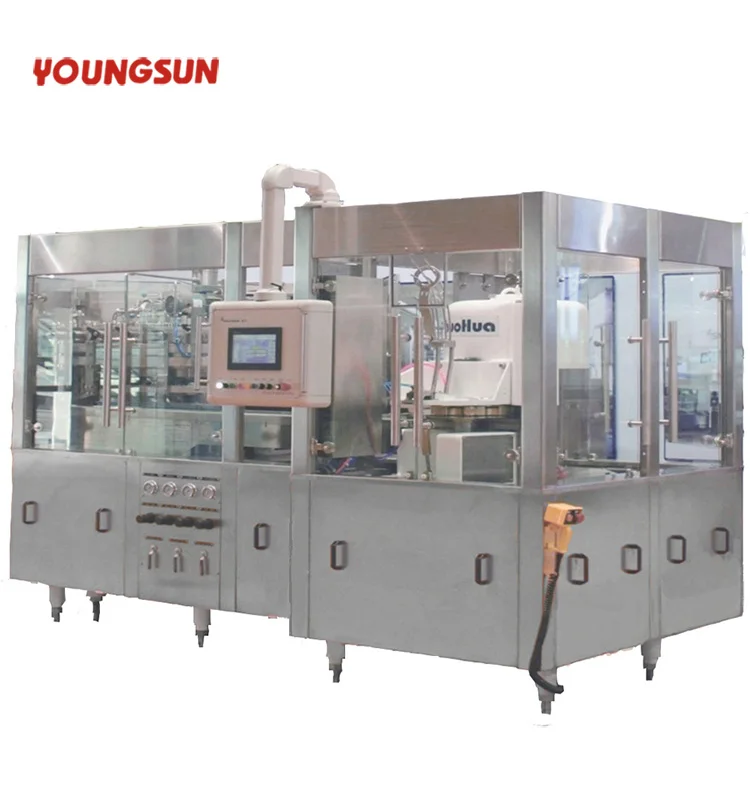

Beer Can Filling And Sealing Machine/Aluminum Can Filler Seamer Beer/Aluminum Can Filling Production MachineMachine Features:

The company introduces SHTGF30-6 cans filling and capping machine developed by European advanced technology. It adopts 30 filling valves and 6 capping heads. It is suitable for cans containing gas or non-gas beverages and beer. It is very stable under high speed production. The maximum production capacity can reach 20,000 cans / hour. It is our flagship product and is very popular among users.



Main parameter:

Items	Description	Techinical Spcitication
Capacity	300 cans/minute	330m
	270 cans/ minute	500ml
Machine efficciency	≥100%
Cans types changing time	about 30 minutes
Cans in/out direction	360°
Filling valve	30
Filling temperature	2-4°C
C02 content	5g/L
Filling pressure(C02)	0. 15~0. 3Mpa





Filler Characteristic SHTGF30-6:

Filling method	Isobar filling
Filling valve diameter	1560
Pitch of filing valve	163.36mm
Height of can transport	1150-1250mm
Oxygen pickup	≤20ppb
Bearing brand	SKF dan NSK
Seam parts brand	Sealtech
Pneumatic Components	FESTO/SMC
Reducer	Ting
Lubrication system	Centralized lubricatio
Dimension (WxH)	2521X 2450mn
Cans types	330ml, 500ml
Can height	85mm—205mm
Machine weight	4400 KG



 Capper Characteristic SHTGF30-6:

Seaming head	6	6000CPM Capacity
Cap size	59.52±0.25
Can diameter	66
Pitch of cap head	157mm
Material of cap roller	9Cr18Mov
Using time of cap roller	≥200 million cans
Materral of cap head	9Cr18
Usingle time of capping head	≥5000
Sealing loss	≤0.01%
Cap loss	≤0.03%
Bearing brand	SKF,NSK	Sweden
Seam parts brand	Sealtch	German
Pneumatic Components	FESTO
Cap storage	1500
Compressed loss	0.4Nm3h(0.4-0.5Mpa)
CO2 loss	5Nm3h(300CPM)/6Nm3h(400CPM)





Electric:

Total power(KW):7.5	Frequency converter:Siemens	Workingvoltage:AC 380v
Motor brand:SEW	HML:Siemens	Control electric box:ss
PLC:Simens	Controlvoltage:DC 24v

 Youngsun, be built in 1983, the famous trademark of China’s packaging industry, is a larger manufacturer of packaging equipment in China and a national high-tech enterprise integrating R&D, production, sales and services, with main businesses including various liquid filling, powder and granule packaging, universal packaging equipment, and external packaging materials, etc. It has been listed on the Shanghai Stock Exchange since May 29, 2015, with the Stock Code 603901. The output value of Youngsun group and the affiliated companies reach USD 600 million, and the output value of Youngsun headquarters reaches USD 300 million. We have already passed Moody international ISO9000 in 2002, approved CE in 2004. What's more, we established long term business with world-famous brands like Ferroro, Danone, Budweiser, Pepesi, P&G, Asiafoods etc. As a customized-products oriented company and enjoy high reputation in worldwide packing industry, we are still seeking for ever greater perfection. We offer: Case Erectors; Labeling Machine; Shrink Wrapper; Carton Sealer Strapping Machine; Strapping Tool; Palletizer; Wrapping Machine; Carton Packer; Packing Line; PP/PET Straps; Stretch Film/Shrink Film; Conveyor; Cartoning Machine; Robot……and customized packing machines. We are in a good position not only to supply you high quality machinery, but also the excellent after sales service. Well-trained engineers will offer you any technical support. I think we can find opportunity to cooperate as we have the same goal: providing superior quality products and services that consistently exceed our customers' expectations.





Strapping machine	Carton sealer	pallet wrapping m/c	Vacuum machine
Shrink wrapper	Case erector	Robot	Labeling machine
Cartoning machine	Carton packer	Filling and sealing machine	PP straps



Any of your kind inquiry would be replied within 12 hours.
Well-trained and experienced sales staffs will reply all your concerns in fluent English.
OEM services are available with us, our professional designer would make your private idea into being.



Protection of your sales area, ideas of design and all your private information.
Delivery by air mail or ship for your orders.
With years of manufacture and promotion experience in global market, brings you profit and great success!

1. Are you manufacturer or trade Company?
We are a factory founded in 1983 with trade team for international service.



2. What terms of payment you usually use?
T/T 30% deposit and 70% against document, Western Union, L/C at sight



3. What is your lead time for your goods?

Normally 45 days after confirmed order. 30 days could be available in low season for some items (during May to July), and 65 days during new year and hot season ( Jan to March).



4. Do you have any instant chat ?
Skype: lzxwlh
Whats app: 008613989816698

Best wishes!



Welcome to>>Hangzhou Youngsun Intelligent Equipment Co., Ltd.
