IHA9040 35mm 40mm Hollow Through Shaft Optical Elevator Motor Rotary Encoder Price 1024/2048/2500PPR 5Vdc/12V/24V (IBEST)

Product Overview

Description

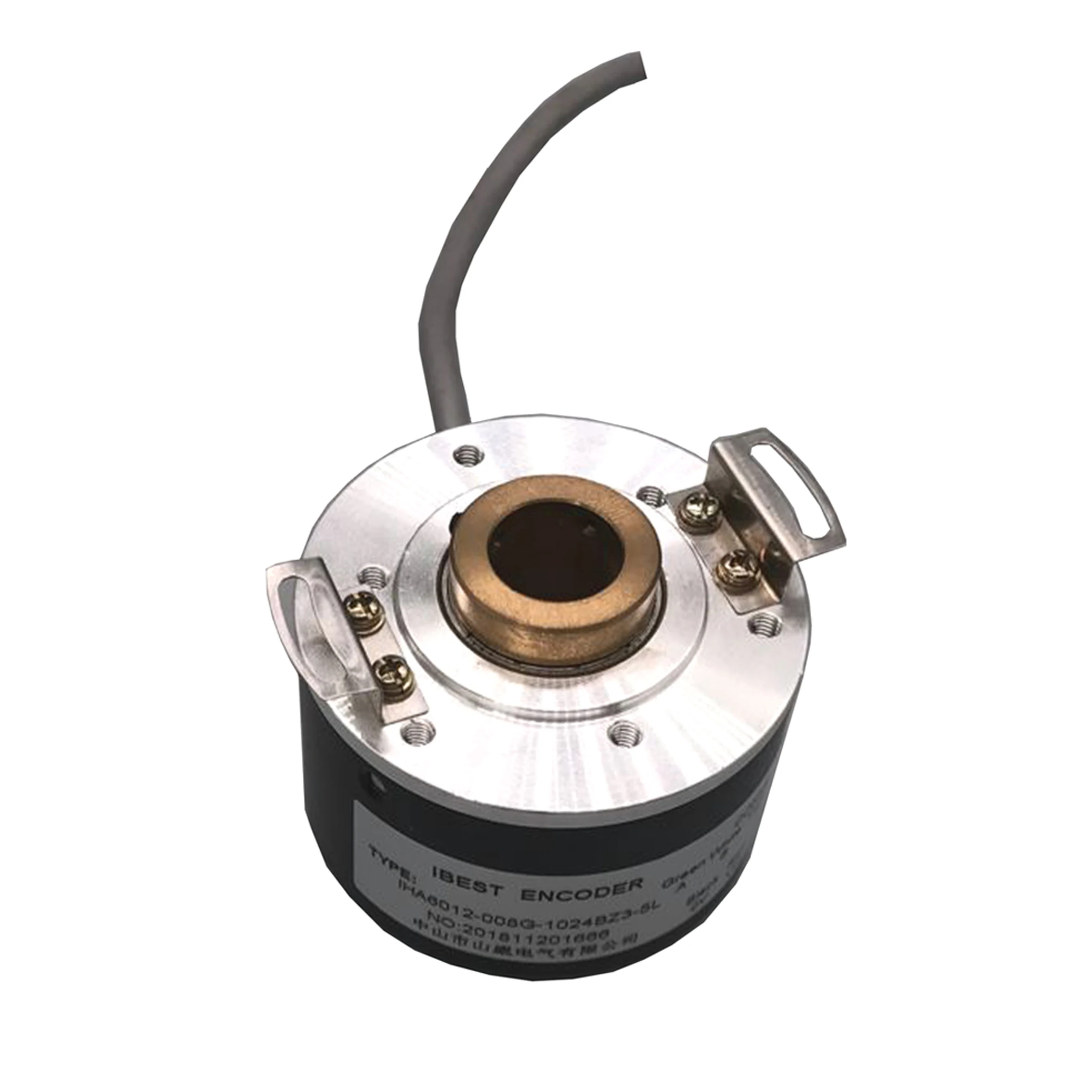

IHA9040 Hollow Shaft Optical Elevator Motor Rotary Encoder

32mm/35mm/40mm Hollow Shaft



1. Features :

-  Outside dimension: 90mm.
-  Hollow through shaft: 32mm or 35mm or 40 mm.
-  No. Of pulse per revolution: 100, 200, 500, 1000, 1024, 1200, 1800,2000, 2048,2500 PPR Or 3600PPR...Etc.
-  DC 5V, DC 12~24V, DC 5-24V.

-  Output: NPN or PNP open collector, Push Pull, Voltage output, DC5V linedriver output, DC12-24V TTL output.

-  With 1M cable, or with Socket and plug in cable connector.

-  Suitable for operating conditions with heavy load., mainly used for industrial automatization.
-  Excellent dynamic characteristic, convenient installation reliable.

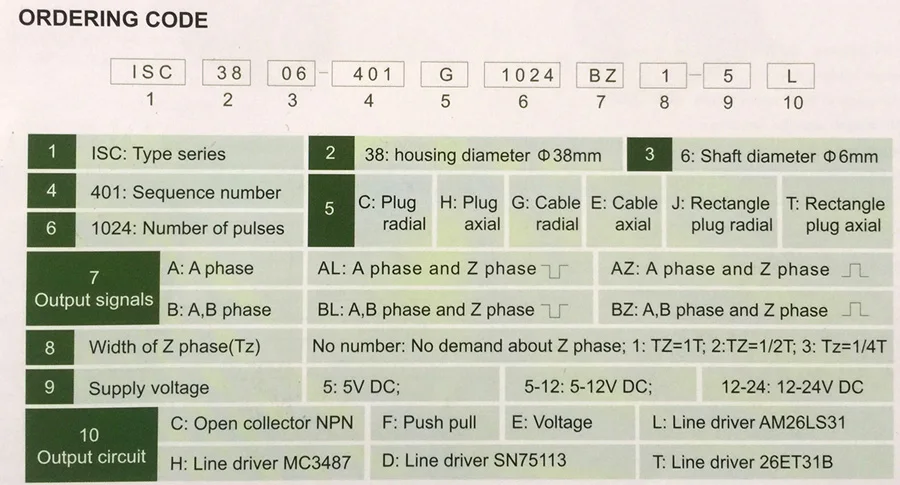

 2.Item Numbers:

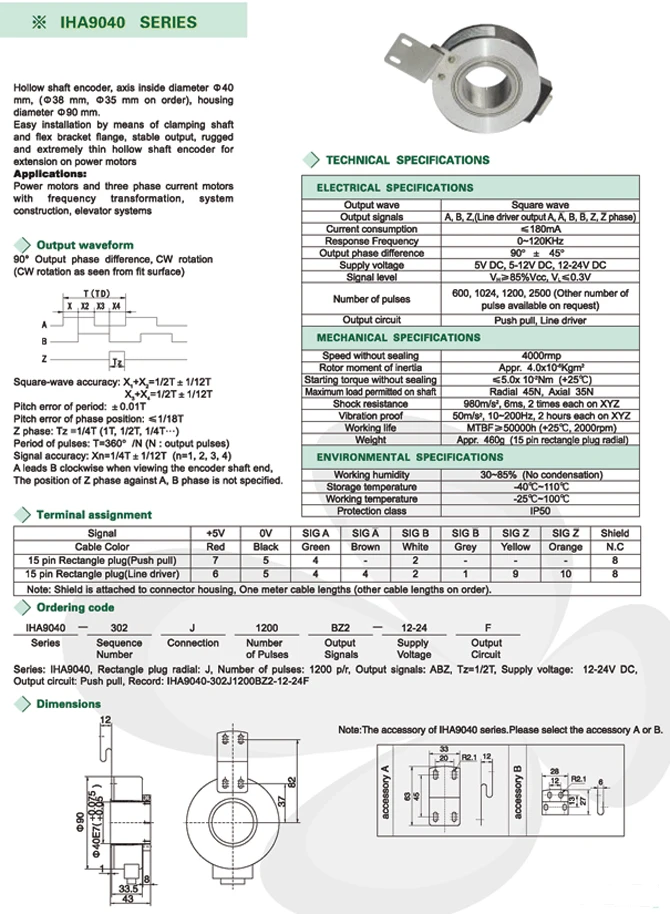

3. Technical Specification, Wiring & Size of Encoder:

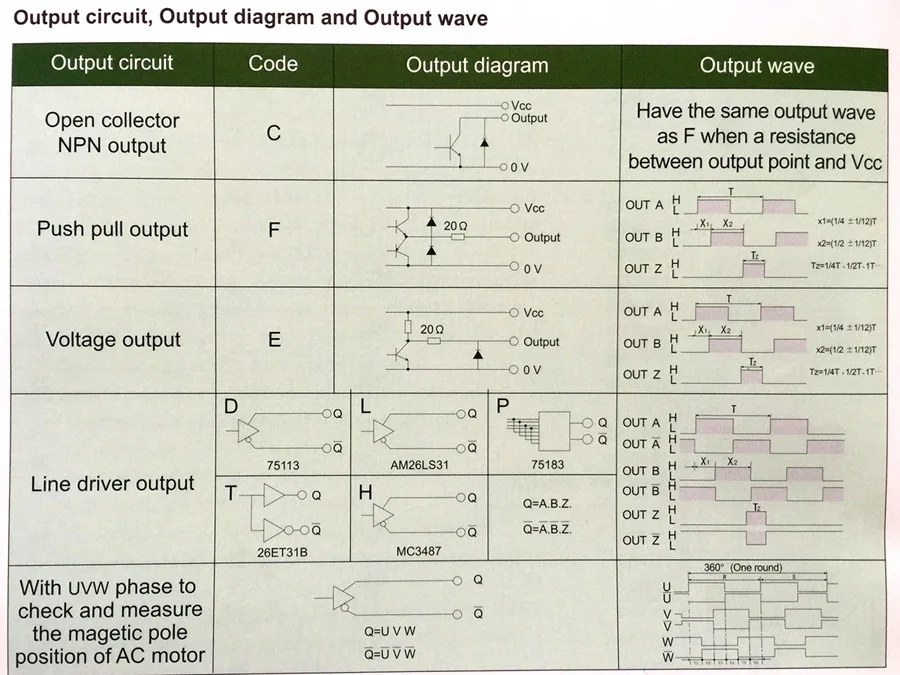

4. Output Diagram & Wave:
