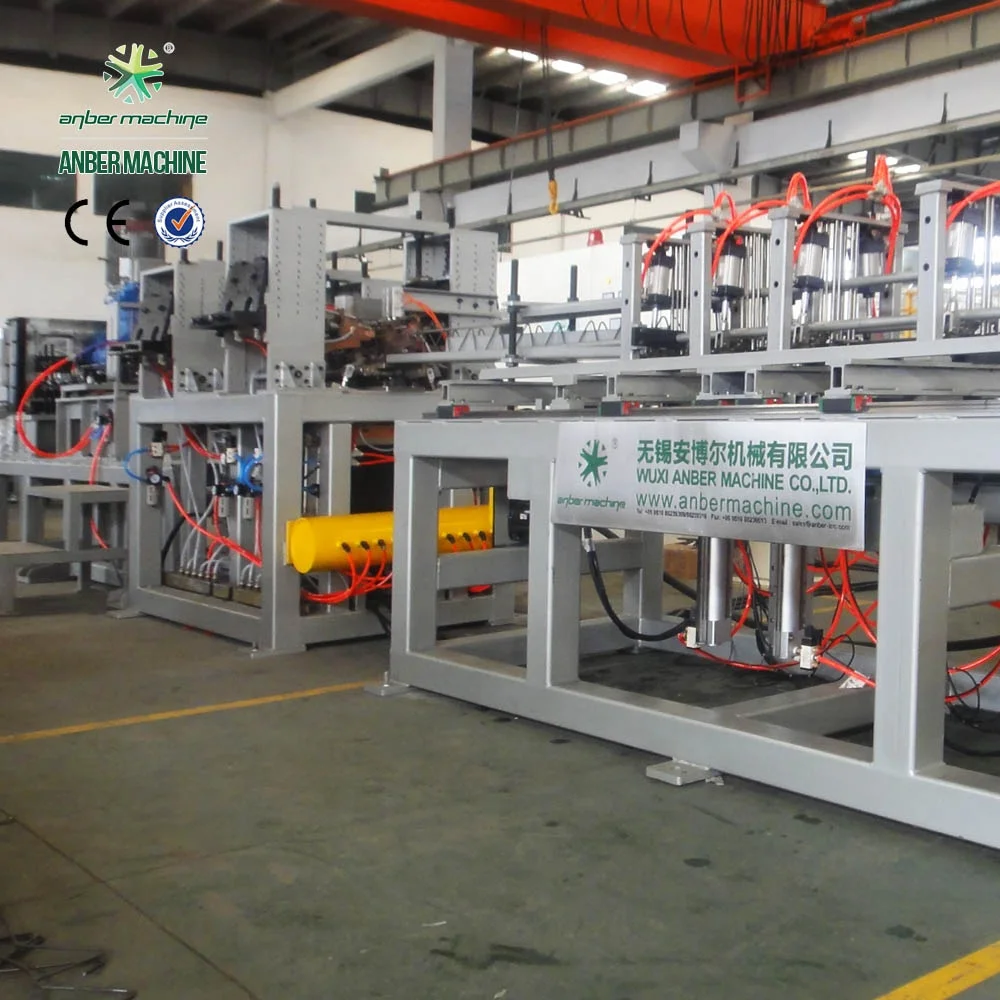

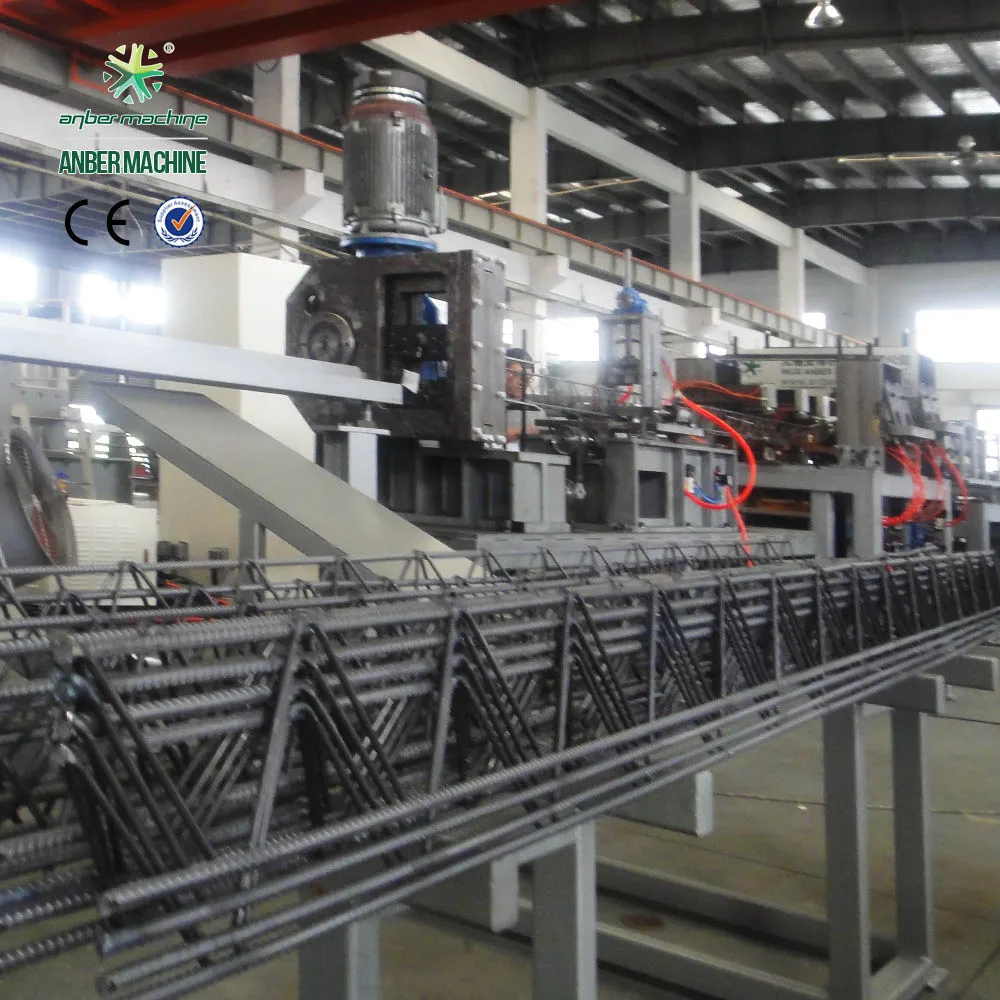

3D truss girder welding machine, also named lattice girder welding line, the Lattice girder welding machines produce standard lattice girders, thrust girders and wall girders.
Machine composition:
The Triangular-lattice-girders are made from high tensile reinforcing bar, Lattice Girders being with a typical design comprising of one top bar (8-16mm), two bottom bars (8-12mm) and inclined ‘zigzag’ bars (8mm). The Lattice girders are made to your specification so we can accommodate virtually any height, width and length.
The Lattice girder welding machines produce standard lattice girders, thrust girders and wall girders.
Lattice girder applications: Often used in permanent precast concrete formwork to in-situ slabs, lattice girders provide rigidity to the unit and acts as a mechanical fixing between the precast formwork and the in-situ concrete.
Layout plan:Line wire pay-off → Line wire straightening unit → rod bending unit → welding system → cutting system → truss girder collector

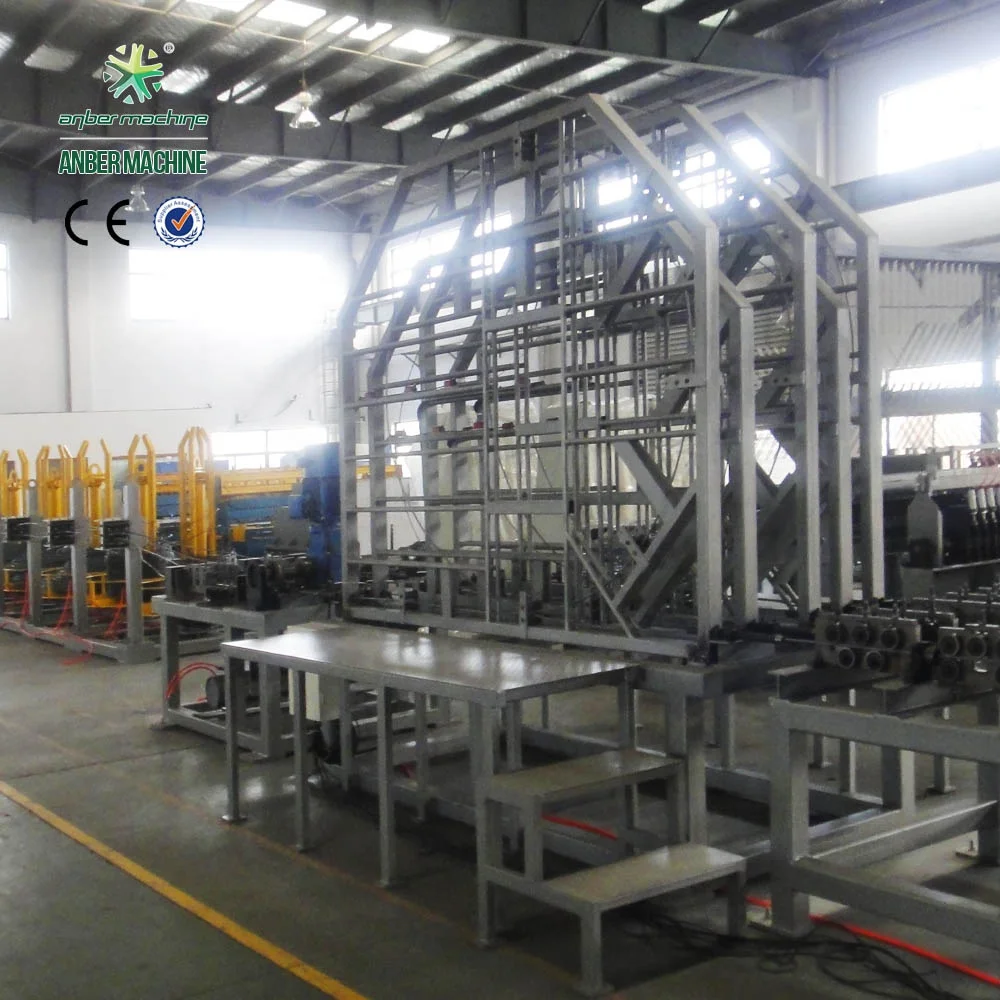

1). Line wire pay-off: Max. Capacity: 1500Kg for each set.
2). Line wire straightening unit
Each set can be controlled separately.
Emergency stop switch, keep personnel and equipment away from damage.

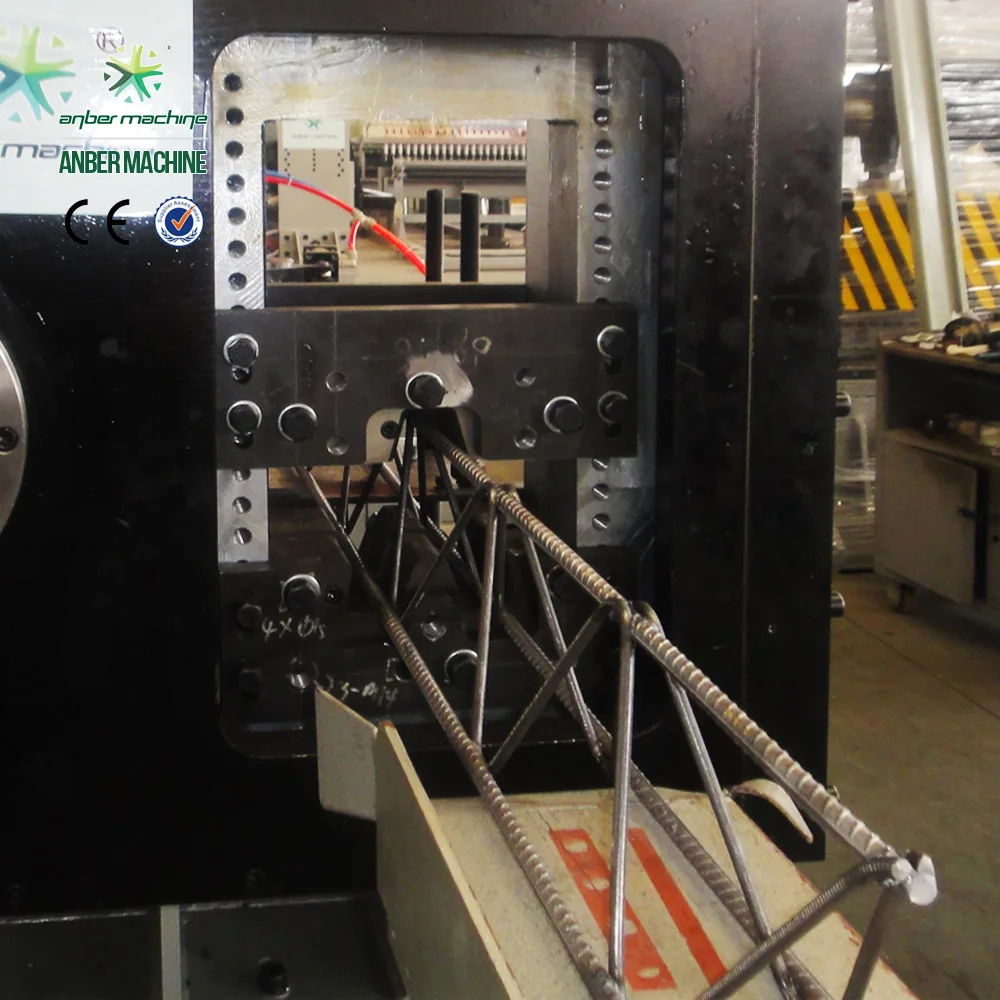

3). Inclined beading bending & molding structure: the height of the truss bridge is adjustable

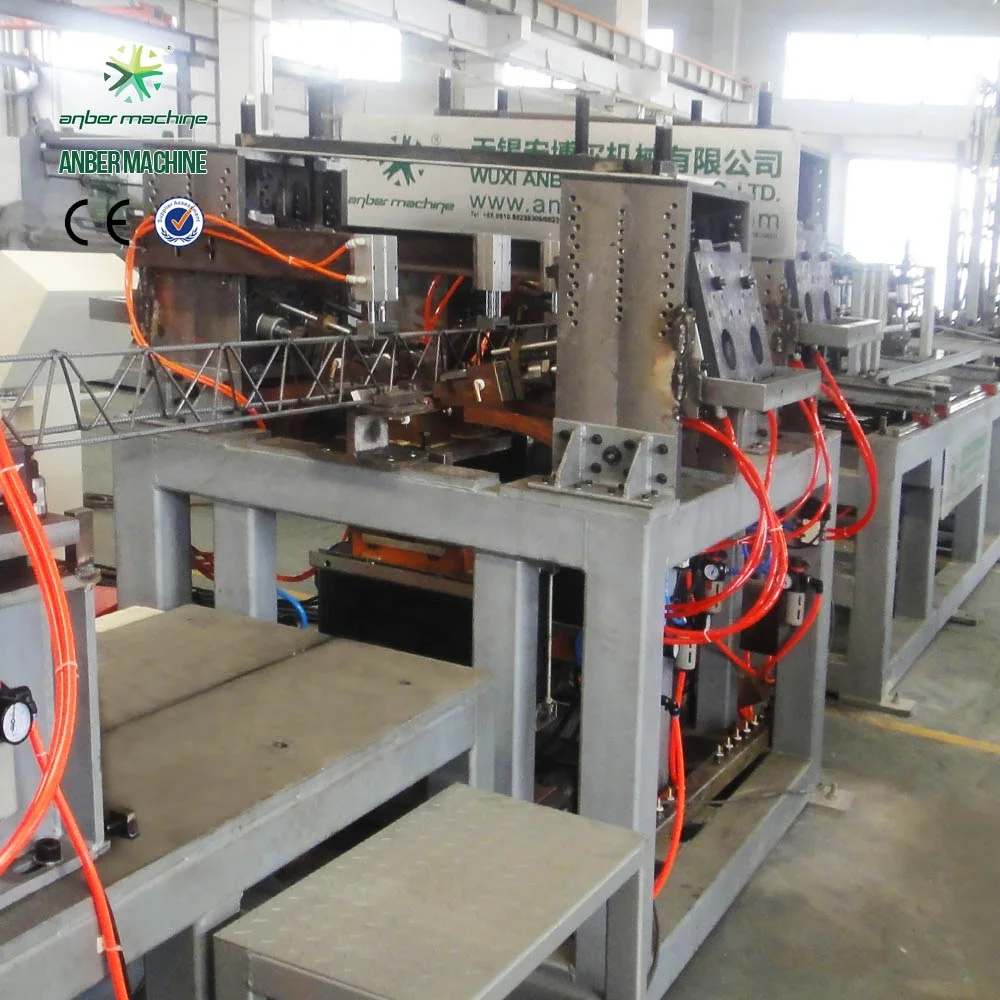

4). Welding system

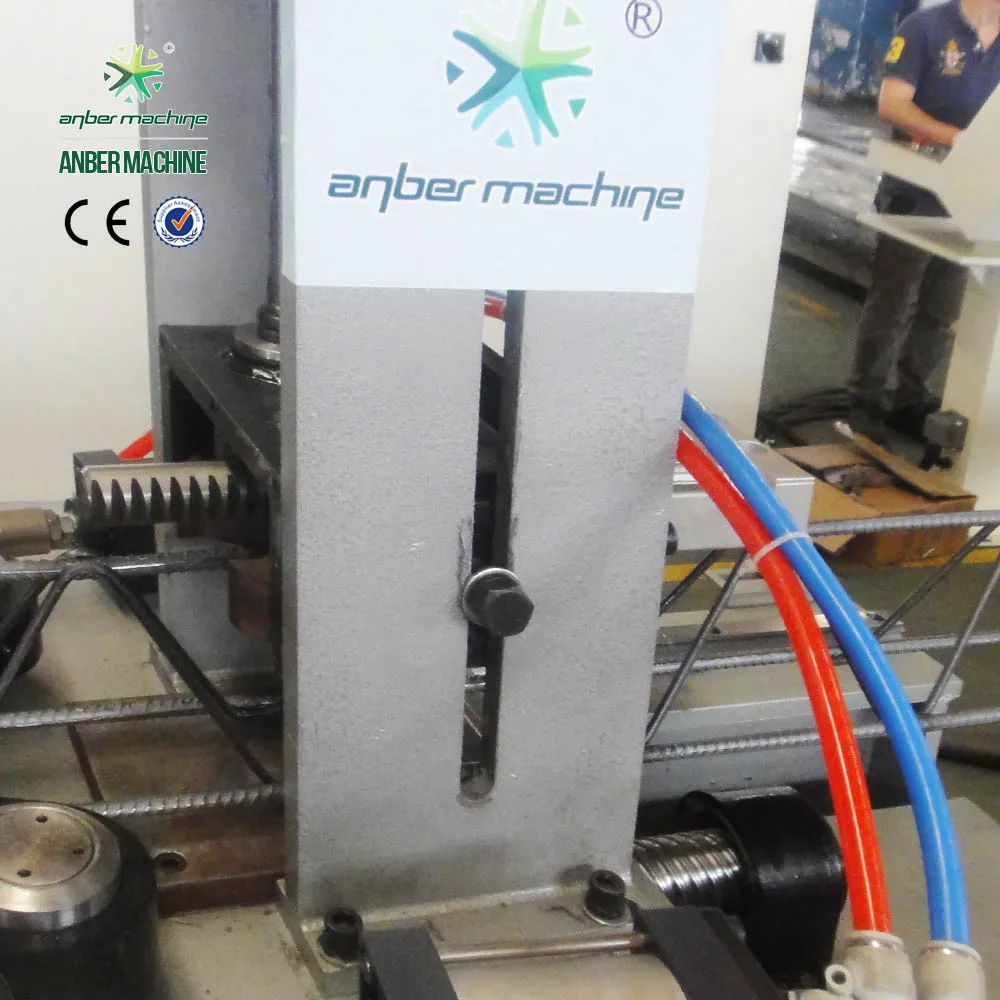

Set on the top and bottom side, motor control, adjusting the height of the truss bridge
Adopting Pneumatic control system
5). Truss bridge cutting: Auto cutting in-phase, high efficiency
6). Material receiving system: Automatic material receiving & stacking system, chain type driving
7). Control system
² PLC control
² Electronical Component (Siemens brand)
² Set jointing control centre, fault a ming function
² All jointing data can be set and adjust facility
² including electronic control cabinet, operation platform.
