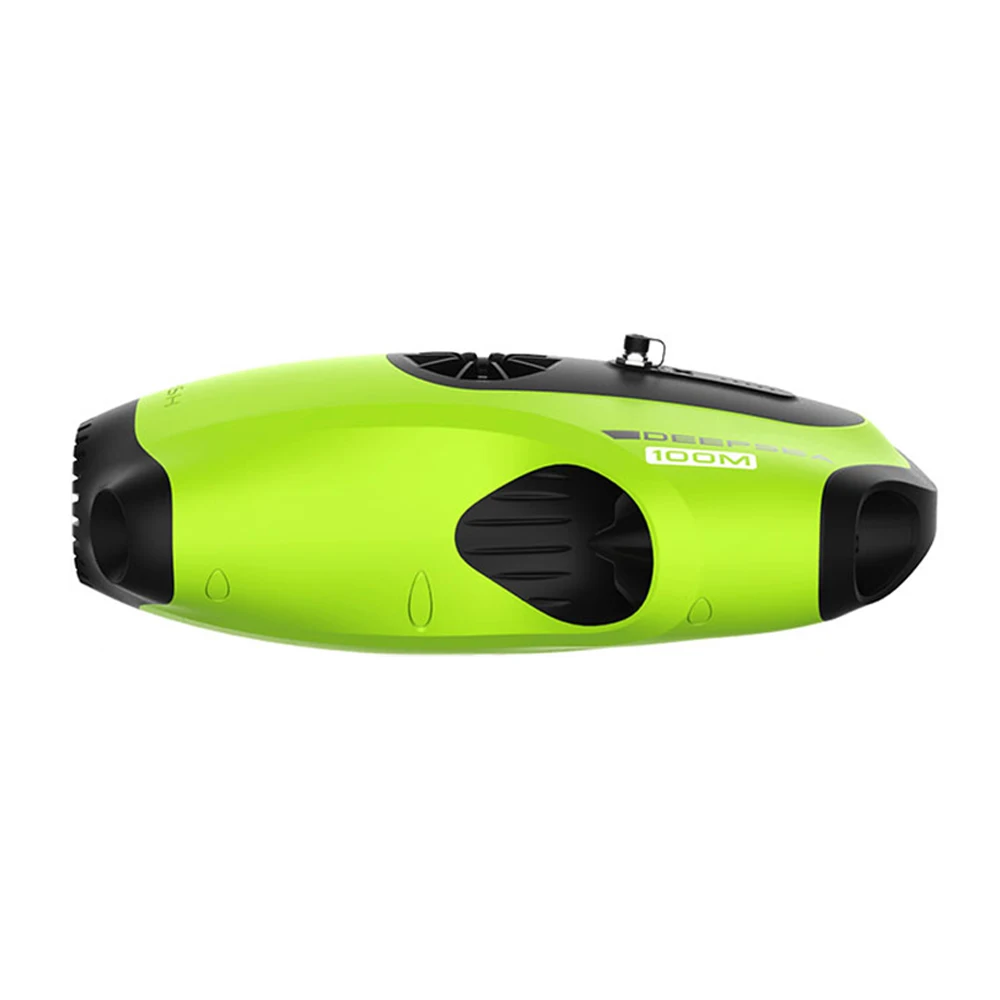

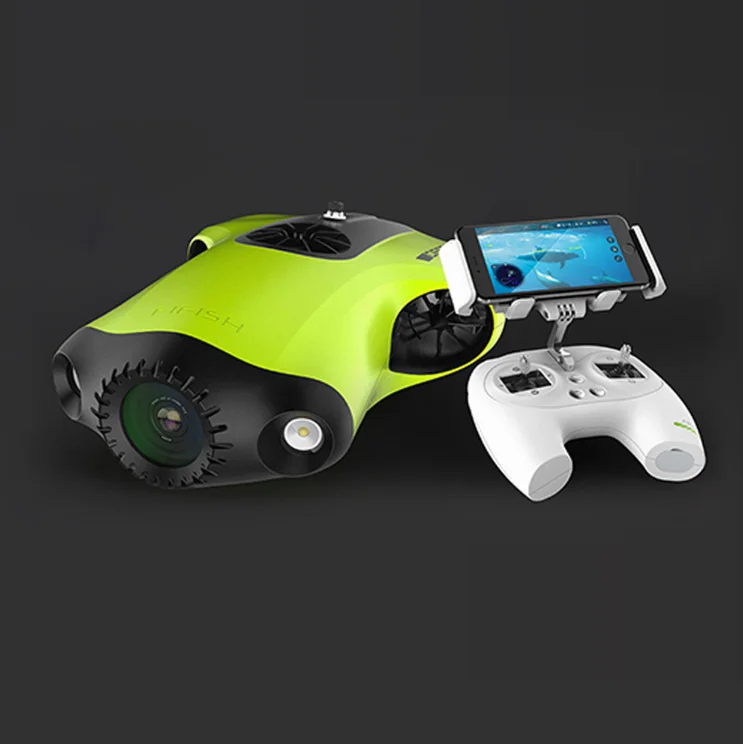

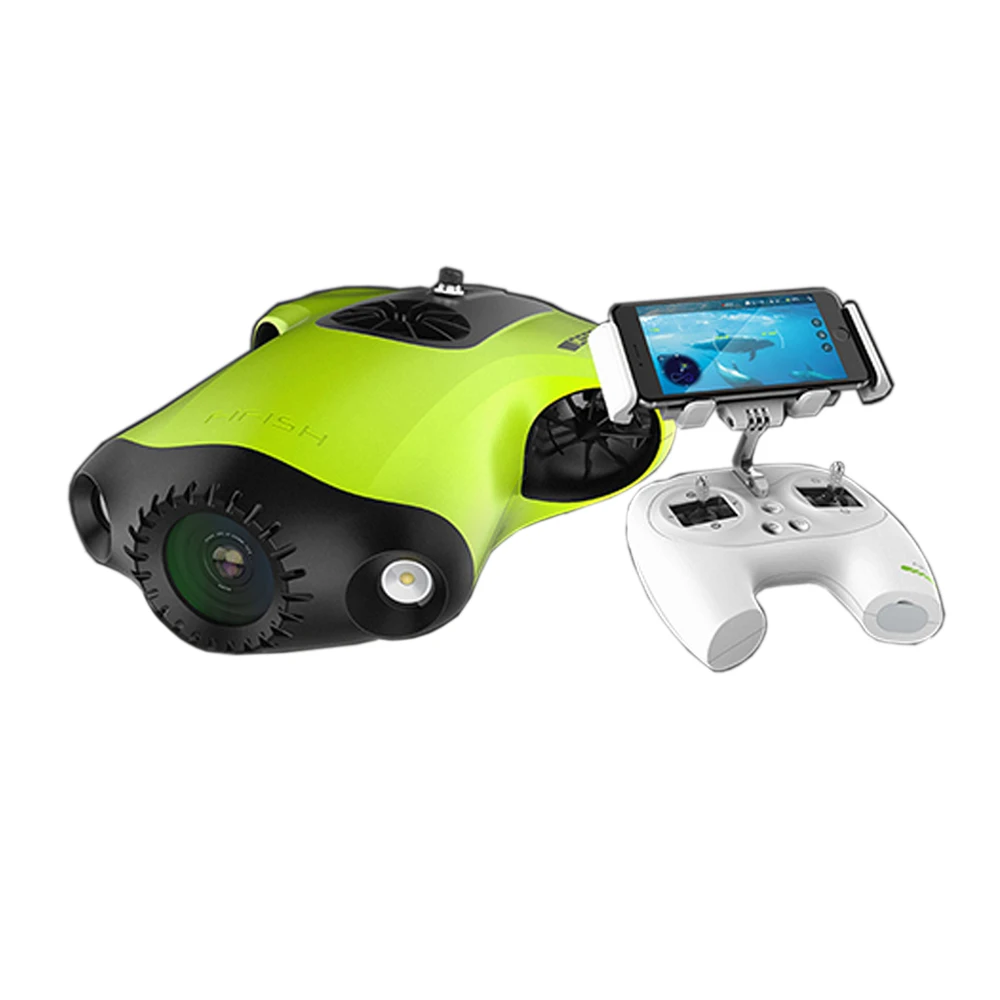

Underwater rov underwater camera submarine drone camera for drone

Product size: 492 mm × 337 mm × 174 mm
Product weight: 5.85 kg
Maximum depth: 100 m
Maximum speed (forward direction): 3 knots (1.5 m/s)
Propeller layout: 3 thrusters (2 horizontal, 1 vertical)
Underwater depth accuracy: ± 5 cm
9-axis sensor accuracy: ± 0.1°
Operating temperature range: - 10 to 60 °C
Battery capacity: 87.48 Wh (10.8 V 8100 mAh)
Use time: 4.5 hours
Charging time: 3.5 hours


Camera parameter
Field of view angle: 162 ° (in the air)
Aperture: f/2.8
Lens size: 1 inch


Image sensor
13.3 mm × 8.8 mm (1 inch) Sony CMOS
The effective number of pixels is about 20.48 million
Focus mode
Fixed focus (macro focus, regular focus)
Image size
20M: 6144 × 3456 16:9
8M: 3840 × 2160 16:9
Video quality
4K 3840 × 2160, 25 fps / 30 fps
FHD 1920 × 1080, 25 fps / 30 fps
HD 1280 × 720, 25 fps / 30 fps


ISO sensitivity
100 to 12800
100 to 3200 (default setting)


Shutter speed:

1/100 to 1/5000 (default setting)

1/10 to 1/5000 (manual setting)
Memory card: 32G/64G optional


Auxiliary lighting
Brightness: 2000 lumens × 2
Gear control: 8 files
Beam angle: 120°
Color temperature: 5500K


remote control
Frequency band: 2.4 to 2.4835 GHz
Maximum bandwidth: 300 Mbps
Use time: 5 hours
Charging time: 3.5 hours


Zero buoyancy cable
Optional specifications: 100 m, 200 m
Breaking strength: 80 kgf


Power Adapter
Host
Input: 90 ~ 264 V (AC)
Output: 14.25 ~ 15.75 V / 3A (DC)


remote control\t
Input: 90 ~ 264 V (AC)
Output: 4.75 ~ 5.25 V / 3A (DC)

Left

Right

Front

Rear
