Mining Stone Industry Ceramic Industry Membrane Filter Press Plate
US $20.00-$80.00
wastewater treatment belt filter press for sludge dewatering machine
- Category: Filter Press Equipment >>>
- Supplier: Shandong,Xuridong,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

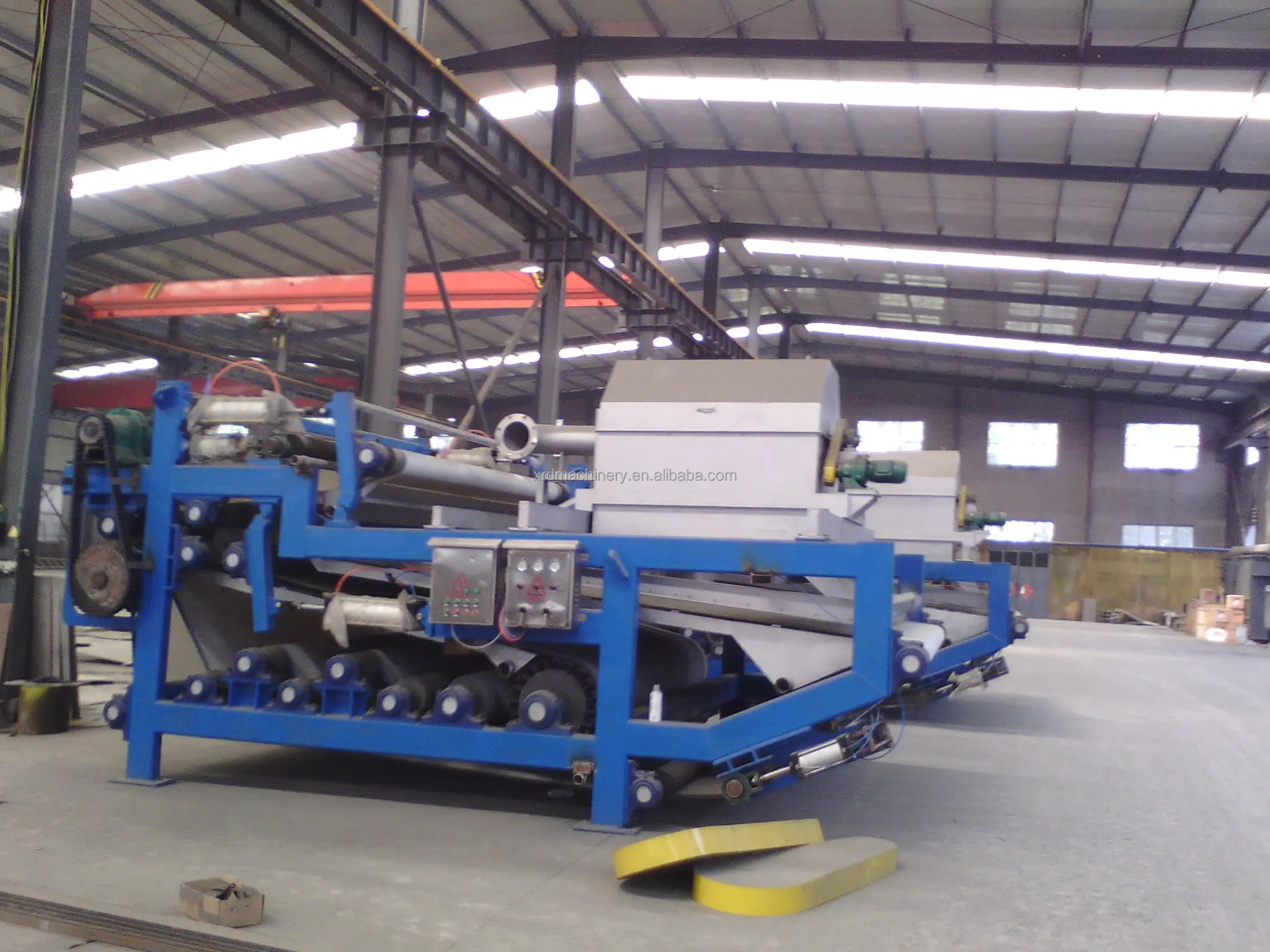

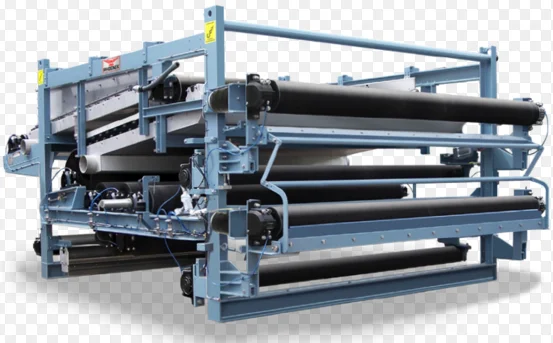

Mechanical wood recycled paper pulp de-watering double belt type filter press machine
ZDYA series belt (type) filter press is a kind of dewatering machine developed on the basis of advanced technology.
There are two belts to squeezer the paper pulp or sludge to remove the extra moisture. The feeding consistency is 3-8%, and the outlet consistency is 20-30%. The machine can remove 30-40% water content.
There are two belts to squeezer the paper pulp or sludge to remove the extra moisture. The feeding consistency is 3-8%, and the outlet consistency is 20-30%. The machine can remove 30-40% water content.
If the feeding consistency is 1-3%, there is a pre-dewatering system, and can get the same outlet consistency.
It is also applicable for treatment of thickener concentration and black liquor extraction， including municipal sewage, textile printing and dyeing, electroplating, paper making, leather, brewing, food processing, coal washing, petrochemical, chemical, metallurgical, pharmaceutical, ceramic and other industries sludge dewatering treatment.
It is also applicable for treatment of thickener concentration and black liquor extraction， including municipal sewage, textile printing and dyeing, electroplating, paper making, leather, brewing, food processing, coal washing, petrochemical, chemical, metallurgical, pharmaceutical, ceramic and other industries sludge dewatering treatment.
Features
01.Long gravity dewatering area with strong treating capacity, heavy load capacity, low energy consumption and low cost.
02. Unique tilt and long wedge area ensures stable performance.

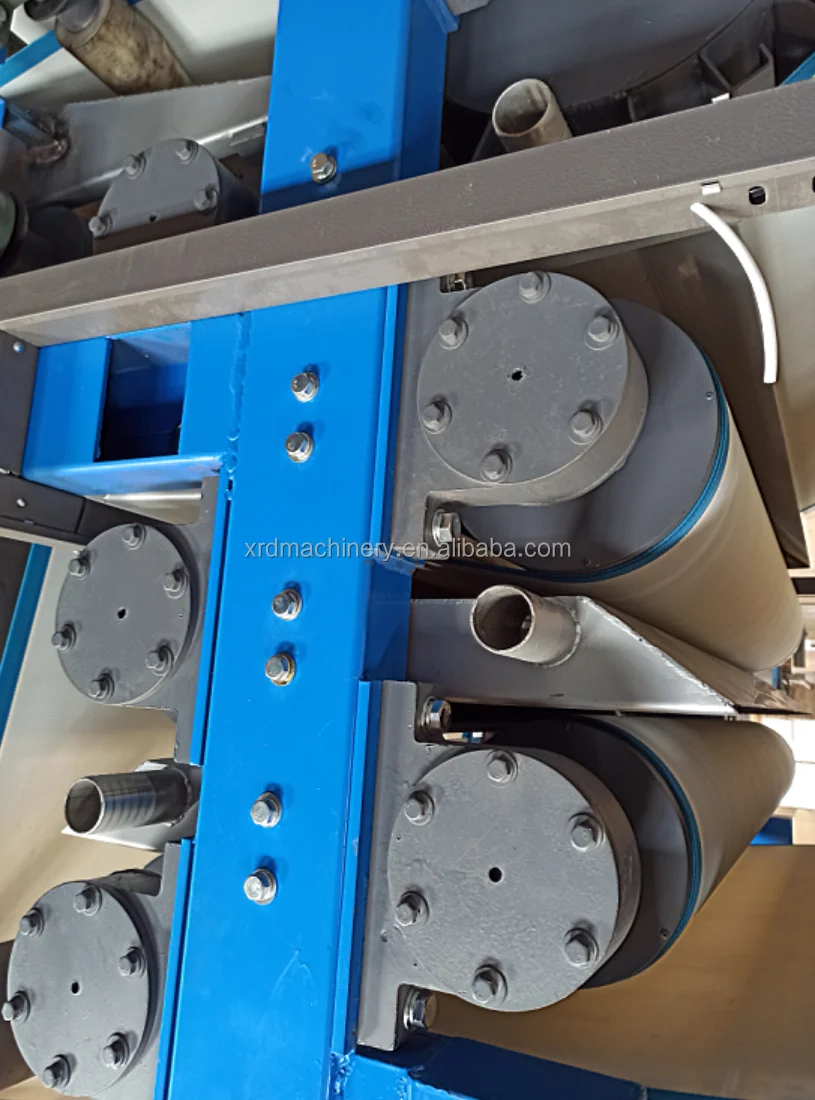

03.Multi-roller decreasing diameter is compact in configuration and improves solid-content of filter cake.
04.New auto-adjusting and tilting system greatly improves life time of filter belt.
5.Adopts two independent backwash systems.
02. Unique tilt and long wedge area ensures stable performance.
03.Multi-roller decreasing diameter is compact in configuration and improves solid-content of filter cake.
04.New auto-adjusting and tilting system greatly improves life time of filter belt.
5.Adopts two independent backwash systems.
Technical parameter
Model | ZDYA-II-500 | ZDYA-II-1000 | ZDYA-II-1500 | ZDYA-II-2000 | ZDYA-II-2500 | ZDYA-II-3000 |
Power of motor (Kw) | 1.1 | 2.2 | 3 | 3 | 4 | 5.5 |
Power of Air compressor (Kw) | 1.5 | 2.2 | 3 | 3 | 5 | 5.5 |
Belt width (mm) | 500 | 1000 | 1500 | 2000 | 2500 | 3000 |
Throughput(m3/h) | 0.5-3.0 | 3-6.5 | 4-9.5 | 5-13 | 7-16 | 8-20 |
Length (mm) | 4290 | 4790 | 4790 | 4790 | 5300 | 5300 |
Width (mm) | 900 | 1400 | 1900 | 2400 | 2900 | 3400 |
Height (mm) | 1840 | 2040 | 2040 | 2040 | 2250 | 2250 |
Detailed Images

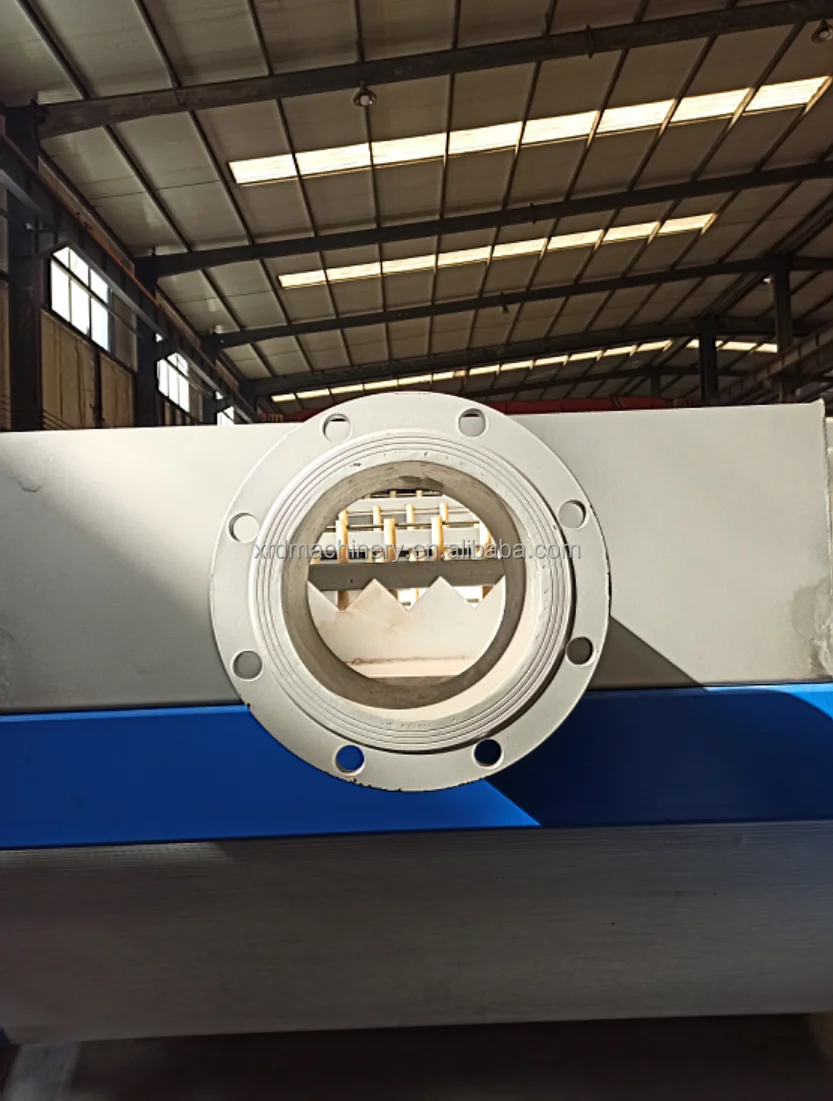

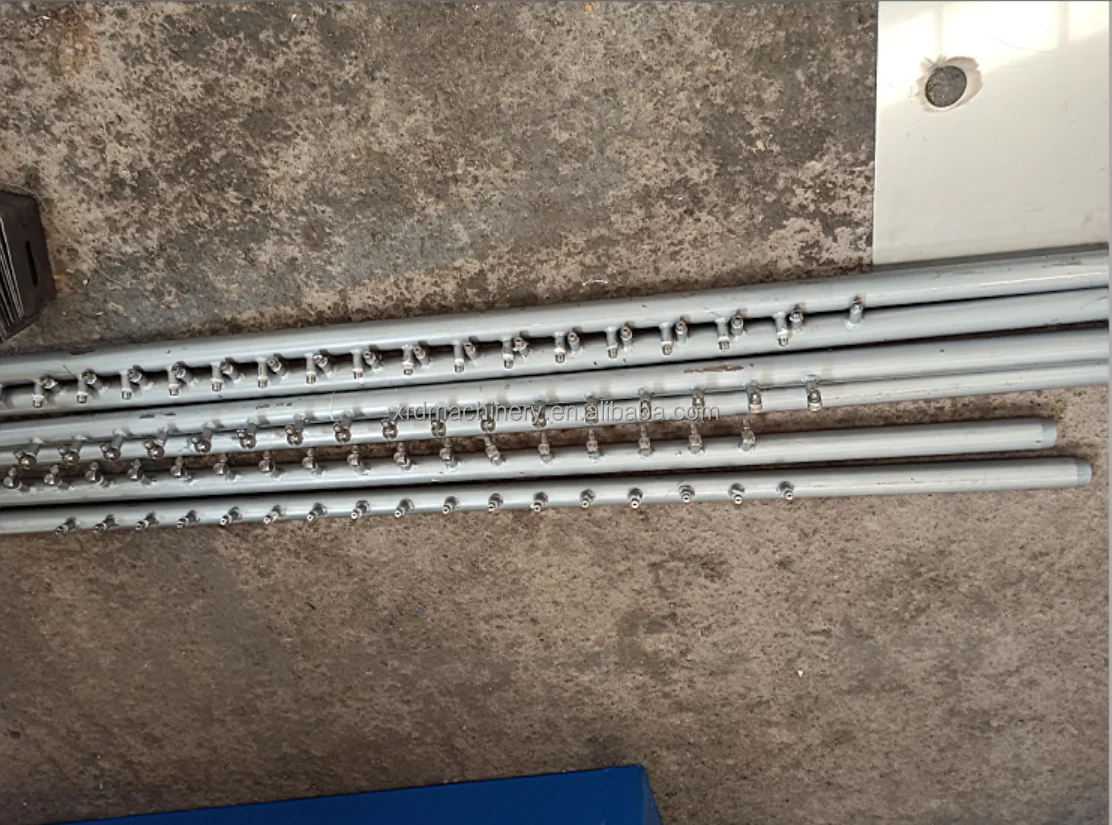

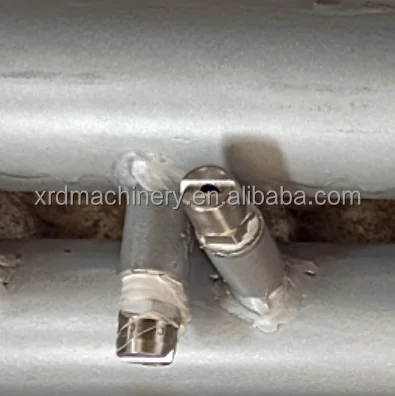

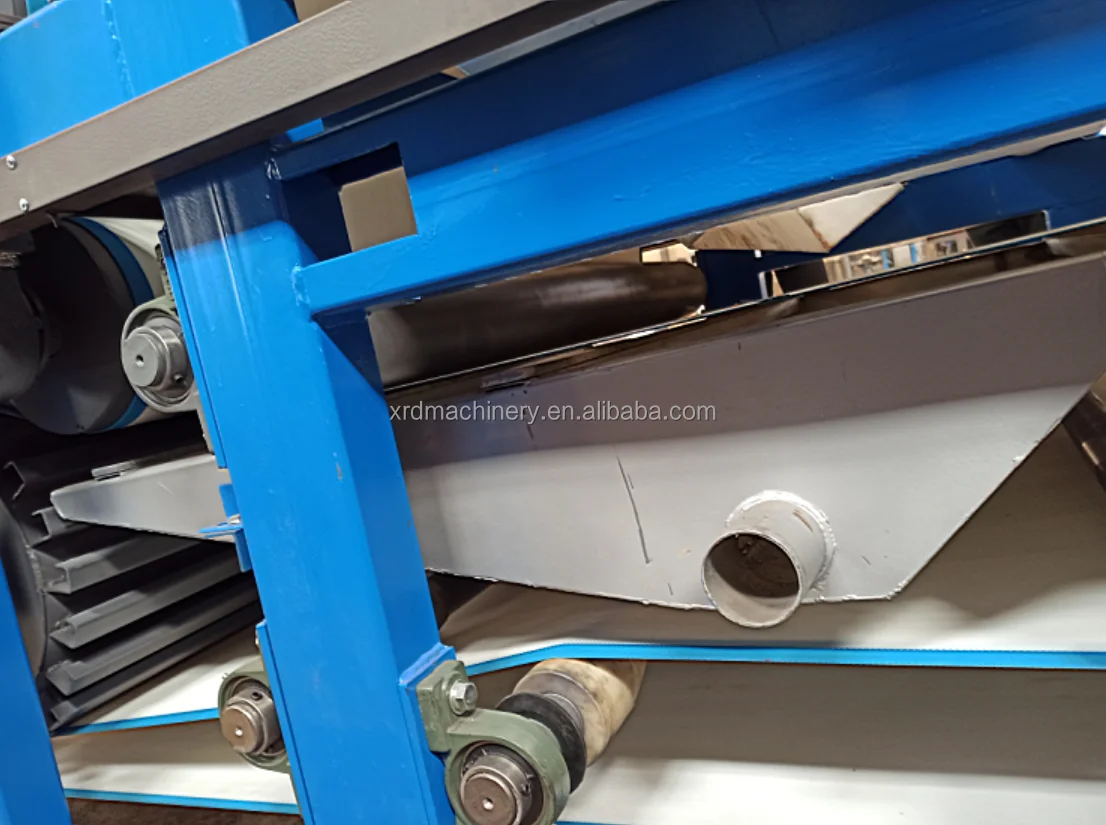

The water trays are made of stainless steel 304, inlet device and control cabinet shell, backwash pipe with nozzles, are made of stainless steel 304, the motor is from Siemens, Schneider, or Chinese famous brand.
Automatic belt deviation adjustment
There are 4 cylinders in total, to adjust 3 belts.

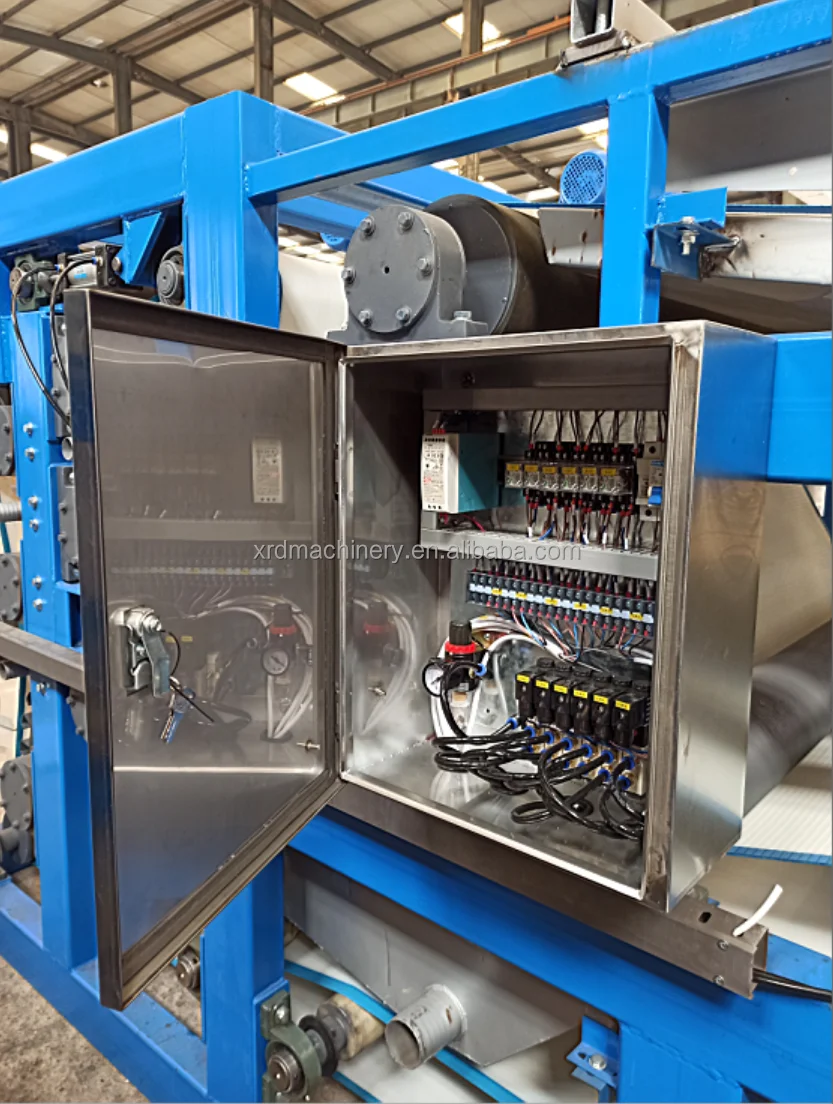

Perfect control cabinet
There are air control and electrical control cabinets.
Double scrapers
Strengthen nylon scraper with flexible adjustable angle.
Company Introduction
Shandong Xuridong Machinery Co. Ltd., produces wonderful pulp and paper making machines and solutions, and pulp molding making machines and solutions, waste water treatment equipment and solutions, and tissue paper converting machines, that are technologically advanced, highly efficient and of superior quality. Our company covers an area of more than 10,000 square meters.
We export to many countries, including Europe, America, Africa, Middle east and Southeast Asia. Our prime location is in Zhucheng City, Shandong Province. We are in very close proximity to Qingdao port. Product design and development is a prime concern at Xuridong Machinery. Our technology department is composed of 12 talented designers, including 2 highly-skilled senior engineers.
With their wealth of comprehensive experience and impressive expertise, we have achieved a total of 32 patents over the past few years. And we have passed I S O 9 0 0 1, C E and S G S certifications. These accomplishments have been a powerful driving force enabling our company to continue to focus heavily upon innovation and efficiency while supplying new and upgraded products, in response to dynamic and ever-changing market demands. Our machining workshop has been equipped with only the most advanced and finest quality production machinery available. Last but not least, our electronic components are all purchased from Siemens, Schneider and other world-renowned brands. This accompanied by our in-house developed control cabinets enables us to provide a powerful guarantee on the quality of all electrical control systems.
We export to many countries, including Europe, America, Africa, Middle east and Southeast Asia. Our prime location is in Zhucheng City, Shandong Province. We are in very close proximity to Qingdao port. Product design and development is a prime concern at Xuridong Machinery. Our technology department is composed of 12 talented designers, including 2 highly-skilled senior engineers.
With their wealth of comprehensive experience and impressive expertise, we have achieved a total of 32 patents over the past few years. And we have passed I S O 9 0 0 1, C E and S G S certifications. These accomplishments have been a powerful driving force enabling our company to continue to focus heavily upon innovation and efficiency while supplying new and upgraded products, in response to dynamic and ever-changing market demands. Our machining workshop has been equipped with only the most advanced and finest quality production machinery available. Last but not least, our electronic components are all purchased from Siemens, Schneider and other world-renowned brands. This accompanied by our in-house developed control cabinets enables us to provide a powerful guarantee on the quality of all electrical control systems.
CONTACT WITH US
Mr. Bertram Young
Position: Trade manage and Engineer
Shandong Xuridong Machinery Co.,Ltd.
Shandong Xuridong Machinery Co.,Ltd.
Wechat: Y15253622917
Tel/Whatsapp: +8615253622917
Skype: Mr.young8899
Mob: 0086 13563631266； 0086 15253622917
E-mail: [email protected] [email protected]
Tel/Whatsapp: +8615253622917
Skype: Mr.young8899
Mob: 0086 13563631266； 0086 15253622917
E-mail: [email protected] [email protected]
Website: www.xuridong-en.com
Add: No.68, Tieyuan Road, Zhucheng City, Shandong Province, China------262200
Add: No.68, Tieyuan Road, Zhucheng City, Shandong Province, China------262200

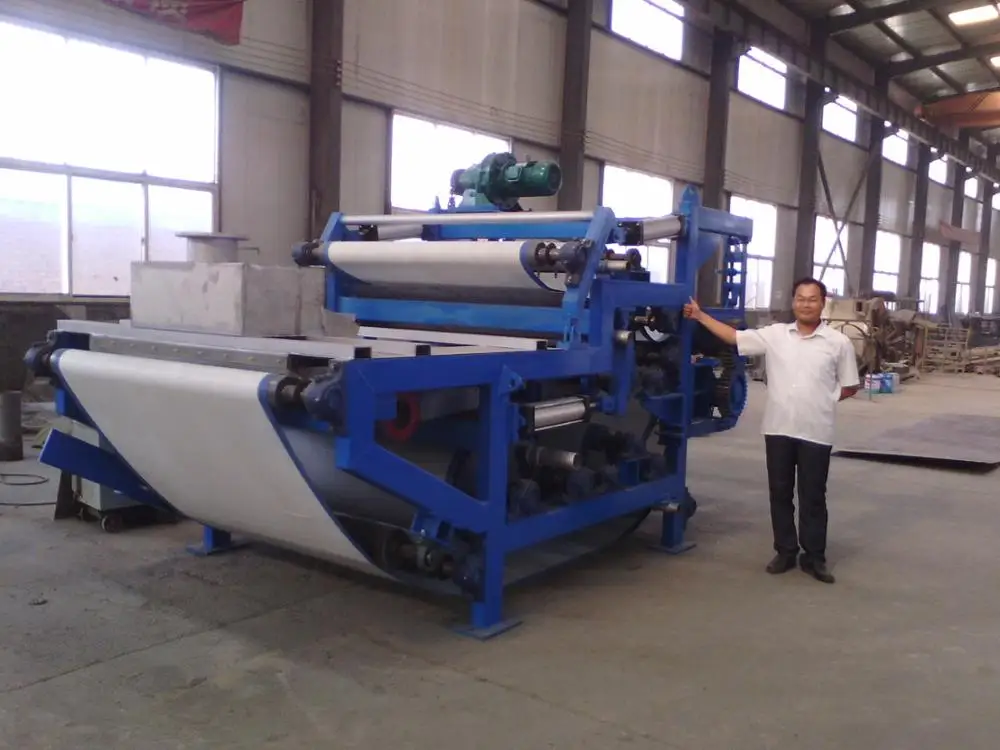

Customer Photos

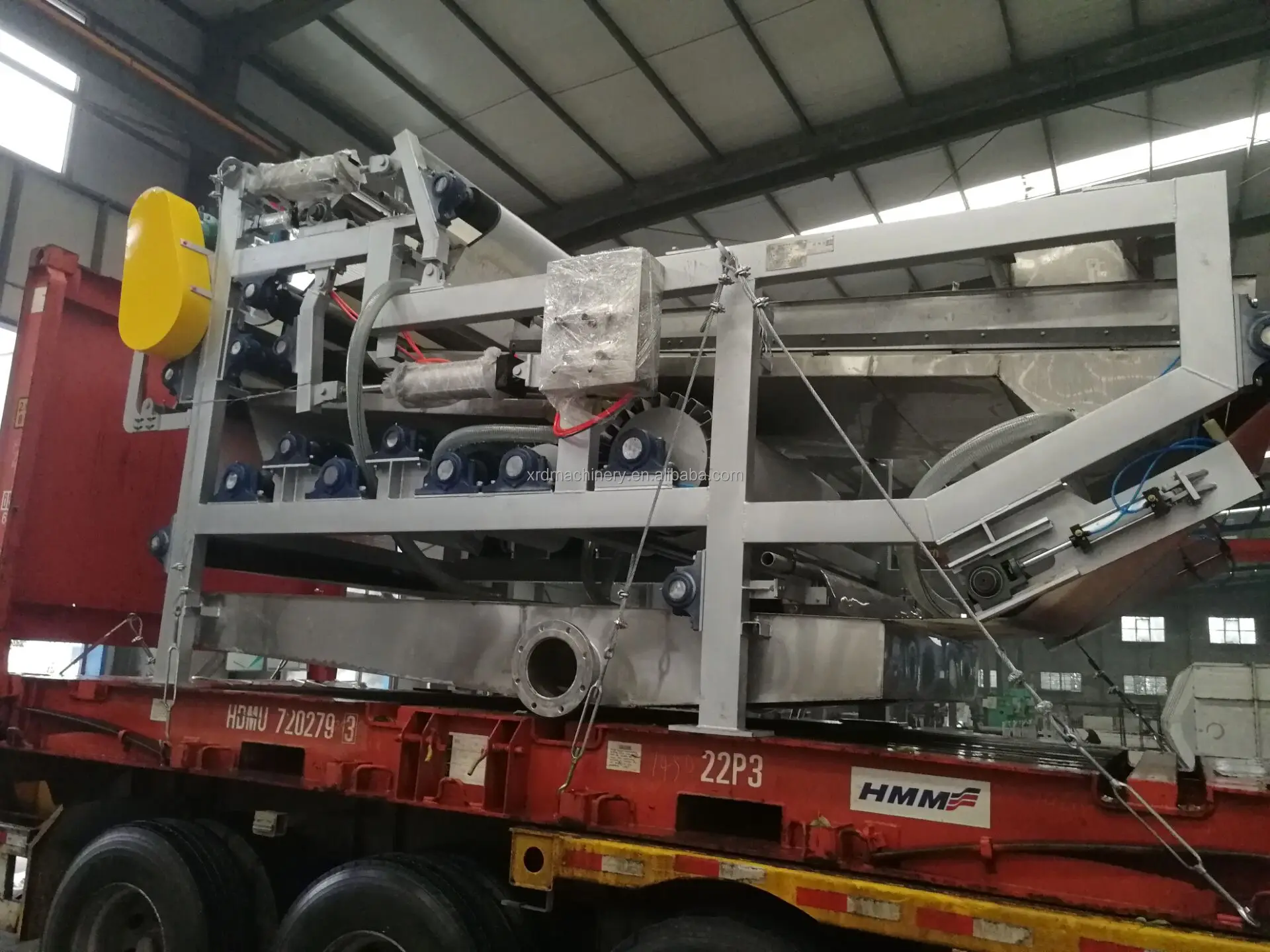

Packing&Shipping
It can be packaged by container, or by wood case, or by plastic bags.
After Sales Service
1. We are responsible for correctly guiding the installation, commissioning and trial production of equipment for free, to ensure that we reach the design capacity within the planned time.
2. We are responsible for the technical training of the buyer. The training content includes equipment structure and maintenance, equipment control and operation.
3. After receiving the service call, the supplier will respond within 8 hours and provide 24-hour service to solve any problems raised by the buyer at any time.
4. Cooperate with the maintenance service at any time and provide accessories in time. Provide accessories.
5. Commitment to lifetime service only charge for parts and materials, not any manual travel.
2. We are responsible for the technical training of the buyer. The training content includes equipment structure and maintenance, equipment control and operation.
3. After receiving the service call, the supplier will respond within 8 hours and provide 24-hour service to solve any problems raised by the buyer at any time.
4. Cooperate with the maintenance service at any time and provide accessories in time. Provide accessories.
5. Commitment to lifetime service only charge for parts and materials, not any manual travel.
FAQ
01. How to buy your idea products?
A: You can provide us your water sources, water quality, flow rate and ground area (connect us for more details).
02. How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.
03. What is the delivery time?
A: It depends on order quantities. Generally speaking, the delivery time will be within 4 to 6 weeks.
04. How to pack the products?
A: We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by
customers.
05. How to keep your equipment from corrosion?
A: We use the world-famous paint, like SigmaCoatings, PainBow, etc. What's more, we paint strictly according to the standard
process.
06. How do you manufacture your equipment ?
A: Our machining technology includes laser/plasma cutting, automatic welding, CNC cutting and bending.
07. How to install after the equipment arriving destination?
A: We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you. However, the visa
fee, air tickets, accommodation, wages will be paid by buyers.
A: You can provide us your water sources, water quality, flow rate and ground area (connect us for more details).
02. How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.
03. What is the delivery time?
A: It depends on order quantities. Generally speaking, the delivery time will be within 4 to 6 weeks.
04. How to pack the products?
A: We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by
customers.
05. How to keep your equipment from corrosion?
A: We use the world-famous paint, like SigmaCoatings, PainBow, etc. What's more, we paint strictly according to the standard
process.
06. How do you manufacture your equipment ?
A: Our machining technology includes laser/plasma cutting, automatic welding, CNC cutting and bending.
07. How to install after the equipment arriving destination?
A: We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you. However, the visa
fee, air tickets, accommodation, wages will be paid by buyers.
