Cleveland Open Cup Measuring Flash Point Instrument for Lubricating Oil
- Category: >>>
- Supplier: Chongqing Gold Mechanical & Electrical Equipment Co. Ltd.
Share on (60820843086):
Product Overview
Description

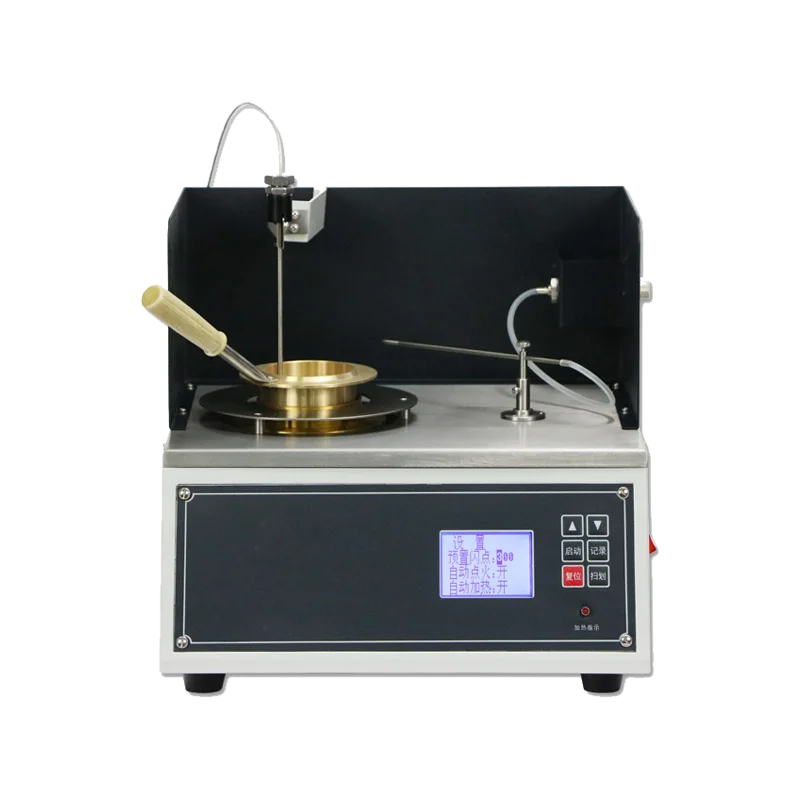

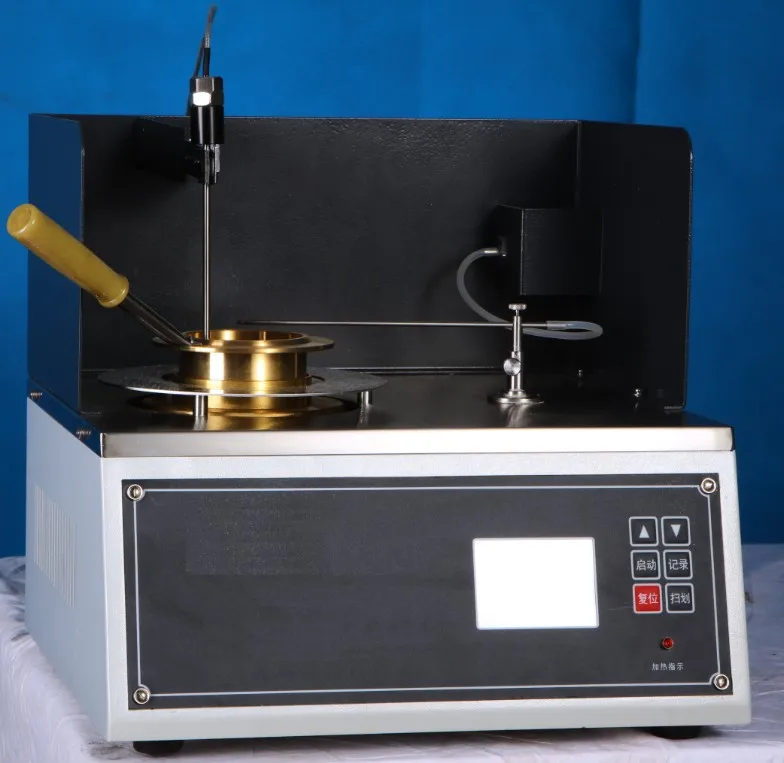

Cleveland Open Cup Measuring Flash Point Instrument for Lubricating Oil
Introduction:
Cleveland Open Cup Flash Point Measuring Instrument is designed and made as per ASTM D 92 Standard Test Method for Flash and Fire Points by Cleveland Open Cup Tester.
Cleveland Open Cup Flash Point Measuring Instrument applicable to all petroleum products with flash points above 79℃ and below 400℃ except fuel oils.
Features:
1. Cleveland Open Cup Flash Point Measuring Instrument adopts technology of single chip micro-computer and LCD screen. English man-machine interface. The heating device is continuously adjustable. Easy to set parameters.
2. The LCD screen has prompt menu, prompt type input for operation interface. It shows set parameters and real-time display sample temperature and other parameters. Press the record key when flash point appearing. The screen will display and save flash point value.
3. Cleveland Open Cup Flash Point Measuring Instrument is newly design and small structure. Stainless steel working table make it elegant and beautiful. The operator can do determination as long as connecting with coal gas or other civil gas. Easy to use and results are exact.
4. Cleveland Open Cup Flash Point Measuring Instrument is equipped with wind-shelter and flame extinguishing cover which are accord with requirements of test.
5. Accurate heating rate.The instrument can do test automatically.
6. Operator only need to observe the flash point appearing. The cost performance is high.
Specifications:
Product name | Cleveland Open Cup Measuring Flash Point Instrument for Lubricating Oil |
Power supply | AC (220±10%) V, 50Hz |
Heating device | Electric furnace heating, no naked fire, explosion prevented.The power is adjustable from 0W to 600W. The max heating temperature can reach 400℃ |
Temperature control | Single chip microcomputer.The heating rate can meet |
Requirements of standards | GB/T 3536-2008 and ASTM D92 |
Temperature display | LCD shows temperature parameters |
The display range and accuracy | 0℃~ 400℃, 0.1℃ |
Flash point detecting device | It applies the test flame automatically |
Temperature sensor | RTD, PT100 |
Igniting device | (1) Ignition source: coal gas (or civil gas) (2) Flame diameter is 3.2mm~ 4.8mm |
| Ambient temperature | (-10 ~ 50)℃ |
| Relative humidity | ≤85% |
| Maximum power consumption | 650W |
| Dimension | 340*320*450mm (Temperature sensor is included) |
Accessories:
| No. | Name | Unit | Quantity | Remark |
| 1 | Main unit | Set | 1 | |
| 2 | Cleveland oil cup | Piece | 1 | We can provide more if you required. |
| 3 | Ignition device | Set | 1 | |
| 4 | Thermometer | Piece | 1 | -6°C~400 °C, graduated scale is 2 °C |
| 5 | Thermometer support | Set | 1 | |
| 6 | Power supply wire (250 V 6 A) | Piece | 1 | |
| 7 | Fuse 5 A (Φ5×20) | Piece | 2 | |
| 8 | Latex tube Φ6 | Meter | 1.5 | Could not be used as coal gas tube |
| 9 | Joint for coal gas tube | Piece | 1 | Connect coal gas tube and latex tube |
| 10 | Extinguishing cover | Piece | 1 |

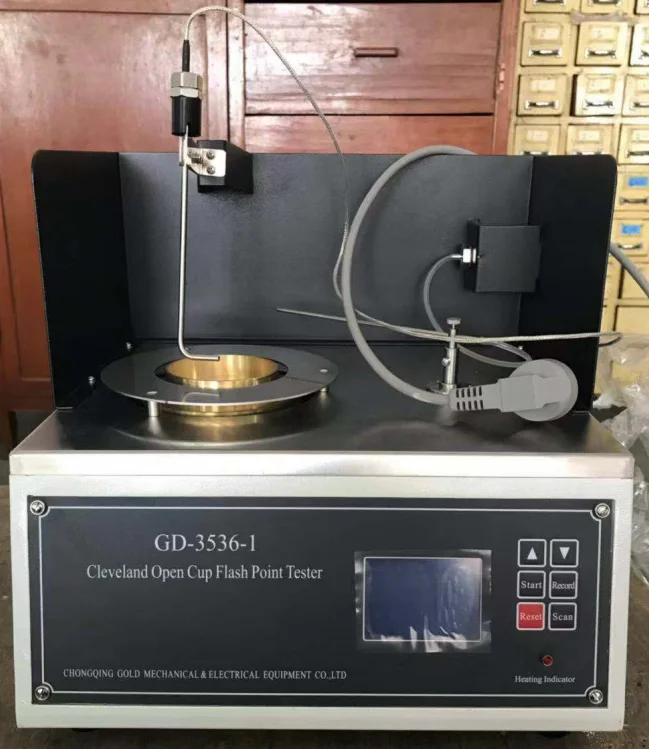

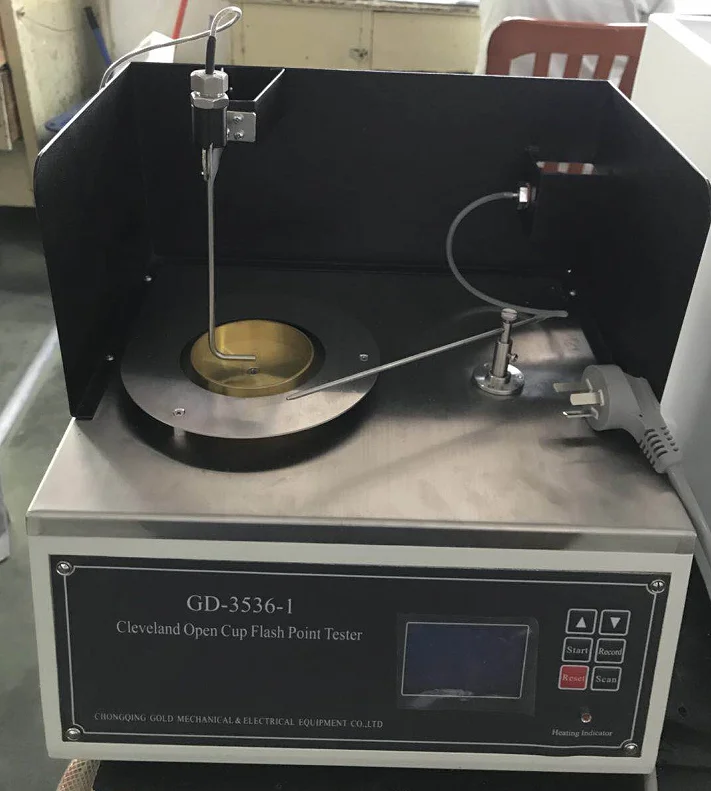

GD-3536 Series ASTM D92 CLEVELAND OPEN CUP FLASH POINT TESTER
Parameter | GD-3536 | GD-3536-1 | GD-3536A | GD-3536D |
Temperature range | Ambient temperature~400℃ | Ambient temperature~400℃ | Ambient temperature~400℃ | Ambient temperature~400℃ |
Ignition mode | Ignite once manually | Ignite once manually | Ignite once manually | Automatic |
Temperature display | Thermometer | LCD | Color LCD | Color LCD |
Printing | No | No | Yes | Yes |
Communication port | No | No | No | Yes |
Other function | Manually adjust heating rate | Automatically control temperature and display by LCD | Automatic | Automatic, with RS232 communication port |
Dimension | 350*290*350mm | 340*320*450mm | 410*360*420mm | 520*380*310mm |
Product Packing:
About US:
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
We mainly design and manufacture the petroleum testing instrument
After several years’ development, our products have become high intelligent and wide coverage. And our company has become one of the leading manufacturer of petroleum testing instrument .
