  • Towei 360 degree fan regulator switch supplier 4A~120V 3(2)A~250V t125 8 position 3 speed wall fan rotary switch with pull rope
Towei 360 degree fan regulator switch supplier 4A~120V 3(2)A~250V t125 8 position 3 speed wall fan rotary switch with pull rope
Towei 360 degree fan regulator switch supplier 4A~120V 3(2)A~250V t125 8 position 3 speed wall fan rotary switch with pull rope
Towei 360 degree fan regulator switch supplier 4A~120V 3(2)A~250V t125 8 position 3 speed wall fan rotary switch with pull rope
Towei 360 degree fan regulator switch supplier 4A~120V 3(2)A~250V t125 8 position 3 speed wall fan rotary switch with pull rope
Towei 360 degree fan regulator switch supplier 4A~120V 3(2)A~250V t125 8 position 3 speed wall fan rotary switch with pull rope
Towei 360 degree fan regulator switch supplier 4A~120V 3(2)A~250V t125 8 position 3 speed wall fan rotary switch with pull rope
Towei 360 degree fan regulator switch supplier 4A~120V 3(2)A~250V t125 8 position 3 speed wall fan rotary switch with pull rope

Towei 360 degree fan regulator switch supplier 4A~120V 3(2)A~250V t125 8 position 3 speed wall fan rotary switch with pull rope

Share on (60820894900):


Price:

Quantity:


Product Overview

Description


Product Description

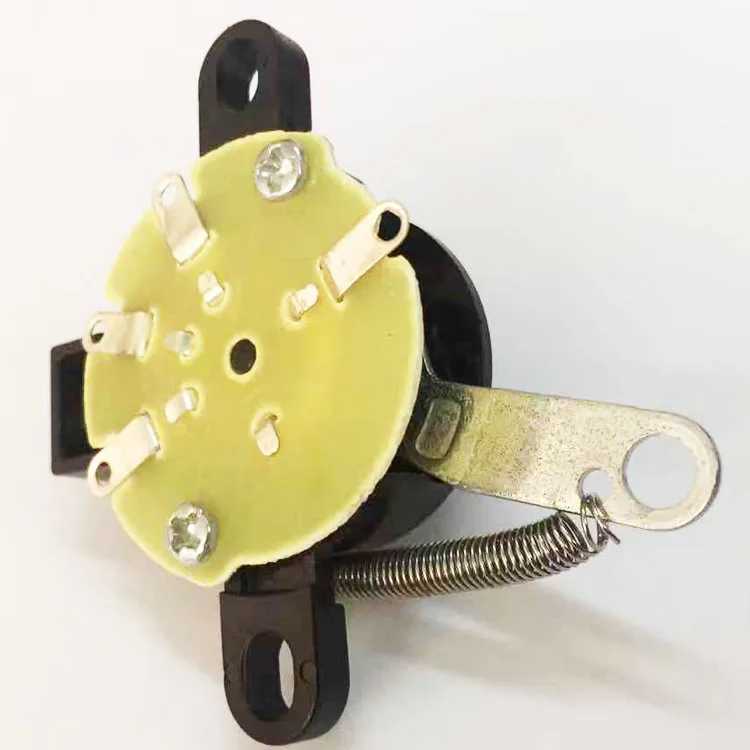

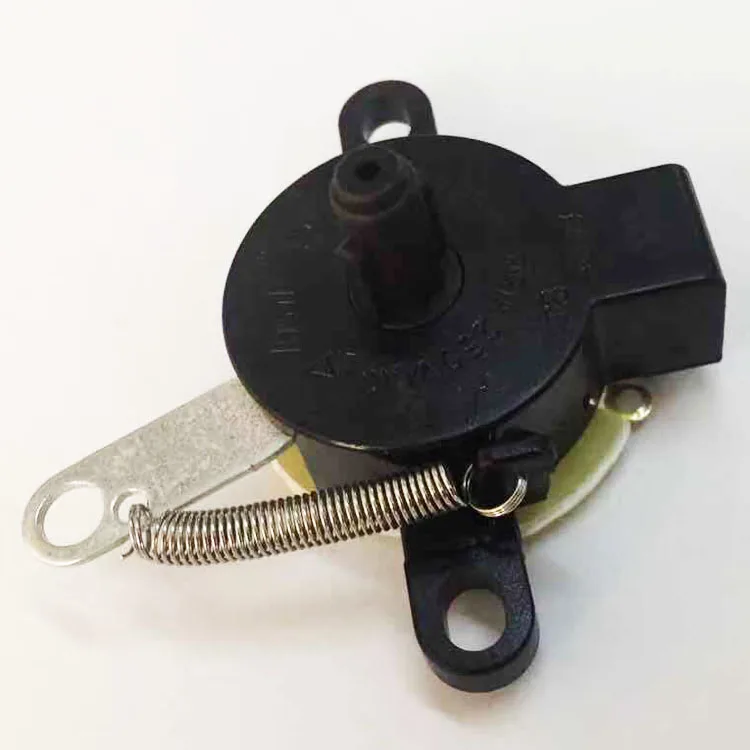

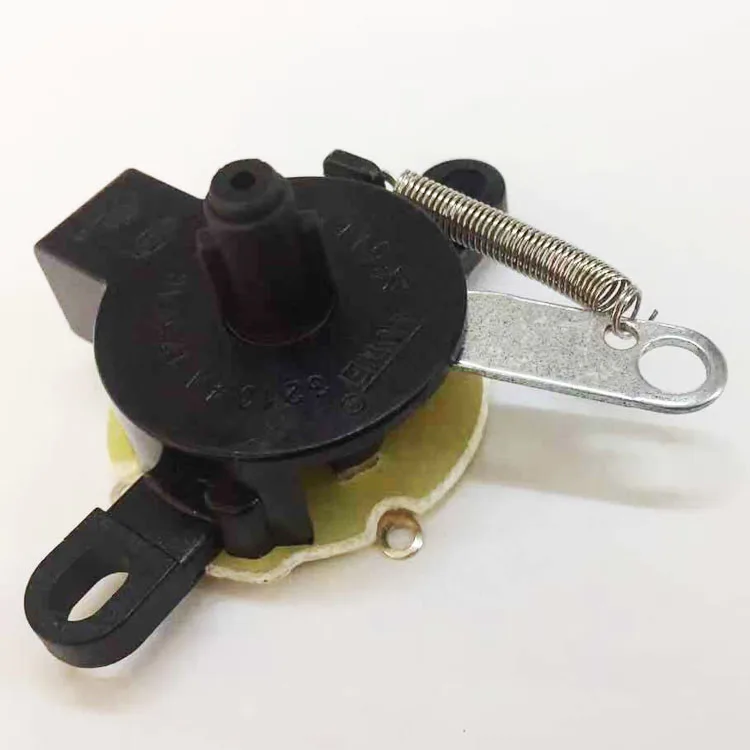

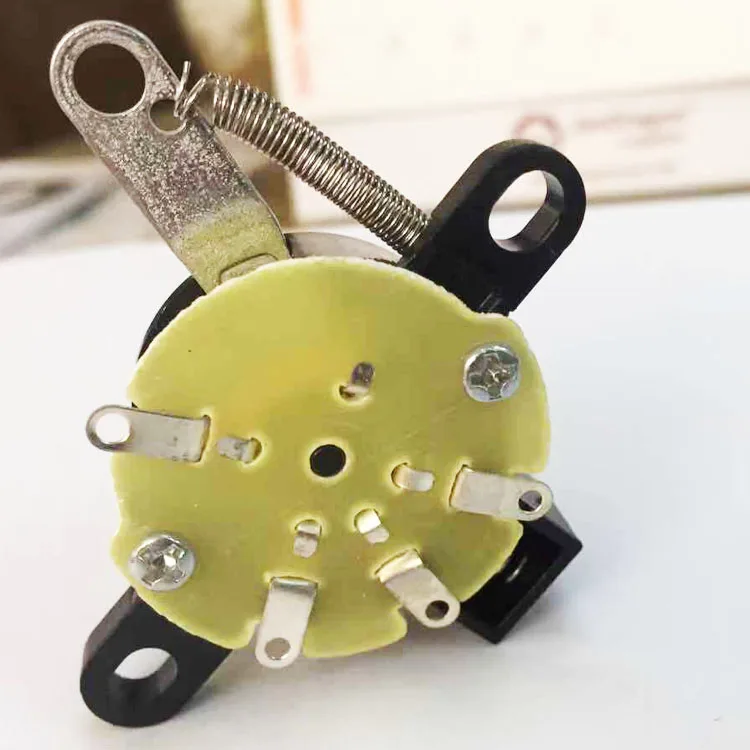

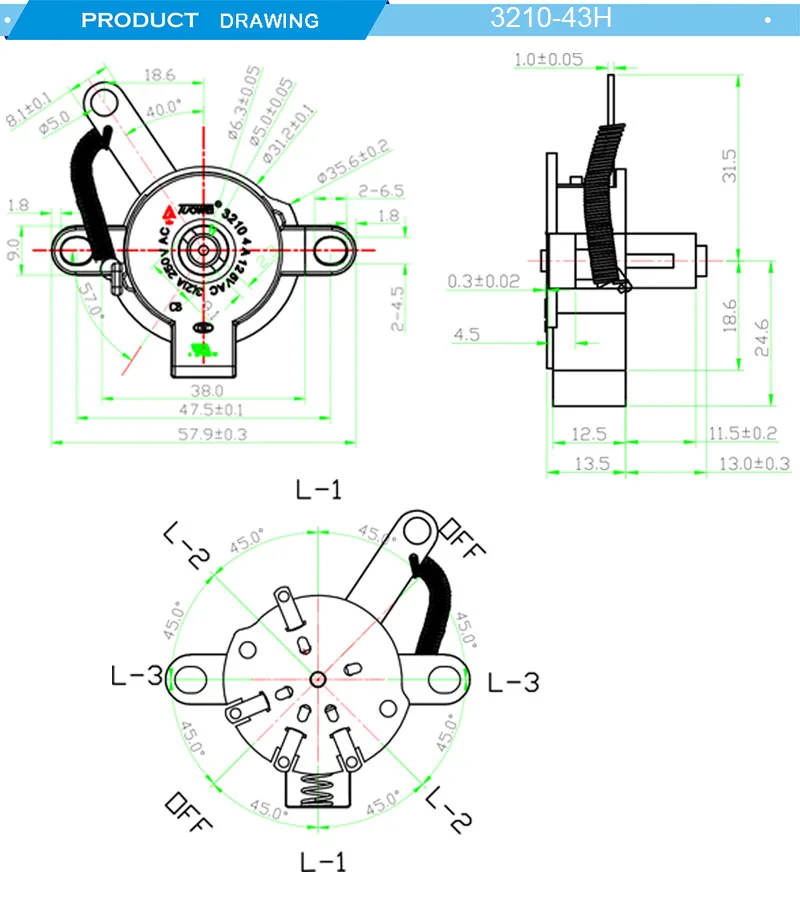

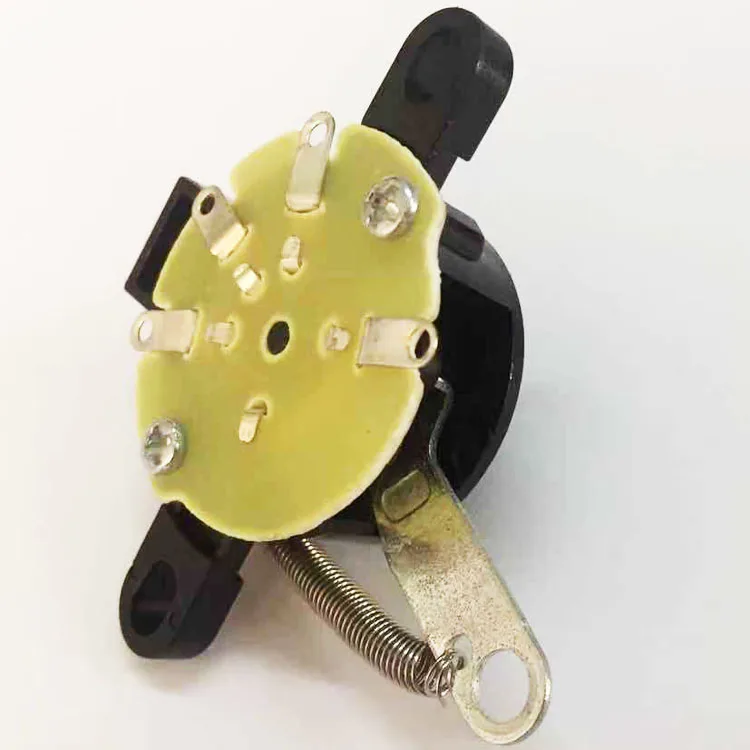

Towei 360 degree fan regulator switch supplier 4A~120V 3(2)A~250V t125 8 position 3 speed wall fan rotary switch with pull rope

Technical Parameter

   Electrical Rating

 4A ~120V.AC.   3(2)A~250V.AC.

   HZ

  60/50
   Load  Res/ Mot
   Temp(C)  125°C
   Pol/Thr  1/ M
   PP/Circuit A/--
   Endur  10K
   SPCOA  24-18AWG UL1015

   Material:

   Cover: PA66                  Flame rating: V-2 or V0             Temperature: 130°C              Grade: Dupont
   Rotary: PA66                Flame rating: V-2 or V0               Temperature: 130°C              Grade: Dupont
   Movable Contract: Copper
   Terminals: Brass
   Base: PA66         Flame rating: V-2 or V0                      Temperature: 130°C            Grade: Dupont
   Apply to:
   Electric Wall FAN and other home appliances
