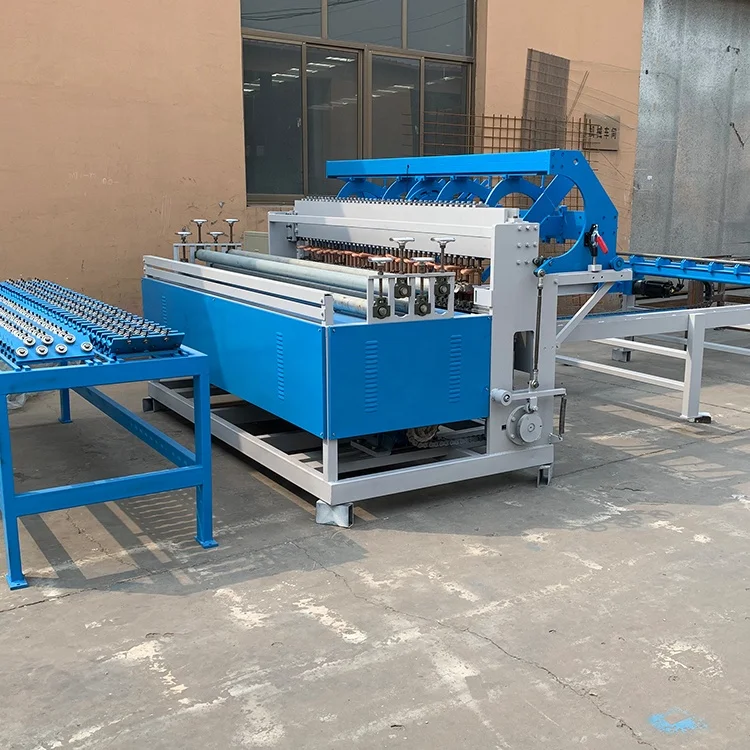

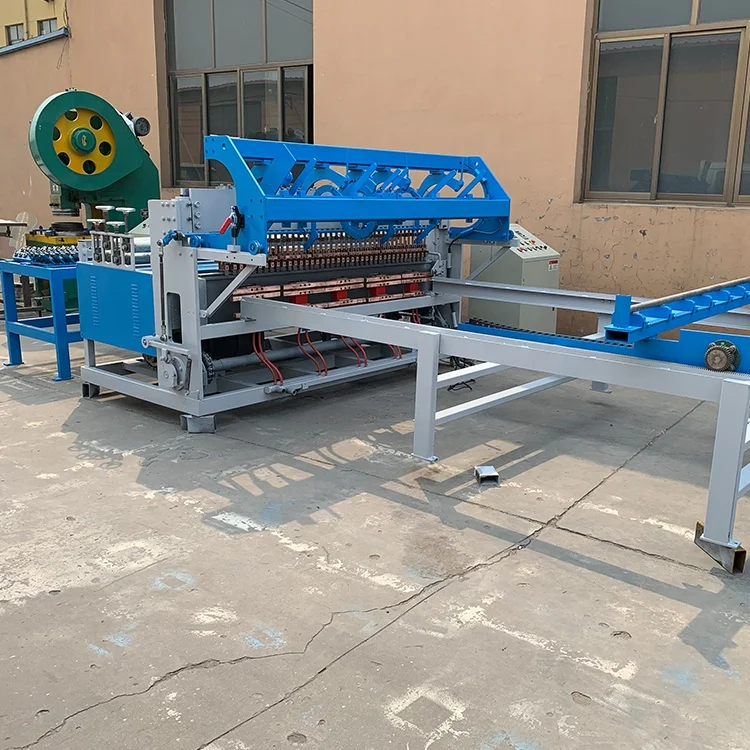

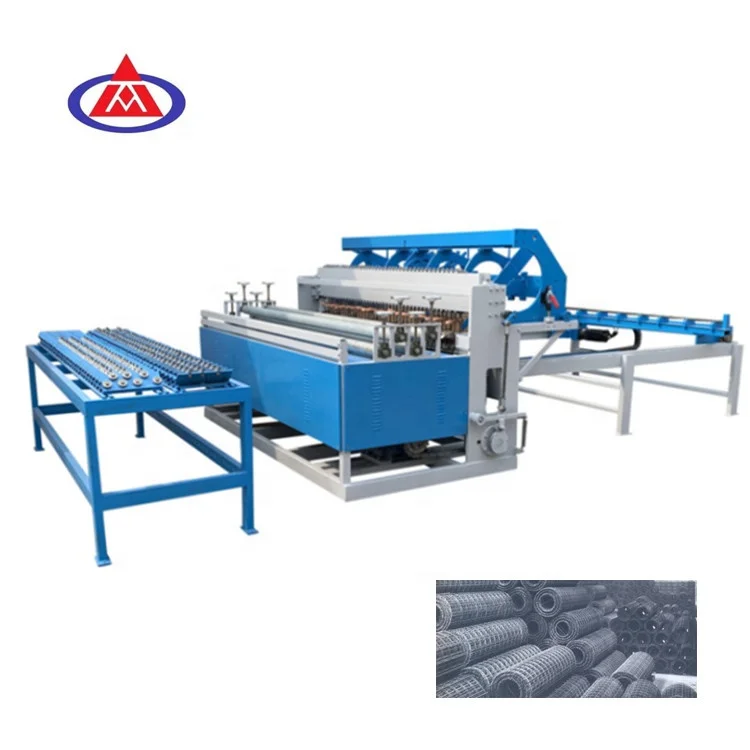

2023 hot sale best price high quality automatic BRC steel welded wire mesh machine

Product Overview

Description

2023 hot sale best price high quality automatic brc steel welded wire mesh machine



BRC Welded Wire Mesh Machine Main parameter:



Item	WZ-1200A (2.5-6.0mm)	WZ-1600B (3.0-6.0mm)	WZ-2400B (3.0-6.0mm)	WZ-2500A (3.0-6.0mm)
Number of Electrodes	24 or customized	32 or customized	24 or customized	48 or customized
Max Mesh Width	1200mm	1600mm	2400mm	2500mm
Wire Diameter	2.5-6.0mm	2.5-6.0mm	3.0-6.0mm	3.0-6.0mm
Cross Wire Space	50-250mm	50-250mm	100-250mm	50-250mm
Line Wire Space	50-250mm	50-250mm	100-250mm	50-250mm
Rated Power	125KWA*3	125KWA*4	125KWA*4	125KWA*6
Welding Speed	0-80times/min	0-80times/min	0-80times/min	0-80times/min
Control System	PLC and Touch Screen	PLC and Touch Screen	PLC and Touch Screen	PLC and Touch Screen





Machine Main Function and Advantages:

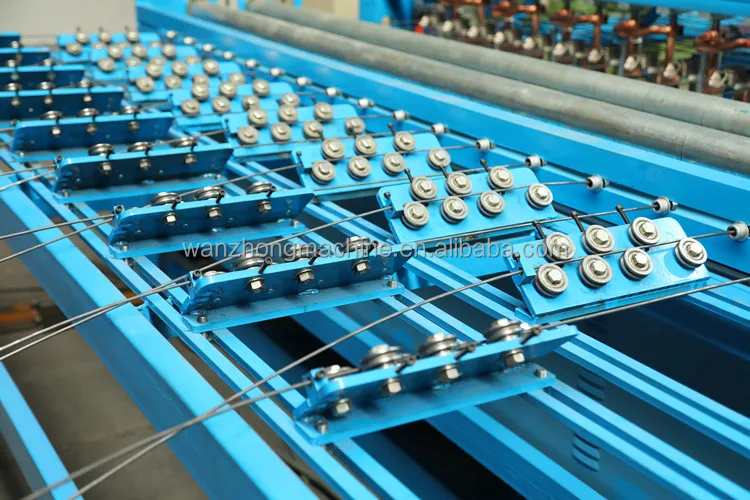

1 Our this mesh welding machine,the line wire feeding from coil automatically,which is more convenient and save labor,the total production line will need 3 workers ok;

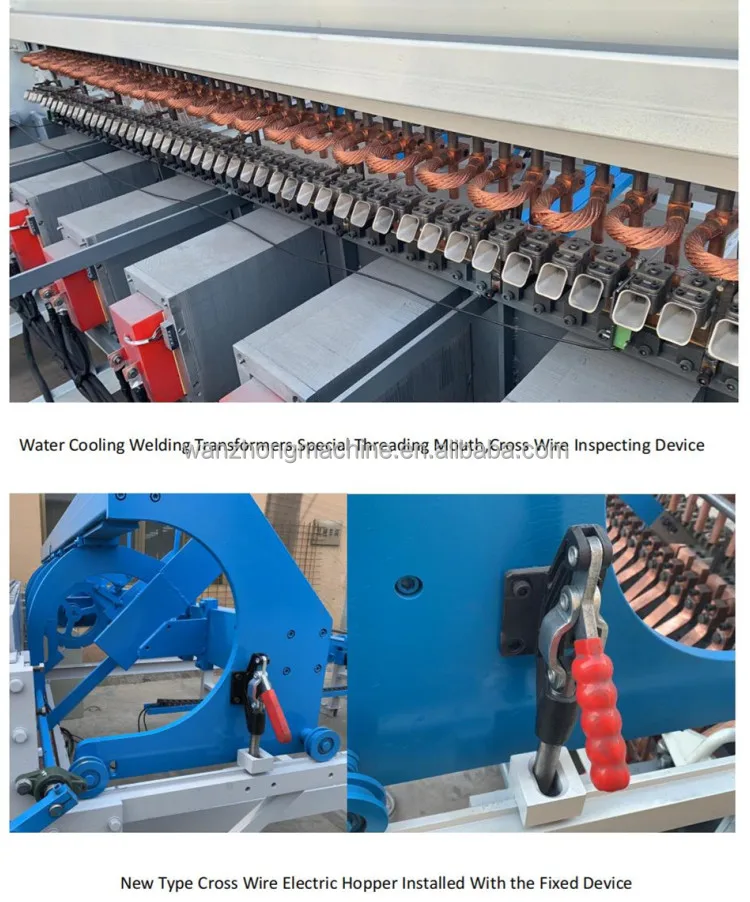

2The welding transformers is our new model and installed with water cooling system,which prolong the service life,and this water is not wasted, can be recycled all the time;

3 Our welding pressure adopts mechanical spring,easy to adjust,which save the cost and maintenance cost is lower than other pneumatic model;

3 The cross wires are fed from pre-cut,which adopts step motor driven from the special hopper one by one;

4 Every welding transformer is controlled by single microcomputer control ,cent-control welding one time pressure ,which is more intelligentialized.The controller will connect with the  touch screen , and we can set the welding current and welding time on the touch screen ,which is very convenient,this machine will save energy greatly,in the theory,the production line will need only 12 degree electricity;

5 The cross wire testing devices are equipped . When the cross wire can’t suitably fall down or no cross wire, the machine will stop automatically,greatly avoid the occurrence of unqualified meshes;

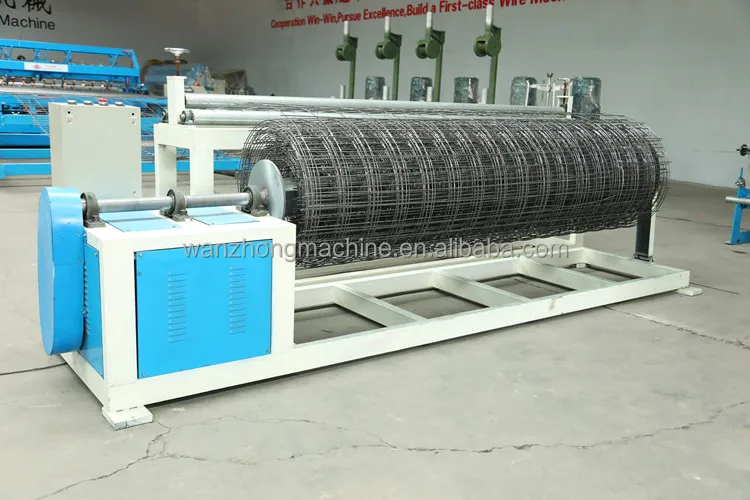

6 This machine can both produce mesh panels and roll mesh.
