Hot sale Square flat dual LED indicators laser optical beam photo electric sensor
- Category: >>>
- Supplier: Shenzhen Akusense Technology Co. Ltd.
Share on (60820934167):
Product Overview
Description
Product Description
Specification
Sensing type | Diffuse reflection | Thru-beam | |||
30cm | 500cm | ||||
Response time | <1ms | ||||
Output type | NPN/PNP Open-collector | ||||
Switch type | Selectable L.on/D.on | ||||
Light Source | Infrared light LED(850nm) | ||||
Operating voltage | 12~24V DC | ||||
No-load supply current | ≤25mA | ||||
Load current | ≤100mA(24V DC) | ||||
Ambient temperature | -20℃~60℃ no freezing | ||||
Ambient humidity | 35~85%RH,No coagulating | ||||
Insulation resistance | ≥20MΩ/500V DC | ||||
Degree of protection | IP64 | ||||
Material | PBT+PC | ||||
Connection | 4 Core cable(Length:2m) | ||||
Weight | ≈60g | ≈115g | |||
Material | Nickle plated brass/PBT Optional | ||||

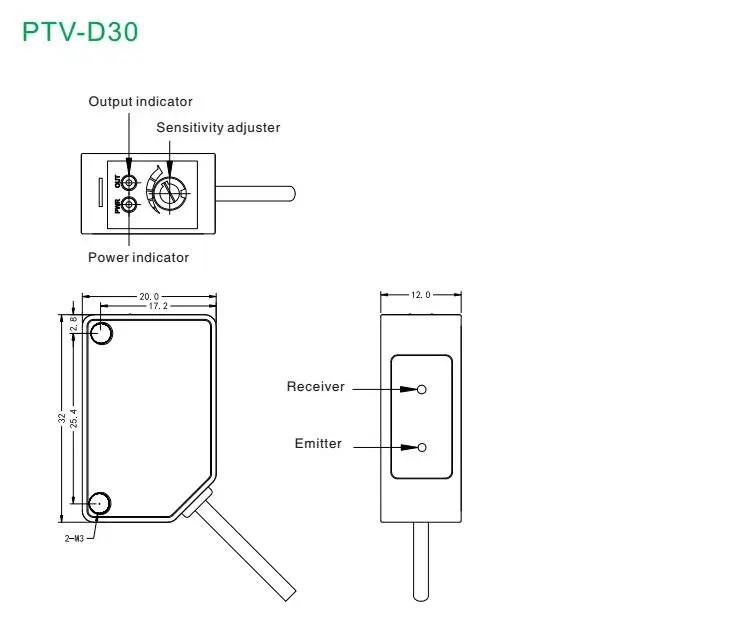

Model No. | NPN | PTV-D30N | PTV-T500N | ||
PNP | PTV-D30P | PTV-T500P | |||
